GE PP7030DJ1BB Electric Range

Model: PP7030DJ1BB

Save
 Part Not Listed?Part Not Listed?
product name

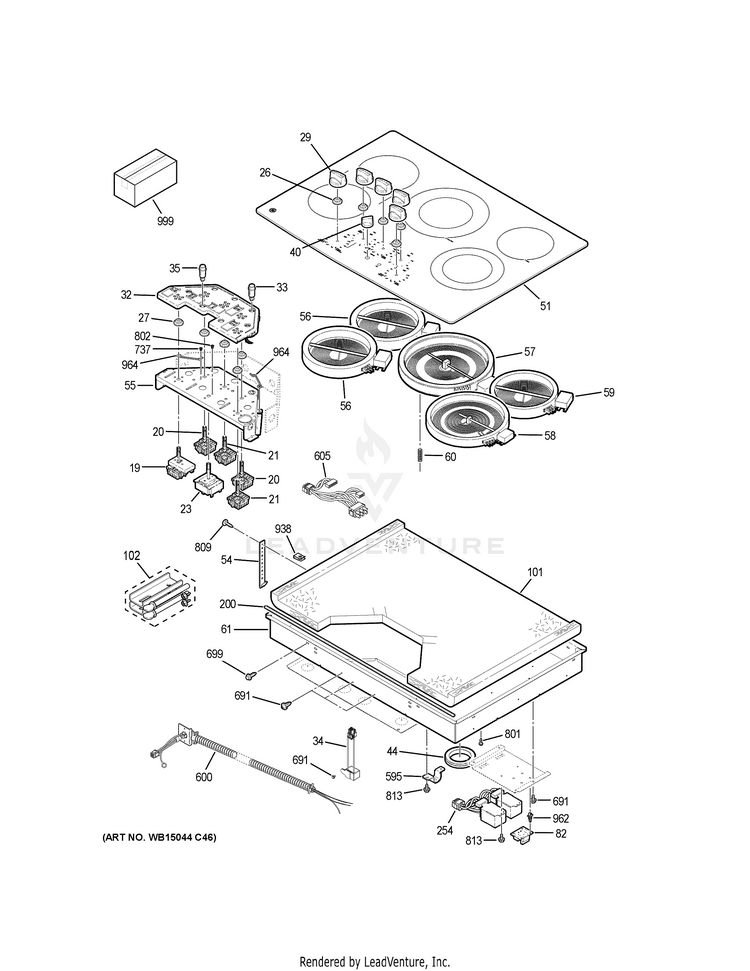

CONTROL PANEL & COOKTOP

...
...
19
SWITCH INFINITE CONTROL GEH-WB24X24136
...
20
SWITCH INFINITE CONTROL GEH-WB24X24137
...
21
SWITCH INFINITE CONTROL GEH-WB24X24138
...
23
LOCKOUT SWITCH GEH-WB24X24145
...
26
CLEAR SEAL INF CONT GEH-WB02X26801
...
27
INFINITE CONTROL SEAL GEH-WB02X9504
...
29
KNOB ASM, BB GEH-WB03X24148
...
32
LED BOARDS AND HOUSING A GEH-WB27X24130
...
33
INDICATOR LIGHT GEH-WB25T10012
...
34
BUZZER GEH-WB18X24105
...
35
LOCKOUT INDICATOR LIGHT GEH-WB25X24131
...
40
KNOB SELECTOR (BK) GEH-WB03T10314
...
44
BURNER BOX GROMMET GEH-WB02T10092
...
51
MAINTOP GLASS & FRAME A GEH-WB62X24149
...
54
BRACKET HOLD DOWN GEH-WB02X24100
...
55
BRACKET INF SWITCH GEH-WB02X24133
...
56
ELEMENT RADIANT 6 IN GEH-WB30T10129
...
57
ELEMENT RADIANT 9" DUAL GEH-WB30X24111
...
58
ELEMENT HALIANT (DUAL) GEH-WB30X24134
...
59
ELEMENT RADIANT 5.5 IN GEH-WB30T10145
...
60
SPRING RADIANT ELEMENT GEH-WB09T10013
...
61
BOTTOM BURN BOX GEH-WB63X24120
...
82
BOARD SURGE BACKLIGHT GEH-WB27X24029
...
101
INSULATION GEH-WB35X24123
...
102
INSTALLATION KIT GEH-WB01X24570
...
200
FOAM TAPE GEH-WB2X9902
...
254
HARNESS WIRE RELAY GEH-WB24X24500
...
595
CONDUIT CLAMP GEH-WB02K5126
...
600
CONDUIT WIRE ASM GEH-WB18X24538
...
605
HARNESS WIRE POWER GEH-WB18X24522
...
605
HARNESS WIRE MAIN RT GEH-WB18X24526
...
605
HARNESS WIRE INF LED GEH-WB18X24505
...
605
LEAD WIRE 18 GA GEH-WB18X24144
...
605
HARNESS WIRE GRIDDLE GEH-WB18X24524
...
691
SCR 6-20 B HXW 1/4 S GEH-WZ04X0217
...
699
SCR 8-18X GEH-WB01X24096
...
737
SCR 8-32 B FLP 3/4 GEH-WB01X24132
...
801
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
802
SCREW GEH-WB01K5119
...
809
SCREW GEH-WB01X1137
...
813
SCR 8-18 GEH-WB01X24092
...
938
CLIP GEH-WB01K5209
...
962
PCB STANDOFF GEH-WB02T10477
...
964
WIRE RETAINER GEH-WB02T10086
...
999
GLASS CLEANER GEH-WB64X0093
...
999
PM OWNERS MANUAL GEH-49-80745
...
999
PM MANUAL MINI & WD ASM GEH-31-17199
...
999
PM INSTALL INSTRUCTIONS GEH-31-11025
...
...
...
