Ferris 5901141 - 50" Snow Thrower (SB50) Attachment

Model: 5901141 - 50" Snow Thrower (SB50)

Save Part Not Listed?
product name

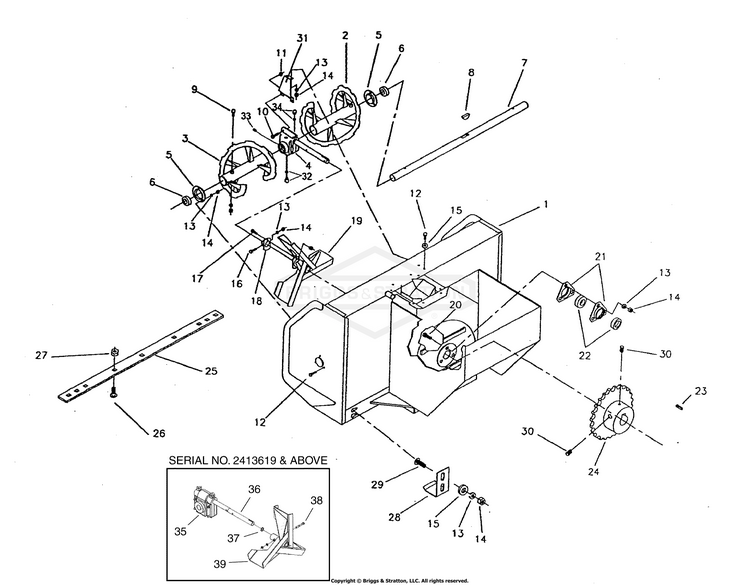

50" Snow Thrower

...
...
1
Frame BS-662819
...
2
Auger R.H. (S/N: 2413569 & Prior) BS-5661569
...
3
AUGER R.H. SNOWBLOWER (S/N: 2413570 & Later) BS-5666737
...
3
Auger L.H. (S/N: 2413569 & Prior) BS-5661568
...
xx
AUGER L.H. SNOWBLOWER (S/N: 2413570 & Later) BS-5666738
...
4
Worm Gear BS-5663030
...
4
Seal Kit BS-665775
...
5
Bearing Flange BS-657334
...
6
Bearing With Locking Collar BS-665494
...
7
Output Shaft BS-660390
...
8
Key Woodruff BS-655967
...
9
BOLT BS-84010189
...
17
BOLT BS-84010190
...
18
Fan Adaptor Shear Plate BS-5655874
...
19
FAN BS-84009376
...
21
Bearing Flange BS-656589
...
22
BEARING BS-84008989
...
23
Key 1/4" x 1/4" x 1" BS-5655379
...
24
SPROCKET BS-84010271
...
25
CUTTING EDGE BS-5659862SM
...
28
SHOE, SKID (Was 5663460) BS-84010206
...
31
Worm Gear Support BS-657332
...
32
Plug 1/8" NPT BS-656090
...
33
Plug 1/8" NPT BS-656090
...
34
Pressure Plug 1/8" NPT BS-654927
...
35
GEAR, WORM BS-84010819
...
36
Driving Shaft BS-4500036
...
37
Snap Ring - External BS-655087
...
38
Shear Bolt, Lock Washer & Nut BS-657295
...
39
Fan Assembly BS-667070

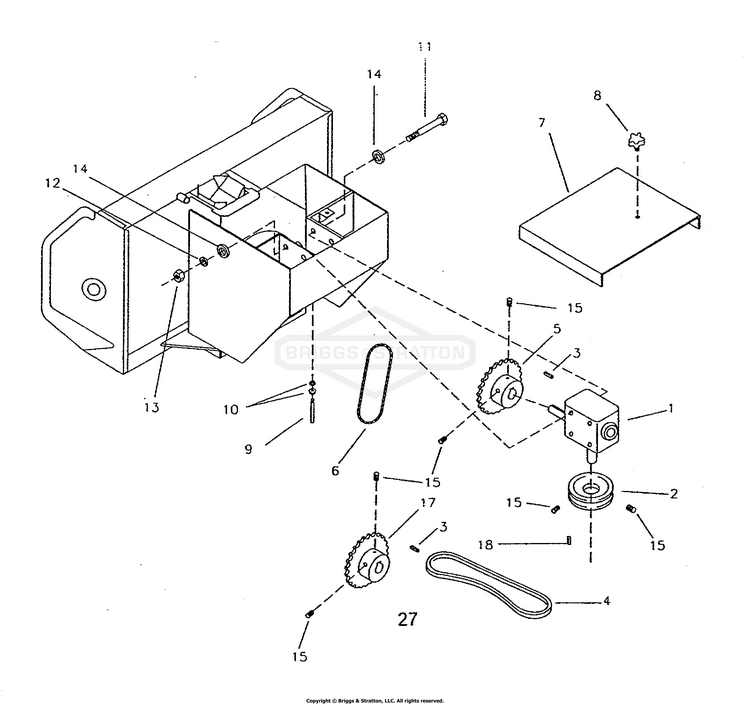

50" Snow Thrower - Drive Group

...
...
1
Gear Box BS-662578
...
2
Pulley MB 70 BS-5662990
...
3
Key 1/4" x 1/4" x 1" BS-5655379
...
4
BELT BS-84009027
...
4
BELT, # 7-7547 BS-5021390SM
...
4
Belt (Procut 30 Models) BS-5022104
...
4
BELT #7-9502 BS-5100923SM
...
5
Sprocket 40B20 BS-5657055
...
6
CHAIN BS-84009822
...
7
Cover BS-5662964
...
8
Knob 5/16" NC BS-5661832
...
17
SPROCKET BS-84010271
...
18
Key 1/4" x 1/4" x 1-1/4" BS-654643

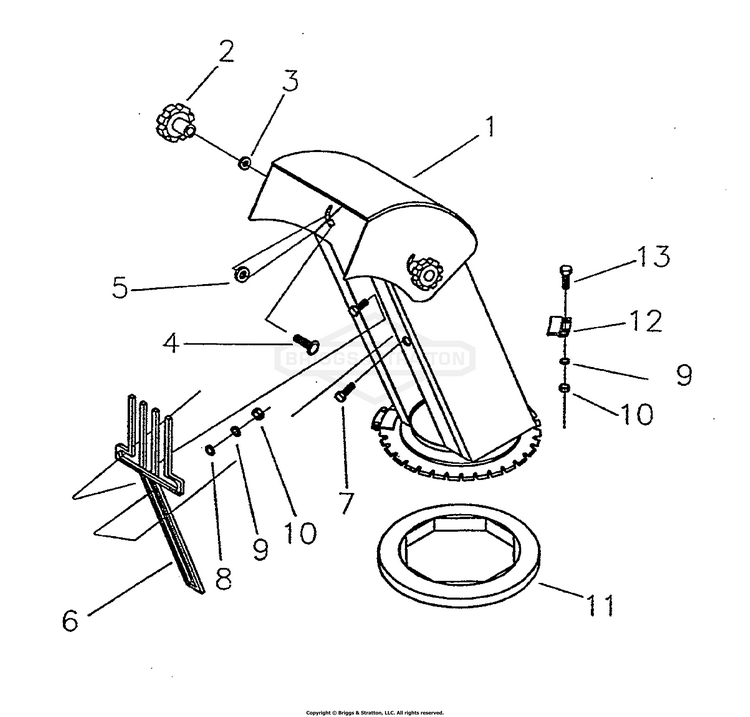

Chute Group

...
...
1
Chute, Base and Knobs with Decals BS-657319
...
2
KNOB BS-84009804
...
3
Nylon Flat Washer 11/32" Diameter Hole BS-658467
...
5
Nylon Flat Washer 7/16" Diameter Hole BS-658468
...
6
Hand Guard BS-5657308
...
11
Nylon Ring BS-5657338
...
12
Retaining Plate BS-5657333

Decal Group - Snow Thrower

...
...
1
DECAL, DANGER Rotating Auger BS-657762
...
2
DECAL, WARNING Operating Procedures BS-660988
...
3
DECAL, Lubrication Instructions BS-657804
...
4
DECAL, Important Gearbox Lubrication BS-655683
...
5
DECAL, DANGER Drive Belt BS-660265
...
6
DECAL, DANGER Discharge Chute BS-657761

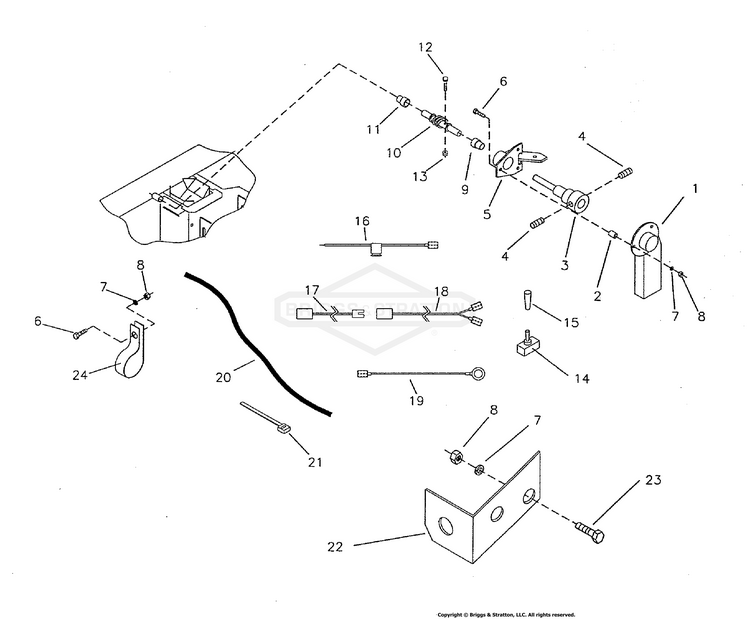

Electrical Group

...
...
1
MOTOR, ELECTRIC BS-84009362
...
2
Spacer BS-5662458
...
3
electric Rotation Shaft BS-5662459
...
5
Electric Rotation Support BS-5662466
...
9
Plastic Bushing 1-5/16" Lg BS-5657335
...
10
Rotation Worm BS-5660246
...
11
Plastic Bushing 1-11/16" Lg. BS-5657336
...
14
SWITCH BS-84010294
...
15
CAP, SWITCH BS-84010127
...
16
FUSE BS-84008896
...
17
WIRE ASSEMBLY BS-84009347
...
18
WIRE ASSEMBLY BS-84009348
...
19
WIRE, GROUND BS-84010816
...
20
Plastic Wire Cover BS-663334
...
22
Electric Support BS-663305
...
24
Wiring Clamp BS-663299

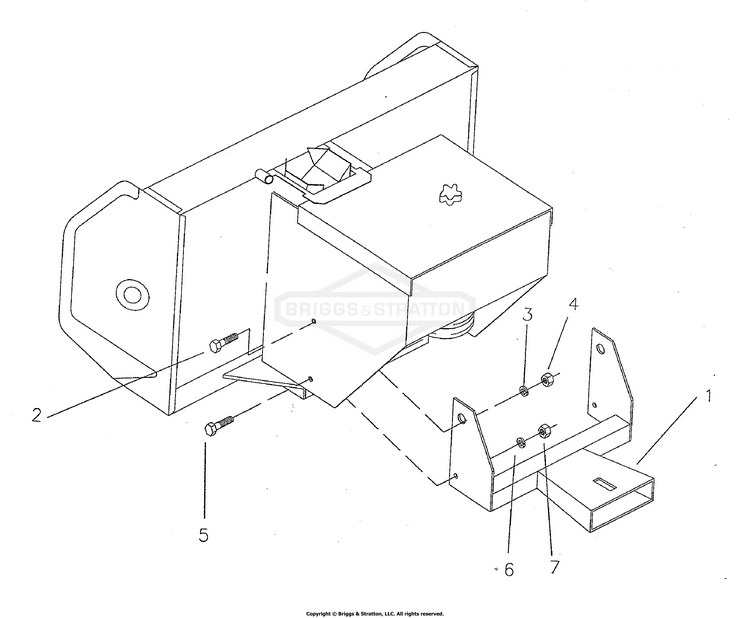

Hitch Group - Female

...
...
1
Female Quick Hitch BS-662997
