Echo 9001029 Gear Case/Blades AssemblyB

Model: 9001029 Gear Case/Blades AssemblyB

Save Part Not Listed?
product name

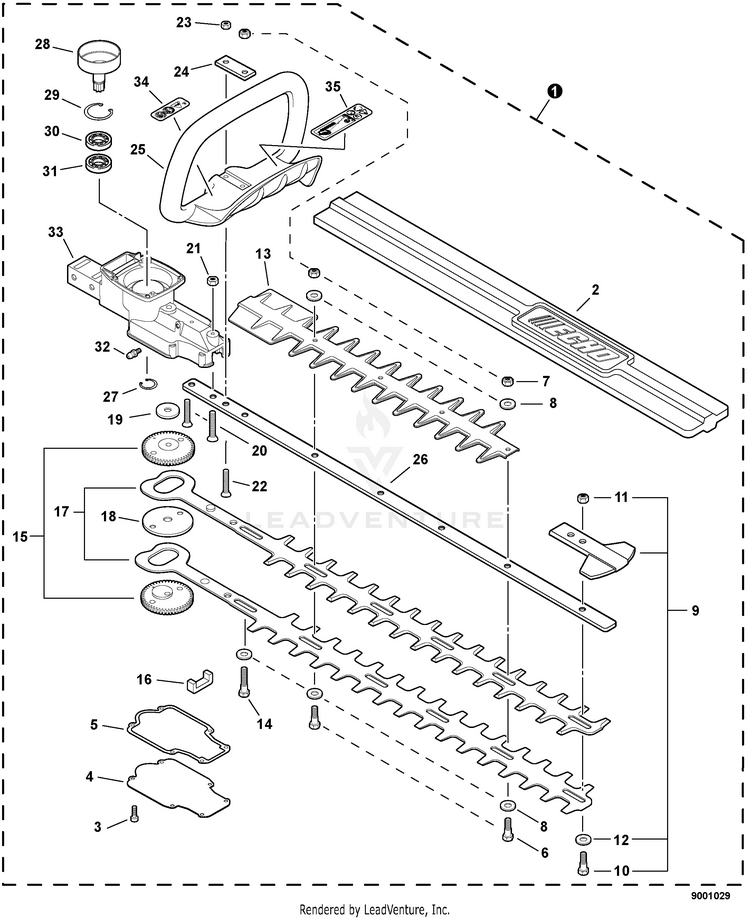

9001029 Gear Case/Blades Assembly

...
...
1
CUTTING HEAD KIT Includes ITEMS 3-35 ECH-9001029
...
2
SCABBARD 23.6" ECH-X495000480
...
3
BOLT, TORX 4x12 ECH-V804000050
...
4
COVER, GEAR CASE ECH-61041106561
...
5
GASKET, GEAR CASE ECH-61041406560
...
6
BOLT 6x18 ECH-69911504660
...
7
NUT M6 ECH-43302206460
...
8
WASHER 6.5x15.5x0.6 ECH-69911804560
...
9
TIP GUARD KIT Includes ITEMS 10-12 ECH-99988802000
...
10
BOLT 6x18 ECH-69911504660
...
11
NUT M6 ECH-43302206460
...
12
WASHER 6.5x15.5x0.6 ECH-69911804560
...
13
GUARD, CUTTER BLADE ECH-69912503061
...
14
BOLT M6x35 ECH-69911506560
...
15
GEAR, SPUR ECH-V650000080
...
16
SEAL ECH-61042606560
...
17
CUTTER ECH-X411000272
...
18
WASHER 50 ECH-68902505360
...
19
WASHER 30 ECH-68902506560
...
20
SCREW 6x30 ECH-90021206030
...
21
NUT, HEX M6 ECH-90050000006
...
22
SCREW 5x30 ECH-90021205030
...
23
NUT, FLANGE M5 ECH-9210805000
...
24
PLATE, EYE ECH-35161105360
...
25
HANDLE, FRONT ECH-C400000533
...
26
SUPPORT, BLADE ECH-X425000180
...
27
RING, SNAP 14 ECH-90070100014
...
28
DRUM, CLUTCH ECH-17500506560
...
29
RING, SNAP 35 ECH-90070200035
...
30
BEARING, BALL 6202 ECH-90087236202
...
31
BEARING, BALL 6202 ECH-90087036202
...
32
FITTING, GREASE ECH-88011054230
...
33
CASE, GEAR ECH-C531000053
...
34
LABEL - CAUTION ECH-X505000290
...
35
LABEL - CAUTION - ISO ECH-X505002610
Schematic Image Zoomed
