DeVilbiss LK6580V2 Type 1 Compressor

Model: LK6580V2 Type 1

Save Part Not Listed?
product name

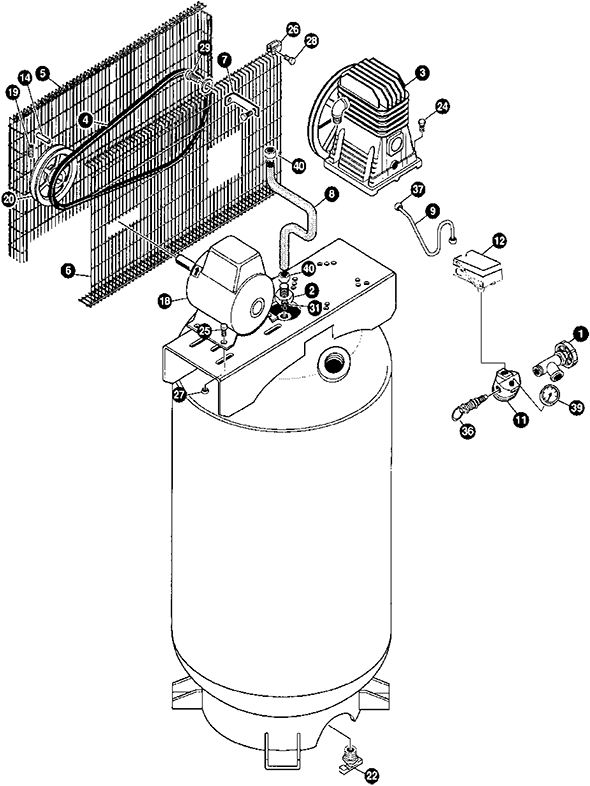

DeVilbiss LK6580V2 Type 1

...
...
1
Valve Globe 200 Psi DWB-N000323
...
2
Valve Check 1/2Npt X DWB-A19715
...
4
Belt A-Sec A58 59.3 DWB-BT-304
...
5
Beltguard Outside DWB-AC-0434
...
6
Beltguard Inside DWB-AC-0433
...
7
Bracket Beltguard DWB-DAC-306
...
8
Tube Outlet .50 Od C DWB-AC-0751
...
12
Pressure Switch DWB-5140110-49
...
14
Key Motor Shaft DWB-SUDL-65
...
18
Motor Ol 240V 2Pole DWB-D26719
...
19
Screw .313-18X.375 S DWB-SS-559
...
20
Pulley DWB-PU-2893
...
22
Drain Valve DWB-N286039
...
24
Screw .375-16X2.00 H DWB-SSF-3159
...
25
Screw .375-16X1.00 H DWB-SSF-3140-ZN
...
26
Nut Speed 8Ab U Type DWB-SSF-8131
...
27
Nut .375-16 Hex Whiz DWB-SSF-8111-ZN
...
28
Screw 10X.625 Hhw S DWB-SSF-953-ZN
...
29
Screw .250-20X.750 H DWB-91895680
...
31
Connector Body DWB-SS-8553
...
36
Valve Safety 200 .25 DWB-TIA-4200
...
37
Assy Nut Sleeve 1/4 DWB-SSP-7811
...
39
Gauge 300 Psi Back M DWB-GA-360-B
...
40
Assy Nut Sleeve 1/2 DWB-SSP-7812

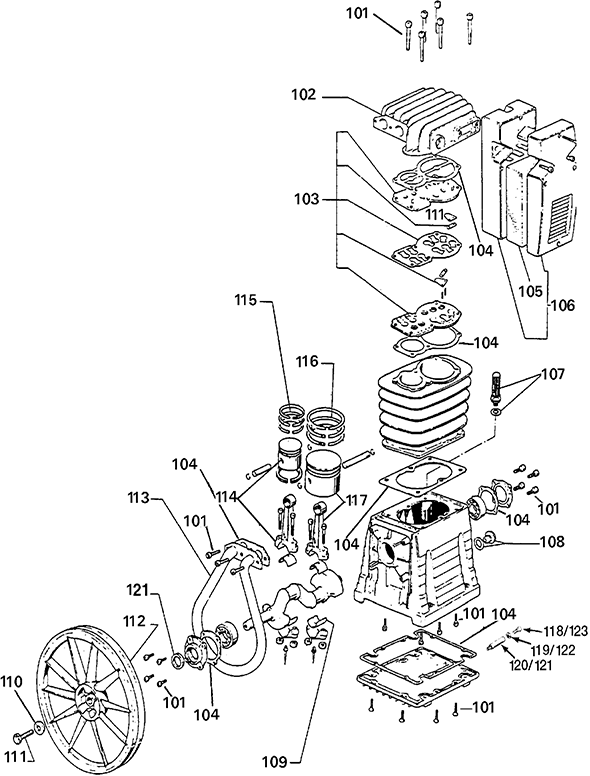

DeVilbiss LK6580V2 Type 1

...
...
101
Kit Hardware Abac B5 DWB-ABP-8226501
...
102
Head DWB-ABP-5961405
...
103
Kit Valve Plate Abac DWB-ABP-5940050
...
104
Kit Gasket DWB-ABP-5950057
...
105
Filter DWB-ABP-5281100
...
106
Assy Filter Abac B59 DWB-ABP-5981000
...
107
Oil Filter Plug (Aba DWB-ABP-9024011
...
108
Assy Sight Glass DWB-ABP-9022003
...
109
Bearing Split Conn R DWB-5140026-18
...
110
Washer Flywheel Ns39 DWB-BAL-1000417
...
111
Screw Flywheel DWB-ABP-9110022
...
112
Flywheel Abac B5900 DWB-ABP-4000101
...
113
Intercooler DWB-ABP-5962020
...
114
Ring Running Gear Hp DWB-ABP-8226502
...
115
Kit Hp Ring DWB-ABP-8227093
...
116
Kit Lp Ring DWB-ABP-8227092
...
117
Kit Running Gear Lp DWB-ABP-8226503
...
118
Screw M10-1.5X15 Skt DWB-ABP-9101164
...
119
Seal Drain Plug DWB-ABP-9162030
...
120
Kit Extension Drain DWB-D20567
...
121
Seal Crankshaft DWB-ABP-9163020
