Craftsman Z6400 17ARCACT099 (247.204460) (2014) 17ARCACT099 (2014) Zero-Turn Mower

Model: Z6400 17ARCACT099 (247.204460) (2014)

Back To Assemblies
Save
 Don't See Your Part Listed?
product name

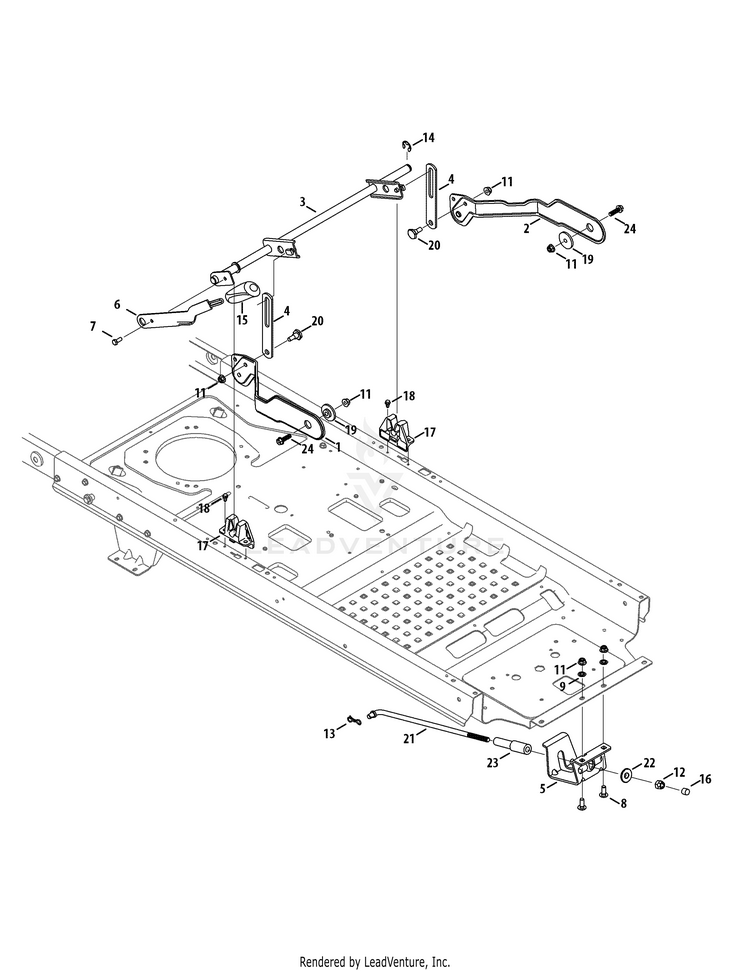

Deck Lift

...
...
1
DECK LIFT PLATE ASSEMBLY (RH) (POWDER BLACK) MTD-603-05107B-0637
...
2
DECK LIFT PLATE ASSEMBLY (LH) (POWDER BLACK) MTD-603-05108B-0637
...
3
DECK LIFT SHAFT MTD-903-05138
...
4
Lift Link Plate MTD-703-08591A-0637
...
5
FRONT LIFT ROD MOUNTING BRACKET (POWDER BLACK) MTD-703-08644A-0637
...
6
DECK LIFT HANDLE MTD-703Z09621A
...
7
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
8
Carriage Bolt, 3/8-16 x 1.00 MTD-710-3168
...
9
Push Nut, 3/8 MTD-712-0229
...
10
Flange Lock Nut, 5/16-18 MTD-712-04063
...
11
Flange Lock Nut, 3/8-16 MTD-712-04065
...
12
Hex Nut, 1/2-13 MTD-712-05046
...
13
Cotter Pin MTD-714-04043
...
14
"E" - Ring MTD-716-0231
...
15
Grip MTD-720-04139B
...
16
End Cap MTD-726-05009
...
17
DECK LIFT BRACKET MTD-731-08782
...
18
Shoulder Screw, 1/4-20 x .50 MTD-738-04278
...
19
SHOULDER SPACER -S MTD-738-05029
...
20
Shoulder Bolt .50" Dia. MTD-738-0507B
...
21
DECK FRONT LIFT ROD MTD-747-05552C
...
22
LIFT PIVOT CUP MTD-748-04069A
...
23
Nylon Sleeve, .55 x 4.50 MTD-750-05658
...
24
SCREW 3/8-16 X 1 MTD-710-04683C
...
...
...
...
