Craftsman CMXGNAM1130046 (17ADFACS093) (Z510) (2020) Zero-Turn Mower

Model: CMXGNAM1130046 (17ADFACS093) (Z510) (2020)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

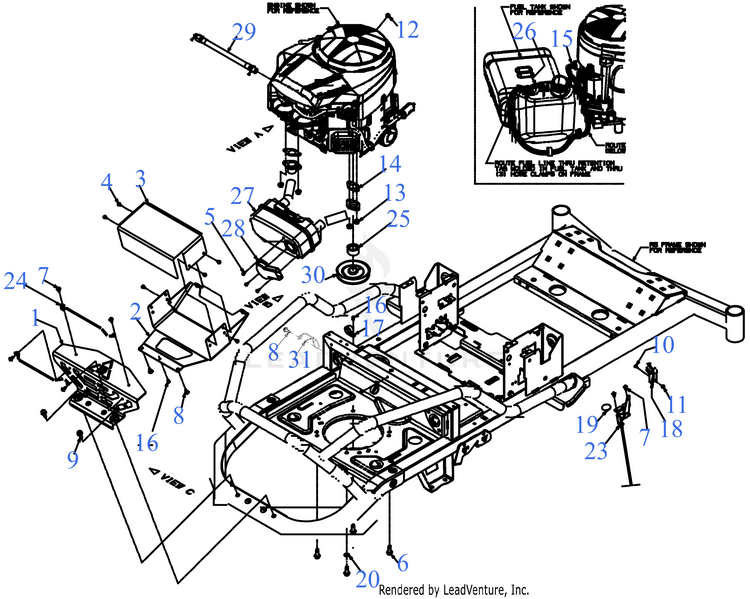

Engine Accessories

...
...
1
MUFFLER COVER (REAR) (BLACK) MTD-603P06299A

...
1
NUT RIVET 5/16-18 (Not Shown) MTD-728-05043

...
2
MUFFLER SHIELD (LOWER) MTD-703-16041A

...
3
MUFFLER SHIELD (TOP) MTD-703-16042A

...
4
HEX SCREW AB-TAP #10 x .50 MTD-910-0224

...
5
HEX SCREW WASHER HD #8-18 x 0.500 MTD-710-0227

...
6
SCREW 3/8-16 x 1 MTD-710-04683C

...
7
SCREW 1/4-20 x .5 MTD-710-05070A

...
8
SCREW M6-1 x .625 MTD-710-06133

...
9
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A

...
10
SCREW #8-32X.38 LG MTD-710-3217

...
11
HEX NUT 8-32 MTD-712-0142

...
12
HEX NUT 1/4-20 MTD-712-05106

...
13
HEX FLANGE NUT M8X MTD-712-3086

...
14
MUFFLER GASKET MTD-721P0460

...
15
HOSE CLAMP 1/20 MTD-726-0205

...
16
RATCHET CLIP (.188 x .85) MTD-726-04099A

...
17
DRAIN HOSE CLAMP MTD-726-04119

...
18
THROTTLE CONTROL KNOB MTD-731-09637

...
19
CHOKE PLUG MTD-731-1999

...
20
LOCK WASHER 3/8 MTD-736-0148

...
23
THROTTLE CABLE 38" MTD-946-05130

...
24
MUFFLER SHIELD ROD *CHOOSE COLOR WHEN ORDERING* MTD-747-06404A

...
25
ENGINE PULLEY SPACER MTD-748-05079

...
26
FUEL HOSE LOW PERMEATION 45" MTD-751-10349-45

...
27
EXHAUST MUFFLER (B&S)(TWIN) MTD-951-10542E

...
28
EXHAUST DELECTOR (LONG) MTD-751-11053B

...
29
OIL DRAIN HOSE (11.37" 3/8x1/4 NPT) MTD-751-15324B

...
30
TRANSMISSION DRIVE PULLEY MTD-756-05623A

...
31
HOSE GUIDE MTD-747-10050

...
xx
OIL:SAE 10W30 MTD-NSOIL

...
xx
Cub Cadet 10W30 Engine Oil 32OZ Retail Package Part MTD-490-000-C044

...
xx
Troy-Bilt 10W30 Engine Oil 32OZ Retail Package Part MTD-490-000-Y044
...
...
...
