Craftsman CMXGMAM201102 11A-B0BY793 (2020) Walk Behind Mower

Model: CMXGMAM201102 11A-B0BY793 (2020)

Back To Assemblies
Save
 Don't See Your Part Listed?
product name

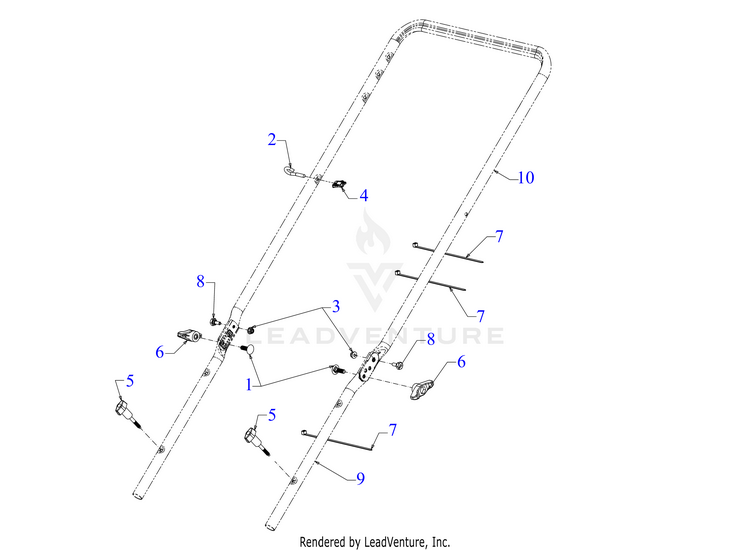

Handle

...
...
1
SCREW 5/16-18 x 1.00 GR5 MTD-710-04998
...
2
EYEBOLT 1/4-20 MTD-710-1205
...
3
FLANGE LOCK NUT MTD-712-04064
...
4
HANDLE KNOB MTD-720-0279
...
5
WING KNOB 1/4-20 MTD-720-05066A
...
6
WING KNOB 5/16-18 MTD-720-05541
...
7
7" CABLE TIE MTD-725-0157
...
8
SHOULDER SCREW MTD-738-04419A
...
9
LOWER HANDLE (POWDER BLACK) MTD-749-07298-0637
...
10
UPPER HANDLE (POWDER BLACK) MTD-749-05084B-0637
...
...
...
...
