Craftsman 41CD588C799 (316.79193) Gas String Trimmer

Model: 41CD588C799 (316.79193)
Save
 Don't See Your Part Listed?
product name

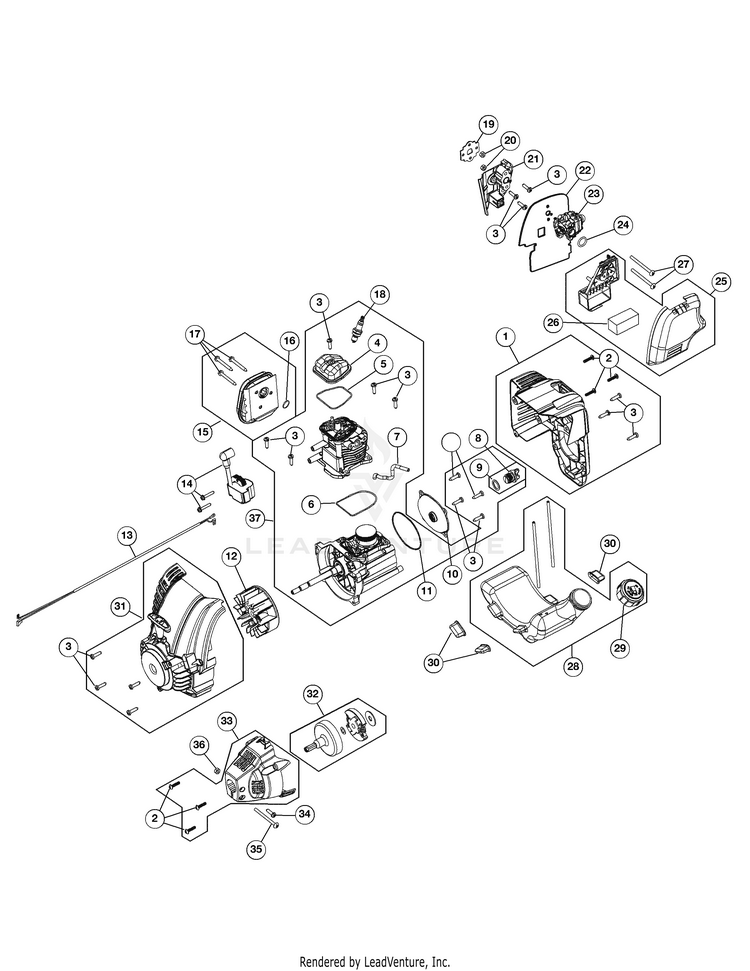

Engine Assembly

...
...
1
Engine Cover Assembly (Incl. Ref No. 2 & 3) MTD-753-06113
...
2
Cover Screw MTD-710-04194
...
3
SCREW, M5 X18 MTD-9052-1
...
4
Rocker Cover MTD-753-05209
...
5
Rocker Cover O-Ring MTD-721-04132
...
6
Cylinder O-Ring MTD-753-05232
...
7
Breather Hose MTD-791-182379
...
8
Oil Plug (Incl. Ref No. 9) MTD-753-05408
...
9
Oil Plug O-Ring MTD-791-182290
...
10
CRANKCASE COVER MTD-841-020721S
...
11
Crankcase Cover O-ring MTD-753-05238
...
12
Flywheel Assembly MTD-753-06221
...
13
Lead Wires MTD-753-05264
...
14
Module Assembly MTD-753-05447
...
15
Muffler Assembly (Incl. Ref No. 16 & 17) MTD-753-05245
...
16
Muffler Gasket MTD-753-05244
...
17
Screw MTD-710-04809
...
18
Spark Plug MTD-794-00082
...
19
Insulator Gasket MTD-753-05247
...
20
Nut MTD-712-04099
...
21
Insulator MTD-753-05249
...
22
Carburetor Gasket MTD-753-05366
...
23
CARBURETOR AC3.1 MTD-753-06258A
...
24
Air Cleaner O-Ring MTD-791-181751
...
25
Air Cleaner Cover Assembly (Incl. Ref No. 32) MTD-753-05831
...
26
Air Filter MTD-753-05254
...
27
Screw MTD-710-04517
...
28
Fuel Tank Assembly w/Fuel Lines (Incl. Ref No. 35) MTD-753-06240
...
29
Fuel Cap MTD-753-1229
...
30
Fuel Tank Pads MTD-753-05259
...
31
Starter Housing Assembly (Incl. Ref No. 3 & 37-45) MTD-753-05832
...
32
Clutch Assembly MTD-753-06281
...
33
Clutch Cover (Incl. Ref No. 2) MTD-753-05263
...
34
Anti-Rotation Screw MTD-791-182519
...
35
SCREW MTD-9689A
...
36
HEX NUT MTD-712-0161
...
37
Shortblock Assembly (Incl.Crankcase, Cylinder, 3-9, 11, 17 & 18) MTD-753-06225
...
xx
Electric Start Not Shown MTD-49M2027P799
...
xx
Start Bit Not Shown MTD-49MESCBL799

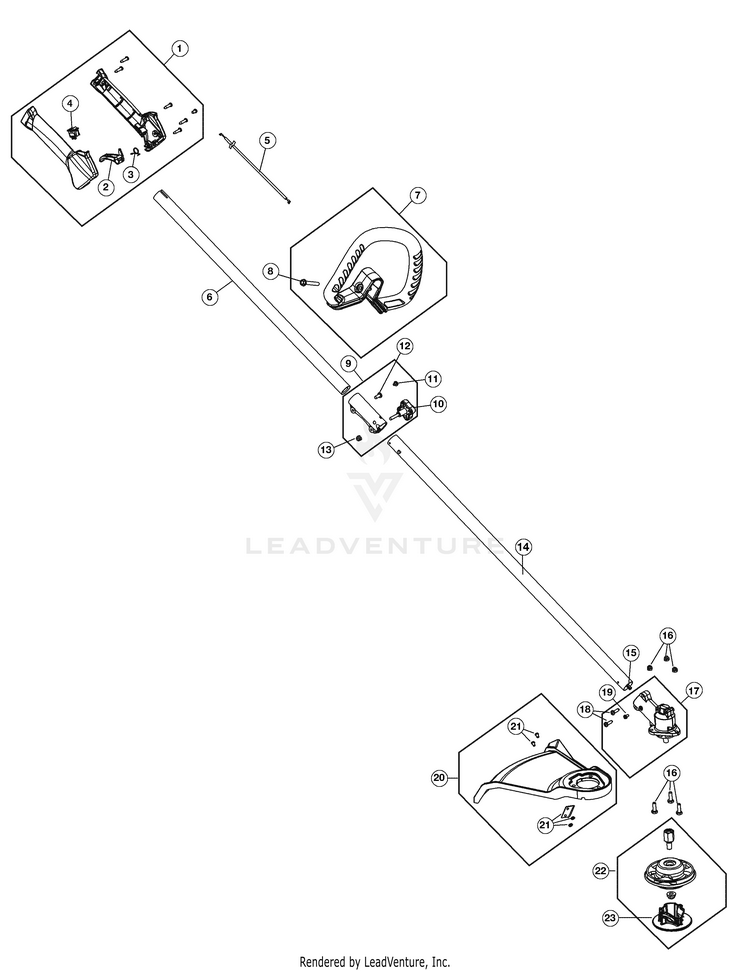

General Assembly

...
...
1
Throttle Housing Assembly (Incl. Ref No. 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
Throttle Cable Assembly MTD-753-05266
...
6
Upper Drive Shaft Assembly MTD-753-04236
...
7
D-Handle Assembly (Incl. Ref No. 8-10) MTD-753-06039
...
8
Screw MTD-753-06040
...
9
Split Boom Coupler (Incl. Ref No. 10-13) MTD-753-1190
...
10
CLICK LINK CLAMP MTD-697-00661-9
...
11
Coupler Anti-Rotation Screw MTD-791-182057
...
12
Coupler Bolt MTD-791-181617
...
13
Adjustment Knob Nut MTD-712-04018A
...
14
Lower Drive Shaft Housing MTD-753-04504
...
15
LOWER DRIVE SHAFT MTD-753-05267
...
16
Shield Mount Screw Assembly MTD-791-182200
...
17
Gearbox Assembly (Incl. Ref No. 18 & 19) MTD-791-182193
...
18
SCREW #10-24X11/16 T-25 MTD-791-182195
...
19
Gearbox Anti-Rotation Screw MTD-791-182519
...
20
Shield Assembly (Incl. Ref No. 21) MTD-753-05807
...
21
Blade Assembly MTD-791-180553
...
22
Cutting Head Assembly (Incl. Ref No. 23) MTD-753-05779
...
23
Cutting Head Cap MTD-753-05780
...
xx
Spacer Not Shown MTD-791-182196
...
xx
Tube of Line Not Shown MTD-697-00368
...
...
...
...
