product name

Craftsman 41BDZ41C899 (C459.512151) Gas String Trimmer

Model: 41BDZ41C899 (C459.512151)
Save
 Don't See Your Part Listed?
product name

Engine Assembly

...
...
1
Engine Cover Assembly (Incl. 2 & 3) MTD-753-06113
...
2
Cover Screw MTD-710-04194
...
3
Screw MTD-710-04604
...
4
Rocker Cover MTD-753-05901
...
5
Rocker Cover O-Ring MTD-753-05902
...
6
Cylinder O-Ring MTD-753-05910
...
7
Breather Hose MTD-791-182379
...
8
Oil Plug (Incl. 9) MTD-753-05408
...
9
Oil Plug O-Ring MTD-791-182290
...
10
CRANKCASE COVER MTD-841-020721S
...
11
Crankcase Cover O-Ring MTD-753-05238
...
12
Flywheel Assembly MTD-753-06221
...
13
Lead Wires MTD-753-05264
...
14
Module Assembly MTD-753-08208
...
15
Muffler Assembly (Incl. 16 & 17) MTD-753-05245
...
16
Muffler Gasket MTD-753-05244
...
17
Screw MTD-710-04809
...
18
Spark Plug MTD-794-00082
...
19
Insulator Gasket MTD-753-05247
...
20
Nut MTD-712-04099
...
21
Insulator MTD-753-06947
...
22
Carburetor Gasket MTD-753-06948
...
23
Carburetor w/Primer MTD-753-08174
...
24
Air Cleaner O-Ring MTD-791-181751
...
25
Air Cleaner Cover Assembly (Incl. 26) MTD-753-06796
...
26
Air Filter MTD-753-05254
...
27
Screw MTD-710-04517
...
28
Fuel Tank Assembly w/Fuel Lines (Incl. 29) MTD-753-06797
...
29
Fuel Cap MTD-753-1229
...
30
Fuel Tank Pads MTD-753-05259
...
31
Starter Housing Assembly (Incl. 3 & 38) MTD-753-06498
...
32
Clutch Assembly MTD-753-06281
...
33
Clutch Cover (Incl. 2) MTD-753-05263
...
34
Anti-Rotation Screw MTD-791-182519
...
35
SCREW MTD-9689A
...
36
Nut MTD-712-0161
...
37
Shortblock Assembly (Incl. Crankcase, Cylinder, 3-9, 11, 18 & 39) MTD-753-06799
...
38
Spacer MTD-750-04434
...
39
Rocker Cover Screw MTD-791-181025
...
40
Heat Shield MTD-753-06949

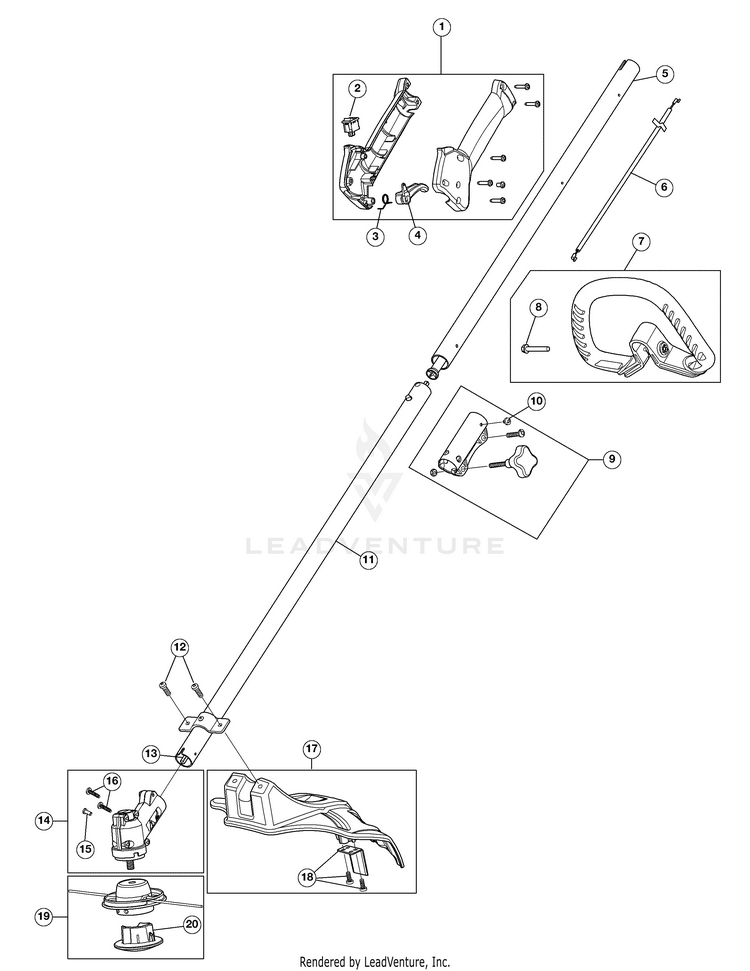

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2 - 4) MTD-753-06790
...
2
Trigger Switch Assembly MTD-791-182405
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Throttle Trigger MTD-753-06791
...
5
Upper Drive Shaft Assembly MTD-753-04236
...
6
Throttle Cable Assembly MTD-753-05266
...
7
D-Handle Assembly (Incl. 8) MTD-753-06039
...
8
Bolt MTD-753-06040
...
9
Split Boom Coupler (Incl. 10) MTD-791-182928
...
10
Coupler Anti-Rotation Screw MTD-791-182057
...
11
Lower Drive Shaft Housing MTD-753-06139
...
12
Shield Mounting Screws MTD-753-06125
...
13
LOWER DRIVE SHAFT MTD-753-05267
...
14
Gearbox Assembly (Incl. 15 and 16) MTD-753-08180
...
15
Gearbox Anti-Rotation Screw MTD-7039
...
16
SCREW #10-24X11/16 T-25 MTD-791-182195
...
17
Shield Assembly (Incl. 18) MTD-753-08177
...
18
Blade Assembly MTD-753-08178
...
19
Cutting Head Assembly (Incl. 20) MTD-753-06848
...
20
Cutting Head Cap MTD-753-06849
...
xx
Tube of Line (not shown) MTD-697-00368
...
...
...
...
