Craftsman 41AD576C799 (316.796170) Gas String Trimmer

Model: 41AD576C799 (316.796170)

Back To Assemblies
Save
 Don't See Your Part Listed?
product name

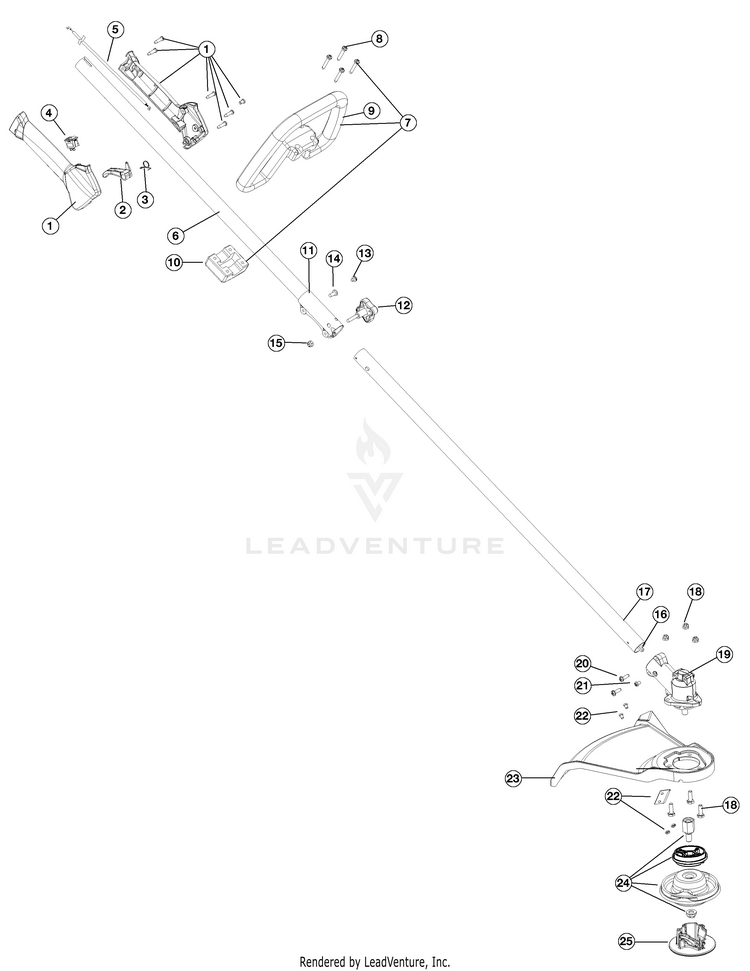

Boom & Trimmer Parts

...
...
1
Throttle Housing Assembly (includes 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
Throttle Cable Assembly MTD-753-05266
...
6
Upper Drive Shaft Housing MTD-753-04236
...
7
Deluxe D-Handle Assembly (includes 8-10) MTD-791-180869
...
8
Screw MTD-791-181070
...
9
D-Handle MTD-791-182167
...
10
D-Handle Base MTD-791-182168
...
11
Split Boom Coupler (includes 12-15) MTD-753-1190
...
12
CLICK LINK CLAMP MTD-697-00661-9
...
13
Screw MTD-791-182057
...
14
Bolt MTD-791-181617
...
15
Adjustment Knob Nut MTD-712-04018A
...
16
Lower Flexible Drive Shaft MTD-791-181570
...
17
Lower Drive Shaft Housing MTD-753-04504
...
18
Shield Mount Screw Assembly MTD-791-182200
...
19
Gearbox Assembly MTD-753-05569
...
20
SCREW #10-24X11/16 T-25 MTD-791-182195
...
21
Anti-Rotation Screw MTD-791-145569
...
22
Blade Assembly MTD-791-682061
...
23
Shield Assembly (includes 22) MTD-791-182189
...
24
Cutting Head Assembly (Incl. 21) MTD-753-05045
...
25
Cutting Head Cap MTD-731-05193
...
*
Not Shown MTD-ITEMS
...
...
...
...
