Craftsman 41AD322C799 (316.79102) Gas String Trimmer

Model: 41AD322C799 (316.79102)

Back To Assemblies
Save
 Don't See Your Part Listed?
product name

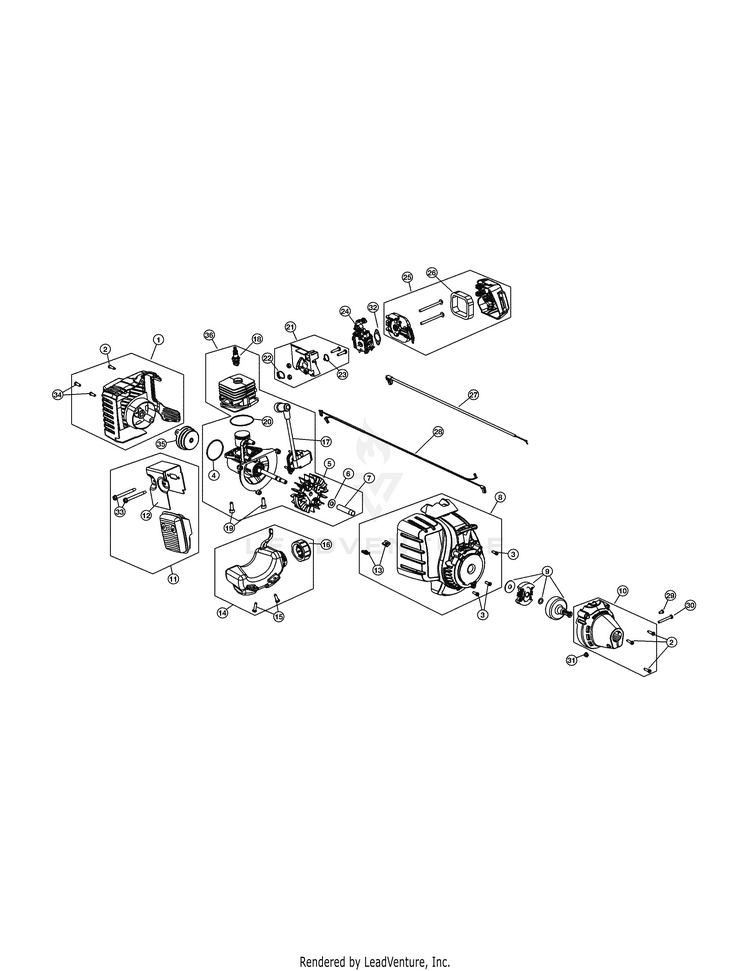

Engine Assembly

...
...
1
Rear Cover Assembly (Incl Ref No. 2 & 34) MTD-753-06177
...
2
Cover Screw MTD-791-181345
...
3
Housing Screw MTD-791-181862
...
4
O-Ring MTD-753-06174
...
5
Flywheel Assembly MTD-753-06175
...
6
Washer MTD-753-06247
...
7
Spacer MTD-753-06218
...
8
Starter Housing (Incl Ref No. 3 & 13) MTD-753-06530
...
9
Clutch Assembly MTD-753-05860
...
10
Clutch Cover (Incl Ref No. 2) MTD-753-06181
...
11
MUFFLER ASSEMBLY MTD-753-08745
...
12
Muffl er Gasket MTD-753-06419
...
13
U-shaped Nut MTD-791-182366
...
14
Fuel Tank Assembly (Incl Ref No. 15 & 16) MTD-753-06183
...
15
Tank Screw MTD-791-181930
...
16
Fuel Cap MTD-791-182612
...
17
Module Assembly MTD-753-06303
...
18
Spark Plug MTD-753-06847
...
19
Crankcase Bolt MTD-791-182723
...
20
Crankcase O-Ring MTD-753-06275
...
21
Insulator Assembly (Incl Ref No. 22 & 23) MTD-753-06189
...
22
Insulator O-Ring MTD-753-06184
...
23
Carburetor O-Ring MTD-753-06185
...
24
Carburetor MTD-753-06288
...
25
Aircleaner Cover Assembly (Incl Ref No. 26) MTD-753-06500
...
26
Aircleaner Filter MTD-753-06417
...
27
Throttle Cable MTD-753-06188
...
28
Lead Wires MTD-753-06187
...
29
Anti-rotation Screw MTD-791-182519
...
30
SCREW MTD-9689A
...
31
Clamp Nut MTD-712-0161
...
32
Air Cleaner Gasket MTD-753-06253
...
33
Muffler Screw MTD-753-06294
...
34
SCREW #10-24X11/16 T-25 MTD-791-182195
...
35
Electric Starter Cover Assembly MTD-753-06173
...
36
Short Block Assembly (Incl Ref No. 4-7 & 17-20) MTD-753-06523
...
...
...
...
