Craftsman 21BS144R799 (316.292711) Tiller

Model: 21BS144R799 (316.292711)

Save
Part Not Listed?Part Not Listed?

product name

Engine Assembly

...
...
1
Engine Cover Assembly (includes 3 & 4) MTD-753-04028

...
2
Engine Cover Screw MTD-791-181930

...
3
Starter Rope Eyelet MTD-791-182651

...
4
Eyelet Nut MTD-791-182652

...
5
Valve Cover Screw MTD-791-181025

...
6
Valve Cover MTD-791-182098

...
7
Valve Cover Gasket MTD-791-182099

...
8
Rocker Adjustment Nut MTD-791-182340

...
9
Rocker Arm Pivot MTD-791-182101

...
10
Rocker Arm MTD-791-182100

...
11
Rocker Arm Stud MTD-791-182341

...
12
Valve Spring Retainer MTD-791-182103

...
13
Valve Spring MTD-791-181038

...
14
Push Rod Guide MTD-791-182102

...
15

...
16
Cylinder Assembly (Includes 11-14, 17, 80 & 81) MTD-753-04816

...
17
SCREW, M5 X18 MTD-9052-1

...
18
Intake Baffle MTD-753-1226

...
19
Carburetor Mount Gasket MTD-791-182749


...
21
Carburetor Mount (includes 20) MTD-753-04029

...
22
Carburetor Mount Screw MTD-791-182348

...
23
Carburetor Gasket MTD-791-182732

...
24
Carburetor with Primer MTD-753-1225

...
25
Air Filter O-Gasket MTD-753-04030

...
26
CARB STUD MTD-792-9973

...
27
Air Filter Cover Assembly (Includes 28, 29, 31-33) MTD-753-05467

...
28
Breather Tube Assembly MTD-791-182097

...
29
Grommet Washer MTD-791-181000

...
30

...
31
Air Filter Plate MTD-791-182657

...
32
Air Filter MTD-791-182658

...
33
Air Filter Cover MTD-791-182659

...
34

...
35
Fuel Return Line MTD-791-182352

...
36
Fuel Pick-Up Line with Filter MTD-791-182353

...
37
Fuel Tank Assembly (includes 34-36) MTD-753-04034

...

...
39

...
40

...
41
Fuel Tank Shield MTD-791-182356

...
42
Muffler Baffle MTD-753-1232

...
43
MUFFLER GASKET MTD-9094-1

...
44
Muffler (includes 43, 45-47) MTD-753-04036

...
45
Spark Arrestor Screen MTD-791-180890

...
46
Screen Cover MTD-791-181045

...

...
48
Muffler Mounting Screw MTD-791-182361

...
49

...
50
Screw, 10-9 x .50 MTD-1755

...
51
Pressure Plate Assembly (includes 50) MTD-753-05074

...
52
Recoil Pulley Assembly (includes 49 & 57) MTD-753-05072

...
53
Recoil Spring MTD-753-04286

...
54

...
55
Pull Handle MTD-631-04164B

...
56
Rope Guide MTD-791-611061


...
58
Screw MTD-9054

...
59
Starter Housing Assembly (includes 49-58) MTD-753-05075

...
60
Wire Grommet MTD-791-182537

...
61

...
62
Clutch with Washer MTD-753-1238

...
63
Clutch Drum MTD-791-153592

...
64
Clutch Cover Assembly (includes 65-68) MTD-753-05076

...
65
Clutch Cover Screw MTD-791-181345

...
66
Anti-Rotation Screw MTD-791-182519

...
67
SCREW:10-24X1.375:BK MTD-792-10662

...
68

...
69
Lead Wire MTD-753-04039

...
70
Ignition Module with Screws MTD-753-04040

...
71

...
72
Flywheel Assembly MTD-753-05240

...

...
74
Shroud Assembly (includes 73) MTD-791-182743

...
75
Crankcase Assembly (includes 76 & 77) MTD-753-05079

...
76
90° Elbow MTD-791-182375

...
77
Breather Hose MTD-791-182379

...
78
Cam Bracket Assembly MTD-753-04919

...
79
Cam Bracket Screw MTD-791-181012

...
80
Valves, Intake and Exhaust MTD-791-181040

...
81
Cylinder Gasket MTD-791-182374

...
82
Oil Pan Gasket MTD-791-181018

...
83
Oil Pan (includes 82 & 84) MTD-791-182377

...
84
Screw MTD-9054

...
85
Dipstick Assembly MTD-791-182378

...
86

...
87
Connecting Rod MTD-791-181009

...
88
Wrist Pin Button MTD-791-181008

...
89
Piston (includes 91) MTD-753-04878

...
90
Wrist Pin MTD-753-05176

...
91
Piston Ring Set MTD-753-04801

...
xx
Spark Plug Not Shown MTD-794-00082

...
xx
Short Block Assembly (includes 5-17, 75-91) Not Shown MTD-753-05081

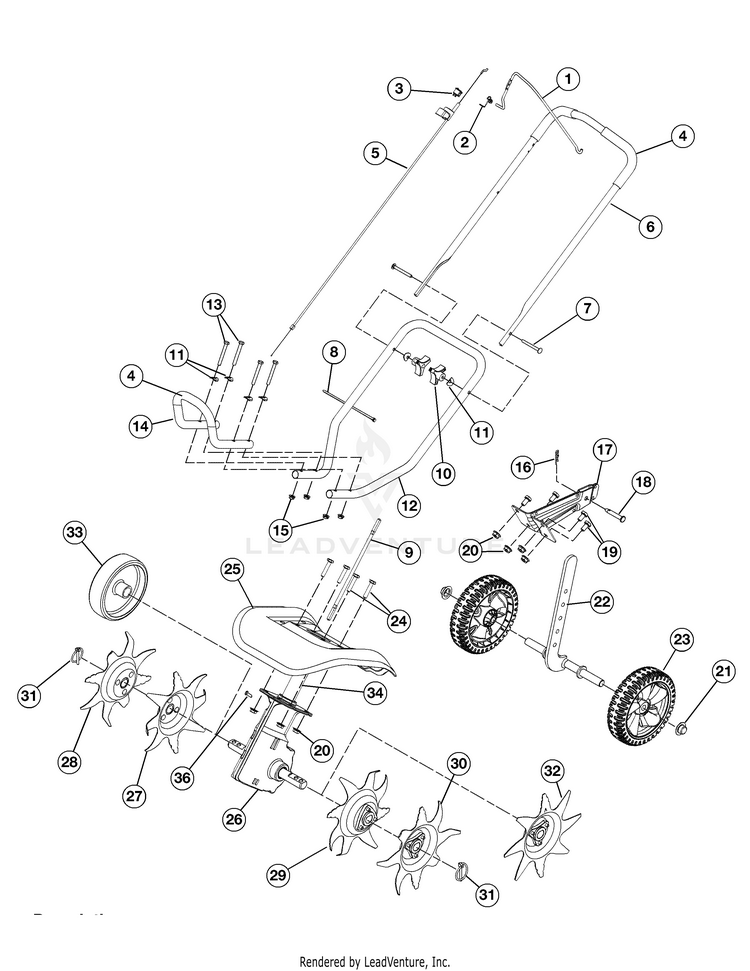

Handle & Wheels

...
...
1
Trottle Control MTD-753-04042

...
2
Torsion Spring MTD-753-05940

...
3
On/Off Switch MTD-791-182673

...
4
FOAM GRIP - 9" MTD-720-0294A

...
5
Throttle Cable MTD-753-04147

...


...
8
Cable Tie MTD-725-0157

...
9
Flex Shaft MTD-753-04499


...
11
Saddle Wash. .32" I.D. MTD-736-0451

...
12
Lower Handle MTD-749-1295A-0637

...
13
Hex Bolt 5/16-18 x 2.25" Lg. MTD-710-0395

...
14
Front Handle MTD-753-04055

...
15

...
16
Hairpin Clip MTD-714-0104

...
17
Tailpiece Bracket Assembly MTD-753-04058

...
18
Clevis Pin MTD-711-1017

...
19
Hex Bolt 1/4-20 x .5" Lg. MTD-710-3013

...
20
LOCK NUT 1/4 MTD-912-3027

...
21
Push Cap MTD-726-0299

...
22
Wheel Support Bracket Assembly MTD-753-04063

...
23
Front Wheel, 7 x 1.8, Bar MTD-734-1988

...
24

...
25
Tine Shield MTD-753-05080

...
26
Gear Box Assembly MTD-753-04075

...
27
Inner Tine (right side) MTD-753-04074

...
28
Outer Tine (right side) MTD-753-04073

...
29
Inner Tine (left side) MTD-753-04072

...
30
Outer Tine (left side) MTD-753-04071

...
31
Click Pin MTD-753-04070

...
32
Edger Tine MTD-753-04069

...
33
Edger Wheel MTD-753-04068

...
34
Drive Shaft Housing MTD-753-04569

...
35
Anti Rotation Screw MTD-710-0599
...
...
...
