Craftsman 19A70009OEM Two-Stage Snow Thrower Attachment

Model: 19A70009OEM Two-Stage Snow Thrower
Save
 Don't See Your Part Listed?
product name

Auger Housing & Discharge Chute

...
...
1
Auger Gear Box (Incl. Ref. 23-41) MTD-918-04315
...
2
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06296-0637
...
3
Housing Assembly MTD-684-0148-0637
...
4
Housing Brace Bracket MTD-703-2734-0637
...
5
Spiral Assembly, LH MTD-684-04163A-0637
...
6
Sipral Assembly, RH MTD-684-04164A-0637
...
7
Hex Cap Screw, 5/16-24 x .75 MTD-710-0157
...
8
Carriage Bolt, 5/16-18 x .62 MTD-710-0260A
...
9
Splined Carriage Screw MTD-710-0276
...
10
Self Tapping Screw MTD-710-0726
...
11
Bow-Tie Cotter Pin MTD-714-04040
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Hex Nut, 5/16-24 MTD-912-3057
...
14
Spring Pin 1.5" Lg. MTD-715-0114
...
15
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
16
Bell Washer, .340 x .872 MTD-736-0242
...
17
Hex Flange Bearing, .75 ID MTD-941-0245
...
18
FLANGE BUSHING MTD-741-0493C
...
19
Bracket, Skid Plate, 42" MTD-784-0396C-0637
...
20
Slide Shoe MTD-784-5038B-0637
...
21
Spacer, .75 x .125 x .5 MTD-711-0469
...
22
Hex Bearing Housing, 1.0 MTD-784-5618A-0637
...
23
RH Reducer Housing MTD-918-0123A
...
24
LH Reducer Housing MTD-918-0418A
...
25
Housing Brace Plate MTD-703-2733A-0637
...
26
Self Tapping Screw, 1/4-20 x .75 MTD-710-0642
...
27
Spiral Axle, 41.5" MTD-711-04468
...
28
Hi-Pro Key, 3/16 x 5/8 MTD-914-0161
...
29
Spiral Pin MTD-715-0143
...
30
WORM GEAR 20T MTD-917-04861
...
31
Worm Shaft MTD-717-3320
...
32
Thrust Collar MTD-718-0513
...
34
Grease Seal MTD-721-0327
...
35
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
36
Fl-Wash. .50" I.D. x 1.0" O.D. MTD-736-0369
...
37
Thrust Washer, .75 x 1.25 x .0615 MTD-736-0617
...
38
Thrust Bearing, .75 x 1.25 x .078 MTD-IH-324105-R92
...
39
Flange Bearing, .503 x .75 MTD-948-0108
...
40
Flange Bearing, .75 x 1.0 x .59 MTD-741-0700
...
41
Oil Seal 3/4" I.D. MTD-721-0179
...
42
Chute Crank Assembly MTD-684-0061A
...
43
Chute Crank Bracket MTD-703-2735A-0637
...
44
Chute Reinforcer MTD-705-5226-0637
...
45
Splined Carriage Screw MTD-710-0276
...
46
Carriage Bolt, 5/16-18 x 1.5 MTD-710-0262
...
47
Carriage Screw, 5/16-18 x 1.0 MTD-710-04071
...
48
Screw, 1/4-20 x .75 MTD-710-0703
...
49
Hex Index Washer Screw MTD-710-0896
...
50
Hex Cap Screw, 1/4-20 x .75 MTD-710-3015
...
51
Nylon Hex Lock Nut, 1/4-20 MTD-712-04064
...
52
Nylon Hex Lock Nut, 5/16-18 MTD-712-04063
...
53
Spirol Pin, .125 x .82 MTD-715-0129
...
54
Chute Flange Keeper MTD-731-0851A
...
55
Lower Chute MTD-731-1300E
...
56
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
57
Adapter Chute MTD-731-1379D
...
58
Chute Tilt Cable Guide MTD-731-1313C
...
59
Plastic Bushing MTD-941-0475
...
60
Joint Block Assembly MTD-684-04350
...
61
Cable Bracket MTD-784-5594-0637
...
62
Chute Crank Bracket MTD-784-5647-0637
...
63
HEX FLANGE NUT MTD-712-3004A
...
64
Spacer 1.25 x .75 x 1.00 MTD-731-04870
...
65
Sleeve .758 x 1.00 x 2.70 MTD-731-1086A
...
66
Shear Pin, .25 x 1.50 MTD-738-04124A
...
xx
Grease Plug Not Shown MTD-721-0325

Linkage & Controls

...
...
1
Knob MTD-720-04039
...
2
Chute Tilt Handle MTD-784-5604A-0637
...
3
Chute Tilt Cable Guide MTD-731-1313C
...
4
Nylon Hex Lock Nut, 5/16-18 MTD-712-04063
...
5
Assembly, Chute Tilt Bracket MTD-603-0302A-0637
...
6
Carriage Bolt, 5/16-18 x 1.5 MTD-710-0262
...
7
Saddle Wash. .32" I.D. MTD-736-0451
...
9
Rubber Grommet , .44 x .94 x .5 MTD-735-0234
...
10
Eye Bolt MTD-747-0697
...
11
Bell Washer, .340 x .872 MTD-736-0242
...
12
Support Chute Tube MTD-750-04467-0637
...
13
Cotter Pin, 3/32 x .75 MTD-914-0507
...
14
Joint Block Assembly MTD-684-04350
...
15
Chute Crank Rod, .375 x 33 MTD-747-1201A
...
16
CHUTE CABLE 62" MTD-946-1108
...
17
CHUTE CABLE 62" W/CLIP MTD-746P1109
...
18
Rolled Pin, 1/8 x .63 MTD-915-0138
...
19
Crank Knob MTD-720-0201A
...
20
Push Cap 3/8" Rod MTD-726-0100
...
21
Rod, .375 x 13.50 MTD-747-04400A
...
22
Spirol Pin, .125 x .82 MTD-715-0129
...
23
Rod Assembly MTD-611-0132A-0637
...
24
RH Support Plate Assembly MTD-783-05434-0637
...
25
LH Support Plate Assembly MTD-783-05435-0637
...
26
Lift Bracket Assembly MTD-683-04150-0637
...
28
Hex Cap Screw, 5/8-18 x 1.31 MTD-710-0964A
...
29
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
30
Clevis Pin, .5 x .78 MTD-911-0332
...
31
Slotted Hex Nut, 5/8-18 MTD-712-0386A
...
32
Hex Ctr. L-Nut 3/8-16 Thd. MTD-712-3000
...
33
Hex Lock Nut, 1/2-13 MTD-712-3022
...
34
Cotter Pin 1/8" Dia. MTD-714-0470
...
35
Cotter Pin, .125 x .75 MTD-914-0474
...
36
Snap Ring MTD-716-0102
...
37
Skid Plate MTD-784-0402-0637
...
38
FLAT WASHER .510 x .995 MTD-736-0272
...
39
Flat Washer, .64 x 1.12 x .125 MTD-736-0366
...
40
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
41
Drive Mounting Bracket MTD-783-1014A-0637
...
42
Shoulder Screw, .5 x .29, 3/8-16 MTD-738-0234
...
43
Flange Bearing w/ Flats MTD-941-0170
...
44
Drive Pulley, 7" MTD-756-1181A
...
45
Rod, 1/2 x 11.55 MTD-747-1192
...
46
Link, 5.875 MTD-783-0876
...
47
Link, 15.4 MTD-783-0877-0637
...
48
Link, 13.25 MTD-783-0878B-0637
...
49
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
50
Snow Thrower Lift Bracket MTD-790-00110-0637
...
51
Hex Index Washer Screw #10-16 MTD-710-1268
...
52
Pan Phillips Screw, #10-24 x .75 MTD-710-3143
...
53
Hex Cap Screw, 5/16-18 x 1.75 MTD-710-3180
...
54
Spring Pin 1.5" Lg. MTD-715-0114
...
55
Handle Grip MTD-720-0274
...
56
Cable Tie MTD-725-0157
...
57
Compression Spring MTD-932-0306A
...
58
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
59
Fl-Wash. .194" I.D. x .62" O.D. MTD-736-0400
...
60
LIFT CABLE MTD-946-05201
...
61
Lift Index Rod MTD-747-1203
...
62
Lift Handle Tube MTD-750-1221-0637
...
63
Bearing Housing, 1.85 ID MTD-05931A
...
64
Belt Cover MTD-703-2736-0637
...
65
Hex Cap Screw, 3/8-16 x 1.0 MTD-710-0514
...
66
Socket Head Cap Screw MTD-710-3251
...
67
Flange Lock Nut, 3/8-16 MTD-712-04065
...
68
Square Key 3/16" x .75 MTD-714-0122
...
69
Key MTD-714-0126
...
70
Right Angle Drive MTD-917-1714B
...
71
Coupling MTD-918-0691
...
72
Flange Ball Bearing, .75 x 1.85 MTD-941-0309
...
73
Belt Keeper Rod MTD-747-1257
...
74
Steering Linkage Cover RH MTD-731-05980
...
75
Steering Linkage Cover LH MTD-731-05981
...
xx
Plastic Bushing Not Shown MTD-941-0475
...
xx
SCREW 5/16-18 x 1.5 LG Not Shown MTD-710-0805A

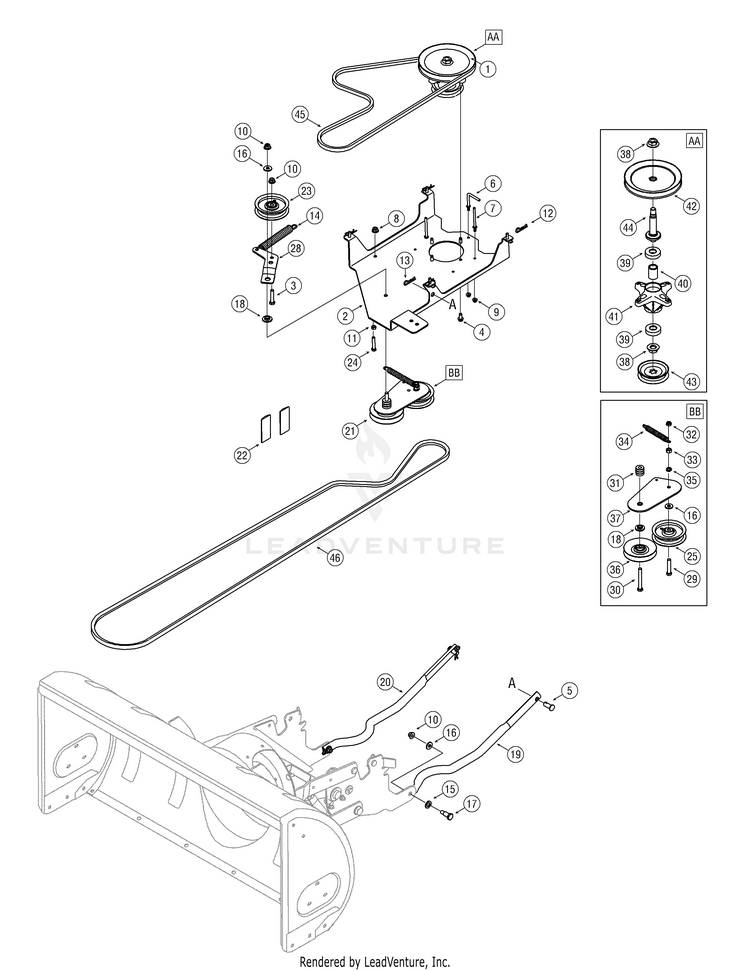

Undercarriage Assembly

...
...
1
Spindle Assembly MTD-918-0411A
...
2
Pulley Mounting Bracket MTD-683-04210-0637
...
3
Hex Cap Screw, 3/8-16 x 1.75 MTD-710-0347
...
4
Self Tapping Screw MTD-710-1260A
...
5
Clevis Pin MTD-711-0310
...
6
Belt Keeper Pin MTD-711-04741
...
7
Belt Keeper Pin MTD-911-1000
...
8
Nylon Hex Lock Nut, 5/16-18 MTD-712-04063
...
9
Nylon Hex Lock Nut, 1/4-20 MTD-712-04064
...
10
Hex Flange Lock Nut, 3/8-16 MTD-712-04065
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
13
Internal Cotter Pin, .125 x 1.75 MTD-714-0147
...
14
Extension Spring .91 x 7.33 MTD-932-0594A
...
15
Flat Washer, .531 x .93 x .09 MTD-936-0192
...
16
Flat Washer, .38 x .93 x .11 MTD-736-3072
...
17
Shoulder Screw, 3/8-16 MTD-938-0145
...
18
Shoulder Spacer, .625 x .169 MTD-938-0347
...
19
LH Support Tube MTD-749-1103-0637
...
20
RH Support Tube MTD-749-1104-0637
...
21
KIT - IDLER BRACKET ASSEMBLY MTD-753-08594
...
22
Reflector MTD-930-3000
...
23
Idler Pulley, 3.50 OD MTD-756-0627D
...
24
Hex Cap Screw, 5/16-18 x 1.75 MTD-710-3180
...
25
Idler Pulley 3.50 dia. MTD-756-0627D
...
28
IDLER BRACKET MTD-783-1291A-0637
...
29
Hex Cap Screw, 3/8-24 x 2 MTD-710-0151
...
30
Hex Cap Screw, 3/8-16 x 3 MTD-710-0521
...
31
Spacer MTD-911-0242
...
32
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
33
Hex Nut, 3/8-24 MTD-712-0241
...
34
Extension Spring, .620 x 5.62 MTD-732-0978
...
35
L-Wash. 3/8" I.D. MTD-736-0169
...
36
Idler pulley, 4" Diameter MTD-756-0487
...
37
Idler Pivot Arm MTD-784-5727-0637
...
38
HEX NUT MTD-712-0417A
...
39
BALL BEARING MTD-941-0919B
...
40
Spacer MTD-750-1096
...
41
Spindle Assembly MTD-918-0411A
...
42
Deck Pulley 7" MTD-756-0999
...
43
Pulley 3.75" MTD-756-1173
...
44
Spindle Shaft MTD-738-0976
...
45
V-Belt MTD-954-0498
...
46
V-Belt MTD-954-3053
...
xx
Idler Assembly Spacer Not Shown MTD-650-0040
...
xx
Flange Lock Nut 3/8-16 Not Shown MTD-912-0431
...
...
...
...
