Craftsman 13AN77SS099 (247.288811) (2011) Lawn Tractor

Model: 13AN77SS099 (247.288811) (2011)

Back To Assemblies
Save
 Don't See Your Part Listed?
product name

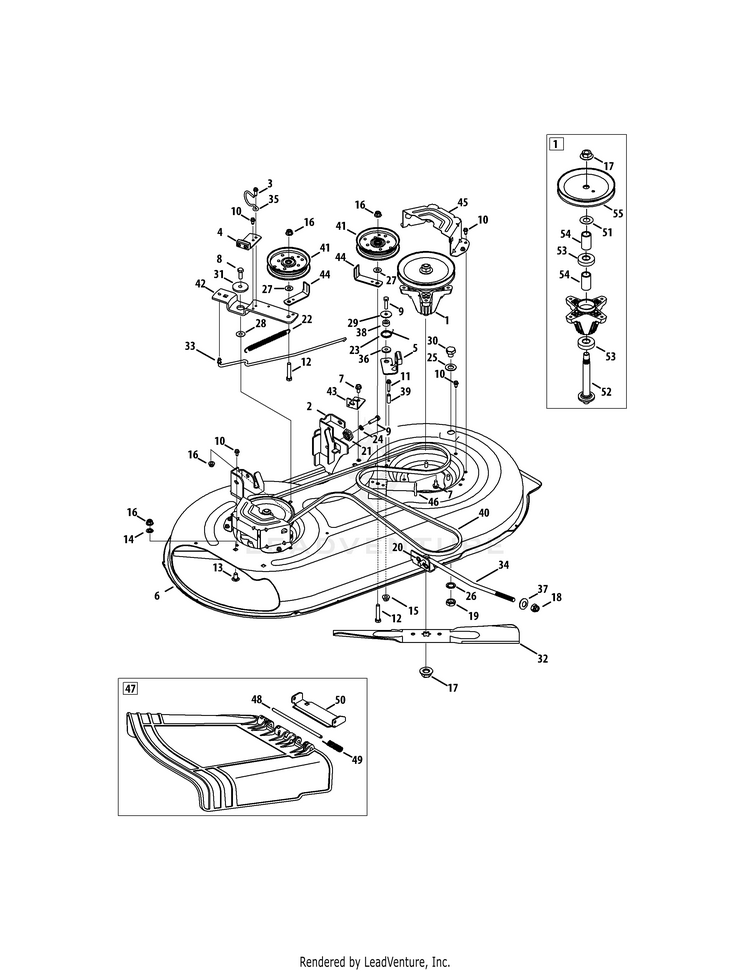

Mower Deck 42-Inch

...
...
1
SPINDLE ASSEMBLY MTD-918-04822B
...
2
DECK HANGER BRACKET (LH) (POWDER BLACK) MTD-683-06474-0637
...
3
Screw, 1/4-20 x .750 MTD-710-0642
...
4
Brake Assembly MTD-983-04511
...
5
Brake Assembly MTD-983-04525
...
6
Deck, Offset, 42" W/O wheel brackets MTD-983-04570A-0637
...
7
SCREW 5/16-18 x .750 MTD-710-04484
...
8
Screw, 3/8-16 x 1.00 MTD-710-0514
...
9
Hex Screw, 5/16-18 x 1.25 MTD-710-0528
...
10
Screw, 1/4-20 x .500 MTD-710-0599
...
11
Screw, 1/4-20 x 1.50 MTD-710-0778
...
12
Hex Head Screw, 3/8-16 MTD-710-3144
...
13
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
14
Push Nut, 3/8 MTD-712-0229
...
15
Flangelock Nut, 5/16-18 MTD-712-04063
...
16
Flangelock Nut, 3/8-16 MTD-712-04065
...
17
HEX NUT MTD-712-0417A
...
18
Flangelock Nut, 1/2-13 MTD-712-04243
...
19
Nut, Hex, M16-1.5 MTD-712-0641
...
20
Cotter Pin, Bow-Tie MTD-714-04043
...
21
Deck Adjuster Gear MTD-917-04074
...
22
Extension Spring, .62 x 6.12 MTD-932-0384
...
23
Torsion Spring, 1.0 x 1.17 MTD-732-04727
...
24
Lock Washer, 5/16 MTD-936-0119
...
25
Flat Washer, .64 x 1.24 x .06 MTD-736-0187
...
26
Flat Washer, .5/8 Int. Tth. MTD-736-0225
...
27
Flat Washer, .385 x .870 x .092 MTD-736-0262
...
28
Fl-Wash. 390" I.D. x 1.0" MTD-736-0344
...
29
Flat Washer, .330 x 1.25 x .06 MTD-736-0362
...
30
Bolt Plug, M16 x 1.5 MTD-738-04146
...
31
Shoulder Spacer .884 x .190 MTD-738-04162C
...
32
21.23" BLADE (2N1) MTD-942-04308A
...
33
Rod, Control, Brake 42" MTD-747-05105B
...
34
DECK FRONT LIFT ROD MTD-747-05141B
...
35
Belt Keeper Rod MTD-747-05323
...
36
Shoulder Spacer MTD-748-0234
...
37
LIFT PIVOT CUP MTD-748-04069A
...
38
Spacer MTD-750-0258
...
39
Spacer MTD-750-0566A
...
40
V-Belt MTD-954-04060C
...
41
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
42
Idler Pivot Bracket MTD-783-05946
...
43
Deck Cable Engagement Bracket MTD-783-06243-0637
...
44
Belt Pulley Guard MTD-783-06368A-0637
...
45
Deck Belt Cover MTD-783-06424A-0637
...
46
Deck Support Bracket MTD-783-06643-0637
...
47
CHUTE ASSEMBLY MTD-631-05191A
...
48
Hinge Pin MTD-711-04847B
...
49
Torsion Spring, .44 x 2.0 MTD-732-04372
...
50
Chute Bracket MTD-783-06074A
...
51
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
52
Spindle Shaft MTD-738-1186A
...
53
BALL BEARING MTD-941-0919B
...
54
Spacer, .792 x 1.060 x 1.860 MTD-750-04936
...
55
Deck Pulley, 6.3 dia. MTD-956-1227
...
...
...
...
