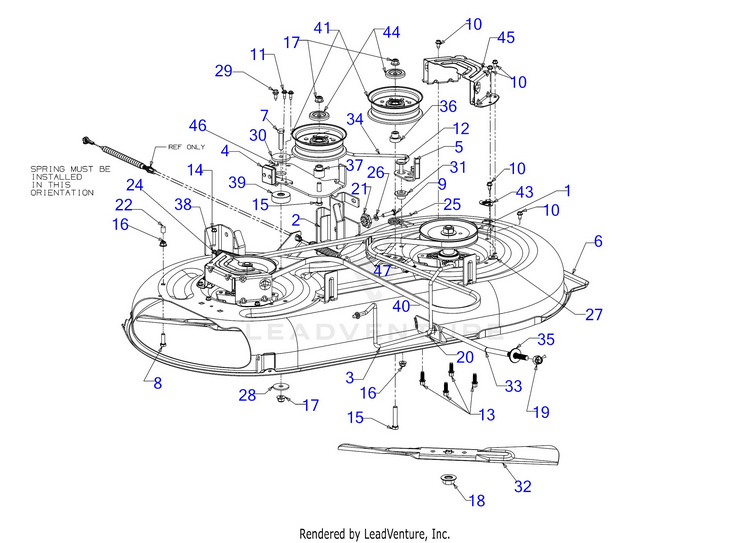

Deck

...
...
1
SPINDLE ASSEMBLY (See Separate Breakdown) MTD-918-06991
...
1
Troy-Bilt 42" SPINDLE ASSEMBLY (06991) Retail Packaged Part MTD-490-130-Y024
...
2
DECK HANGER BRACKET ASSEMBLY (LH) *CHOOSE COLOR WHEN ORDERING* MTD-683-0254B
...
3
BELT KEEPER ROD MTD-747-04857
...
4
DECK BRAKE ASSEMBLY (RH) MTD-983-05182B
...
4
DECK BRAKE PAD (Not Shown) MTD-761-05007
...
4
RIVOT (Not Shown) MTD-728-0175
...
5
DECK BRAKE ASSEMBLY KIT MTD-753-09904A
...
5
DECK BRAKE PAD (Not Shown) MTD-761-05007
...
5
RIVOT (Not Shown) MTD-728-0175
...
6
42" DECK SHELL *CHOOSE COLOR WHEN ORDERING* MTD-983-05185C
...
7
HEX SCREW 3/8-16 x 1.75 GR5 MTD-710-0347
...
8
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
9
SCREW 5/16-18 x 1.25 GR5 MTD-710-0528
...
10
SCREW 1/4-20 X.500 MTD-710-0599
...
11
SCREW M6-1 x .625 MTD-710-06133
...
12
SCREW 5/16-18X1.25 GR 5 MTD-710-06213
...
13
SCREW 5/16-18 X .875 MTD-710-06322
...
14
SCREW 1/4-20 x 1.50" MTD-710-0778
...
15
SCREW 3/8-16 x 2.0 GR 8 MTD-710-3096
...
16
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
17
NUT MTD-712-04065
...
18
HEX NUT MTD-712-0417A
...
19
NUT MTD-712-04243
...
20
PIN:COTTER MTD-714-04043
...
21
DECK ADJUSTMENT MTD-917-04074
...
22
VINYL CAP MTD-720-05010
...
24
EXTENSION SPRING MTD-732-04629
...
25
TORSION SPRING MTD-732-05151A
...
26
LOCK WASHER 5/16 MTD-936-0119
...
27
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
28
Flat Washer, .406 x 1.5 x 11 gauge MTD-736-3039
...
29
SHOULDER SCREW MTD-738-04184A
...
30
SHOULDER SPACER MTD-738-05082
...
31
SHOULDER SPACER .750 x .145 MTD-738-05088
...
32
21.23" BLADE (2N1) MTD-942-04308A
...
32
Cub Cadet 42" BLADE SET Retail Packaged Part MTD-490-110-C108
...
32
Troy-Bilt 42" BLADE SET(2N1) Retail Packaged Part MTD-490-110-Y108
...
32
21.23" BLADE (2N1) (XTREME) MTD-942-04308-X
...
32
42" 6 PT STAR LOW LIFT/SAND BLADE MTD-742-04312-L0606
...
33
DECK FRONT LIFT ROD MTD-747-05141B
...
34
DECK BRAKE ROD MTD-747-06538
...
35
DECK LIFT PIVOT CUP MTD-748-04069A
...
36
SHOULDER SPACER MTD-748-05029A
...
37
SHOULDER SPACER MTD-748-05037B
...
38
SPACER MTD-750-0566A
...
39
SPACER .385ID x 1.75OD x .585THK MTD-750-06184
...
40
V-BELT A x 96.5 MTD-954-04060C
...
40
Troy-Bilt 42" DECK DRIVE BELT (04060B) Retail Packaged Part MTD-490-501-Y044
...
41
IDLER PULLEY 4.50" DIA MTD-756-05034A
...
43
DECK WASH PLUG MTD-783-06464
...
44
IDLER PULLEY CAP MTD-783-08389
...
45
DECK BELT COVER *CHOOSE COLOR WHEN ORDERING* MTD-783-08510A
...
46
DECK IDLER BRACKET MTD-783-08654C
...
47
BELT KEEPER *CHOOSE COLOR WHEN ORDERING* MTD-783-08690A
...
...
...
...
