Craftsman 13A277XS099 (247.203706) (T1000) (2017) Lawn Tractor

Model: 13A277XS099 (247.203706) (T1000) (2017)

Back To Assemblies
Save
 Don't See Your Part Listed?
product name

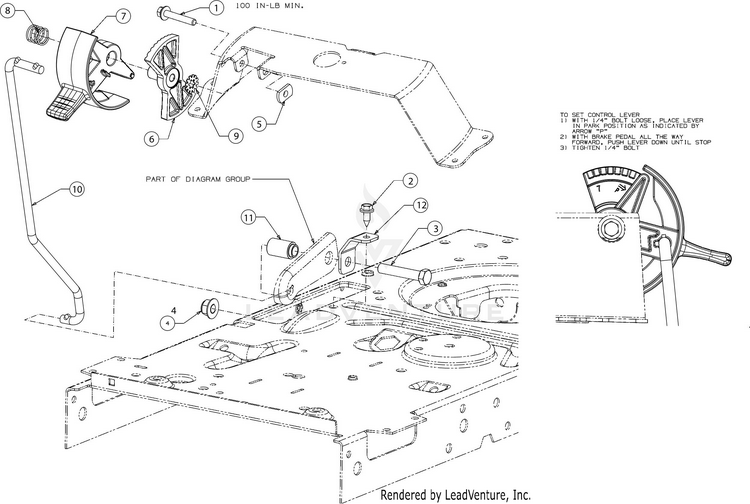

Controls

...
...
1
SCREW 1/4-20 x 1.50 GR5 MTD-710-05237
...
2
SCREW 1/4-20X.625 MTD-710-1652
...
3
SCREW 3/8-16 x 2.0 GR5 MTD-710-3144
...
4
NUT MTD-712-04065
...
5
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
6
INDEX CONTROL 7SPEED MTD-731-07895A
...
7
SHIFT LEVER MTD-731-09253
...
8
COMPRESSION SPRING MTD-732-04877
...
9
WASHER MTD-736-3006
...
10
SPEED CONTROL ROD MTD-747-05398
...
11
FLANGE SPACER MTD-750-04465C
...
12
SPEED LATCH TAB MTD-783-06823
...
...
...
...
