Craftsman 12AE764Y099 (247.889981) (2012) Self-Propelled Walk-Behind Mower

Model: 12AE764Y099 (247.889981) (2012)
Save
 Don't See Your Part Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-759-3336
...
xx
Pre-Filter MTD-BS-697292
...
xx
AIR CLEANER ELEMENT MTD-BS-794421
...
xx
Fuel Filter MTD-BS-394358S
...
xx
Fuel Cap MTD-BS-795027
...
xx
Drive Belt MTD-954-04145A
...
xx
Control Cable (brake) MTD-946-04604
...
xx
WHEEL CLUTCH CABLE KIT MTD-753-08265A
...
xx
Blade MTD-942-04154A
...
xx
Wheels - Front MTD-634-04343
...
xx
Wheels - Rear MTD-634-04285-0911
...
xx
Grass Bag Only MTD-753-06118
...
xx
Trailshield MTD-731-05766
...
xx
Discharge Chute MTD-931-04244
...
xx
Mulch Plug MTD-631-04252
...
xx
Key MTD-925-1745A
...
xx
Ignition Switch MTD-925-1741
...
xx
Battery MTD-925-1707D

Deck Assembly

...
...
1
PUSH CAP MTD-726-04009A
...
2
Transmission 4-Speed MTD-918-04639
...
3
Screw, HH Cap, 5/16-18 x 2.75" MTD-710-0176
...
4
Screw, HH Cap, 5/16-18 x 1.00" MTD-710-0376
...
5
Screw, HH Cap, 7/16-20 x 2.75" MTD-710-04377
...
6
BOLT 1/4-28 X .625 GR8 MTD-710-0513A
...
7
Screw, HH Cap, 3/8-16 x 1.50" MTD-710-0520
...
8
Screw, HH Cap, 3/8-16 x 1.75" MTD-710-0347
...
9
Screw, HH Cap, 3/8-16 x 1.25" MTD-710-3005
...
10
Screw, HH Cap, 1/4-20 x .75" MTD-710-3015
...
11
Belt Keeper MTD-911-1000
...
12
Nut, Flange Lock, 5/16-18 MTD-712-04063
...
13
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
14
Nut, Flange Lock, 3/8-16 MTD-712-04065
...
15
Nut, Flange, 9/16-18 MTD-712-0700
...
16
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
17
Pulley Hub MTD-718-04407
...
18
Grip MTD-720-0142
...
19
Trailing Shield MTD-731-05766
...
20
Extension Spring MTD-732-04409
...
21
Extension Spring MTD-732-04443A
...
22
Washer, Spring, .401" x .870" x .063" MTD-736-0105
...
23
Washer, Flat, 450" x 1.250" x .164" MTD-736-0322
...
24
SPRING WASHER BELL MTD-736-0270
...
25
Washer, Flat, .39" x .87" x .06" MTD-736-04256
...
26
Spacer, Shoulder, .50" x .1475" MTD-738-04166
...
27
Belt Keeper Rod MTD-747-04635A
...
28
Tri-Link Coupling MTD-747-05571
...
29
Trans Mount Rod MTD-747-04678A
...
30
Belt, V Type MTD-954-04145A
...
31
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
32
Flat Sheave 7.75" MTD-756-04258
...
33
Engine Pulley 3.20" x 4.35" Dia. MTD-756-04260
...
34
Idler Pulley 3.50" Dia. MTD-756-04280A
...
35
Shift Rod, Lower MTD-787-01469B-0637
...
36
Shift Rod, Upper MTD-787-01470A-0637
...
37
Belt Keeper MTD-787-01473A
...
38
Wheel Drive idler Bracket MTD-787-01523A
...
39
Drive Spindle Assembly MTD-918-04438C
...
40
Spacer Spindle Assembly MTD-918-04439C
...
41
Mulch Plug MTD-631-04252
...
42
Idler Arm Assembly MTD-987-02420
...
43
Deck Assembly, 33-inch MTD-687-02476-0691
...
44
Bolt, Carriage, 5/16-18 x .75" MTD-710-0451
...
45
Screw, HH Cap, 3/8-16 x 1.00" MTD-710-0514
...
46
Screw, Carriage, 3/8-16 x 1.75" MTD-710-0560
...
47
Screw, TT, 5/16-18 x .750" MTD-710-1260A
...
48
Screw, HH Cap, 3/8-16 x 2.00" MTD-710-3184A
...
49
Chute Deflector Assy (incl. ref. 72-76) MTD-931-04244
...
50
HEX NUT MTD-712-0417A
...
51
Nut, Hex, M16-1.5 MTD-712-0641
...
52
Nut, Hex 3/8-16 MTD-912-3017
...
53
Extension Spring, Timing Belt Tension MTD-732-04406
...
54
Extension Spring, Deck Brake MTD-732-04452
...
55
Washer, Lock MTD-736-0225
...
56
Spacer, Shoulder, .625" x .169" MTD-938-0347
...
57
Shoulder Spacer .884 x .190 MTD-738-04162C
...
58
Blade, 17.9" MTD-942-04154A
...
59
Belt, Timing MTD-754-04136
...
60
Belt, V Type MTD-954-04139
...
61
Push Nut MTD-02000300
...
62
Idler Pulley, 3.50" MTD-756-04280A
...
63
Idler Pulley, V-Type, 5.0" MTD-756-0616
...
64
Idler Timing Bracket MTD-787-01440-0637
...
65
Water Nozzle Adapter MTD-921-04041
...
66
Water Nozzle MTD-737-04003D
...
67
Wheel, 16 x 4 x 8 MTD-634-04285-0911
...
68
Washer, Bell, .340" x .872" x .060" MTD-736-0242
...
69
Screw, HH Cap, 5/16-24 x .75" MTD-710-0627
...
70
Deflector Torsion Spring MTD-732-04012
...
71
Screw, AB, 1/4-14 x .625" MTD-710-0896
...
72
Deflector Pin MTD-711-04027
...
73
Deflector Hinge Bracket MTD-787-01017A-0637
...
74
Replacement Engine 219807-3712-G5 Purchase locally MTD-NA

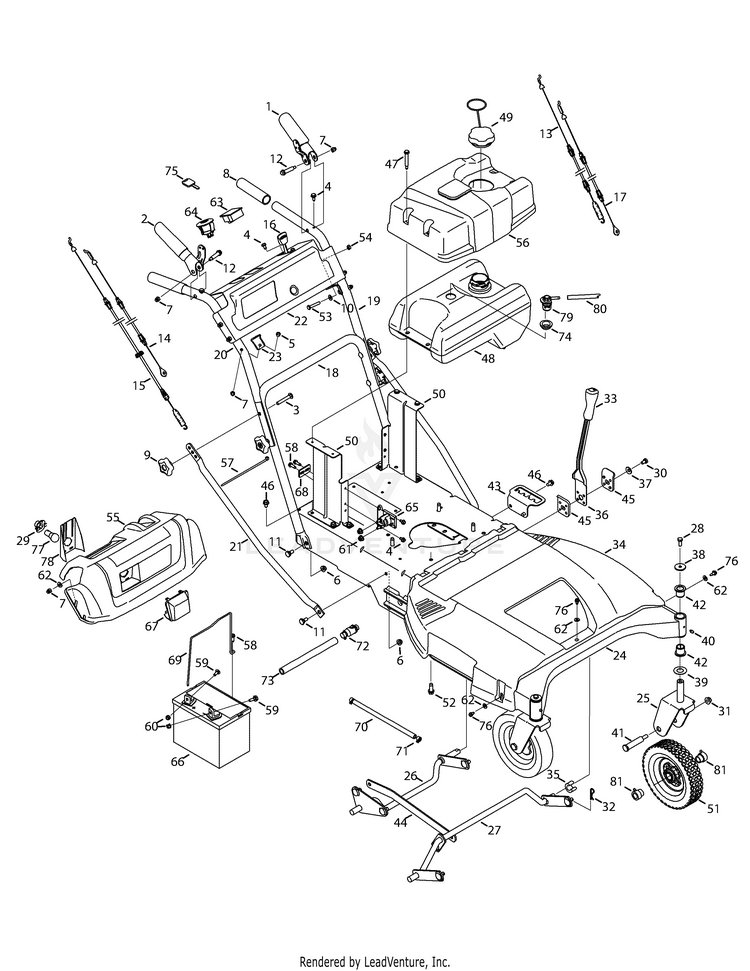

General Assembly

...
...
1
LEVER ASSEMBLY (LH) MTD-687P02427C
...
2
LEVER ASSEMBLY (RH) MTD-687P02426C
...
3
Screw, Carriage, 5/16-18 x 2.25 MTD-710-0572
...
4
Screw, 1/4-20 x 0.500 MTD-710-0599
...
5
Screw, Cap, 1/4-20 x 1.50 MTD-710-0606
...
6
Nut, Flange Lock, 5/16-18 MTD-712-04063
...
7
Acorn Lock Nut 1/4-20 MTD-712-0442
...
8
Grip, 1.0 ID x 5.0 Lg MTD-720-0274
...
9
Star Knob, 5/16-18 MTD-720-04072A
...
10
SPRING WASHER BELL MTD-736-0270
...
11
Shoulder Bolt 7/16" Dia. x 1.75" MTD-738-0140
...
12
Screw, Shoulder, .375 x 1.355, 1/4-20 MTD-938-1226
...
13
WHEEL CLUTCH CABLE KIT MTD-753-08265A
...
14
TRANSMISSION BRAKE CABLE (RH) MTD-946-05076A
...
15
CABLE KIT-BLD CONT MTD-753-08266
...
16
Cable, Throttle/Choke, 38 x 1.1 MTD-946-04604
...
17
TRANSMISSION BRAKE CABLE (LH) MTD-946-05077A
...
18
Lower Handle MTD-749-04330-0637
...
19
Upper Handle - LH MTD-749-04331-0637
...
20
Upper Handle - RH MTD-749-04332-0637
...
21
Brace Tube MTD-749-04333-0637
...
22
Handle Panel MTD-787-01548-4028
...
23
Cable Mount Bracket - RH MTD-787-01490A-0637
...
23
Cable Mount Bracket - LH MTD-787-01491A-0637
...
24
FRAME ASSEMBLY (SEARS YELLOW) MTD-687-02591A-4028
...
25
Caster Wheel Bracket Assembly MTD-687-02263-0637
...
26
Deck Lift Assembly, RR MTD-687-02419-0637
...
27
Deck Lift Assembly, Front MTD-687-02265-0637
...
28
Screw, HH Cap, 5/16-24 x .750 MTD-710-0627
...
29
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
30
Screw, HH Cap, 5/16-18 x .50 MTD-710-04312
...
31
Nut, Flange Lock, 3/8-16 MTD-712-04065
...
32
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
33
Handle Grip MTD-720-0311
...
34
Belt Cover MTD-931-05684
...
35
Snap Spacer, .63 ID x .75 LG MTD-731-05791
...
36
DECK HEIGHT LEVER MTD-732-04418C
...
37
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
38
Washer, Flat, .330 x 1.25 x .120 MTD-736-0343
...
39
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
40
Lube Fitting, 3/16 MTD-937-3000
...
41
Bolt, Shoulder, .625 x 2.515 x 3/8-16 MTD-738-04216A
...
42
Flange Bearing, .760 x .941 x 1.0 MTD-741-0660A
...
43
Height Adjustment Bracket MTD-787-01496-4028
...
44
Link Pivot Bracket MTD-787-01510-0637
...
45
Lever Pivot Bracket MTD-787-01521-0637
...
46
Screw, TT, 5/16-18 x .625 MTD-710-0604A
...
47
Screw, Shoulder, .32 x 1.8 x 1/4-20 MTD-738-04282
...
48
FUEL TANK MTD-951-04322A
...
49
Fuel Cap MTD-951-12182
...
50
FUEL TANK BRACKET (SEARS YELLOW) MTD-787-01507B-4028
...
51
Wheel, 8 x 1.75 MTD-734-04243
...
52
Screw, TT, 3/8-16 x 1.25 MTD-710-1315
...
53
Screw, HH Cap, 1/4-20 x 1.75 MTD-710-0136
...
54
HEX NUT MTD-712-3006
...
55
Handle Panel MTD-931-04339A
...
56
Tank Cover MTD-931-06935A
...
57
Cable Tie MTD-725-0157
...
58
Screw, TT, 1/4-20 x .75 MTD-710-0642
...
59
Screw, 1/4-20 x .75 MTD-710-04666
...
60
Nut, Sems, 1/4-20 MTD-712-0271
...
61
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
62
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
63
Hour Indicator Meter MTD-925-04022B
...
64
Key Switch MTD-925-1741
...
65
12V SOLENOID MTD-725-04439B
...
66
Battery MTD-925-1707D
...
67
Lens MTD-731-05319
...
68
Shift Adjust Plate MTD-787-02009
...
69
Battery Hold Down MTD-747-04657
...
70
Fuel Hose MTD-751-10349
...
71
Hose Clamp MTD-726-0205
...
72
Oil Drain MTD-951-10517A
...
73
Oil Drain Hose MTD-751-3141-14
...
74
Rubber Gromet MTD-735-04081
...
75
Key, Ignition, Black MTD-925-1745A
...
76
Screw, 1/4-20 x 1.75 MTD-710-0896
...
77
Lamp MTD-925-1629
...
78
Label Reflector MTD-777X41805
...
79
Rollover Valve MTD-751-12118
...
80
Vent Hose MTD-751-12089
...
81
Flange Bearing w/ Fitting MTD-941-0706
...
xx
Starter Wire (Not Shown) MTD-725-04478
...
xx
Wiring Harness (Not Shown) MTD-925-05237
...
xx
Nut, Jam Lock (Ground Wire) (Not Shown) MTD-712-0266A

Label Map

...
...
777I22759
LABEL-SPEED INDICATE MTD-777I22759
...
777X44930
LABEL-RDR EMISSIONS 2011 MTD-777X44930
...
777I22815
LABEL-WIDECUT HANDLE LH MTD-777I22815
...
777I22808
LABEL-HOUR METER MTD-777I22808
...
777I22814
LABEL-WIDECUT HANDLE RH MTD-777I22814
...
777D15613
LABEL-MWR HANDL PANEL CRAFTSMAN MTD-777D15613
...
777I22793
LABEL-OIL DRAIN VLV MTD-777I22793
...
777I22809
LABEL-MULCH PLUG MTD-777I22809
...
777S30145
LABEL MTD-977S30145
...
777D15612
LABEL-MOWER TOP HSG CRAFTSMAN MTD-777D15612
...
777S30117
LABEL-DANGER MWR DECK MTD-777S30117
...
777D15546
LABEL-DECK WASH BLUE MTD-777D15546
...
777I22760
LABEL-HEIGHT ADJUST MTD-777I22760
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
...
...
...
