Craftsman 11A-B25H299 (247.37126) (2011) Walk Behind Mower

Model: 11A-B25H299 (247.37126) (2011)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-BS-796112S
...
xx
Pre Filter MTD-NA
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter MTD-NA
...
xx
Fuel Cap MTD-BS-796577
...
xx
Control Cable, 37.58" MTD-946-04661A
...
xx
Choke Cable MTD-NA
...
xx
Blade Adapter MTD-748-04096
...
xx
Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1044
...
xx
Wheels - Front MTD-634-04642
...
xx
WHEEL ASSEMBLY (11 X 2) MTD-634-05062
...
xx
Trailshield MTD-731-07203
...
xx
REAR DOOR & BAFFLE ASSEMBLY MTD-631-08159
...
xx
21" MULCH PLUG (HINGED) MTD-687-06029
...
xx
21" GRASSBAG (BLACK/CRAFTSMAN) MTD-964-04154B
...
xx
GRASSBAG FRAME ASSEMBLY (CRAFTSMAN RED) MTD-647-04271-4044

General Assembly

...
...
1
Blade Control MTD-747-05204-0637
...
2
Upper Handle MTD-749-04682A-0637
...
3
GRASSBAG FRAME ASSEMBLY (CRAFTSMAN RED) MTD-647-04271-4044
...
4
LOWER HANDLE (POWDER BLACK) MTD-749-07298-0637
...
5
Wing Nut MTD-720-0279
...
6
Rope Guide MTD-710-1205
...
7
Carriage Screw ,5/16-18 MTD-710-04998
...
8
21" GRASSBAG (BLACK/CRAFTSMAN) MTD-964-04154B
...
9
Hand Knob MTD-720-04072A
...
10
Side Chute MTD-731-07486
...
11
Cable Tie MTD-725-0157
...
12
Nut, Sq., 1/4-20 MTD-712-04222
...
13
REAR DOOR & BAFFLE ASSEMBLY MTD-631-08159
...
14
Hinge Pin MTD-747-0710A
...
15
Chute Deflector Bracket MTD-787-01779
...
16
TORSION SPRING (RH) MTD-732-05061B
...
17
Wheel, 7 x 2 MTD-634-04642
...
18
Screw, 1/4-15 x .750 MTD-710-0895
...
19
Screw, 1/4-20 x .500 MTD-710-05073
...
20
21" DECK (3N1) MTD-787-01874C-0691
...
21
21" MULCH PLUG (HINGED) MTD-687-06029
...
22
Torsion Spring - LH MTD-732-04674A
...
23
Blade Adapter MTD-748-04096
...
24
Mulching Blade MTD-942-0741A
...
25
Screw , 3/8-24 x 1.50 MTD-710-1044
...
26
Hub Cap - Front MTD-731-07531
...
26
Hub Cap - Rear MTD-731-07533
...
27
Sldr. Screw, .375 x .126 x 1/4-20 MTD-738-04419A
...
28
Flange Lock Nut, 3/8-16 MTD-712-04217
...
29
Adjustment Lever Knob MTD-720-04130
...
30
WING KNOB 1/4-20 MTD-720-05066A
...
31
BLADE BELL SUPPORT MTD-736-0524B-1
...
32
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
33
WHEEL ASSEMBLY (11 X 2) MTD-634-05062
...
34
Control Cable, 37.58" MTD-946-04661A
...
35
TT Sems Screw, 3/8-16 x 1.0 MTD-710-0654A
...
36
Trail shield MTD-731-07203
...
37
REPLACEMENT AXLE COVER MTD-753-11462
...
38
Torsion Spring MTD-732-1014C
...
39
Front Height Adjuster Plate MTD-787-01818A-0637
...
40
REAR AXLE MTD-611-04144B
...
41
7" FRONT AXLE ASSEMBLY MTD-611-04143B
...
42
SCREW 5/16-14 X .750 MTD-710-04995A
...
43
Axle Retainer Bracket MTD-787-01819
...
44
Engine - 128L02-0867-F1 Purchase locally MTD-NA
...
45
Screw, 1/4-20 x .500 MTD-738-04278
...
46
Deck Wash Nozzle MTD-731-07487
...
47
Water Nozzle Adapter MTD-921-04041

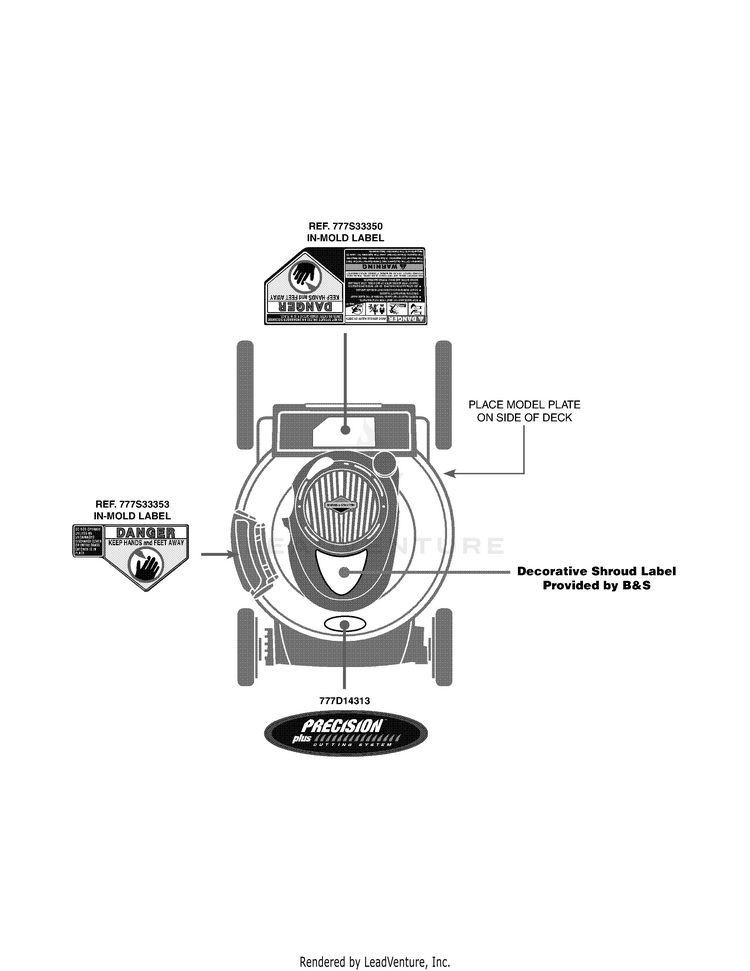

Label Map

...
...
777S33350
LABEL-MOWER:RR DR:IN-MOLD:DOM Mold In Label MTD-NA
...
777S33353
LABEL-MOWER:SD CHT:IN-MOLD:CUT FNG Mold In Label MTD-NA
...
777D14313
LABEL-MOWER SEARS PRECISION CUT MTD-777D14313
...
...
...
