Craftsman 41BDZ20C799 (316.711021) Gas String Trimmer

Model: 41BDZ20C799 (316.711021)

Save Part Not Listed?
product name

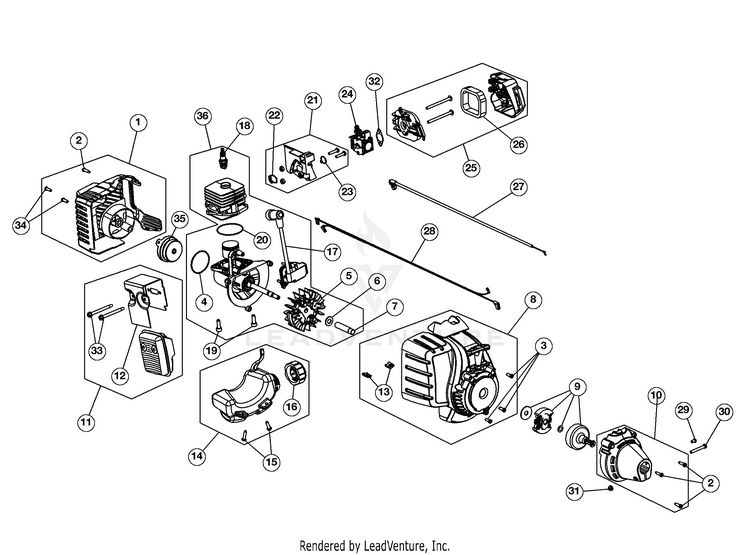

Engine Assembly

...
...
1
Rear Cover Assembly (Incl. 2 & 34) MTD-753-06177
...
2
Cover Screw MTD-791-181345
...
3
SCREW:10-32X.5 MTD-1964
...
4
O-Ring MTD-753-06174
...
5
Flywheel Assembly MTD-753-06175
...
6
Washer MTD-753-06247
...
7
Spacer MTD-753-06218
...
8
Starter Housing (Incl. 3 & 13) MTD-753-06522
...
9
Clutch Assembly MTD-753-05860
...
10
CLUTCH COVER MTD-753-06181
...
11
MUFFLER ASSEMBLY MTD-753-08745
...
12
Muffler Gasket MTD-753-06419
...
13
U-shaped Nut MTD-791-182366
...
14
Fuel Tank Assembly (Incl. 15 & 16) MTD-753-06183
...
15
Tank Screw MTD-791-181930
...
16
Fuel Cap MTD-791-182612
...
17
Module Assembly MTD-753-06303
...
18
Spark Plug MTD-753-06847
...
19
Crankcase Bolt MTD-791-182723
...
20
Crankcase O-Ring MTD-753-06275
...
21
Insulator Assembly (Incl. 22 & 23) MTD-753-06189
...
22
Insulator O-Ring MTD-753-06184
...
23
Carburetor O-Ring MTD-753-06185
...
24
Carburetor MTD-753-06190
...
25
AIRCLEANER COVER ASSEMBLY MTD-753-06415
...
26
Aircleaner Filter MTD-753-06417
...
27
Throttle Cable MTD-753-06188
...
28
WIRE LEADS MTD-753-06187
...
29
Anti-rotation Screw MTD-791-182519
...
30
SCREW MTD-9689A
...
31
Clamp Nut MTD-712-0161
...
32
Air Cleaner Gasket MTD-753-06253
...
33
Muffler Screw MTD-753-06294
...
34
SCREW #10-24X11/16 T-25 MTD-791-182195
...
35
Electric Starter Cover Assembly MTD-753-06173
...
36
Short Block Assembly (Incl. 4-7 & 17-20) MTD-753-06523
...
xx
Electric Starter Accessory (Not Shown) (Optional) MTD-49M2027P799
...
xx
CRAFTSMAN START BIT (Not Shown) (Optional) MTD-651-04290

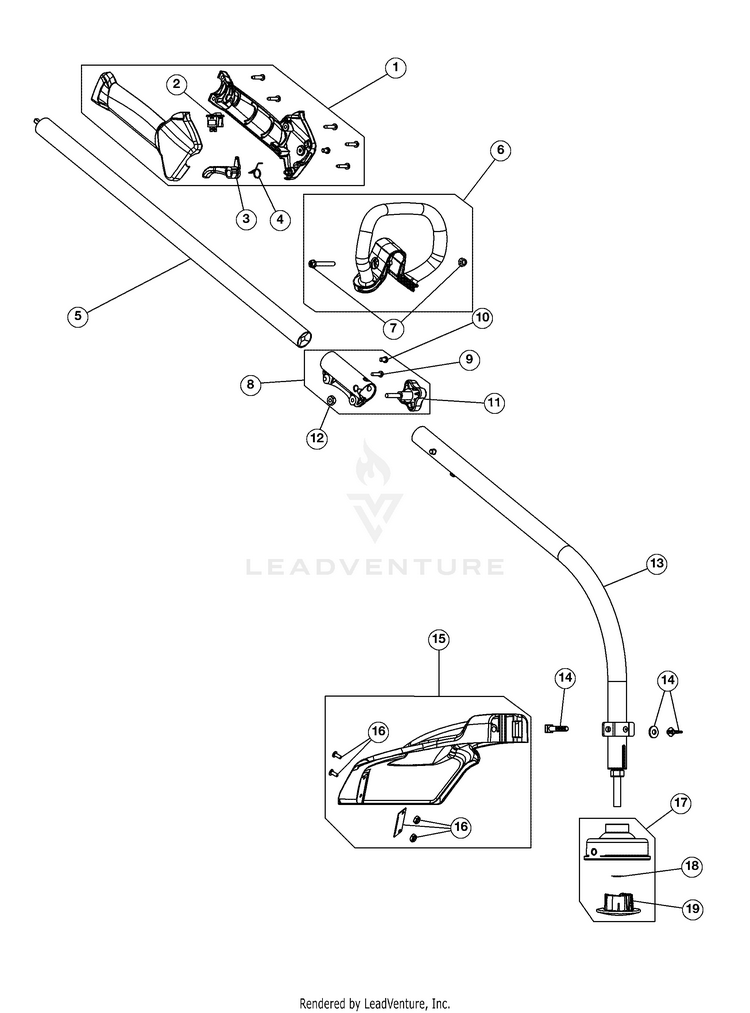

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2-4) MTD-753-06790
...
2
Switch MTD-791-182405
...
3
Throttle Trigger MTD-753-04119
...
4
Throttle Trigger Spring MTD-791-182690
...
5
Upper Shaft Housing Assembly MTD-753-04344
...
6
D-Handle (Incl. 7) MTD-753-08042
...
7
D-Handle Bolt MTD-753-06040
...
8
Split Boom Coupler (Incl. 9-12) MTD-753-1190
...
9
Anti-Rotation Screw MTD-791-182057
...
10
Screw MTD-791-181617
...
11
CLICK LINK CLAMP MTD-697-00661-9
...
12
Knob Retainer Nut MTD-712-04018A
...
13
Lower Shaft Housing Assembly MTD-753-06800
...
14
Shield Mounting Hardware MTD-753-04282
...
15
Shield Assembly (Incl. 16) MTD-753-04283
...
16
Blade Assembly MTD-791-180553
...
17
HEAD ASSEMBLY DE HF MTD-753-06764
...
18
PUSH NUT .375 MTD-791-610661
...
19
Fixed String Cap MTD-753-06765
...
xx
.110 Hassle Free™ XTRA QUIET Spiral Line (Not shown) (Optional) MTD-753-06767
