product name

Columbia CYT5023SE (13AQA1KZ897) (2019) Lawn Tractor

Model: CYT5023SE (13AQA1KZ897) (2019)

Back To Assemblies
Save
 Don't See Your Part Listed?
product name

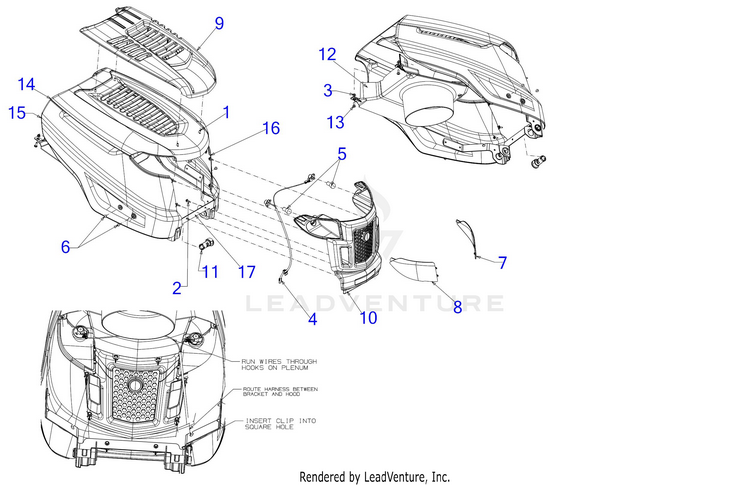

Hood

...
...
1
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
2
SCREW 1/4-10 x .750 MTD-710-06147
...
3
FLANGE LOCK NUT MTD-712-04064
...
4
HEADLIGHT HARNESS MTD-925-06463
...
5
MINIATUURE BULB 12V MTD-925-0963
...
6
POP RIVET 6.4MM x 10MM MTD-728-04063
...
7
LENS (LH) MTD-731-06095
...
8
LENS (RH) MTD-731-06096
...
9
HOOD SCOOP MTD-731-06194B
...
10
GRILLE (K STYLE) MTD-931-06796A
...
11
HOOD PIVOT PIN MTD-731-10070A
...
12
PLENUM MTD-931-13555
...
13
SCREW-SHLDR 1/4-20 x .75 TORX MTD-738-05040
...
14
HOOD MTD-783-07231
...
15
SIDE PANEL (RH) MTD-783-09762
...
16
SIDE PANEL (LH) MTD-783-09763
...
17
PIVOT BRACKET MTD-783-09764
...
...
...
...
