Columbia CYT4220 13A8A1KS897 (2016) Lawn Tractor

Model: CYT4220 13A8A1KS897 (2016)

Back To Assemblies
Save
 Don't See Your Part Listed?
product name

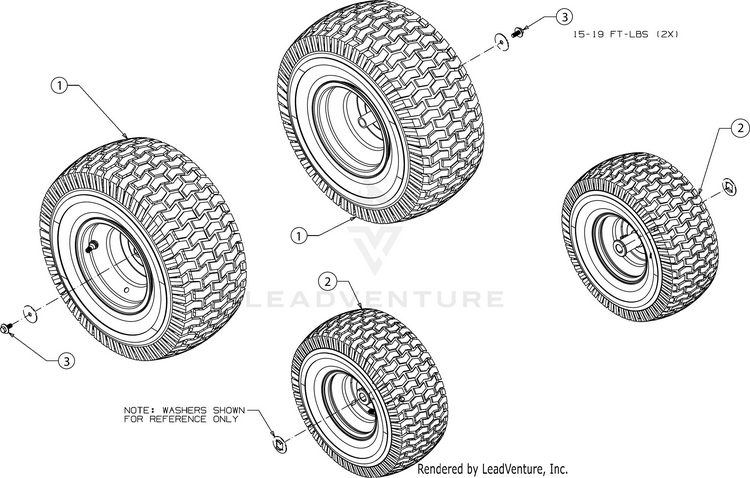

Wheels

...
...
1
WHEEL ASSEMBLY (20 X 8 X 8) MTD-634-0104-0911
...
1
RIM ASSEMBLY (8.0 X 7.0 X .750) (Not Shown) MTD-634-04369-0662
...
1
TUBELESS VALVE (Not Shown) MTD-934-0255
...
1
TIRE-20X8 MULTI TRAC BRAND (Not Shown) MTD-734-1730-0901
...
2
WHEEL ASSEMBLY (15x6x6)(CUB BEIGE) MTD-634Z05149A-0499
...
2
RIM ASSEMBLY (6.0 x 4.5) (OYSTER GREY) (Not Shown) MTD-634-05081B-0662
...
2
TUBELESS VALVE (Not Shown) MTD-934-0255
...
2
FLANGE BEARING (Not Shown) MTD-741-05094
...
2
GREASE FITTING 65 DEG 3/16 (Not Shown) MTD-737-05024
...
2
TIRE 15X6-6BRAND (Not Shown) MTD-734-1731-0901
...
3
SCREW 5/16-24 X .85 GR5 MTD-710-06154B
...
...
...
...
