Briggs and Stratton 356447-3545-G1

Model: 356447-3545-G1

Back To Assemblies

Save Part Not Listed?
product name

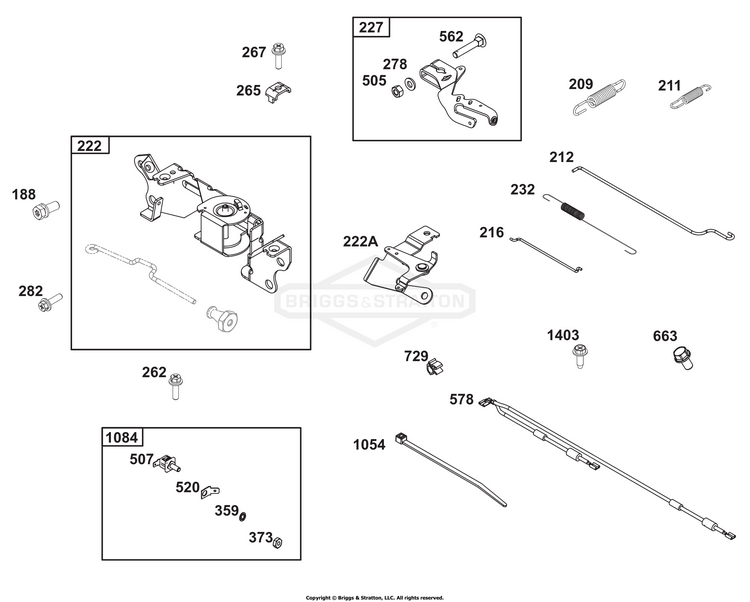

Controls Group

...
...
188
SCREW (Control Bracket) (M5x20mm) BS-691902
...
209
SPRING, Governor BS-691508
...
211
SPRING, Governed Idle BS-692069
...
212
LINK, Throttle BS-847015
...
216
LINK, Choke (M5x20mm) BS-690705
...
222
BRACKET, Control BS-808454
...
222A
CRANK, Bell BS-808753
...
227
LEVER, Governor Control BS-690236
...
232
SPRING, Governor Link BS-692073
...
262
SCREW (Rod Bracket) BS-841552
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-841552
...
278
WASHER (Governor Control Lever) BS-842122
...
282
SCREW (Control Lever) BS-841552
...
359
WASHER (Ground Terminal) BS-691077
...
373
NUT, Hex #8-32 (Ground Terminal) BS-703460
...
505
NUT (Governor Control Lever) BS-844752
...
507
INSULATOR BS-691972
...
520
TERMINAL, Ground BS-691084
...
562
LEVER, Governor Control (Governor Control Lever) BS-844799
...
578
HARNESS, WIRING BS-84013450
...
663
SCREW (Control Panel) BS-692056
...
729
CLIP, Wire BS-593826
...
1054
TIE, Cable BS-280275
...
1084
CONNECTOR, Terminal BS-848341
...
1403
SCREW (Wire Assembly) BS-841552
