Bolens 21A-250H065 (2010) Tiller

Model: 21A-250H065 (2010)
Save
 Don't See Your Part Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Pre Filter MTD-NA
...
xx
Air Filter MTD-490-200-0011
...
xx
Fuel Filter MTD-NA
...
xx
Fuel Cap MTD-BS-497929S
...
xx
Drive Belt MTD-954-04123
...
xx
Idler Pulley MTD-756-04163
...
xx
Clutch Cable MTD-946-04247
...
xx
Tines - Outer - LH MTD-642-0005-0637
...
xx
Tines - Outer - RH MTD-642-0004-0637
...
xx
Tines - Inner - LH MTD-642-0003-0637
...
xx
Tines - Inner - RH MTD-642-0002-0637
...
xx
COMPLETE WHEEL MTD-734-04063B
...
xx
Foam Grip MTD-NA

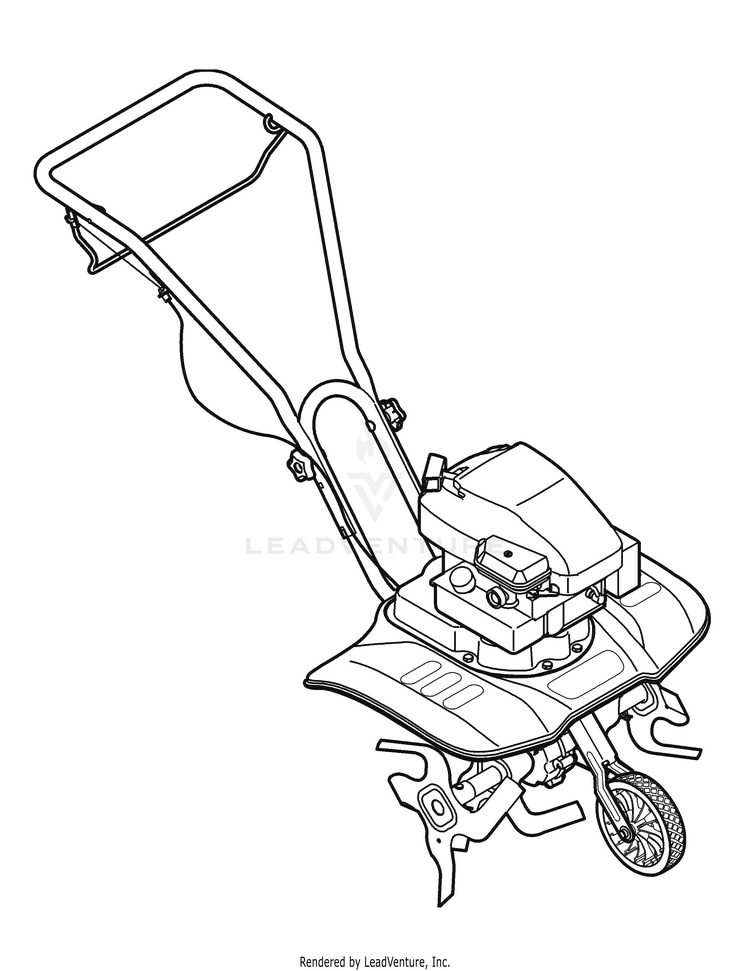

General Assembly

...
...
1
UPPER HANDLE MTD-749-04282-0637
...
2
Star Handle Knob MTD-720-04072A
...
3
LOWER HANDLE MTD-749-04281-0637
...
4
SCREW 5/16-18 x 7.5 GR5 MTD-710-04398
...
5
V-Belt MTD-954-04123
...
6
Idler Pulley MTD-756-04163
...
7
Shoulder Spacer MTD-748-04125
...
8
Idler Bracket MTD-686-04080
...
9
Flange Lock Nut: 3/8-16 MTD-712-04065
...
10
TT Screw: 3/8-16:1.00 MTD-710-0654A
...
11
Belt Cover MTD-786-04303-0709
...
12
HH Cap Screw: 3/8-16:1.00 MTD-710-0514
...
13
Extension Spring MTD-732-0418
...
14
Stud: 33 x 1.5: 3/8-16 MTD-738-04139
...
15
Flywheel Pulley MTD-756-04217
...
16
HH Cap Screw: 3/8-24:1.00 MTD-710-0591
...
17
HH Cap Screw: 3/8-16:1.55 MTD-710-0520
...
18
Tine Shield 61 cm MTD-786-04256-0709
...
19
Clevis Pin MTD-711-0415
...
20
Outer Tine Assembly LH MTD-642-0005-0637
...
21
Inner Tine Assembly LH MTD-642-0003-0637
...
22
Cotter Pin, Bow Tie MTD-714-04043
...
23
Shoulder Screw: .31x2:1/4-20 MTD-738-04172
...
24
Front Wheel Bracket MTD-786-04232-0637
...
25
HH Cap Screw: 3/8-16:3.00 MTD-710-0521
...
26
Spacer MTD-750-04578
...
27
COMPLETE WHEEL MTD-734-04063B
...
28
Sleeve MTD-749-04204
...
29
Extension Spring MTD-932-0384
...
30
Flange Lock Nut: 1/4-20 MTD-712-04064
...
31
TT Screw: 1/4-20:1.25 MTD-710-0809
...
32
Pipe Plug: 3/8 NPT MTD-737-04202
...
33
Inner Tine Assembly RH MTD-642-0002-0637
...
34
Outer Tine Assembly RH MTD-642-0004-0637
...
35
Case Assembly MTD-918-04276B
...
35
OIL SEAL Input Shaft Seal (Not shown) MTD-721-04144
...
35
Seal,Oil 1.00 Shft X 1.500 Bore Tine Shaft Seal (Not shown) MTD-921-04036
...
36
Gasket MTD-721-04157
...
37
Depth Stake Assembly MTD-686-04072-0709
...
38
TT Screw: 3/8-16:1.50 MTD-710-1007
...
39
Flange Lock Nut: 5/16-18 MTD-712-04063
...
40
Carriage Bolt MTD-710-0487
...
41
Clutch Cable Fitting MTD-946-04626
...
42
Clutch Cable MTD-946-04247
...
43
TT Screw: 1/4-20:.50 MTD-710-0599
...
44
CABLE MOUNTING BRACKET MTD-786-04307-0637
...
45
Clutch Bail MTD-747-04508-0709
...
46
Retaining Ring MTD-716-0208
...
47
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
