product name

Amana UFS-7EVP.D (BOM: UFS-7EVP. D)

Model: UFS-7EVP.D (BOM: UFS-7EVP. D)

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Torx Driver, T-20 (M95d23) WPL-M95D23
...
1
Bushing WPL-M2D578
...
2
Adhesive WPL-W10841140
...
3
Washer (25) WPL-M1D863
...
4
Rivet WPL-WP210720
...
5
Stirrer Cover WPL-44103P01
...
6
Deflector WPL-40365P01
...
7
Deflector WPL-M65D265
...
8
Stirrer Support Cover WPL-46800P01
...
9
Insert Stirrer Kit WPL-M2D571
...
10
Blade, Stirrer WPL-10826002Q
...
11
Kit, Exhaust Baffle WPL-R0163287
...
12
Sensor, Cavity Kit WPL-M4D131
...
13
Screw WPL-WP90767
...
14
Screw WPL-WP90767
...
15
Light Bulb WPL-59002071
...
16
Screw WPL-WP90767
...
17
Screw WPL-WP90767
...
18
Screw WPL-WP90767
...
19
Cavity Plug (10) WPL-M1D755
...
20
Strain Relf WPL-26632P01
...
21
Powercord 250v 10/16 Amps WPL-1738379615
...
22
No.4-40 Twin Whiz-Lock Nut WPL-M1D965
...
23
Nut WPL-WP488130
...
24
Capacitor, H.v. WPL-44035P01
...
25
Bracket WPL-10825501
...
26
Cable Clip WPL-M2D580
...
27
Fuse, 10 Amp WPL-M0805106
...
28
Screw WPL-WPW10068250
...
29
U-Clip WPL-M2D575
...
30
Duct Cavity WPL-M65D301
...
31
Barrier- Foil Tape WPL-92011P01
...
32
Sensor Magnetron Kit WPL-M4D101
...
33
Screw WPL-WP90767
...
34
Assy, Hinge WPL-4180032601Q
...
35
No.10 Wave Washer WPL-M2D583
...
36
Ia Nylon Flat Washer WPL-40370P02
...
37
No.8-32 Pan Hd Mach Scr (25) WPL-M1D885
...
38
Fs-7 D.h.i. New Look WPL-2560000316
...
39
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
40
Clip, Inlay Mtg. WPL-M2D659
...
41
Door Filler Kit WPL-M55D18
...
42
Outer Window Assy. Kit WPL-M51D53
...
43
No.8 Ab X 3/8`` Screw WPL-M1D906
...
44
Window, Inner Door WPL-10785001
...
45
Touch Panel Assy M7d649 WPL-94331P01
...
46
Display Window Kit WPL-M2D632
...
47
Controller WPL-M31R55
...
48
Low Voltage Transformer WPL-M60D121
...
49
Int`l Lst Iv WPL-4070001101
...
50
Nut WPL-WP488130
...
51
Speed Clip WPL-M8D123
...
52
H.v. Lead Kit WPL-M5D350
...
53
Motor Blower WPL-42001P01
...
54
Blower Bracket WPL-M20D372
...
55
Wheel Blower M35d37 WPL-45146P01
...
56
Blwr Hsg M65d293 WPL-42553P01
...
57
Retainer WPL-M1D892
...
58
Blower Hsg Duct WPL-M65D264
...
59
Hv Rect 12kv 750max WPL-1330000301
...
60
H.v. Transformer Kit WPL-M60D115
...
61
No.10 T X 3/8`` Screw WPL-M1D479
...
62
M53d56 Panel, Access Bot Rt WPL-92664P01
...
63
Shim-Hinge WPL-45540P01
...
64
Protector, Trans Therm WPL-M4D128

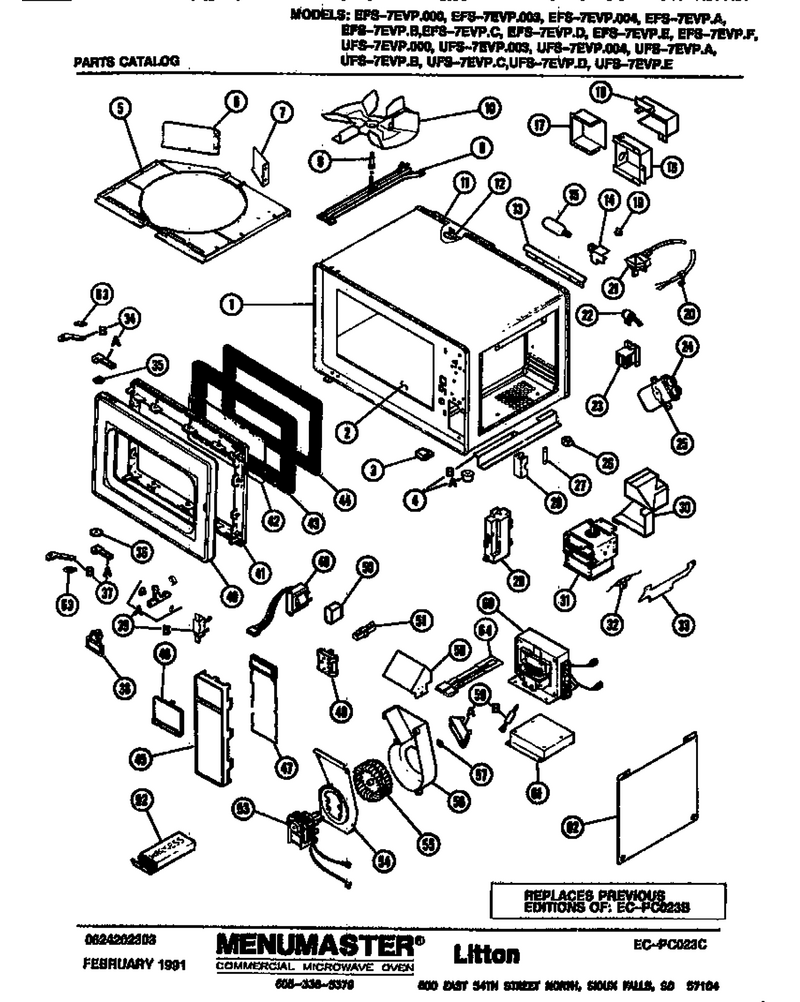

Schematic Image Zoomed
