Amana TR15G (BOM: P6010004W)

Model: TR15G (BOM: P6010004W)

Save Part Not Listed?
product name

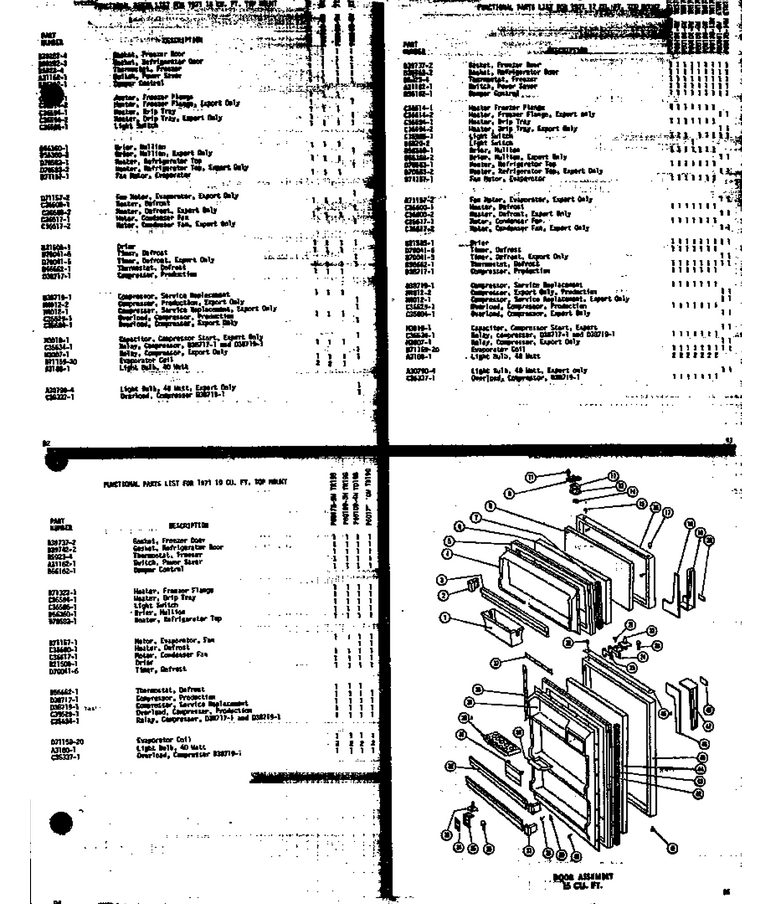

01 - Door Assy 15 Cu. Ft.

...
...
NI
Button- Pl WPL-WP67001130
...
1
Ice Container WPL-D3959403
...
2
Support WPL-D3976808
...
3
Package Retainer WPL-D3976703
...
4
Inner Dr Panel WPL-D7074703
...
5
Gasket WPL-D3928204
...
6
Insulation WPL-B0565609
...
7
Insulation Batt WPL-B0523564
...
8
Insulation WPL-B0566707
...
9
Hinge, Top WPL-B5640704
...
11
Kit, Screw WPL-R9800670
...
12
Shim WPL-A3143701
...
13
Tap Strip WPL-A3139701
...
14
Washer WPL-M0270502
...
15
Bushing, Hinge Pin WPL-C3652901
...
16
Outer Door Shell, Fz, Avocado WPL-D7057817
...
17
Plug Button, Hinge Bushing Aut WPL-M0310604
...
18
Pad, Door Handle WPL-D7056601
...
19
Handle, Door WPL-D7057101
...
20
Nameplate WPL-C3633801
...
21
Screw, Nylock WPL-M0205442
...
22
Center Hinge Assy WPL-B5640401
...
23
Kit, Screw WPL-R9800670
...
24
Center Hinge Assy WPL-B5640501
...
25
Shim K WPL-A3143502
...
26
Bushing, Hinge Pin WPL-C3652901
...
27
Retainer Gasket WPL-D3928102
...
28
Retainer Gasket WPL-D3928104
...
29
Egg WPL-D7025701
...
30
Buttertray WPL-67004412A
...
31
Butter Door WPL-D7026401
...
32
Package Retainer WPL-D3976703
...
33
Hinge Kit WPL-B5640901
...
34
Shim WPL-A3143601
...
35
Hinge Kit WPL-B5640201
...
36
Screw WPL-WP67006715
...
37
Support WPL-D3976805
...
38
Screw WPL-8169479
...
39
Stop Door WPL-A3139801
...
40
Screw WPL-WP98165
...
41
Plug Button, Hinge Bushing Aut WPL-M0310604
...
42
Gasket WPL-D3928203
...
43
Insulation Batt WPL-B0523564
...
44
Insulation WPL-B5639606
...
45
Plug WPL-M0310905
...
46
Handle Pad Kit WPL-D7056602
...
47
Handle WPL-D7057102
...
48
Nameplate WPL-C3633802

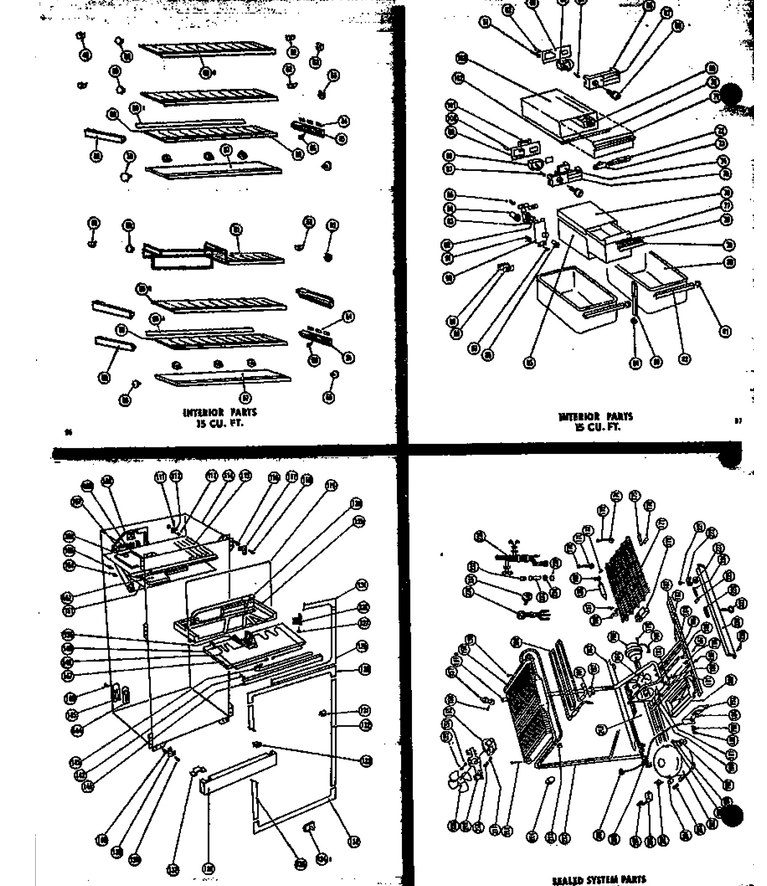

02 - Interior Parts 15 Cu. Ft.

...
...
NI
Elbow WPL-C3630902
...
49
Support WPL-B5633001
...
50
Support WPL-B5642101
...
51
Shelf WPL-D7051101
...
53
Shelf Support WPL-B5620401
...
54
Grommet WPL-A0288701
...
55
Frame-Glide Out WPL-D3917302
...
56
Screw (3) WPL-67006425
...
57
Trim WPL-B0570901
...
58
Support WPL-B0570501
...
59
Frame-Glide Out WPL-D3917301
...
60
Shelf WPL-D3975601
...
61
Grommet, Screw WPL-M0580007
...
62
Clip WPL-M0113004
...
63
Backer Plate WPL-D7058201
...
64
Control-Temp WPL-B0592304
...
65
Screw WPL-WP90767
...
66
Air Deflector, Fz & Ref WPL-D3953303
...
67
Thin Plate WPL-B5634501
...
68
Knob WPL-D7009801
...
69
Tray WPL-WP841180A
...
70
Rod, Hinge WPL-A3099801
...
71
Door,tunnel WPL-C3625001
...
72
Light Bulb WPL-A0318001
...
73
Socket WPL-B5637101
...
74
Cap K WPL-C3617201
...
75
Air Deflector, Fz & Ref WPL-D3953303
...
76
Top, Meat Keeper WPL-D7001102
...
77
Pan, Meat WPL-D3975702
...
78
Gasket (Per Foot) WPL-A3030313
...
79
Trim, Handle WPL-C3623002
...
80
Pan, Crisper WPL-D3937610
...
82
Front,crisper Pan WPL-D7101901
...
83
Support WPL-B0571005
...
84
Support WPL-B0571201
...
85
Sleeve, Meat Keeper WPL-D7001302
...
86
Grommet WPL-B5640801
...
87
Screw (3) WPL-67006425
...
88
Escutheon WPL-C3612002
...
89
Switch WPL-A3116201
...
90
Cover, Linkage WPL-B5617301
...
91
Grommet, Screw WPL-M0580007
...
92
Screw WPL-M0219233
...
93
Slide Assy WPL-A0074301
...
94
Air Tube Assy WPL-D3974806
...
95
Clip WPL-M0113001
...
97
Screw WPL-M0218116
...
98
Control, Damper WPL-C8876602
...
99
Backer Plate WPL-D7058201
...
100
Clip WPL-M0113004
...
101
Gasket WPL-A3104502
...
102
Spring WPL-A3100002
...
103
Tunnel WPL-D3969403
...
104
Grommet WPL-A0288701
...
105
Screw WPL-M0211530
...
106
Plug WPL-A3069101
...
107
Insulation WPL-B5609201
...
108
Gasket,air Duct WPL-B5668201
...
109
Air Duct WPL-D7048101
...
111
Screw (3) WPL-67006425
...
112
Clip WPL-M0116901
...
113
Screw WPL-M0211530
...
114
Assembly, Liner WPL-N6006603
...
115
Freezer Bottom WPL-D7025401
...
116
Grommet WPL-A0381801
...
117
Gusset WPL-C3576901
...
118
Screw WPL-M0250531
...
119
Heater WPL-C3661401
...
120
Heater-Drip Tray WPL-C8708201
...
121
Drain Bloc WPL-D7097101Q
...
124
Breaker Frame WPL-D3917001
...
126
Angle,center Mullion WPL-B5645602
...
127
Screw WPL-M0225431
...
129
Breaker Frame WPL-D3916801
...
130
Breaker Frame, Top Ref WPL-D3916701
...
132
Breaker Frame WPL-D3914515
...
133
Clip WPL-WPM0117303
...
134
Switch, Light WPL-C3658601
...
135
Breaker Frame WPL-D3914516
...
136
Grille-Toe WPL-D7070202
...
137
Grille-Toe WPL-B5641301
...
138
Screw WPL-M0250531
...
139
Gusset WPL-C3576901
...
140
Grommet WPL-A0381802
...
141
Center Mullion,cop WPL-C3633506
...
142
Screw WPL-M0225431
...
143
Drier, Mullion WPL-B5636001
...
144
Gasket WPL-A0382801
...
145
Cover Plate-L WPL-A0382905
...
146
Screw WPL-WP90767
...
147
Top K WPL-D3972202
...
148
Heater-Ref Top K WPL-D7058301
...
149
Screw WPL-WPW10348409
...
150
Gasket (Per Foot) WPL-A3030313
...
151
Barrier WPL-A3126001
...
152
Insulation WPL-B5651601
...
153
Screw WPL-M0202642
...
154
Washer WPL-M0272605
...
155
Motor WPL-D7115701
...
156
Screw WPL-M0214618
...
157
Connector-Drain A WPL-C3620101
...
158
Evaporator WPL-D7115920
...
159
Screw WPL-M0214731
...
160
Heater Def K WPL-C3660003
...
161
Screw WPL-M0214618
...
162
Clamp, Drier WPL-M0102316
...
163
Rail, Rear WPL-C3611301
...
164
Blade, Fan WPL-B5742603
...
165
Motor-Cond WPL-833697
...
166
Clip-Cond WPL-A3054502
...
167
Kit, Screw WPL-R9800670
...
168
Drier WPL-WPB2150504
...
169
Clamp,drier WPL-M0104001
...
170
Sems Fastner WPL-M0257037
...
171
Spacer WPL-A3013909
...
172
Rivet-Pop WPL-59002054
...
173
Sems Fastner WPL-M0257039
...
174
Spacer, 2-5/16`` X 1-1/2`` WPL-A3013908
...
175
Bracket, Support WPL-A3085401
...
176
Nut A WPL-M0286003
...
177
Condenser WPL-D7035701
...
178
Spacer WPL-B0544101
...
179
Screw WPL-M0220114
...
180
Bracket, Cond Motor WPL-B0598701
...
181
Deflector WPL-A3116301
...
183
Screw WPL-WP90767
...
184
Retainer WPL-B0599701
...
185
Seal WPL-B0599603
...
186
Fan Shroud WPL-C3617601
...
187
Screw WPL-WP98165
...
188
Screw WPL-WP98165
...
189
Screw WPL-M0294459
...
191
Screw WPL-WP489069
...
192
Pan, Drain WPL-D7001001
...
193
Bracket, Timer WPL-C3647901
...
194
Timer, Defrost WPL-D7004106
...
195
Clamp WPL-M0102406
...
196
Screw WPL-M0211532
...
197
Screw WPL-M0221132
...
198
Clip, Waterline WPL-12454802
...
199
Grommet K WPL-A3026101
...
200
Sleeve K WPL-A3072001
...
201
Washer, Nylon K WPL-M0590101
...
202
Compresssor WPL-D3871701
...
203
Spring K WPL-A3043601
...
204
Overload WPL-C3533701
...
205
Relay WPL-C3553401
...
206
Terminal Cover WPL-B0551801
...
207
Strap K WPL-A3041801
...
208
Grommet, Cord WPL-211881
...
209
Wiring Harness WPL-D7098802
...
210
Back, Mach Compt K WPL-B5641201
...
212
Heat Exchanger WPL-D7030302
...
213
Grommet WPL-A4568701
...
214
Thermostat,defrost WPL-B5666201
...
216
X$x Nail WPL-M0010510
...
217
Screw WPL-WP98165
...
218
Support, Basket WPL-A0331501
...
219
Bracket WPL-C3536203
...
220
Fan Blade WPL-B5622101
...
221
Screw WPL-M0267101
...
222
Bracket K WPL-A3125201
...
223
Roller WPL-M0520101
...
224
Rivet WPL-M1205302
...
225
Fastener WPL-M0289401
...
226
Wing Nut WPL-A3122601
...
227
Foot-Levelling WPL-M0266712
...
228
Front Rail WPL-B5627601
...
229
Screw WPL-M0294459
...
230
Harness WPL-C3629202
...
231
Cap WPL-B5636301
...
232
Plug WPL-M0310309
...
233
Fill Tube WPL-R0182123
...
234
Grommet WPL-A3138301
...
235
Cap Fill Tube WPL-B5631801
...
236
Wiring Harness, Liner WPL-C3025801
