Amana SNP26CB5 (BOM: P1143191N L)

Model: SNP26CB5 (BOM: P1143191N L)

Save Part Not Listed?
product name

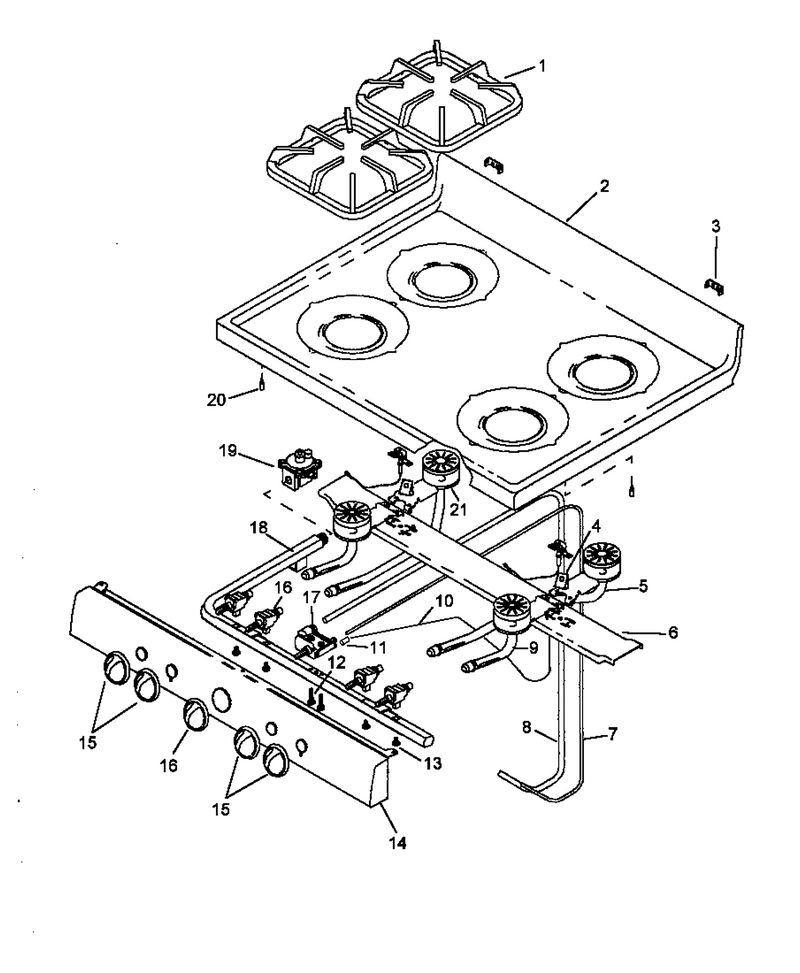

05 - Main Top Assy

...
...
NI
Shield, Switch WPL-Y0314316
...
1
Grate, 7`` Round Burner WPL-Y07540300
...
2
Main Top 30`` (Almond) WPL-Y06582700L
...
3
Bushing, Hinge Wire WPL-Y07730700
...
4
Pilot Tip (J) WPL-0057313
...
5
Burner, Rear R.h. WPL-Y07707000
...
6
Supt-Top Brnr, 30 WPL-Y06561401
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
9
Burner, Front WPL-Y07706900
...
10
Tubing, Top Burner Pilot WPL-31827501
...
11
Pilot Filter WPL-0311054
...
12
Bolt, Mtg Therm/gasket WPL-Y07721600
...
13
Screw WPL-W10491986
...
14
Panel, Manifold WPL-Y07710204
...
15
Knob, Top Burner WPL-Y07708301
...
16
Knob, Oven Thermostat WPL-07723500
...
17
Kit- Pilot WPL-R0711505
...
18
Pipe-Manifold WPL-07706802F
...
19
Pressure Regulator WPL-77001246
...
20
Screw, Stud WPL-31750709
...
21
Burner, Rear L.h. WPL-Y07707100

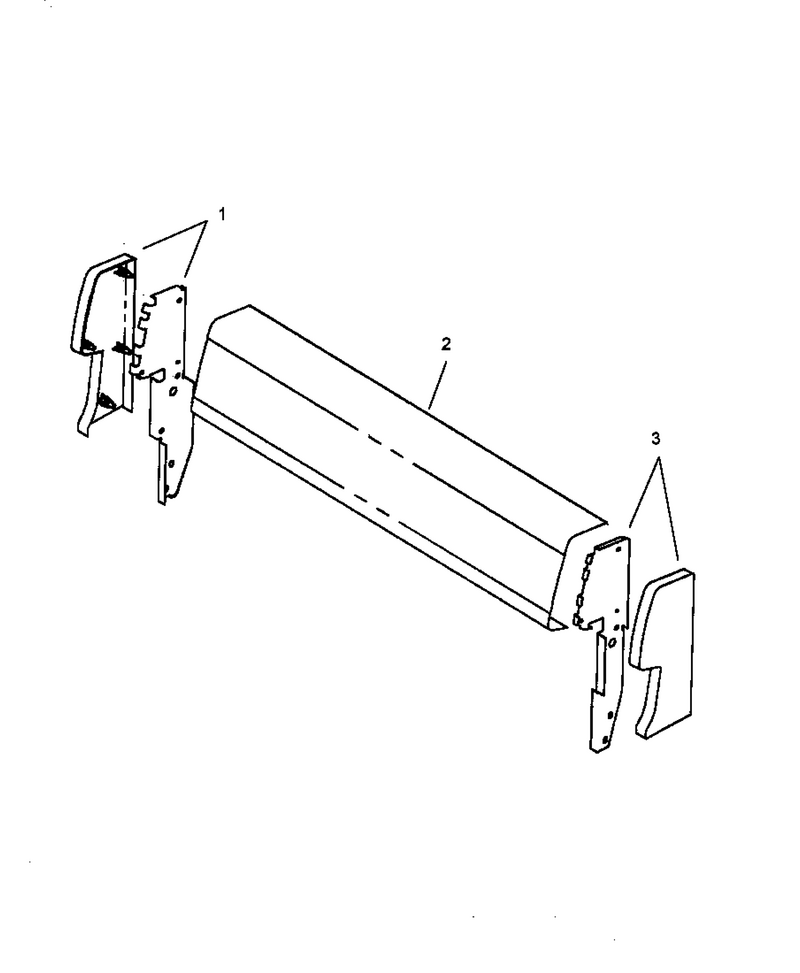

01 - Backguard Assy

...
...
NI
Screw, No.10 X3/8`` (Black) WPL-Y07712301
...
1
Endcap Bkgd 7`` L.h. WPL-Y06566901
...
2
Panel- Sun WPL-R0708275
...
3
Endcap Bkgd, 7`` R.h. WPL-Y06566900

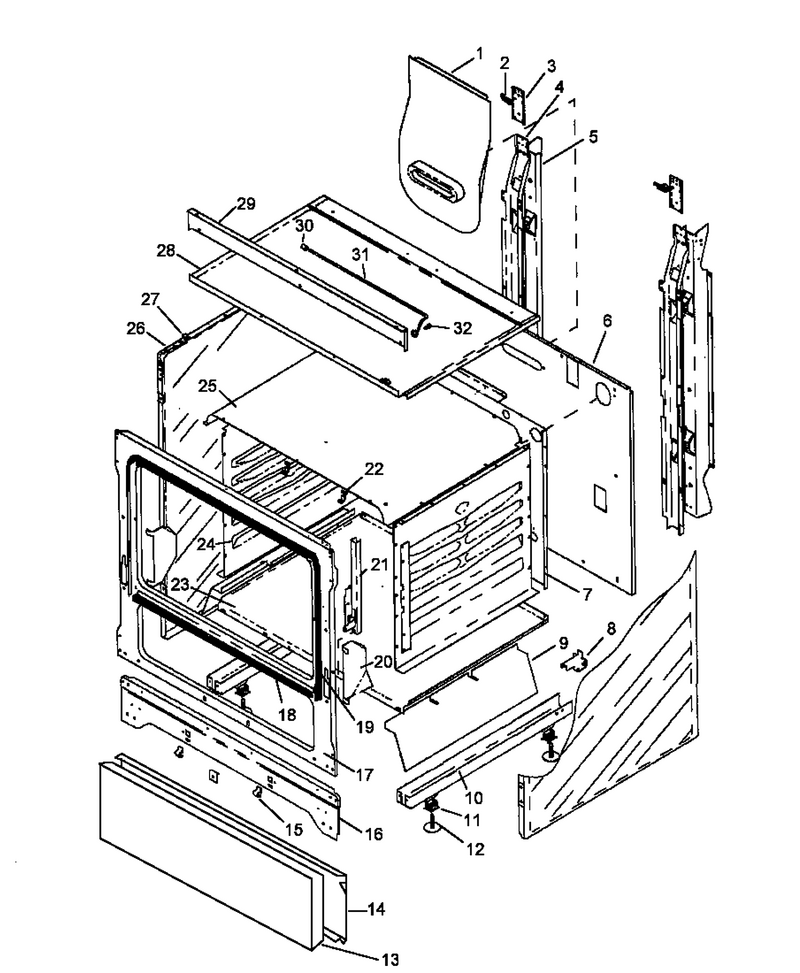

03 - Cabinet Assy

...
...
NI
Screw-No.10x9/16 Decr,bl WPL-Y01001303
...
1
Flue, Oven WPL-Y06564900
...
2
Wire, Hinge (Left) WPL-07730601
...
4
Supt. Main Back (Vert) WPL-Y06565600
...
5
Support, Rear, Vertical {j} WPL-0056477
...
6
Main Back {j} WPL-0088656
...
7
Backliner, Oven (Enamel) WPL-Y03382001E
...
8
Kit, Anti-Tip WPL-07687600
...
9
Radiation Shield, Broiler WPL-0310816
...
10
Rail, Base WPL-06554900
...
11
Snap-In Tee Nut WPL-Y0088571
...
12
Leveler WPL-W11117769
...
16
Panel, Toe 30`` (Black) WPL-Y06451602
...
17
Frame, Front (Enamel) WPL-06567101E
...
18
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
19
Seal- Oven WPL-31958801
...
20
Shield, Insulation (J) WPL-0310064
...
21
Hinge-Oven WPL-Y07655200
...
22
Clip, Capillary WPL-01052001
...
23
Baffle, Base (30``gas) WPL-Y06467101
...
24
Liner,oven Side WPL-0311807
...
25
Topliner, Oven 30``gas WPL-Y06470802E
...
26
Side, Body (Almond) WPL-06559000L
...
27
Bumper, Oven Door WPL-Y0063661
...
28
Burner Box, Gas 30`` WPL-Y06559504
...
29
Extension, Burner Box WPL-Y06559901
...
30
Support Rod WPL-07712200
...
31
Support, Rod WPL-Y07713700
...
32
Shoulder Screw WPL-0088779

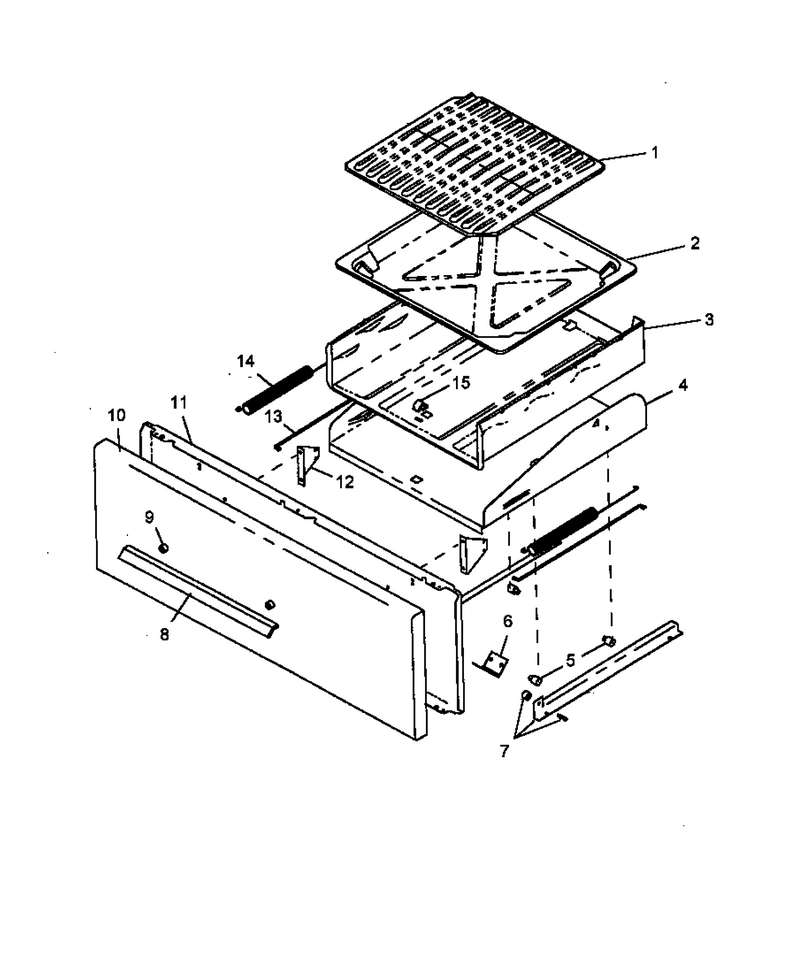

02 - Broiler Drawer Assy

...
...
NI
Screw WPL-WP7101P126-60
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Drawer, Broiler WPL-86908CG
...
4
Support,body Carriage WPL-06522100
...
5
Glide-Drwr WPL-W10709871
...
6
Hinge, Black WPL-Y0313773
...
7
Track, Lower R.h. WPL-Y0313761
...
8
Handle, Door(Almond 18``) WPL-Y07498611L
...
9
Handle Spacer, Plastic (J) WPL-Y0310818
...
10
Panel, Broiler Door (Alm) WPL-311882L
...
11
Liner, Broil Door,30`` WPL-312246E
...
12
Brkt, Spring & Rod WPL-Y06520700
...
13
Rod, Push-Broiler WPL-Y07685300
...
14
Spring, Broiler Door WPL-Y07691101
...
15
Spring Clip WPL-Y0088664

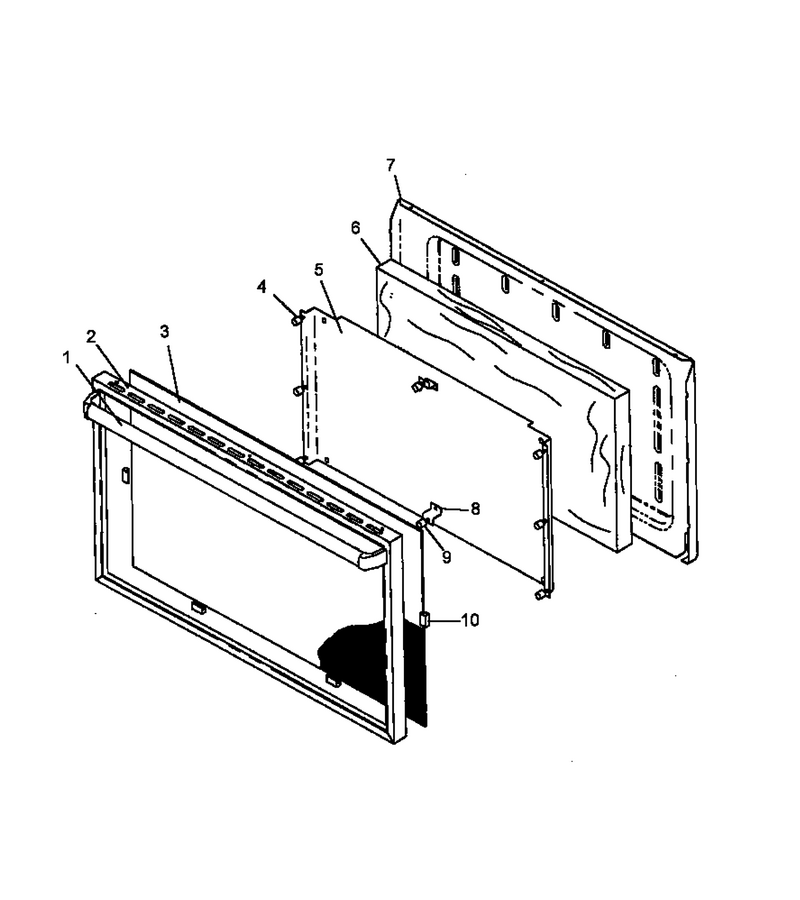

04 - Glass Oven Door Assy

...
...
NI
Screw, No.10-12 X 50 WPL-Y0311900
...
1
Handle, Oven Door WPL-07636809
...
2
Frame, Door (Black) WPL-Y07707800
...
3
Glass, Door (Black) WPL-Y07707500
...
4
Bumper-Rubber 1/4`` WPL-Y02068200
...
5
Baffle, Oven Door WPL-06511801
...
6
Insulation, Wrapper WPL-31975801
...
7
Liner, Oven Door WPL-Y06565000E
...
8
Bracket, Bumper Mount {j} WPL-Y0311752
...
9
Bumper-Rubber 1/4`` WPL-Y02068200
...
10
Bumper ``l`` Shaped WPL-Y0312836

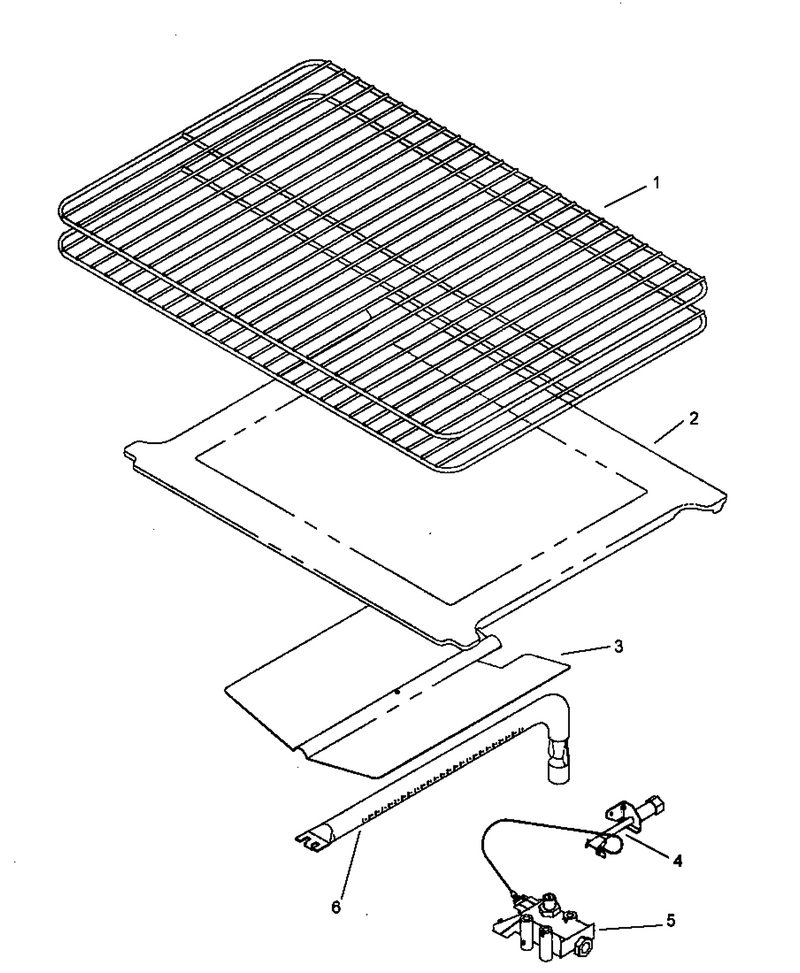

06 - Oven Components

...
...
NI
Nut WPL-M0282009
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-06554403E
...
3
Spreader, Flame W/o Notch WPL-06497102
...
4
Pilot, Oven Burner WPL-Y07720400
...
5
Valve,safety (Oven) WPL-Y07720100
...
6
Burner, Oven WPL-Y07720500
Schematic Image Zoomed
