Amana SBE26AAOCP (BOM: SBE26AAOC P)

Model: SBE26AAOCP (BOM: SBE26AAOC P)

Save Part Not Listed?
product name

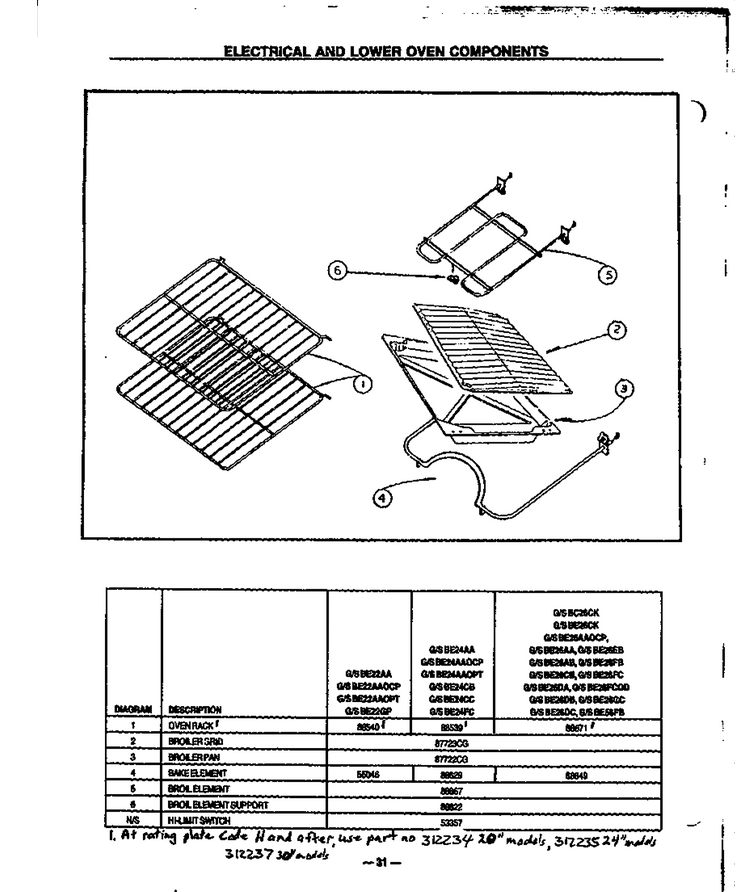

01 - Electrical And Lower Oven Components

...
...
1
Oven Rack WPL-Y0088671
...
4
Element- B WPL-WPY07409600

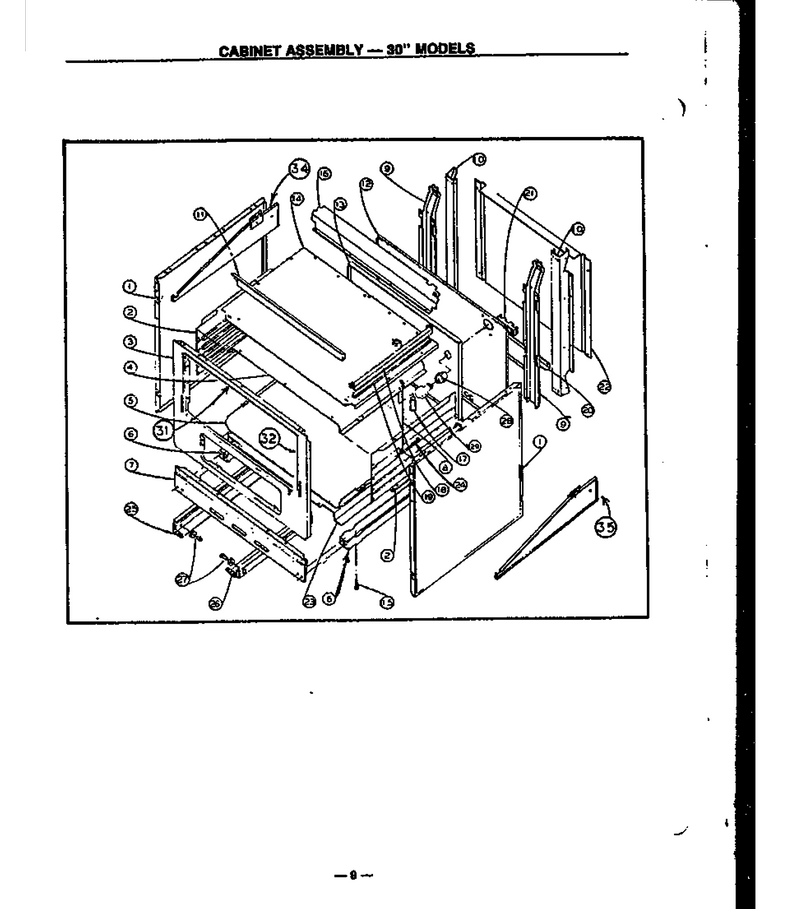

04 - Page 4

...
...
NI
Cover, Receptacle WPL-Y0311037
...
8
Support Rod WPL-0087023
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Shield, Switch Cover WPL-86935CG
...
14
Burner Box WPL-56011CG
...
16
Cover, Rear Burner Box WPL-311014E
...
20
Bottom Wire Cover Support WPL-Y0088832
...
22
Cover Wire WPL-Y0088833
...
24
Shoulder Screw WPL-0088779
...
31
Top Door Seal WPL-56069

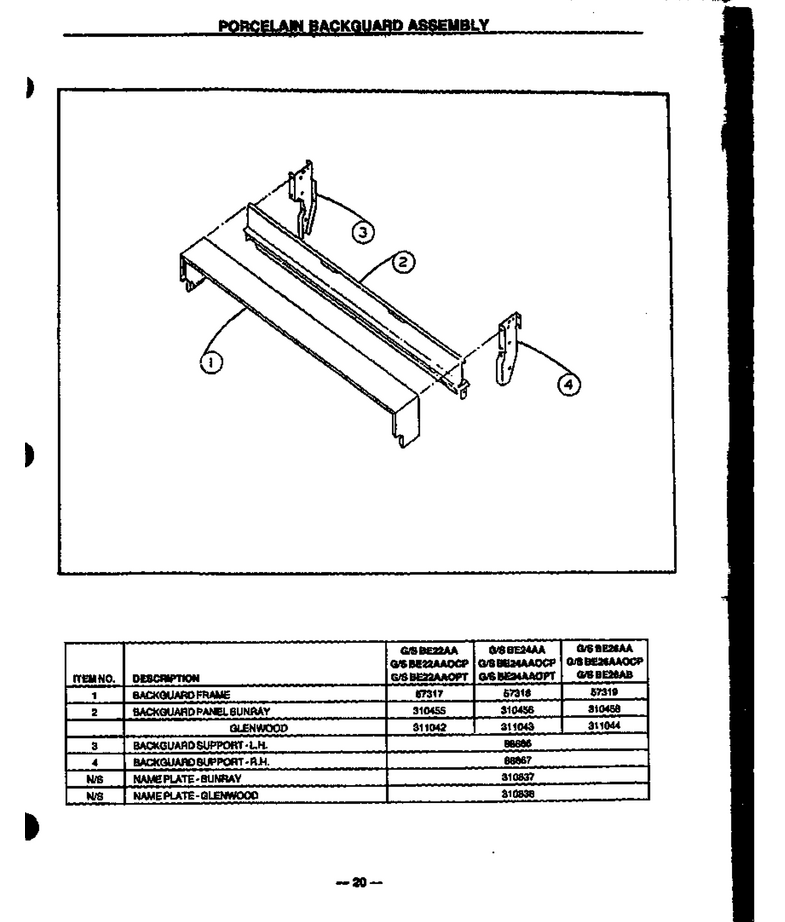

03 - Page 14

...
...
NI
Sunray Label WPL-0310837
...
1
Backguard Frame (J) WPL-0057319
...
2
Kit- Panel WPL-R0708236
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667

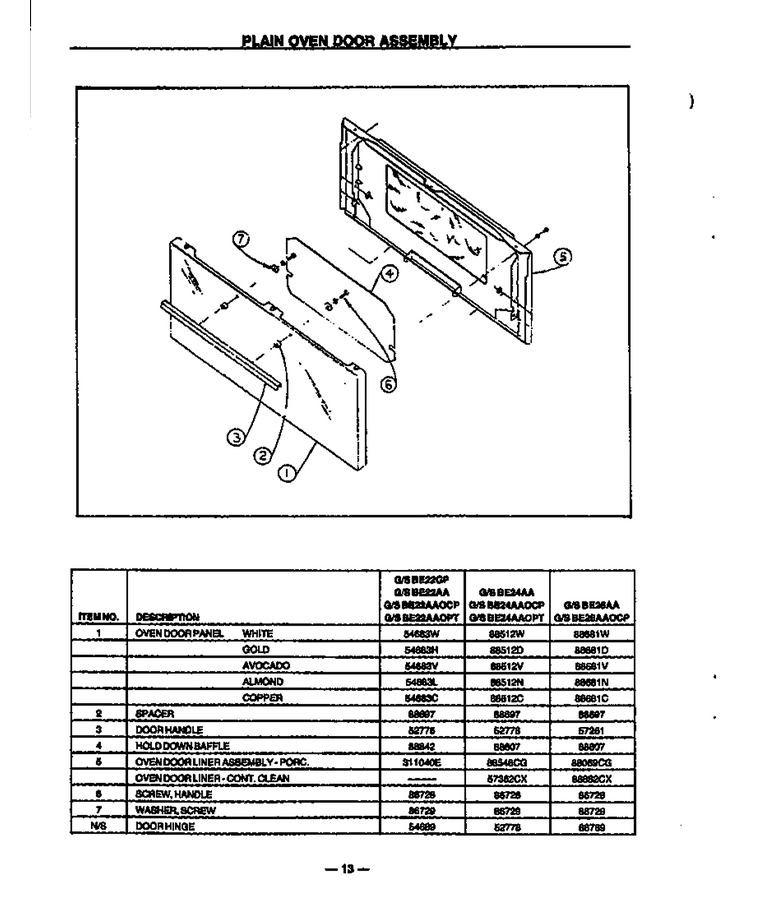

05 - Plain Door Assy

...
...
NI
Hinge, Oven Door WPL-Y07489700
...
1
Oven Door Panel, Almond WPL-088681N
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Oven Door Handle, 18`` WPL-Y0088812
...
4
Ring, Insulation Hold Down WPL-0088807
...
5
Backer, Oven Door (No Window) WPL-88069CG
...
6
Screw WPL-707407
...
7
Washer, Steel (1/4 X 9/16) WPL-Y0086729

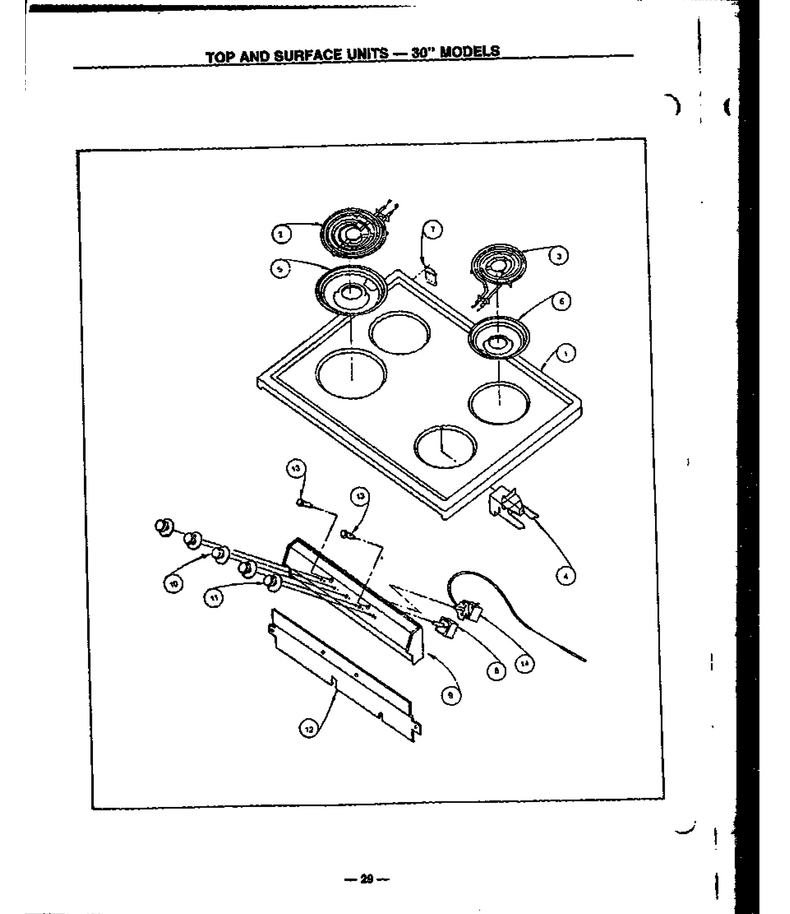

06 - Top An Surface Units-30`` Models

...
...
NI
Screw WPL-0055047
...
9
Manifold Panel, 30`` WPL-Y0310481
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527

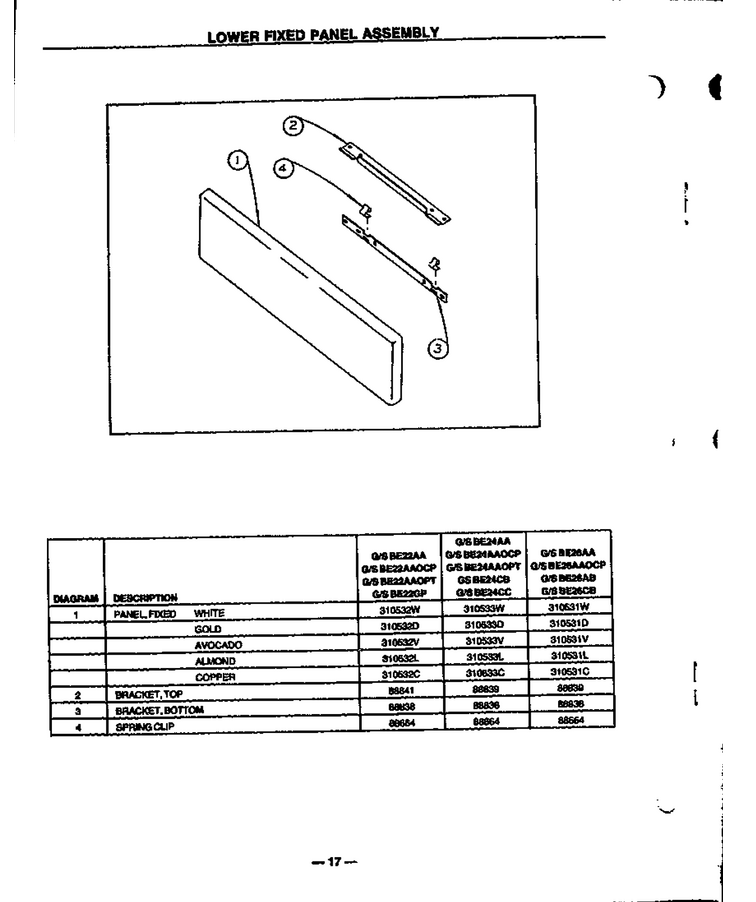

02 - Lower Fixed Panel Assy

...
...
1
Panel, Fixed WPL-310531W
...
2
Bracket, Top WPL-Y88839
...
3
Bracket, Bottom WPL-88838
...
4
Spring Clip WPL-Y0088664
