Amana RLN381UWW (BOM: P1142391NWW)

Model: RLN381UWW (BOM: P1142391NWW)

Save Part Not Listed?
product name

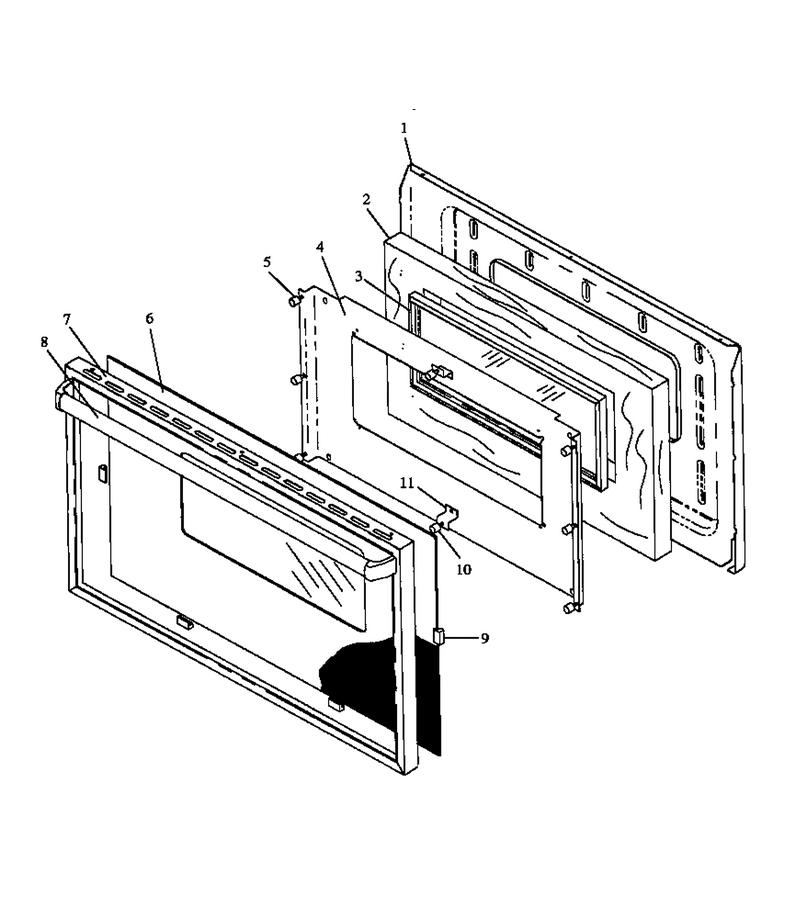

06 - Oven Door Assy

...
...
NI
Screw, No.10-12 X 50 WPL-Y0311900
...
1
Liner, Oven Door WPL-06565100E
...
2
Insulation, Wrapper WPL-31975801
...
3
Window, Oven Door (2) Pane WPL-Y07729700
...
4
Baffle, Oven Door WPL-06511800
...
5
Bumper-Rubber 1/4`` WPL-Y02068200
...
6
Glass, Door - W - Window WPL-07721100
...
7
Frame, Door (White) WPL-07707802
...
8
Handle, Door (Gray) WPL-Y07708101
...
9
Bumper ``l`` Shaped WPL-Y0312836
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Bracket, Bumper Mount {j} WPL-Y0311752

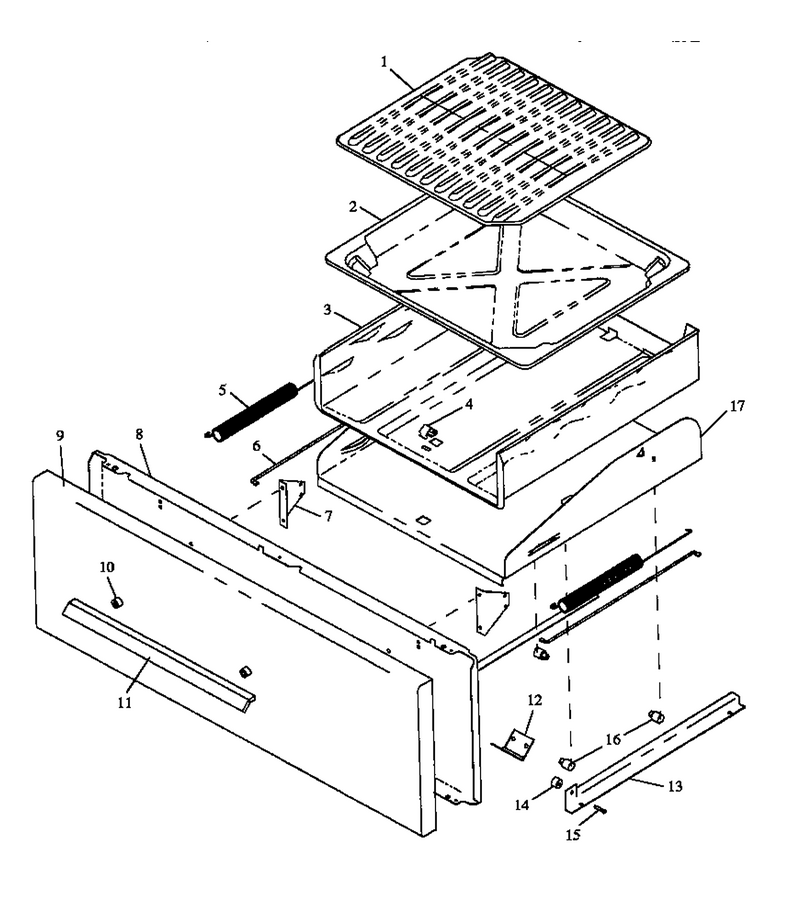

02 - Broiler Drawer Assy

...
...
NI
Screw No.10 X 1/2`` WPL-Y0310804
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Pan, Broiler WPL-87722CG
...
3
Drawer, Broiler WPL-86908CG
...
4
Spring Clip WPL-Y0088664
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Rod, Push-Broiler WPL-Y07685300
...
7
Brkt, Spring & Rod WPL-Y06520700
...
8
Liner, Broil Door,30`` WPL-312246E
...
9
Panel, Broiler Door (Alm) WPL-311882L
...
10
Handle Spacer, Plastic (J) WPL-Y0310818
...
11
Handle, Door (White 19``) WPL-Y07498611W
...
12
Hinge, Black WPL-Y0313773
...
13
Track, Lower R.h. WPL-Y0313761
...
14
See Note Roller -- (Included With Item 13) WPL-Y00000000
...
15
See Note Pin -- (Included With Item 13) WPL-Y00000000
...
16
Glide-Drwr WPL-W10709871
...
17
Support,body Carriage WPL-06522100

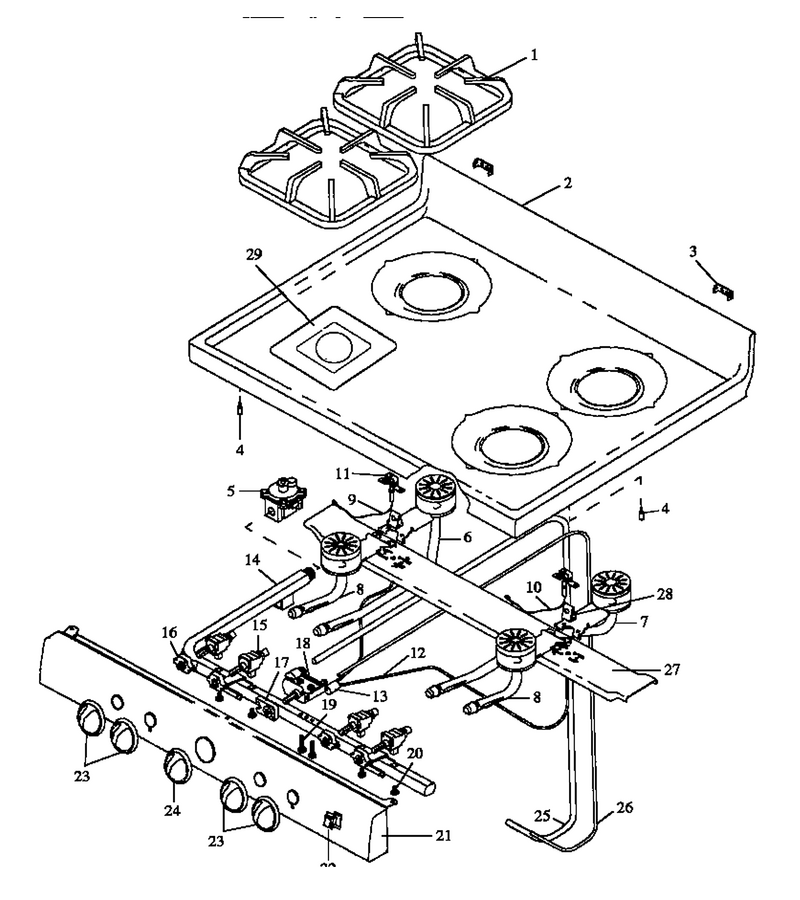

04 - Open Top Burner Assy

...
...
NI
Clip, Speed (Doz) {j} WPL-0310033
...
1
Grate, Top Burner WPL-306151Y
...
2
Maintop (White) WPL-308919W
...
3
Brkt, Hinge Strap Mtg WPL-Y0306150
...
4
Screw, Stud WPL-31750709
...
5
Pressure Regulator WPL-77001246
...
6
Burner, Rear L.h. WPL-Y07707100
...
7
Burner, Rear R.h. WPL-Y07707000
...
8
Burner, Front WPL-Y07706900
...
9
Ignitor- G WPL-Y07491203
...
10
Ignitor- G WPL-Y07491203
...
11
Ignitor, Ground Strap WPL-Y0312158
...
14
Pipe, Manifold WPL-07706801
...
15
Valve, Top Burner WPL-Y0057338
...
16
Swtch-Ignr WPL-WP4157180
...
17
Swtch-Ignr WPL-WP878009
...
18
Therm-Ov,spark WPL-Y0057349
...
19
Bolt, T`stat Mtg (H/w) WPL-Y0056114
...
20
Screw WPL-W10491986
...
21
Pnl-Mnfd,30`` Black WPL-Y07710205
...
22
Switch, Light (Lt Grey) WPL-Y07634802
...
23
Knob, Top Burner WPL-07708203
...
24
Knob, Thermostat WPL-Y07708200
...
25
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
26
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
27
Support, Top Burner WPL-06561400
...
29
Bowl, Burner (Gray) WPL-30614717Y

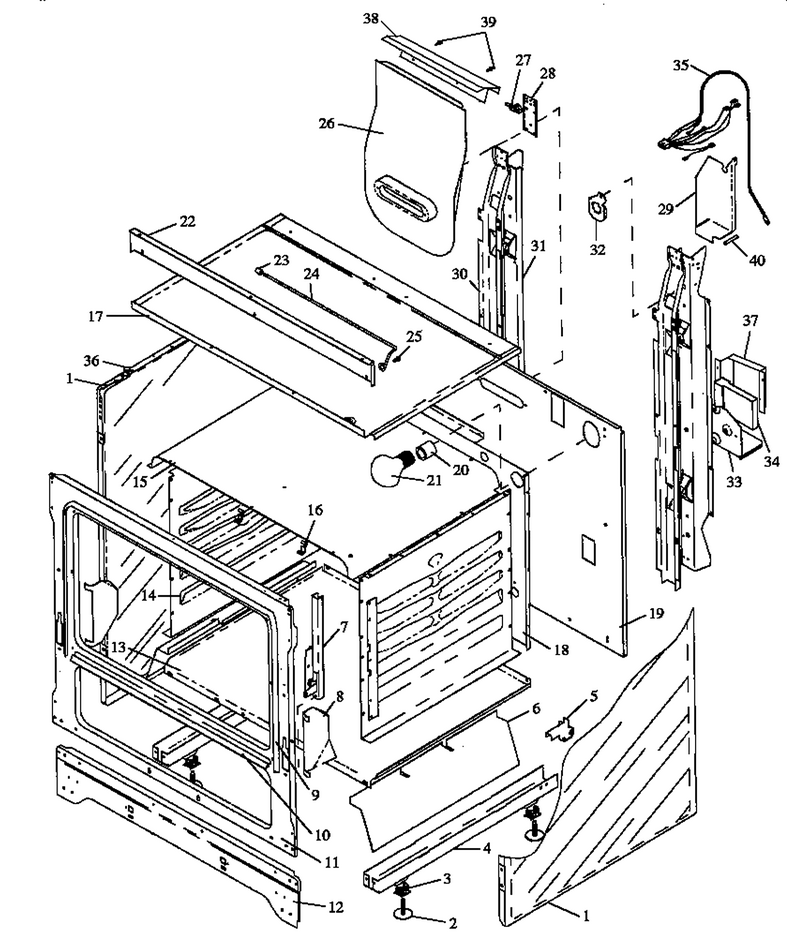

03 - Cabinet Section

...
...
NI
Screw WPL-WP7101P126-60
...
1
Side, Body (Almond) WPL-06559000L
...
2
Leveler WPL-W11117769
...
3
Snap-In Tee Nut WPL-Y0088571
...
4
Rail, Base WPL-06554900
...
5
Kit, Anti-Tip WPL-07687600
...
6
Radiation Shield, Broiler WPL-0310816
...
7
Hinge-Oven WPL-Y07655200
...
8
Shield, Insulation (J) WPL-0310064
...
9
Seal- Oven WPL-31958801
...
10
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
11
Frame, Front (Enamel) WPL-06567100E
...
12
Panel, Toe 30`` (Black) WPL-Y06451600
...
13
Baffle, Base (30``gas) WPL-Y06467101
...
14
Liner,oven Side WPL-0311807
...
15
Liner, Oven Top - Porcelain WPL-88885CG
...
16
Clip, Capillary WPL-0310802
...
17
Box Burner WPL-06559501
...
18
Backliner, Oven (Enamel) WPL-Y03382001E
...
19
Main Back {j} WPL-0088656
...
20
Socket, Oven Light WPL-Y0316385
...
21
Light Bulb WPL-8009
...
22
Extension, Burner Box WPL-Y06559901
...
23
Support Rod WPL-07712200
...
24
Support, Rod WPL-Y07713700
...
25
Shoulder Screw WPL-0088779
...
26
Flue, Oven WPL-06564800
...
27
Hinge, Mn Top L.h. WPL-07712803
...
28
Bracket, Hinge WPL-06565500
...
29
Wire Cover (Ov. Light) {j} WPL-Y0310809
...
30
Supt. Main Back (Vert) WPL-Y06565600
...
31
Support, Rear, Vertical {j} WPL-0056477
...
32
Bracket WPL-0311551
...
33
Plate, Spark Module WPL-Y0087725
...
34
Module, 2+1 Spark WPL-Y0088870
...
35
Cord Set (J) WPL-0088884
...
36
Bumper, Oven Door WPL-Y0063661
...
37
Cover, Spark Module WPL-Y06569000
...
38
Diverter, Flue (12 ``) WPL-Y06569100E
...
39
Screw, Stud WPL-31750709
...
40
U-Clip, Safe Edge WPL-31750803

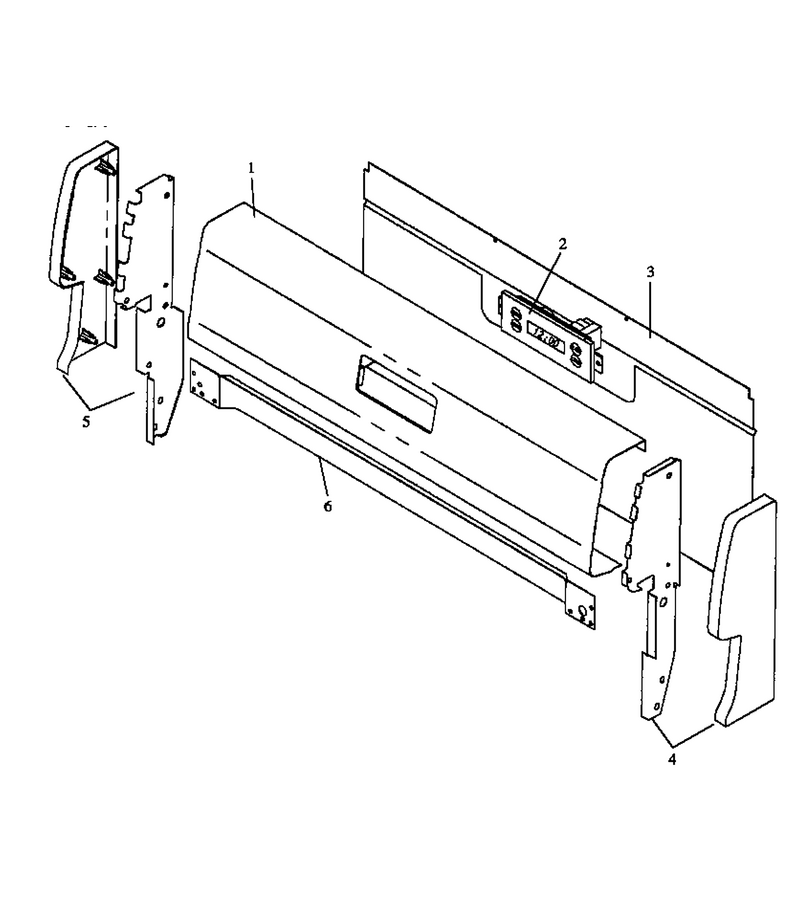

01 - Backguard Assy

...
...
NI
Screw, No.10 X3/8`` (Black) WPL-Y07712301
...
1
Panel, Backguard WPL-07708801
...
2
Clock (Black) WPL-Y07707900
...
3
Cover, Bkgd Wire WPL-Y06559600
...
4
End Cap, Bkgd 11`` R.h. WPL-Y06567000
...
5
Endcap, Bkgd 11`` L.h. WPL-Y06567001
...
6
Tim, Lower Bkgd (Black) WPL-Y06559120B

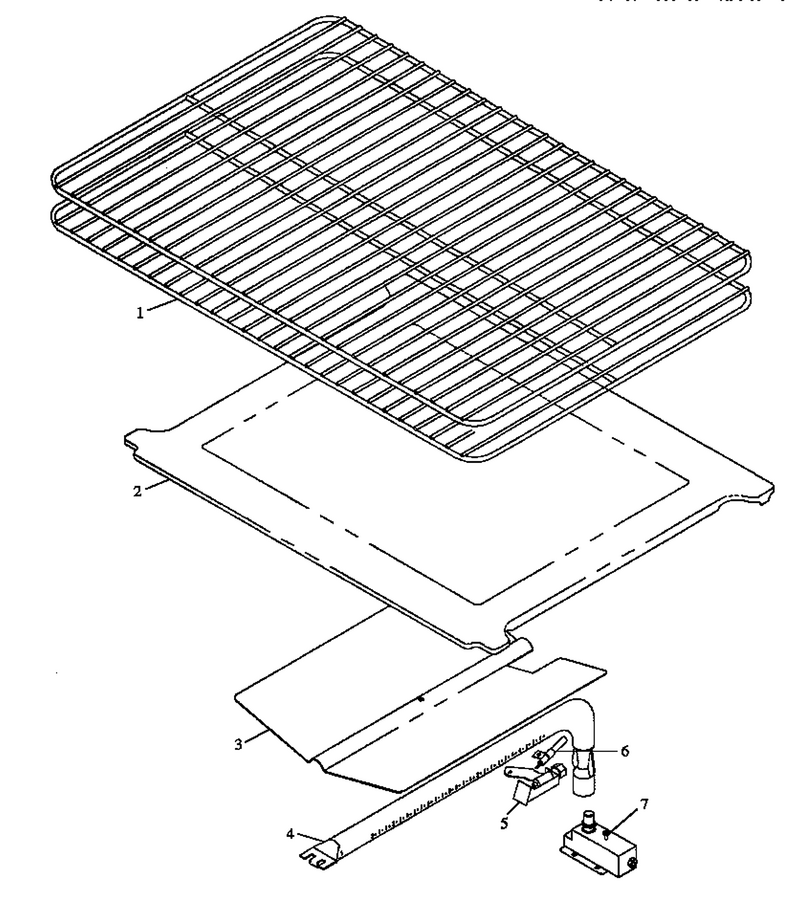

05 - Oven Components

...
...
NI
Nut WPL-M0282009
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Bottom, Oven (Enamel) WPL-06554403E
...
3
Spreader, Flame W/o Notch WPL-0311821
...
4
Oven Burner WPL-0311865
...
5
Pilot, Oven Burner (Spark) WPL-Y07697300
...
6
Igniter-Spark Oven WPL-Y0086776
...
7
Valve, Safety WPL-4157094
