Amana RC24085C2DR REV (BOM: RC24085C2DR B)

Model: RC24085C2DR REV (BOM: RC24085C2DR B)

product name

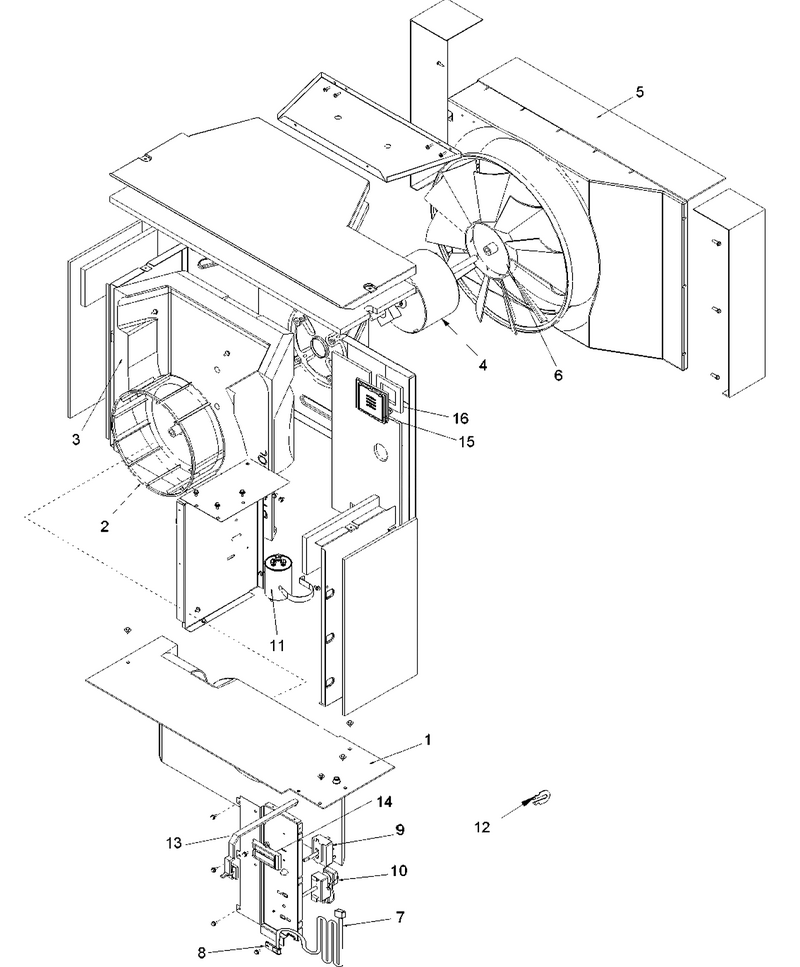

01 - Center Partition Assy And Controls

...
...
Note: Units With Bt1420000 Heaters Use Only One Limit Device. The Limit Is A Combo Limit With Both The Limit Switch And Fuselink Built Into One Device. WPL-NOTE:

...
NI
Service Ha WPL-BT1292201

...
1
Venturi, Fan WPL-BT3010004

...
2
Wheel, Blower WPL-BT1368016

...
3
Styrofoam Scroll WPL-BT3006004

...
4
Motor, 1/4hp 208/230v (serv) WPL-BT1340005S

...
5
Shroud, Fan (large) WPL-BT3011002

...
6
Fan Blade- WPL-BT1086702

...
7
Cord, Power 230v 20 Amp 65`` WPL-BT1210006

...
8
Relief, Power Cord (large) WPL-BT1393401

...
9
Switch, Power (serv) WPL-BT1370803

...
10
Thermostat, Short Shaft (serv) WPL-BT1370801

...
11
Capacitor WPL-BT9457005

...
12
Clip, Bulb WPL-BT1531802

...
13

...
14
Slide, Damper Control WPL-BT3076302

...
15
Door, Exhaust (rac) WPL-BT3076100

...
16
Foam Gasket WPL-BT1392611

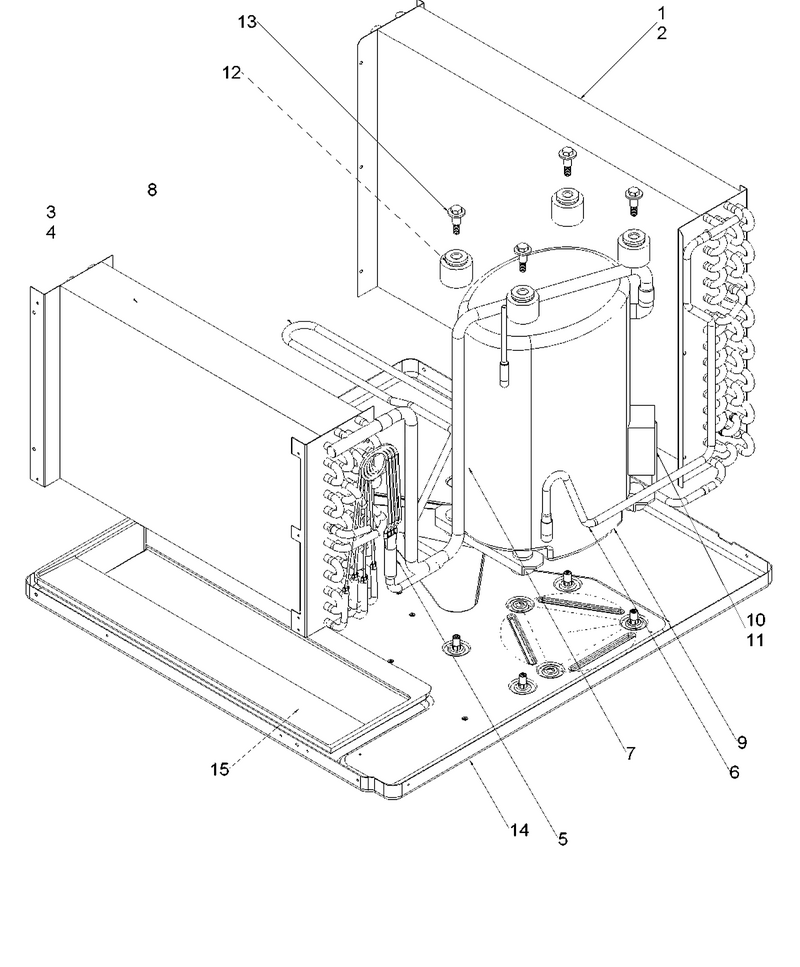

02 - Evaporator, Condenser And Compressor

...
...
1
Assy, Cond Coil Tubing WPL-3096508

...
3
Assy, Evap Coil Tubing WPL-3096019

...
5
Assy, Capillary Tube WPL-3093853

...
6
Discharge Line WPL-30936215

...
7
Suction Line WPL-30936217

...
8
Assy, Liquid Line WPL-3093836

...
9
Compressor WPL-BT9266204S

...
10
Plug Wire,compressor WPL-BT3068516

...
11
Clip, Retainer WPL-BT1392311

...
12
Grommet. Comp WPL-A3448601

...
13
Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704

...
14
Assy,basepan Service WPL-3050208S

...
15
Pan, Drain (styrofoam Large) WPL-BT3005002

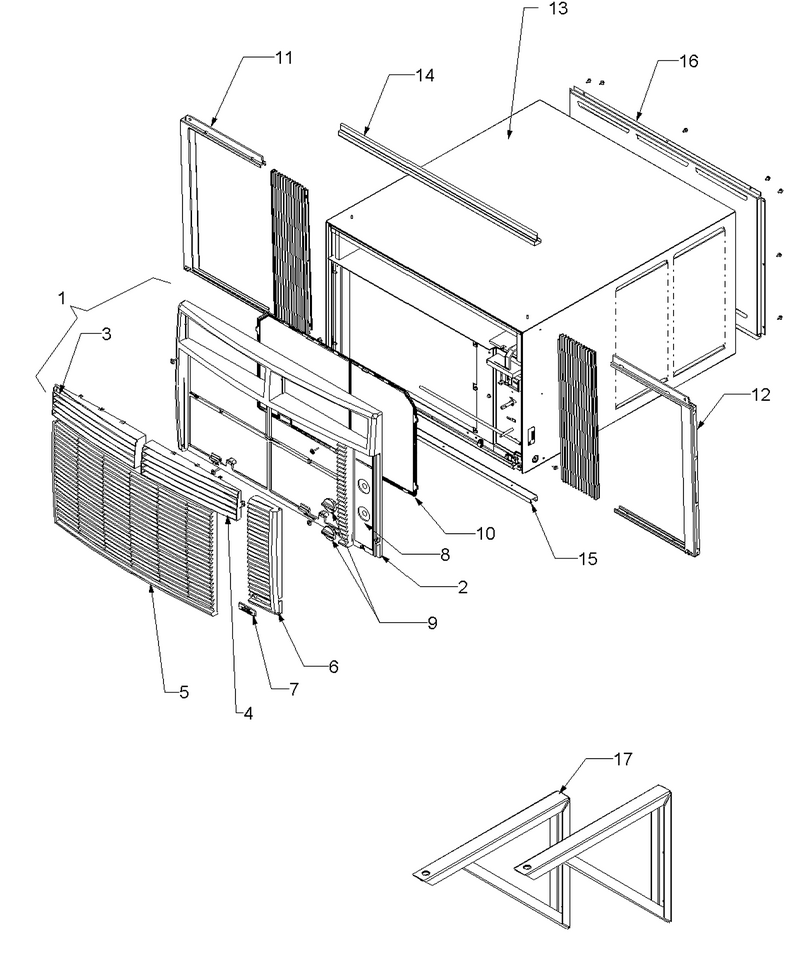

03 - Outercase, Curtains And Front Assy

...
...
NI
Kit,hardware (large) WPL-BT1393205

...
1
Assy Front WPL-BT3075029

...
2
Assy Front WPL-BT3075029

...
3
Assy Front WPL-BT3075029

...
4
Assy Front WPL-BT3075029

...
5
Assy Front WPL-BT3075029

...
6
Door, Control (large) WPL-BT3075302

...
7
Logo, Plastic (goodman) WPL-BT3075913

...
8
Label, Control WPL-BT1493364

...
9

...
10
Filter, Air (serv) WPL-BT1369602

...
11
Assy, Shutter Lg-Lt WPL-BT3074113

...
12
Assy, Shutter Lg-Rt WPL-BT3074112

...
13
Assy, Wrapper WPL-3050801

...
14
Support, Top (w/paint Lrg) WPL-3003002P

...
15
Support, Bottom (brk/paint Lrg WPL-3003102P

...
16
Pnl, Rear Louver (w/paint Lrg) WPL-3002206P

...
17
Brkt, Support (lrg Serv) WPL-3084002
