Amana RBK22AAL (BOM: P1142355N L)

Model: RBK22AAL (BOM: P1142355N L)

Save Part Not Listed?
product name

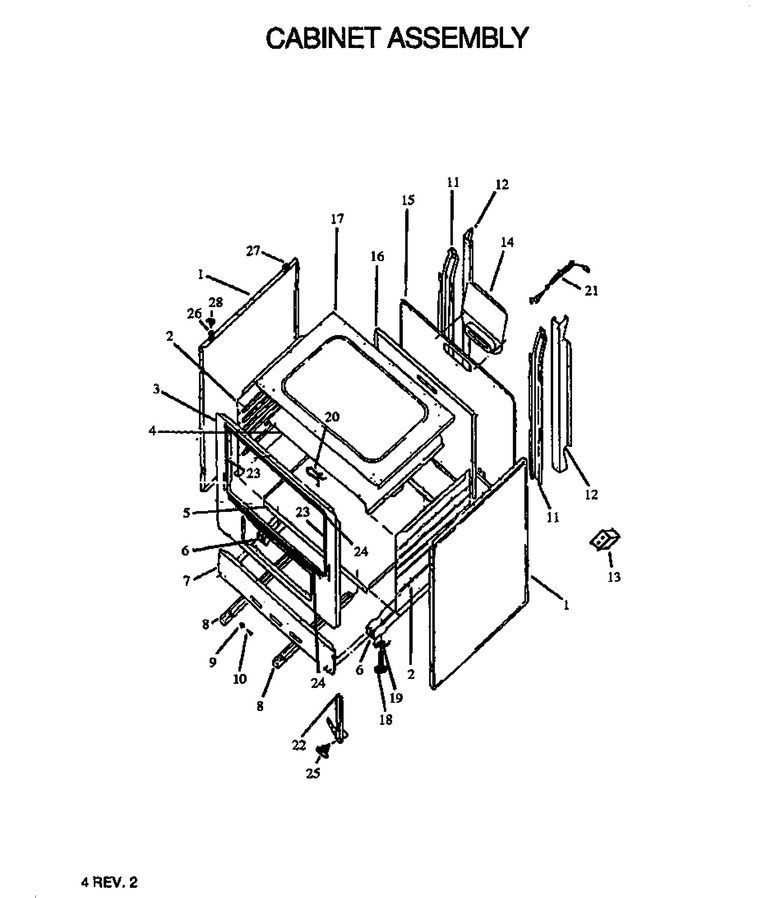

03 - Cabinet Assy

...
...
1
Panel,body Side (Al) WPL-313762L
...
2
Liner,oven Side WPL-0311807
...
4
Liner, Oven Top WPL-Y06470701E
...
5
Bottom Baffle WPL-Y0311049
...
6
Rail, Base WPL-0312165
...
7
Panel, Base Toe 20`` WPL-Y06451502
...
8
Track, Lower L.h. WPL-Y0313760
...
11
Vertical Sup. (J) WPL-0052742
...
12
Support, Rear, Vertical {j} WPL-0056477
...
13
Kit, Anti-Tip WPL-07687600
...
14
Flue Box WPL-0310821
...
15
Main Back WPL-Y0311045
...
16
Liner Oven Back WPL-310103E
...
17
Burner Box WPL-Y0088054
...
18
Leg, Leveling WPL-Y0062362
...
19
Snap-In Tee Nut WPL-Y0088571
...
20
Clip, Capillary WPL-0310802
...
21
Ass`y Power Cord WPL-0313772
...
22
Hinge- Doo WPL-Y07580401
...
23
Seal, Oven-Sides WPL-Y0056090
...
24
Seal, Oven Door-Top WPL-Y0056494
...
25
Screw WPL-WP4159193
...
26
Stud, Locating - Nylon WPL-0311086
...
27
Bumper, Oven Door WPL-Y0063661
...
28
Screw WPL-Y0312844

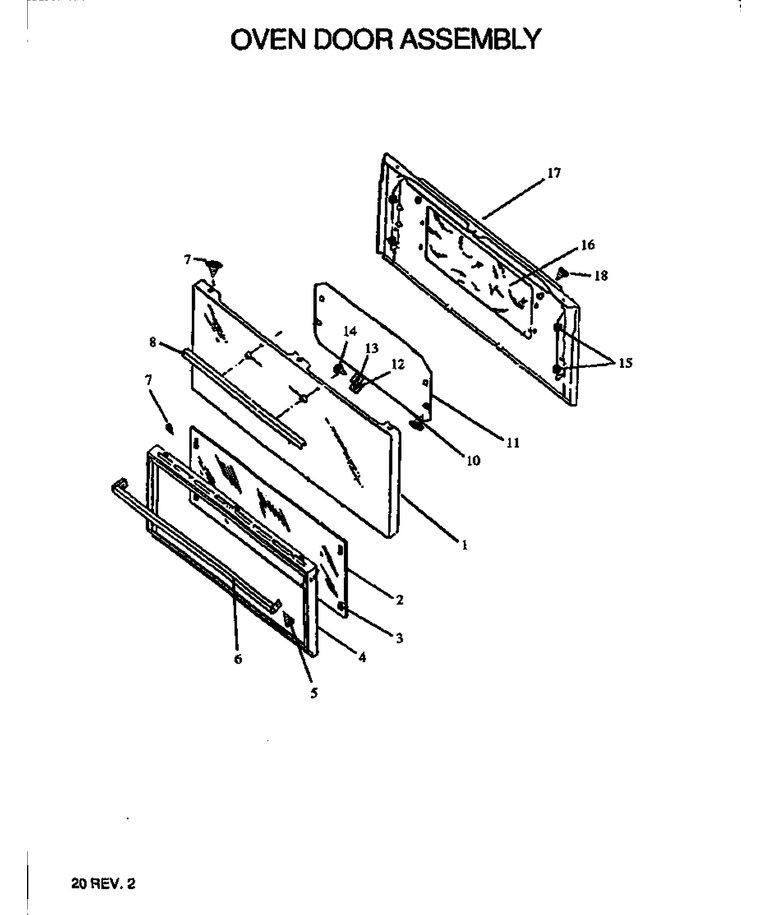

05 - Oven Door Assy

...
...
1
Panel, Oven Door (White) WPL-313754W
...
7
Screw No.10 X 1/2`` WPL-Y0310804
...
8
Handle, Oven Door (J) WPL-Y0052776
...
9
Handle Spacer, Plastic (J) WPL-Y0310818
...
11
Baffle, Hold Down WPL-0088842
...
16
Insulation, Wrapper WPL-31975801
...
17
Backer, Oven Door WPL-54680CG
...
18
Screw, Door Handle WPL-Y0311884

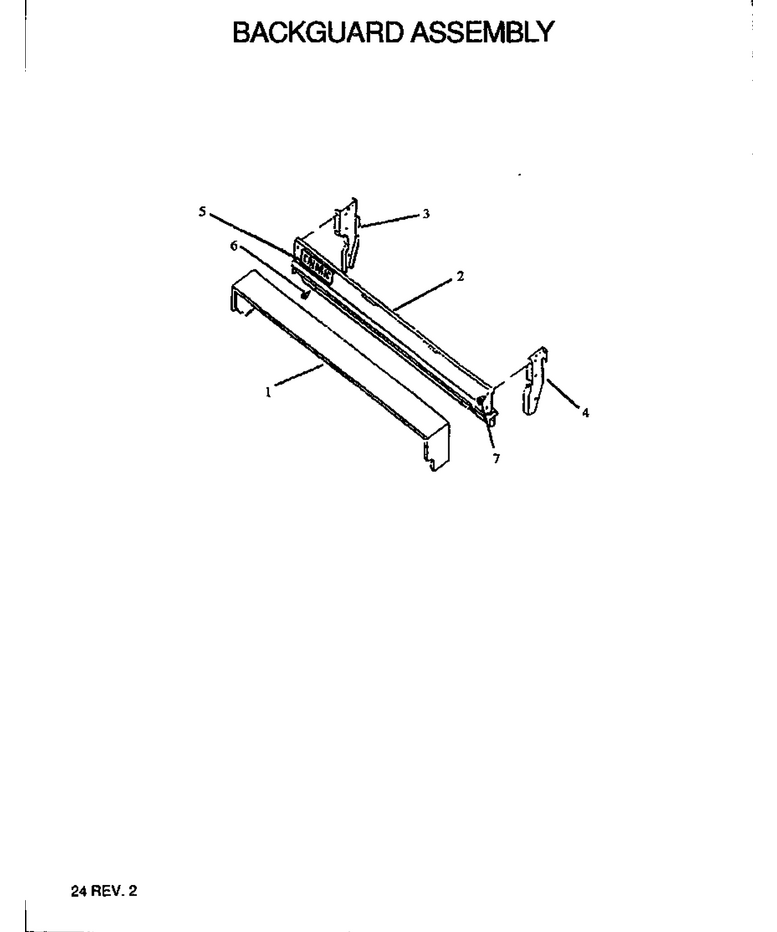

01 - Backguard Assy

...
...
1
Backguard Frame WPL-0057317
...
2
Pnl-Filr,4x20,nonm WPL-R0708230
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667
...
5
Label, Backguard WPL-07624808
...
6
Screw WPL-0310240
...
7
Screw No.10 X 5/16 WPL-0310234

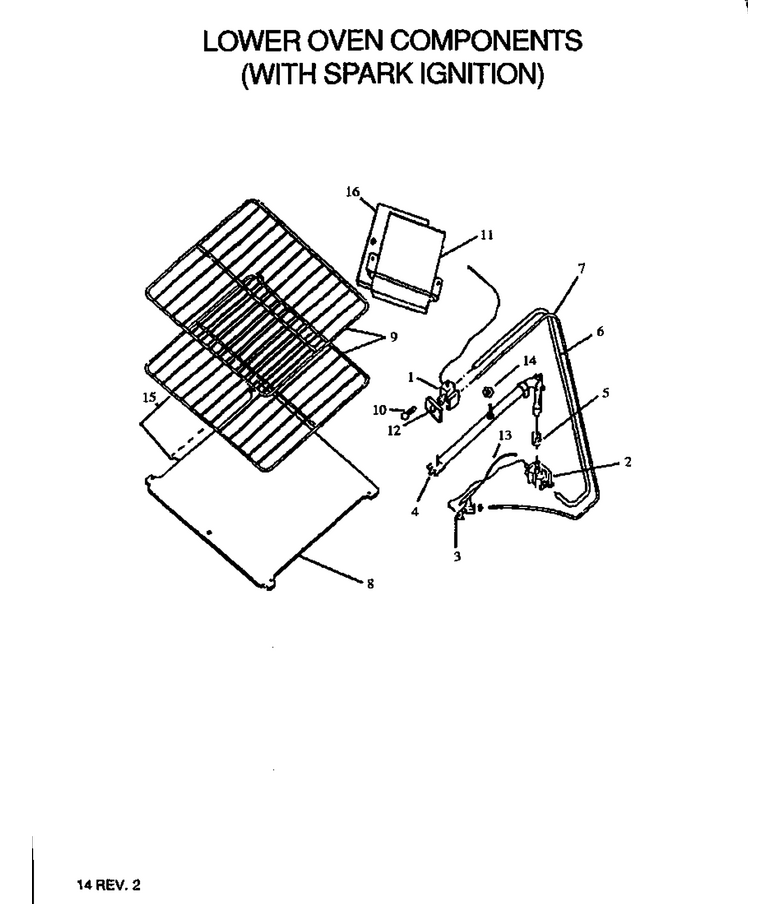

04 - Lower Oven Components

...
...
1
Therm-Ov,spark WPL-Y0057349
...
2
Valve, Safety WPL-4157094
...
3
Pilot, Oven Burner (Spark) WPL-Y07697300
...
4
Oven Burner WPL-0311865
...
6
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Oven Bottom WPL-0311866
...
9
Rack, Oven, 20`` WPL-Y07671000
...
10
Bolt, T`stat Mtg (H/w) WPL-Y0056114
...
11
Module, 2+1 Spark WPL-Y0088870
...
12
Swtch-Ignr WPL-WP878009
...
13
Igniter-Spark Oven WPL-Y07698400
...
14
Nut WPL-M0282009
...
15
Spreader, Flame W/o Notch WPL-0311821
...
16
Plate, Spark Module WPL-Y0087725

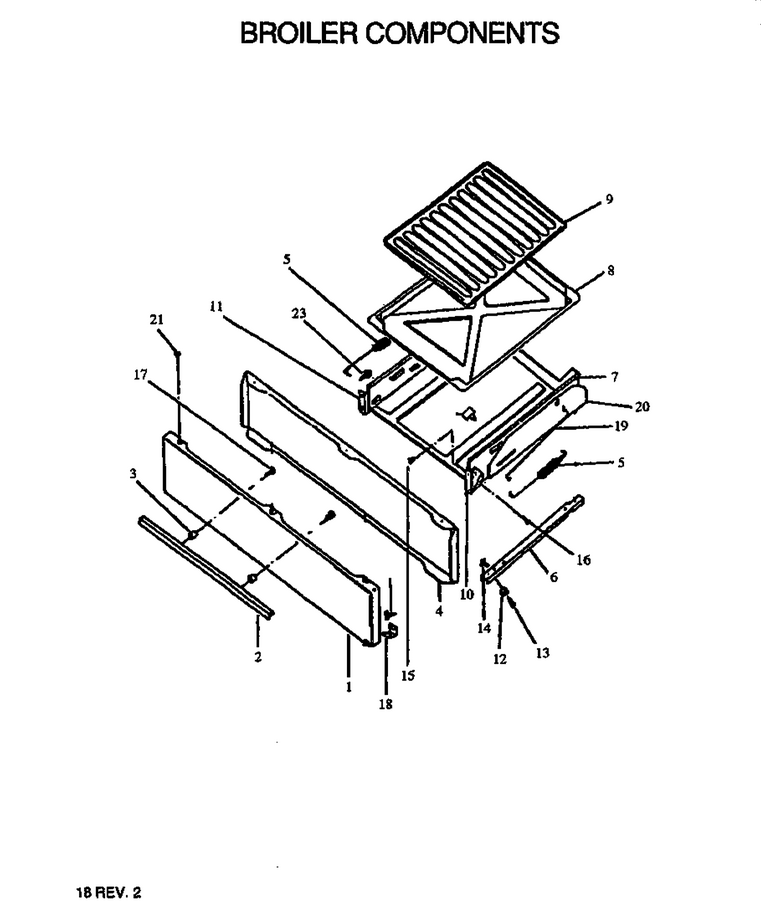

02 - Broiler Components

...
...
1
Panel-Broiler Drawer 30`` (Wht) WPL-Y06513101W
...
2
Handle, Oven Door (J) WPL-Y0052776
...
3
Handle Spacer, Plastic (J) WPL-Y0310818
...
4
Liner Broiler Door WPL-52786CG
...
5
Spring, Broiler Door WPL-Y07691100
...
6
Track, Lower L.h. WPL-Y0313760
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Brkt, Spring & Rod WPL-Y06520700
...
11
Brkt, Spring & Rod WPL-Y06520700
...
14
Screw WPL-WP7101P126-60
...
15
Licon Swit WPL-Y07420600
...
16
Screw WPL-WP7101P126-60
...
17
Screw, Door Handle WPL-Y0311884
...
18
Hinge, Black WPL-Y0313773
...
19
Rod, Push-Broiler WPL-Y07685300
...
20
Support,body Carriage WPL-06522100
...
21
Screw No.10 X 1/2`` WPL-Y0310804
...
22
Glide-Drwr WPL-W10709871
...
23
Screw WPL-0310240
...
24
Screw WPL-0310239

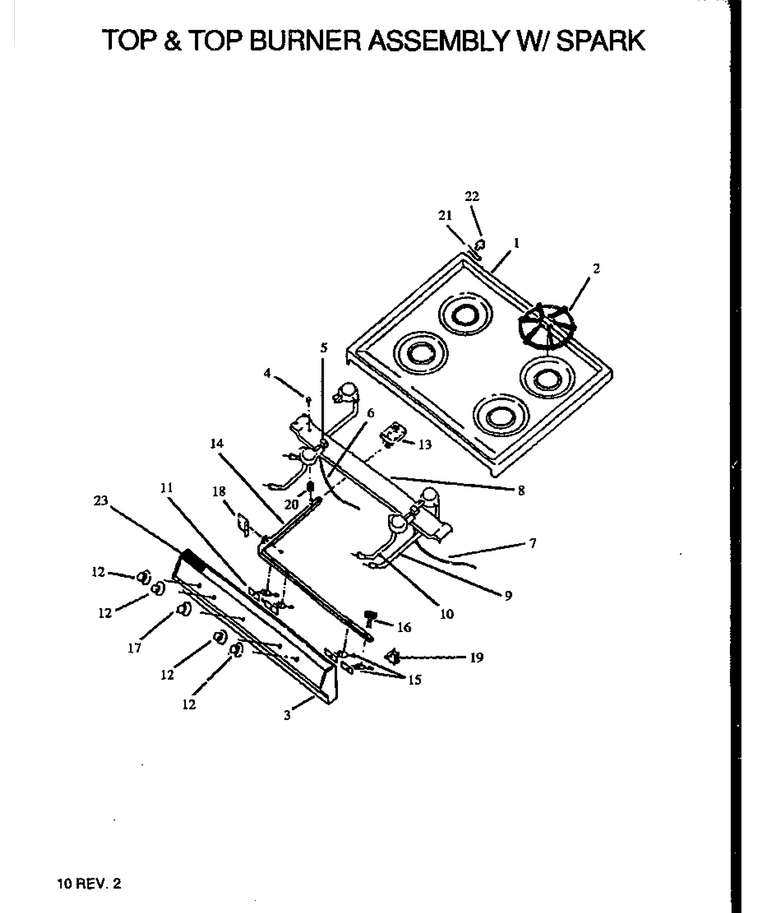

06 - Top & Top Burner Assy W/ Spark

...
...
1
Top, 20`` Main Gas Rd Grt (Whit WPL-Y06460911W
...
2
Grate, 7`` Round Burner WPL-Y07540300
...
3
Panel, Manifold (Gas 20) WPL-Y07622001A
...
4
Square Nut {j} WPL-0088650
...
5
Ignitor, Ground Strap WPL-Y0312158
...
6
Ignitor- G WPL-Y07491203
...
7
Ignitor- G WPL-Y07491203
...
8
Support, Top Burner WPL-311022E
...
9
Burner - Top Rear (Glwd) WPL-Y07698900
...
10
Burner - Top Frt (Glwd) WPL-Y07698800
...
11
Swtch-Ignr WPL-WP4157180
...
12
Knob, Top Burner WPL-Y0311080
...
13
Pressure Regulator WPL-77001246
...
14
Manifold Pipe WPL-Y0057334
...
15
Burner - Top Rear (Glwd) WPL-Y07698900
...
16
Screw WPL-W10491986
...
17
Knob, T-Stat (Gasr WPL-Y0310525
...
18
Support, Manifold, L.h. {j} WPL-0086725
...
19
Support Bracket, Rh Manifold { WPL-0057340
...
20
Spacer, Manifold WPL-0310219
...
21
Nut, Speed, Flat WPL-Y0310032
...
22
Screw, Stud WPL-31750709
...
23
Label WPL-0311567
