product name

Amana LW4302L (BOM: P1163302W L)

Model: LW4302L (BOM: P1163302W L)

Save Part Not Listed?
product name

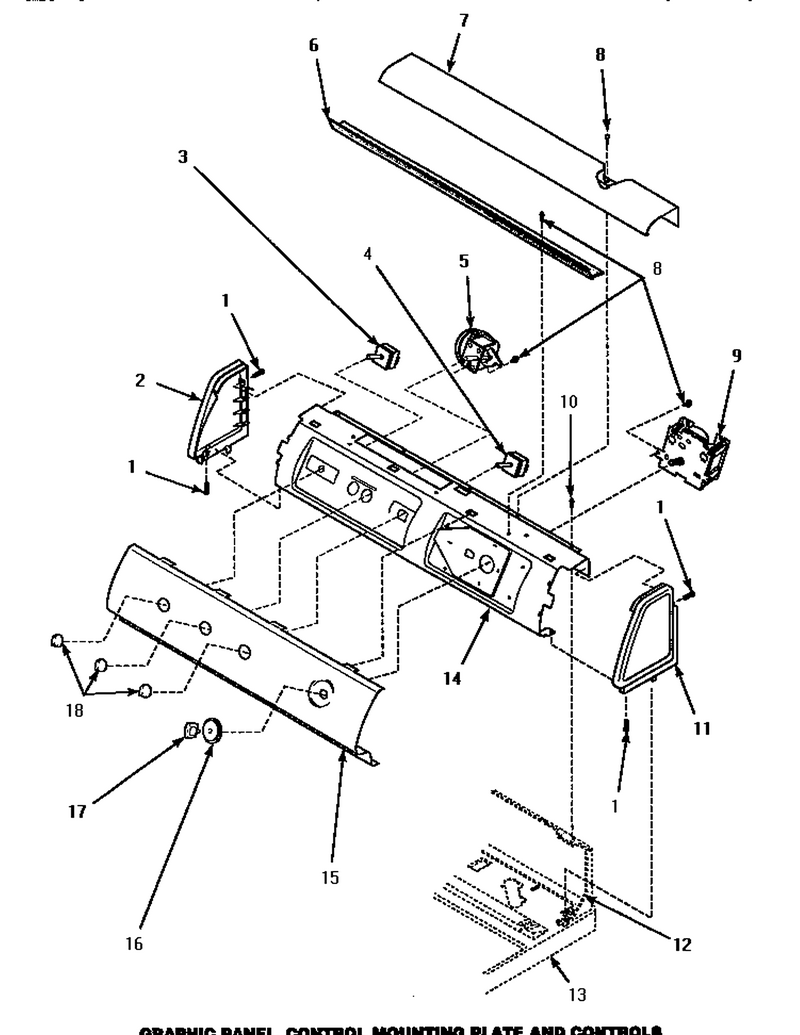

08 - Graphic Panel, Ctrl Mtg Plate & Ctrls

...
...
Outer Tub Cover And Gasket Tool Is For Removal Of 36025 Outer Tub Cover From Outer Tub And Installation Of 32857 Gasket In Outer Tub Cover. WPL-NOTE:
...
1
Screw WPL-WP90767
...
2
Panel, End (Blk,l.h.) WPL-34816
...
3
Switch,temperature-4 P WPL-35116
...
4
Action Switch WPL-35118
...
5
Pressure Switch WPL-36045
...
6
Diffuser,lamp-Clear WPL-Y34826
...
7
Cover, Top WPL-34823
...
8
Screw WPL-WP90767
...
9
Timer,4 Cycle WPL-35229
...
10
Screw WPL-W11233072
...
11
Panel, End R.h. (Blk) WPL-34815
...
12
See Note Control Hood Rear Panel WPL-Y00000000
...
13
See Note Control Top WPL-Y00000000
...
14
Control Mounting Plate WPL-34821
...
15
Panel,graphic-Amana WPL-35315
...
16
Terminal WPL-98812
...
17
Knob-Timer WPL-WP34844
...
18
Assy,knob-Rotary WPL-34847

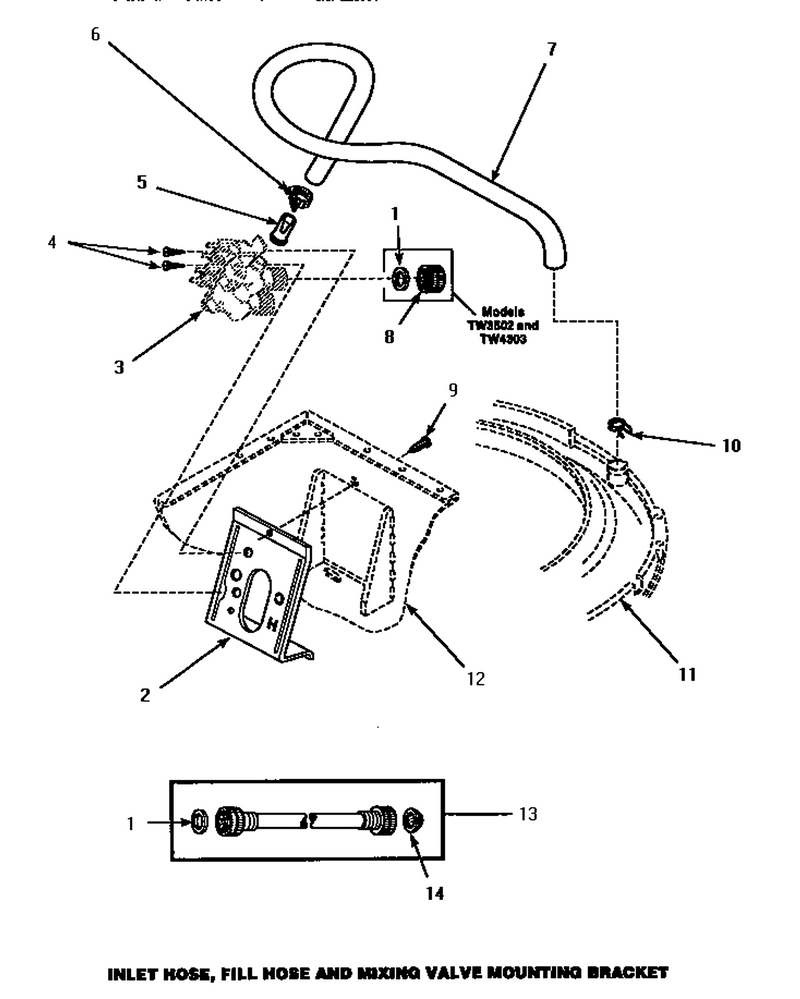

09 - Inlet/fill Hose & Mixing Vlv Mtg Brkt

...
...
1
Gasket- In WPL-WPY013783
...
2
Bracket, Valve WPL-39407
...
3
See Note Mixing Valve Assembly WPL-Y00000000
...
4
Screw,8-18 X 3/8 Tappi WPL-56392
...
5
Valve WPL-W10841299
...
6
Clamp WPL-WP596669
...
7
Hose,mix Valve To Tub WPL-35874
...
8
Cap WPL-24145
...
9
Screw WPL-WP27001200
...
10
Hose Clamp WPL-29210
...
11
See Note Outer Tub Cover WPL-Y00000000
...
12
See Note Cabinet WPL-Y00000000
...
13
Inlet Hose Assy. WPL-202860
...
14
Strainer- WPL-WP22002960

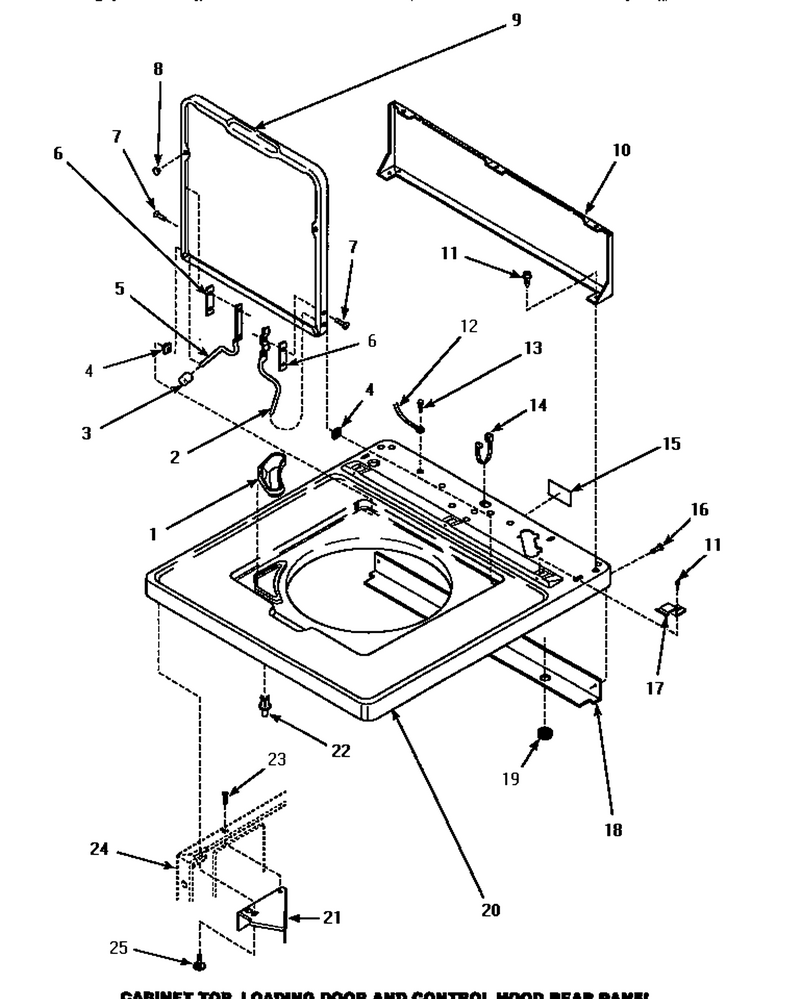

04 - Cab Top/loading Dr & Ctrl Hood Rear Pan

...
...
1
Dispenser,bleach WPL-34776
...
2
Hinge, Lid R WPL-36437
...
3
Bumper,hinge-Stop WPL-35112
...
4
Bushing WPL-33446
...
5
Hinge, Lid Left WPL-36438
...
6
Gasket,hinge WPL-34338
...
7
Screw WPL-WPW10119828
...
8
Bumper WPL-21685
...
9
Lid,w/instructions WPL-33541HP
...
10
Panel, Back Hood (Use 37782) WPL-34903
...
11
Screw WPL-WP90767
...
12
See Note Ground Wire, Green WPL-Y00000000
...
13
Screw,10b-16 X 1/2 Hex WPL-52909
...
14
Grommet, Cord WPL-211881
...
15
Sticker,disconnect Pow WPL-24903
...
16
Screw WPL-WP27001200
...
17
Clip, Hold Down WPL-40063901
...
18
Shield, Top WPL-34228
...
19
Grommet WPL-80262
...
20
Assy,top-Amana WPL-34902WP
...
21
Bracket,director-Module WPL-36034
...
22
Barrel,support WPL-56534
...
23
Screw,8-18x3/8 Phil Flt Hd WPL-36035
...
24
See Note Cabinet WPL-Y00000000
...
25
Screw WPL-WP27001200

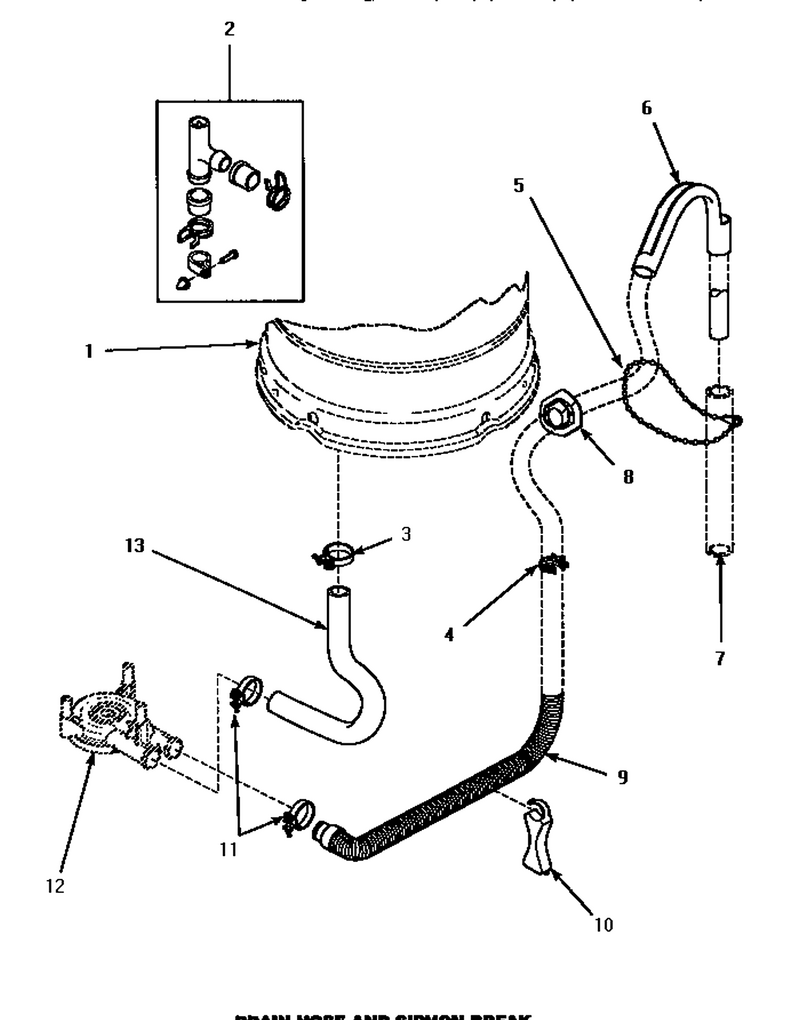

06 - Drain Hose & Siphon Break

...
...
NI
Drain Hose Extension Kit WPL-406P3
...
1
See Note Outer Tub WPL-Y00000000
...
2
Break-Sphn WPL-76660
...
3
Clamp WPL-WP285655
...
4
Clip, Retainer-Hose WPL-36014
...
5
Strap, Standpipe Bead WPL-33489
...
6
Sleeve, Drain Hose WPL-33615
...
7
See Note Standpipe WPL-Y00000000
...
8
Relief, Strain WPL-32219
...
9
Hose- Drai WPL-WP40053901
...
10
Support,hose WPL-35487
...
11
Clamp WPL-WP285655
...
12
See Note Pump Assembly WPL-Y00000000
...
13
Hose,tub To Pump-Ddp WPL-35753

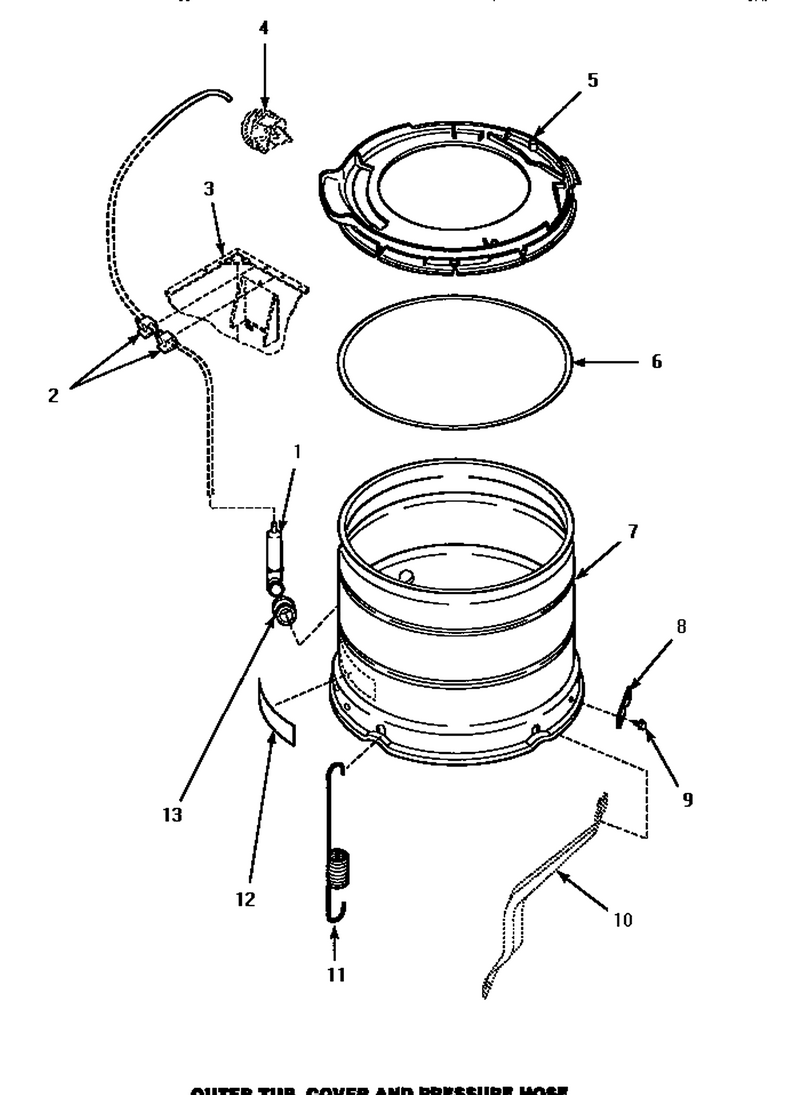

13 - Outer Tub, Cover & Pressure Hose

...
...
NI
Tubing WPL-39125
...
1
Assembly, Pressure Bulb WPL-40008501
...
2
Clip,cable WPL-21036
...
3
See Note Cabinet WPL-Y00000000
...
4
See Note Pressure Switch WPL-Y00000000
...
5
Assy, Tub Cover& Gasket WPL-36025P
...
6
Gasket,tub Cover Small WPL-32857
...
7
Assy, Outer Tub WPL-34438P
...
8
Plate,leg .063 WPL-27926
...
9
Screw WPL-W10856106
...
10
See Note Support Leg WPL-Y00000000
...
11
Spring,leg-Large Tub WPL-35948
...
12
Sticker WPL-500049
...
13
Grommet WPL-40037801

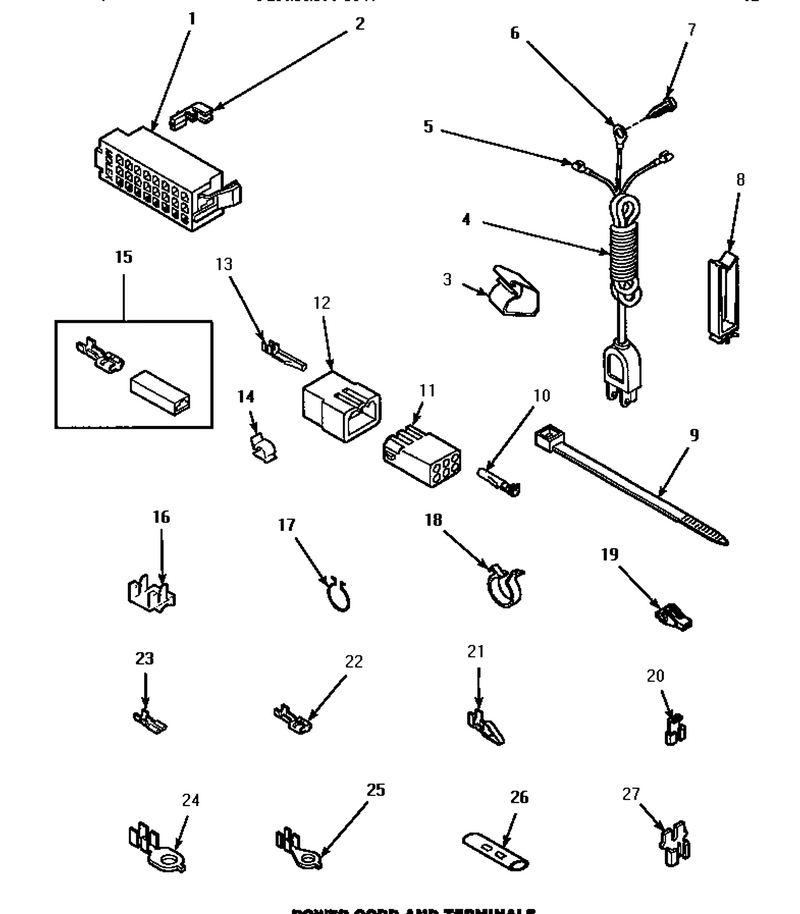

15 - Power Cord & Terminals

...
...
1
Housing,r.h.-24 Positi WPL-32746
...
2
Terminal,female-Molex- WPL-Y00188
...
3
Clip,harness Holder WPL-35521
...
4
Power Cord And Plug WPL-40095301
...
5
Nut WPL-03673
...
6
See Note Ground Wire, Green WPL-Y00000000
...
7
Screw,10b-16 X 1/2 Hex WPL-52909
...
8
Clip, Harness WPL-36274
...
9
Wire Tie WPL-36466
...
10
Female Socket Terminal WPL-Y00117
...
11
Receptacle,9 Circuit WPL-26163
...
12
Plug,9 Circuit WPL-23033
...
13
Terminal,pin-Male WPL-Y00116
...
14
Clip,cable WPL-21036
...
15
Terminal,insulated WPL-00234
...
16
Ground Clip WPL-Y00161
...
17
Clip,wire WPL-51291
...
18
Clip,wire WPL-61510
...
19
Insulator, Pod K WPL-M0325501
...
20
Terminal,flag-1/4 Fema WPL-Y00120
...
21
Terminal,crimp-Single WPL-00220
...
22
Spade Terminal(18 Gauge) WPL-Y00119
...
23
Terminal,spade-3/16 Fe WPL-00112
...
24
Terminal,ring-1/4 Stud WPL-Y00113
...
25
Terminal,ring-10 Stud WPL-00110
...
26
Connector WPL-WP75614
...
27
Double Connector WPL-29673

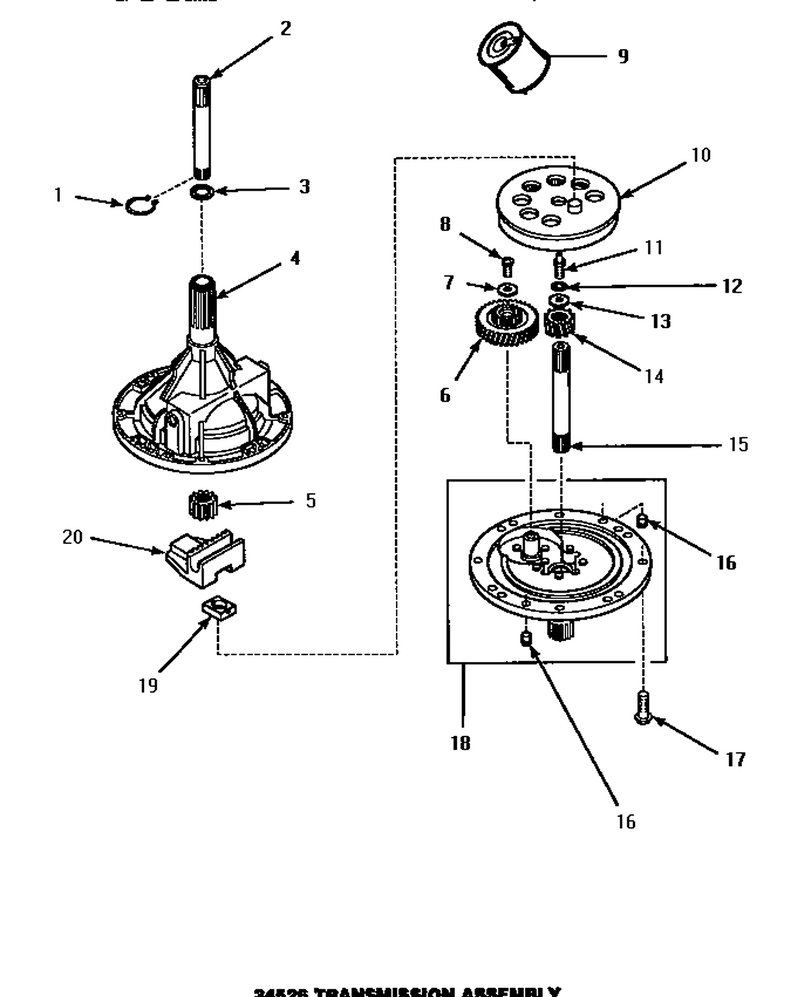

01 - 34526 Transmission Assy

...
...
NI
Sealant WPL-37577P
...
1
Ring,retaining WPL-27197
...
2
Shaft, Output WPL-Y36570
...
3
Washer,3628id X 1.00 X .056 WPL-35092
...
4
Assy,transmission Case WPL-33223
...
5
Pinion,agitator WPL-27003
...
6
Gear,reduction WPL-29161
...
7
Washer WPL-29260
...
8
Screw,1/4-20 X 3/8 WPL-29273
...
9
Oil,cw Transmission F- WPL-27243P
...
10
Assy,gear & Stud WPL-26577
...
11
Screw,1/4-20 Special WPL-27030
...
12
Lockwasher,1/4 Intshkp WPL-21456
...
13
Washer WPL-WP40041501
...
14
Pinion,drive WPL-Y29160
...
15
Shaft,input WPL-34853
...
16
Pin,dowel WPL-27172
...
17
Screw,1/4-20x7/8 Serra WPL-32814
...
18
Assy, Cover (Trans Cover) WPL-38290
...
19
Slide WPL-26493
...
20
Rack WPL-Y31526

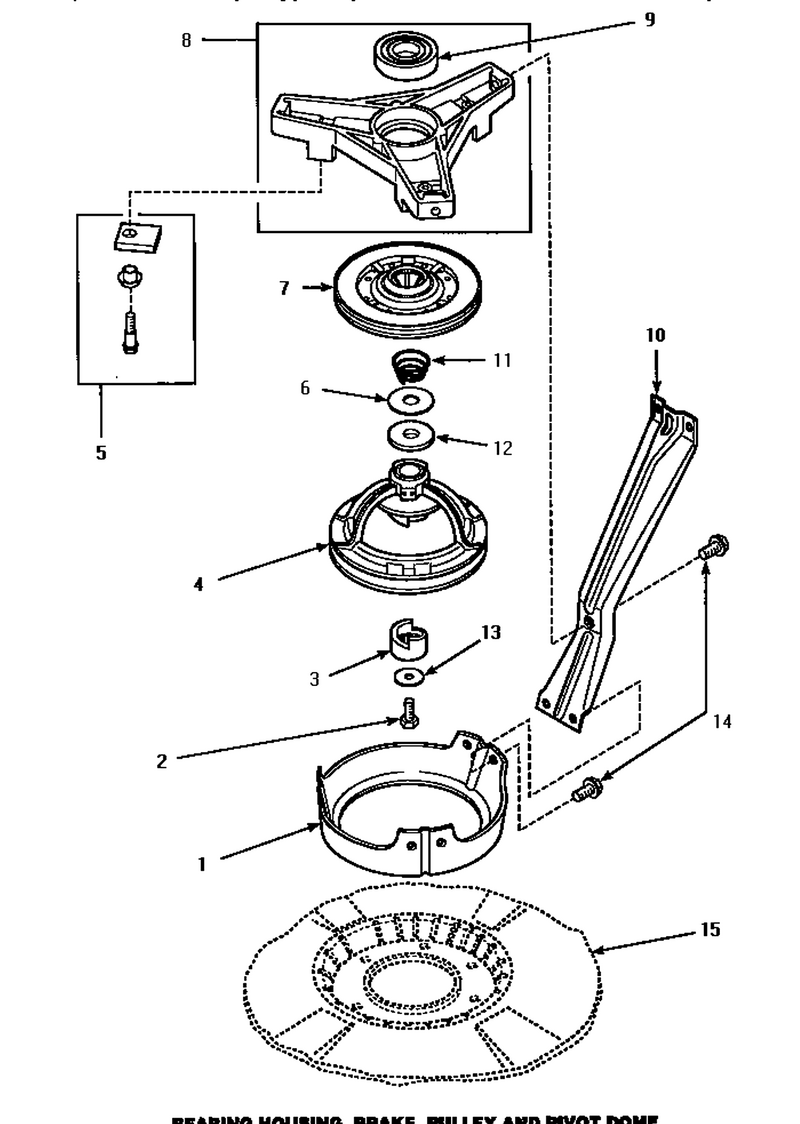

03 - Brg Hsg/brake/pulley & Pivot Dome

...
...
NI
Grease WPL-WP26594P
...
1
Dome,pivot WPL-34470
...
2
Screw WPL-WP40063401
...
3
Helix WPL-27018
...
4
Assy,pulley-Spin & Agitate WPL-34921
...
5
Pad-Brake WPL-R9900543
...
6
Washer WPL-35535
...
7
Brake Assembly WPL-R9900474
...
8
Assy,bearing Housing-L WPL-35746
...
9
Bearing- M WPL-WP40004001
...
10
Leg,support WPL-34471
...
11
Spring,conical WPL-33435
...
12
Washer WPL-27015
...
13
Washer WPL-WP40041501
...
14
Screw WPL-W10856106
...
15
See Note Base Assembly WPL-Y00000000

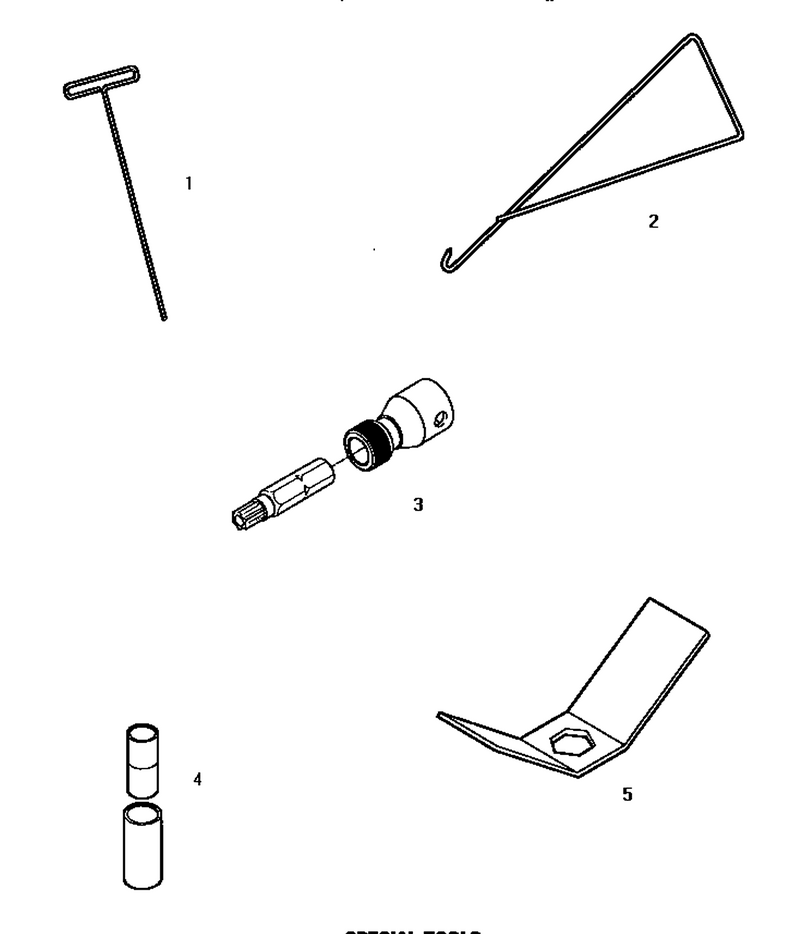

16 - Special Tools

...
...
NI
Kit, Tool WPL-555P3
...
1
Wrench, T - Allen WPL-291P4
...
2
Hook, Spring WPL-289P4
...
3
Torx Bit Holder WPL-24161
...
4
Installer,spring WPL-242P4
...
5
Hex Wrench WPL-237P4

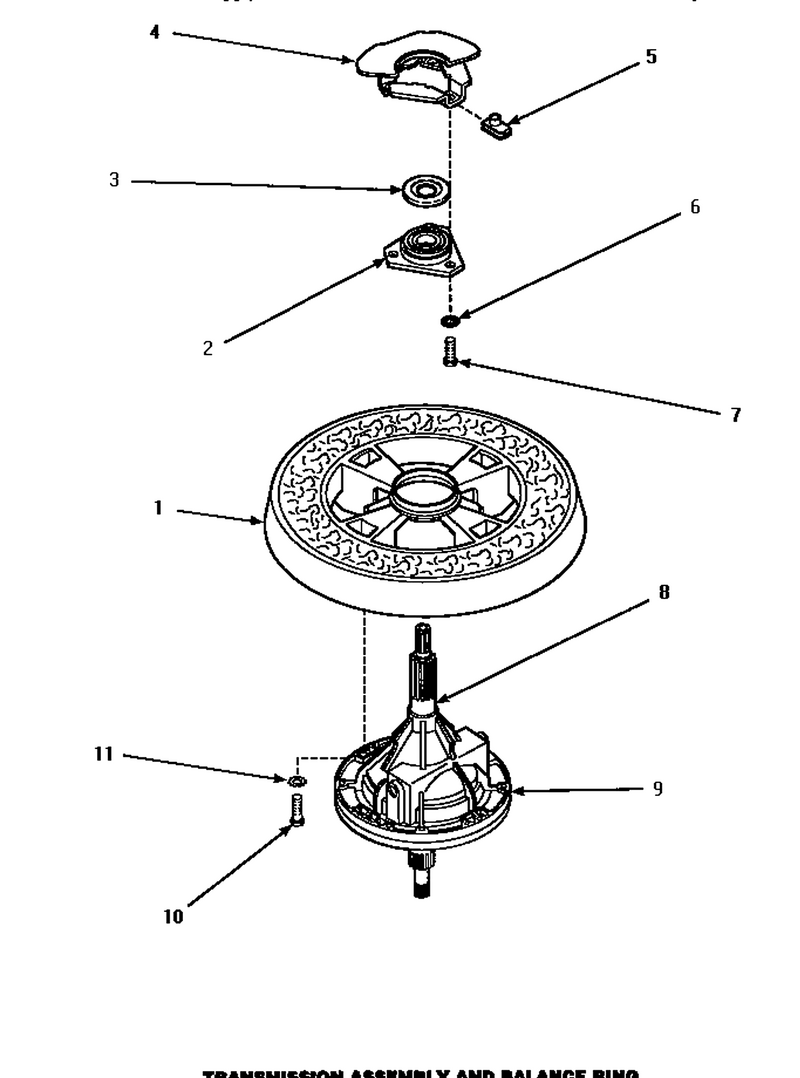

18 - Transmission Assy & Balance Ring

...
...
1
Assy,balance Ring-Compl WPL-34731
...
2
Main Beari WPL-WP40004201P
...
3
Flinger WPL-27187
...
4
See Note Outer Tub WPL-Y00000000
...
5
Nut,retainer 5/16-18 WPL-27222
...
6
Lockwasher,5/16intshkp WPL-04366
...
7
Screw WPL-01355
...
8
Never-Seeze 1 Oz Tube WPL-27604P
...
9
Assy, Transmission WPL-34526P
...
10
Cap Screw WPL-27200
...
11
Lockwasher,1/4 Ext Shk WPL-02431

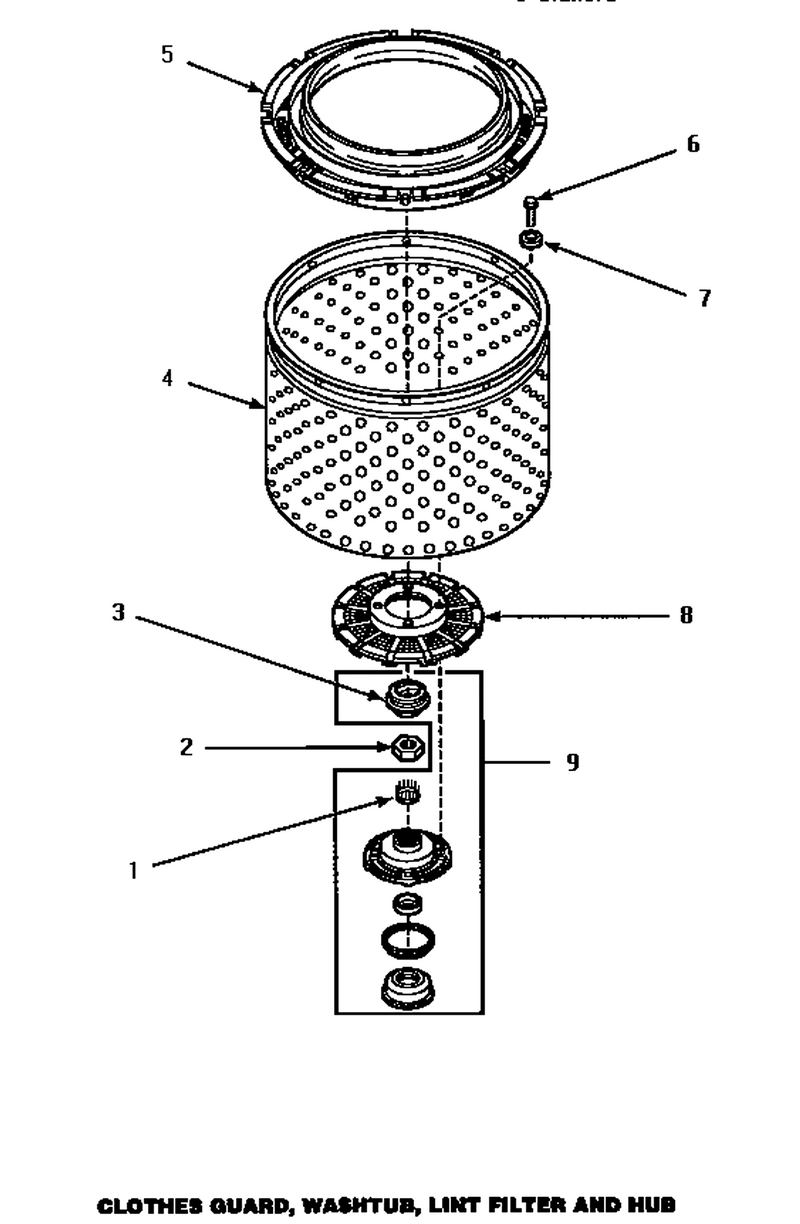

05 - Clothes Guard/washtub/lint Filter & Hub

...
...
1
Insert WPL-WP40008301
...
2
Locknut WPL-Y29220
...
3
Hub And Transmission Tube Seal WPL-34184
...
4
Wash Tub WPL-39240P
...
5
Guard, Clothes WPL-35035
...
6
Screw WPL-WPW10116787
...
7
Gasket WPL-WP28094
...
8
Filter Lin WPL-39371
...
9
Hub & Seal Kit WPL-495P3

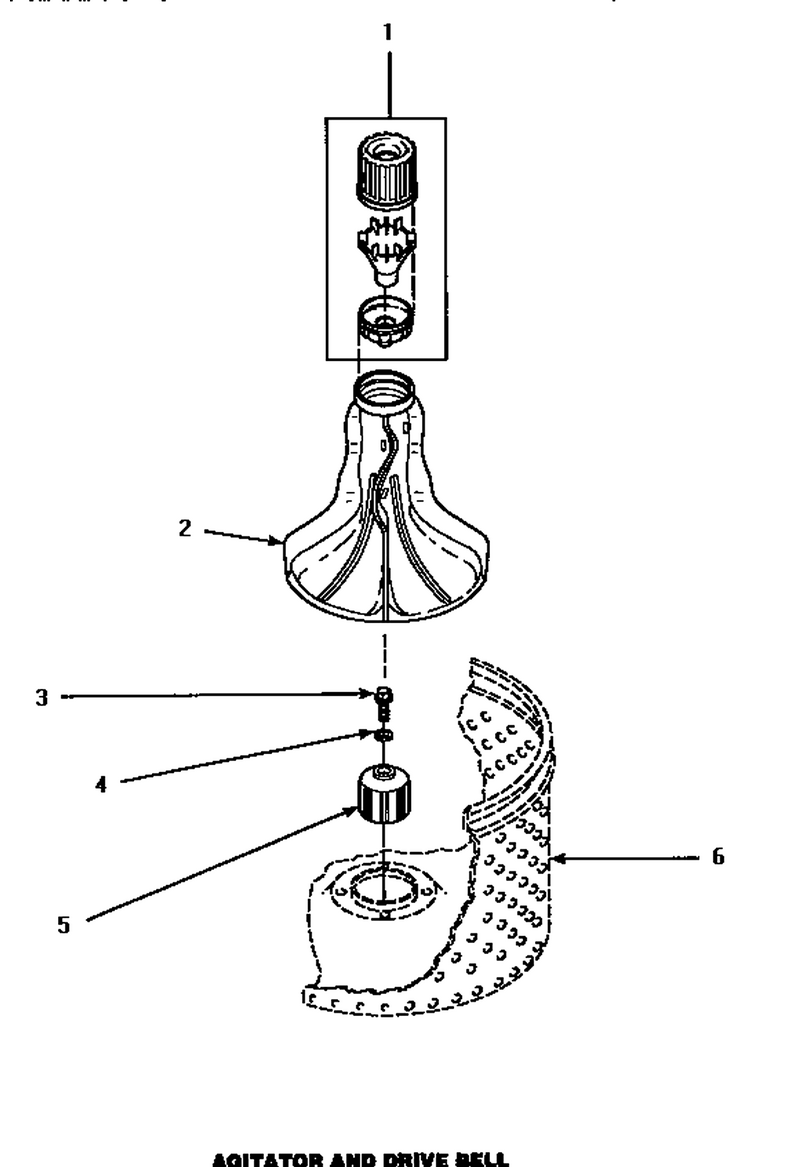

02 - Agitator & Drive Bell

...
...
1
Fabric Softener Dispenser WPL-34155
...
2
Agitator WPL-33174
...
3
Shoulder Screw WPL-34288
...
4
O-Ring WPL-36472
...
5
Drive Bell And Seal Kit WPL-34504P
...
6
See Note Washtub WPL-Y00000000

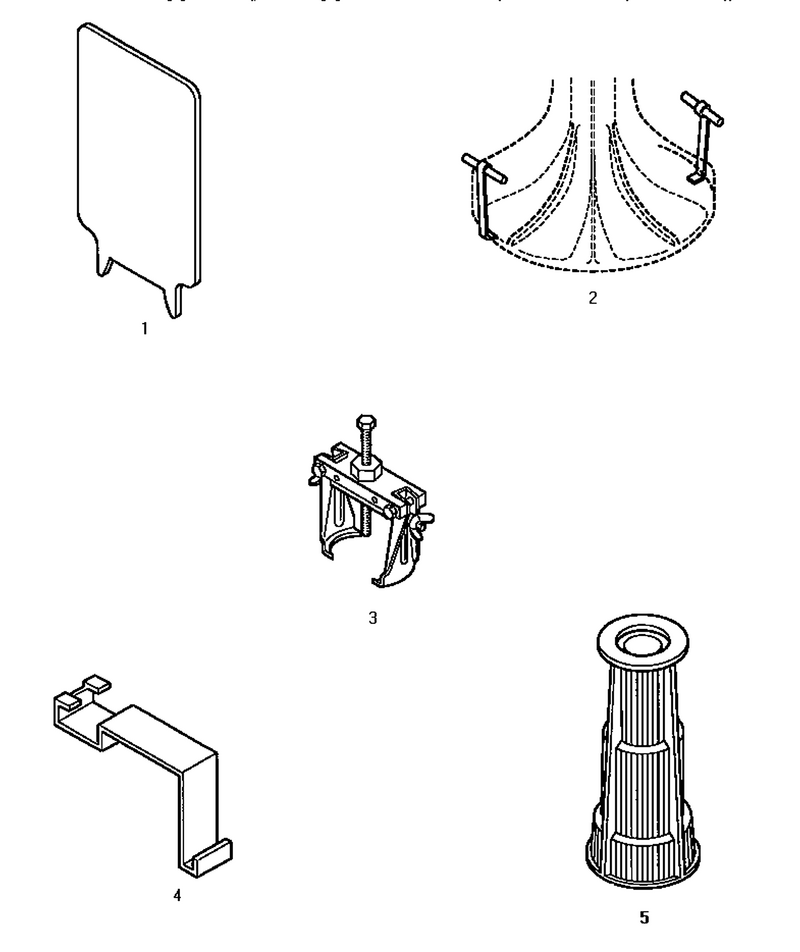

17 - Special Tools

...
...
1
Tool,lid Switch Instal WPL-272P4
...
2
Agitator Hooks WPL-254P4P
...
3
Bell Tool WPL-253P4
...
4
Tub Cover Gasket Tool WPL-273P4
...
5
Seal Tool WPL-274P4

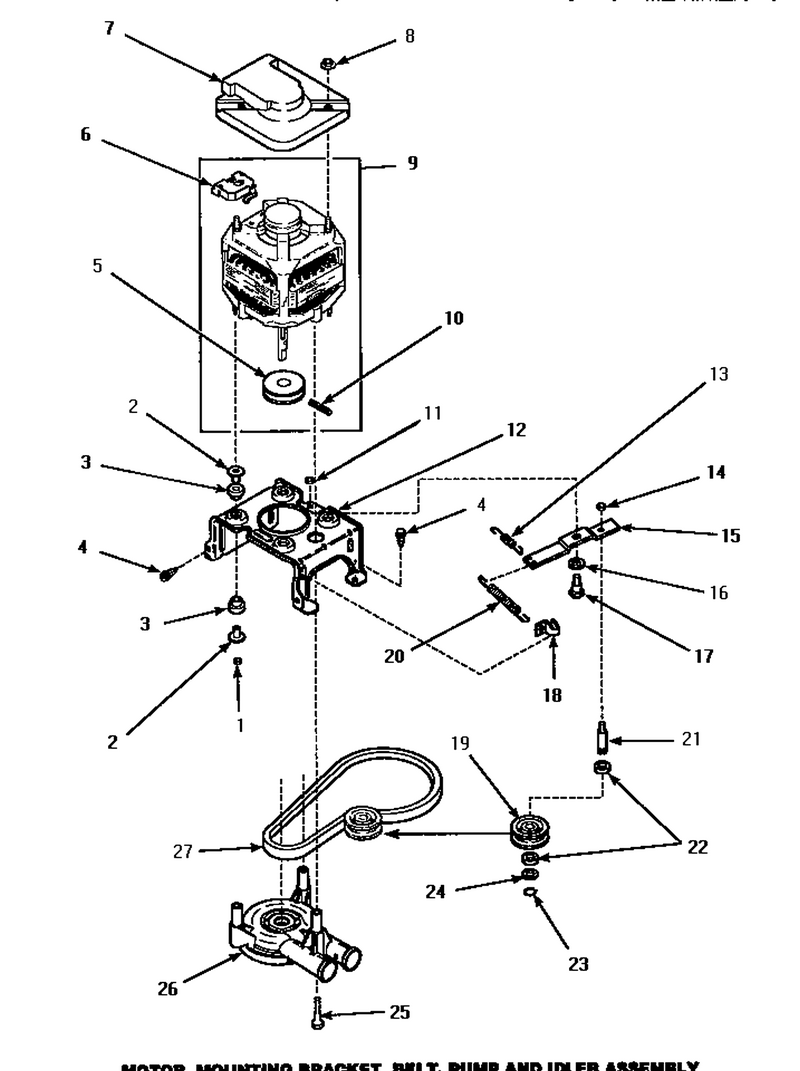

12 - Motor, Mtg Brkt, Belt, Pump & Idler Assy

...
...
NI
Kit,capacitor WPL-258P3
...
1
Nut WPL-WP3400029
...
2
Post,mount-Motor WPL-34791
...
3
Mount,motor WPL-34788
...
4
Screw WPL-WP27001200
...
5
Pulley,motor WPL-27171
...
6
Switch, Motor WPL-35632
...
7
Motor Shield WPL-34754
...
8
Palnut WPL-35139
...
9
Motor Assemblies WPL-34571
...
10
Pin,roll WPL-23750
...
11
Nut WPL-WPW10139757
...
12
Bracket,motor Mount WPL-34890
...
13
Spring,idler Lever Hel WPL-30620
...
14
Clamp WPL-W10833902
...
15
Lever,idler WPL-40041002
...
16
Washer WPL-81392
...
17
Screw, 1/4-20 WPL-40038901
...
18
Clip-Sprin WPL-WP28849
...
19
Wheel,idler WPL-28800
...
20
Spring- Id WPL-WP37366
...
21
Shaft,idler WPL-28802
...
22
Washer,felt WPL-Y29443
...
23
Ring- Reta WPL-WP23748
...
24
Washer WPL-WP233520
...
25
Screw WPL-WP40063701
...
26
Pump Assembly WPL-35742P
...
27
Belt-Agita WPL-WP28808

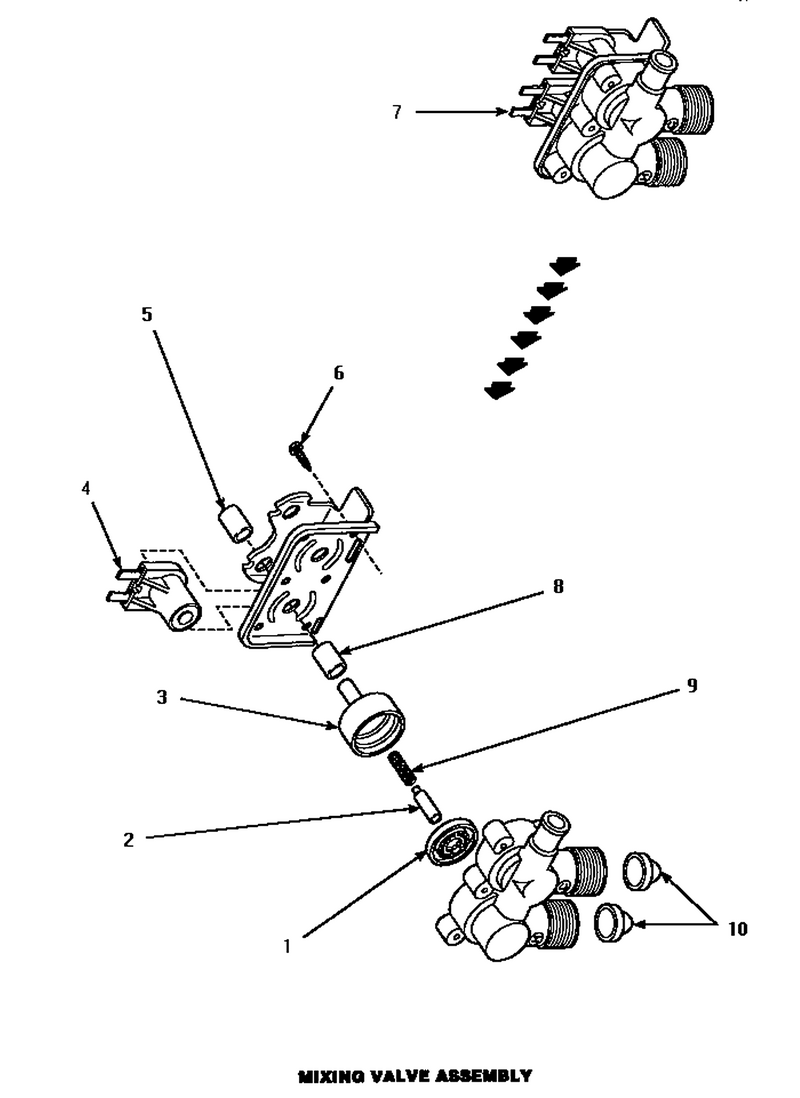

10 - Mixing Valve Assy

...
...
1
Diaphragm WPL-24134
...
2
Armature WPL-24132
...
3
Guide,armature WPL-24130
...
4
Solenoid,mixing Valve WPL-33930A
...
5
Sleeve,long WPL-24128
...
6
Screw WPL-25817C
...
7
Valve-Mixi WPL-WP34963
...
8
Sleeve,short WPL-24129
...
9
Spring WPL-23224E
...
10
Strainer- WPL-WP22002960

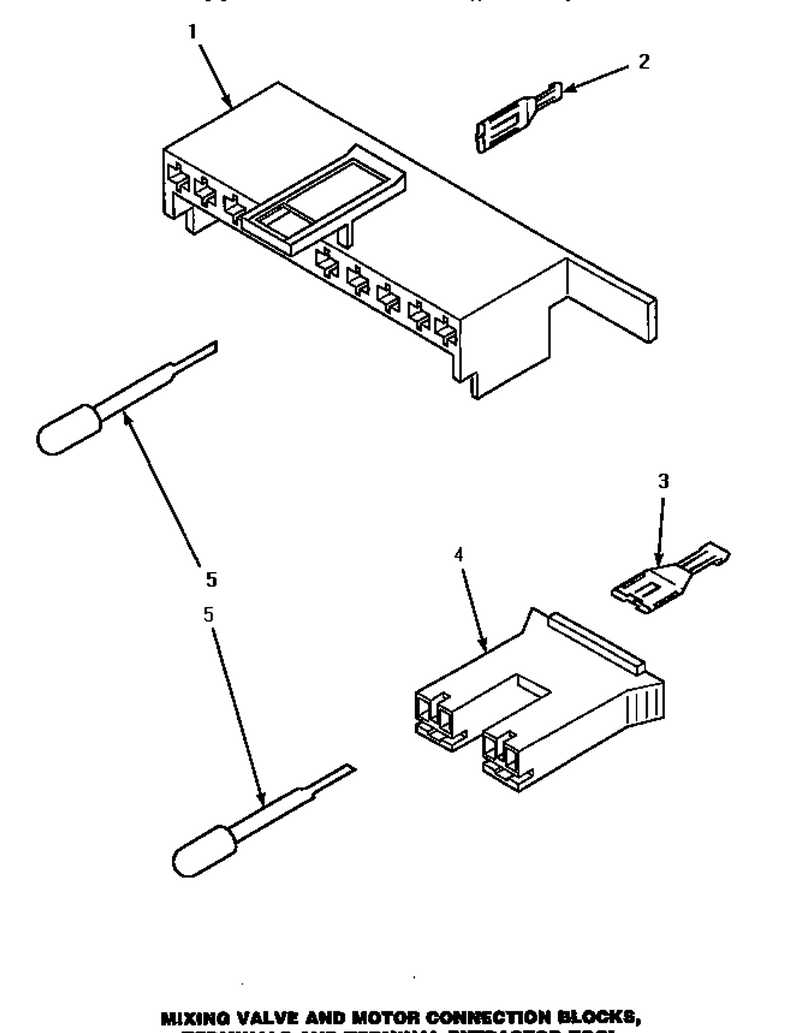

11 - Mixing Vlv & Mtr Conn Blocks/term & Tool

...
...
1
10 Circuit Plug WPL-34677
...
2
Terminal,female-Molex- WPL-Y00188
...
3
Spade Terminal(12 Gauge) WPL-Y00121
...
4
Plug WPL-34675
...
5
Terminal Extractor Tool WPL-283P4

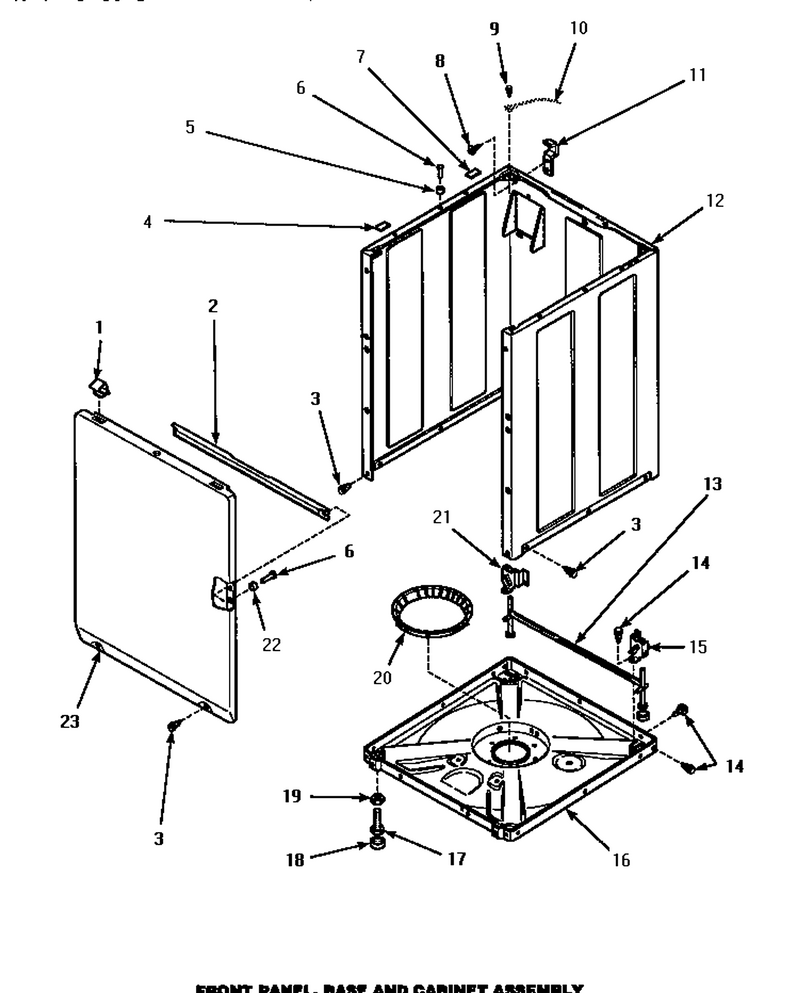

07 - Front Panel, Base & Cabinet Assy

...
...
1
Clip,hold-Down Front Panel WPL-35865
...
2
Brace, Frt Pnl WPL-Y35097
...
3
Screw WPL-WP27001200
...
4
Pad, Bumper WPL-Y56128
...
5
Locator, Panel WPL-505187
...
6
Screw WPL-WPY014874
...
7
Pad, Bumper .25 WPL-36226
...
8
Screw, No.10b X 1/4 Tap In Hx WPL-34499
...
9
Screw,8-18 X 3/8 Tappi WPL-56392
...
10
See Note Ground Wire, Green WPL-Y00000000
...
11
Hinge,hold-Down Lug WPL-Y27103
...
12
Kit-Servic WPL-38612WP
...
13
Assy,leg & Stabilier WPL-34443
...
14
Screw,1/4-14 X 3/8 Hx Hd WPL-35148
...
15
Bracket,sll-Right WPL-36036
...
16
Assy Nut/leg Base WPL-34434P
...
17
Leg, Adjustable (W/nut) WPL-22003428
...
18
Rubber Foot WPL-34318
...
19
Nut- Lock WPL-WP210385
...
20
Snubber Pad & Isolator WPL-36108
...
21
Bracket,sll-Left WPL-36037
...
22
Locator,panel WPL-28102
...
23
Assy,front Panel WPL-34656LP

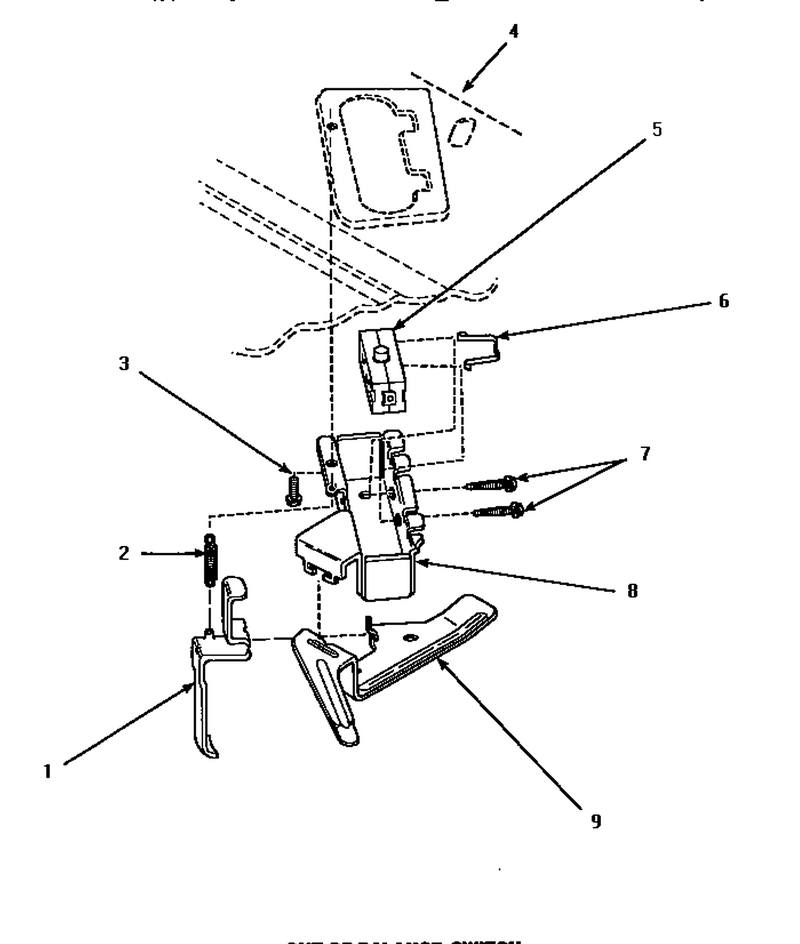

14 - Out-Of-Balance Switch

...
...
1
Lever,unbalanced Load WPL-33442
...
2
Spring WPL-33443
...
3
Screw WPL-WP90767
...
4
See Note Cabinet Top WPL-Y00000000
...
5
Switch-Plg WPL-WP27001095
...
6
Clip,holder-Switch WPL-33433
...
7
Screw WPL-36510
...
8
Kit, Switch Holder WPL-36497P
...
9
Arm,actuator WPL-33441
