Amana GFD240-1L2 (BOM: GFD24001L 2)

Model: GFD240-1L2 (BOM: GFD24001L 2)

Save Part Not Listed?
product name

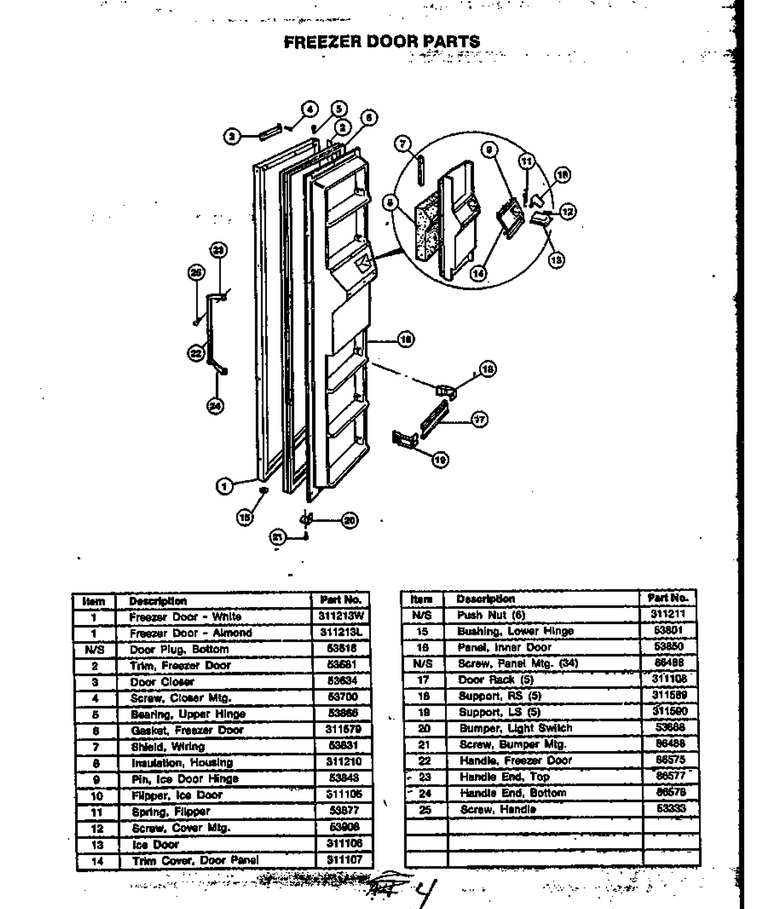

03 - Fz Door Parts

...
...
NI
Button Plug, Door Stop Mtghole WPL-Y0053618
...
1
Sub 56168l, Freezer Dr. Panel WPL-Y056168L
...
2
Code J WPL-53681
...
3
Closer, Door WPL-0053634
...
4
Screw, Door Closer WPL-Y0053700
...
5
Bearing, Hinge WPL-0053866
...
6
Gasket, Freezer Door WPL-Y0311579
...
7
Shield, Wire WPL-Y0053831
...
8
Insulation, Housing WPL-0311210
...
9
Pin, Ice Door WPL-0053843
...
10
X Ice Door Flipper WPL-0311105
...
11
Spring, Flipper Retainer WPL-Y0053877
...
12
Screw WPL-WP67006908
...
13
Ice Door WPL-Y0311106
...
14
Trim Cover WPL-Y0311107
...
15
Bushing, Hinge WPL-0053801
...
16
Panel, Inner Door WPL-53850
...
17
Rack, Door WPL-Y0311108
...
18
Support, Rs WPL-Y0311589
...
19
Support, Ls WPL-Y0311590
...
20
Bumper, Light Switch WPL-Y0053668
...
21
Screw WPL-Y0086488
...
22
Grip - Handle Fz WPL-86575
...
23
Handle, End WPL-0086577
...
24
End, Handle Bottom WPL-0086578
...
25
Screw, Handle WPL-Y0053333

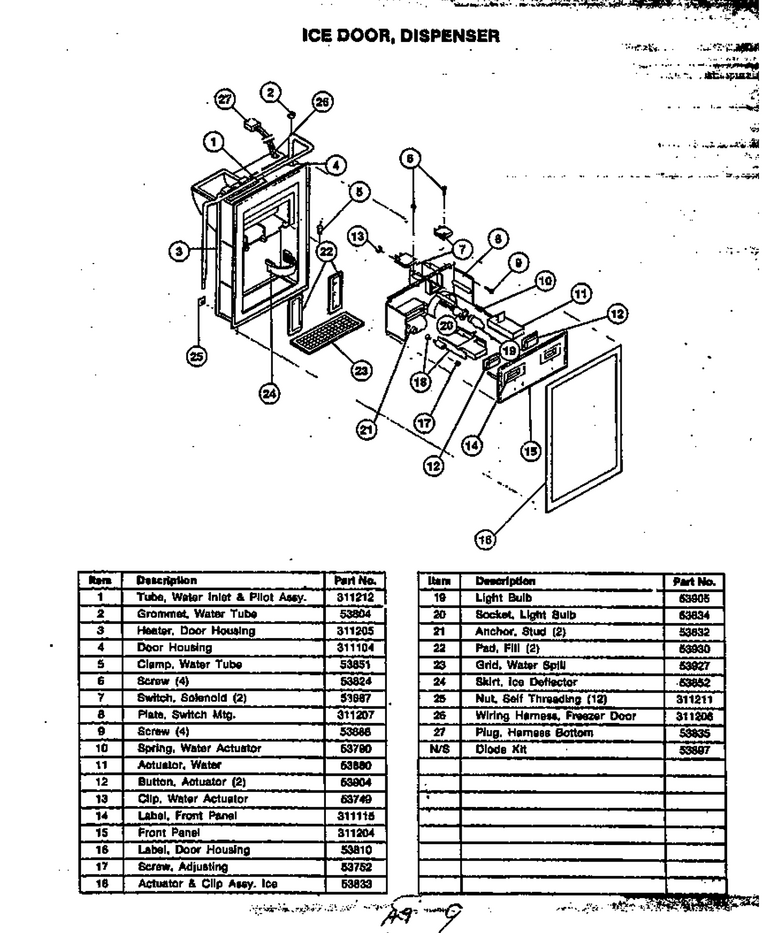

05 - Ice Door

...
...
NI
Diode Kit WPL-Y0053897
...
1
Tube, Water Inlet & Pilot Assy WPL-Y311212
...
2
Grommet, Water Tube WPL-Y0053804
...
3
Heater, Door Housing WPL-0311205
...
4
Door Housing WPL-0311104
...
5
Clamp, Water Tube WPL-Y0053851
...
6
Screw, Switches WPL-Y0053824
...
7
Switch, Solenoid WPL-0053887
...
8
Plate, Switch Mtg. WPL-Y0311207
...
9
Screw, Housing WPL-Y0053888
...
10
Spring, Water Actuator WPL-Y0053790
...
11
Actuator, Water WPL-Y0053880
...
12
Button, Actuator WPL-0053904
...
13
Clip, Water Actuator WPL-Y0053749
...
14
Label, Front Panel WPL-Y0311115
...
15
Front Panel WPL-0311204
...
16
Label, Door Housing WPL-53810
...
17
Thermostat WPL-53752
...
18
Actuator And Cup WPL-0053833
...
19
Light Bulb WPL-0053905
...
20
Light Socket A WPL-0053834
...
21
Anchor Stud Plate WPL-0053832
...
22
Pad, Housing Fr. Dr. Panel WPL-Y0053930
...
23
Grille WPL-Y0053927
...
24
Ice Guard, Lower WPL-Y0053852
...
25
Nut, Self Threading WPL-Y311211
...
26
Bracket For Terminal Block WPL-311206
...
27
Manual,install/oper WPL-Y53835

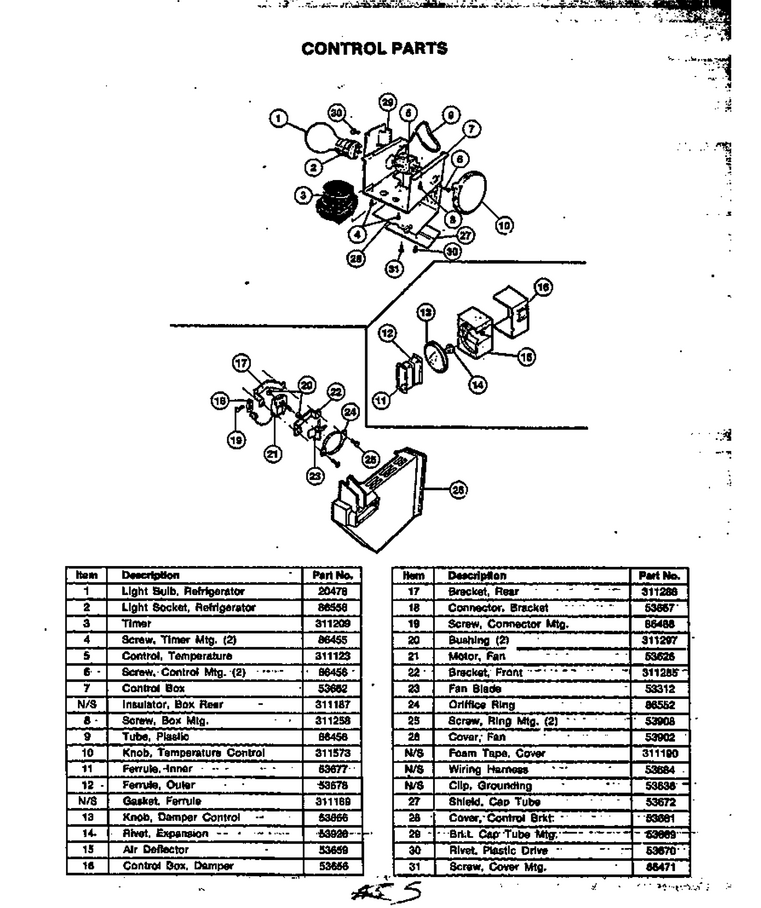

02 - Control Parts

...
...
NI
Foam, Tape, Cover WPL-Y311190
...
1
Light Bulb WPL-8009
...
2
Socket, Light WPL-Y0086556
...
3
Timer-Def WPL-W10822278
...
4
Screw WPL-Y0086455
...
5
Thermostat WPL-Y0311123
...
6
Screw WPL-Y0086456
...
7
Bracket, Control Mtg. WPL-Y0053662
...
8
Screw, Box Mtg. WPL-311258
...
9
Tube,sensor Sleeve-Clear Plast WPL-R0130817
...
10
Knob, Temperature Control WPL-Y311573
...
11
Ferrule, Inner WPL-Y0053677
...
12
Ferrule, Outer WPL-Y0053678
...
13
Knob, Damper Control WPL-Y0053666
...
14
Rivet, Plastic, Knob Ret. WPL-0053920
...
15
Deflector, Air WPL-Y0053659
...
16
Box, Damper Control WPL-Y0053656
...
17
Bracket, Rear WPL-Y311286
...
18
Bracket, Connector WPL-Y0053657
...
19
Screw WPL-Y0086488
...
20
Bushing WPL-Y311297
...
21
Motor, Blower WPL-0053626
...
22
Bracket, Front WPL-311285
...
23
Fan Blade,evap(red) WPL-R0130439
...
24
Ring - Fan Orifice WPL-86552
...
25
Screw WPL-WP67006908
...
26
Cover-Fan WPL-53902
...
27
Cover, Capillary Tube WPL-Y0053672
...
28
Cover, Control Bracket WPL-Y0053661
...
29
Bracket, Control Capillary Mtg WPL-0053669
...
30
Stud-Plastic WPL-Y53670
...
31
Screw Clamp WPL-Y0086471

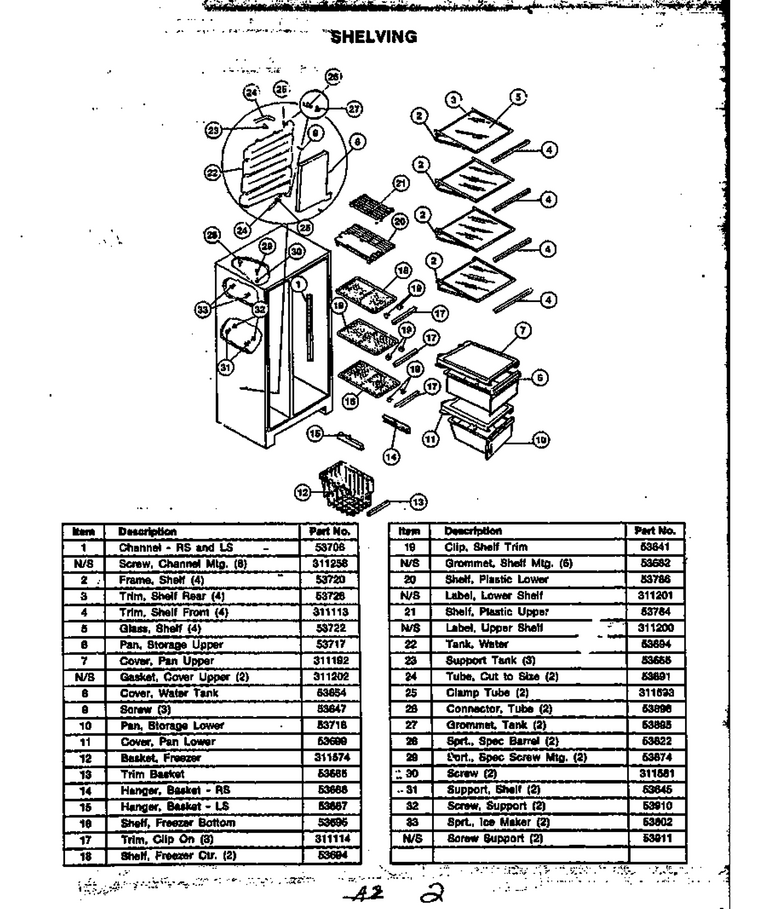

07 - Page 1

...
...
NI
Gasket, Cover Upper WPL-Y311202
...
1
Channel, Shelf Mounting WPL-Y0053706
...
2
Frame, Cantilever Shelf WPL-Y0053720
...
3
Trim, Rear Shelf WPL-Y0053728
...
4
Trim Shelf Front WPL-Y0311113
...
5
Shelf, Glass WPL-Y0053722
...
6
Pan-Storage Upper WPL-53717
...
7
Sub 53698, Cover, Pan Upper WPL-0311192
...
8
Cover, Water Tank WPL-Y0053654
...
9
Screw No.8 X 3/4 WPL-Y0053647
...
10
Pan, Storage, Lower WPL-Y0053718
...
11
Cover, Crisper, Lower WPL-Y0053699
...
12
Basket, Fz WPL-Y311574
...
13
Trim, Basket WPL-Y0053685
...
14
Trim, Basket WPL-Y0053685
...
15
Hanger, Basket, Lh WPL-Y0053687
...
16
Shelf, Bottom, Freezer WPL-Y0053695
...
17
Trim Clip On WPL-Y0311114
...
18
Shelf, Center, Freezer WPL-Y0053694
...
19
Clip, Shelf Trim WPL-Y0053641
...
20
Shelf, Lower WPL-Y0053786
...
21
Shelf, Half, Upper WPL-Y0053784
...
22
Tank-Water Cooler WPL-53894
...
23
Support, Water Tank WPL-Y0053655
...
24
Tube WPL-WPB5705307
...
25
Clamp Tube WPL-Y311593
...
26
Connector Tube WPL-Y0053896
...
27
Grommet-Water Tube WPL-53895
...
28
Support, Divider & Freezer WPL-Y0053822
...
29
Support, Special Screw Mtg. WPL-Y0053874
...
30
Screw WPL-311581
...
31
Support - Shelf WPL-53645
...
32
Screw, Support WPL-Y0053910
...
33
Support, Ice Maker WPL-Y0053802

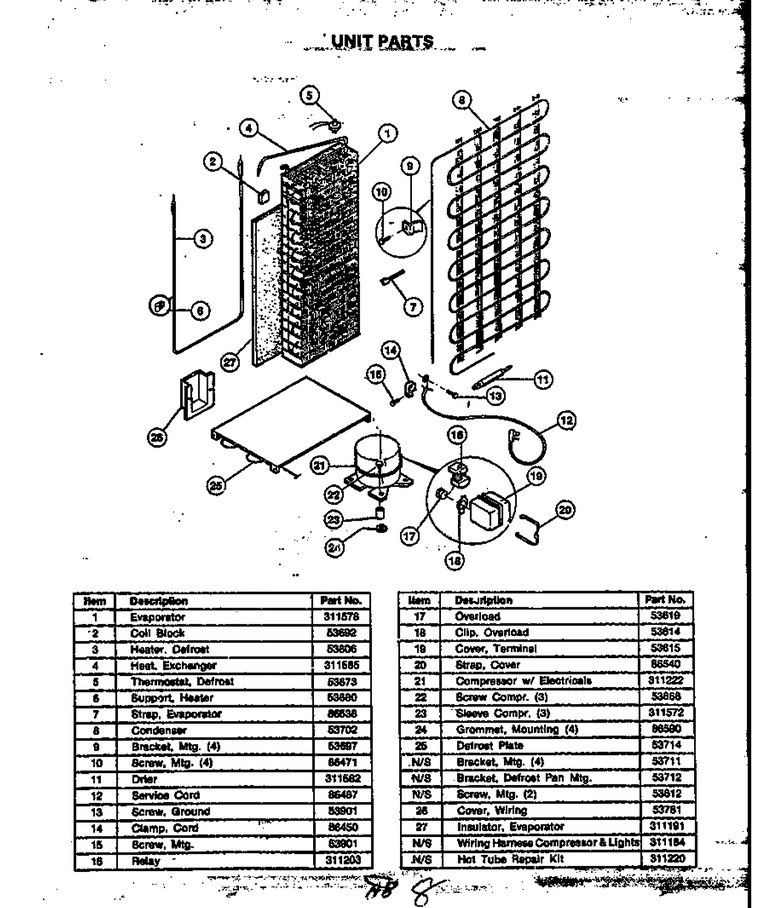

09 - Unit Parts

...
...
NI
Bracket, Defrost Plate WPL-Y0053711
...
1
Evaporator Only WPL-0311578
...
2
Block, Coil WPL-Y0053692
...
3
Heater, Defrost WPL-0053806
...
4
Heat, Exchanger WPL-Y311585
...
5
Thermostat, Defrost WPL-Y0053673
...
6
Support, Defrost Heater WPL-Y0053680
...
7
Clamp, Heater WPL-Y0086538
...
8
Condenser WPL-Y0053702
...
9
Bracket WPL-53697
...
10
Screw Clamp WPL-Y0086471
...
11
Drier WPL-WPB2150504
...
12
Service Cord WPL-Y0086487
...
13
Screw (3) WPL-67006425
...
14
Clamp Cover WPL-Y0086450
...
15
Screw (3) WPL-67006425
...
16
Relay WPL-Y311203
...
17
Overload WPL-0053619
...
18
Clip, Overload WPL-Y0053614
...
19
Cover-Terminal WPL-53615
...
20
Clamp, Cover WPL-Y0086540
...
21
Compressor With Electricals WPL-Y0311222
...
22
Screw 1/4 -20, 1.5`` WPL-Y0053868
...
23
Sleeve Compr. WPL-Y311572
...
24
Grommet Compressor Mounting WPL-0086590
...
25
Condenser, Condensate WPL-Y0053714
...
26
Cam, Ice Level WPL-Y0053781
...
27
Insulator, Evaporator WPL-Y311191

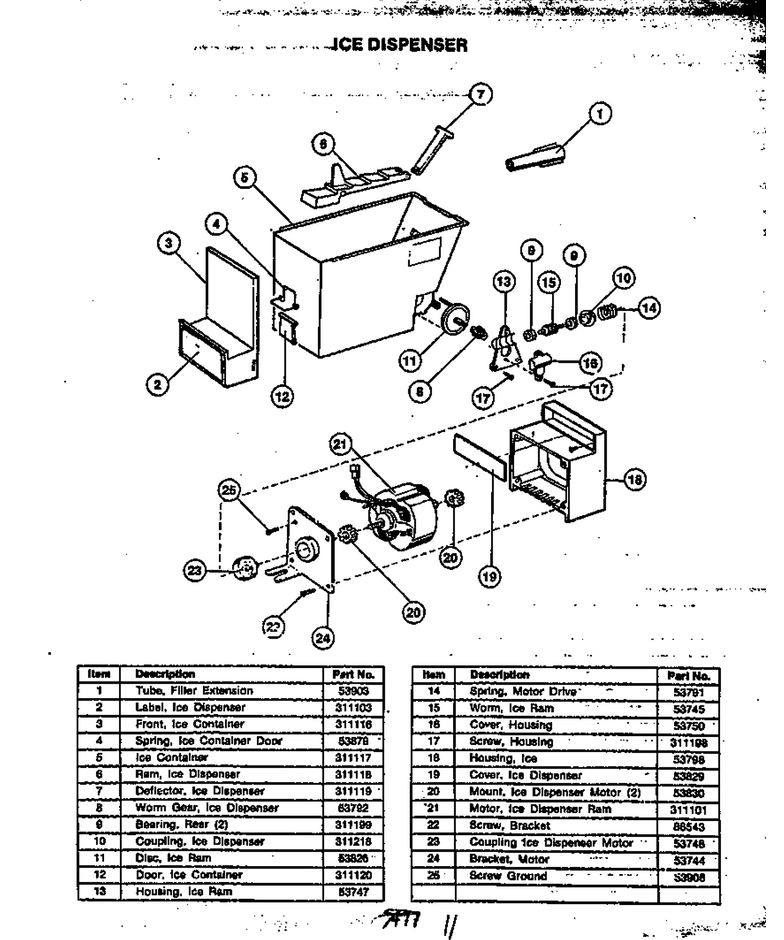

04 - Ice Dispenser

...
...
1
Tube, Extension WPL-Y0053903
...
2
Label, Ice Dispenser WPL-Y0311103
...
3
Container, Front Ice WPL-Y0311116
...
4
Spring, Door WPL-0053879
...
5
Container, Ice WPL-Y0311117
...
6
Ram, Ice Dispenser WPL-0311118
...
7
Deflector, Ice Dispenser WPL-0311119
...
8
Gear, Ice Ram Drive WPL-Y0053792
...
9
Bearing, Rear WPL-Y311199
...
10
Sub 53837, Coupling, Ice Dispe WPL-0311218
...
11
Disc, Ice Ram Drive WPL-Y0053826
...
12
Door, Ice Container WPL-0311120
...
13
Housing, Ice Ram Drive WPL-Y0053747
...
14
Spring, Motor Drive WPL-0053791
...
15
Gear, Ice Ram Drive WPL-Y0053745
...
16
Cover, Housing WPL-Y0053750
...
17
Screw, Housing WPL-Y311198
...
18
Housing, Motor WPL-Y0053798
...
19
Cover, Housing WPL-Y0053829
...
20
Mount, Ice Dispenser Motor WPL-Y0053830
...
21
Motor, Ice Dispenser Pan WPL-0311101
...
22
Screw WPL-Y0086543
...
23
Coupling, Ice Dispenser Motor WPL-Y0053748
...
24
Bracket, Motor WPL-Y0053744
...
25
Screw WPL-WP67006908

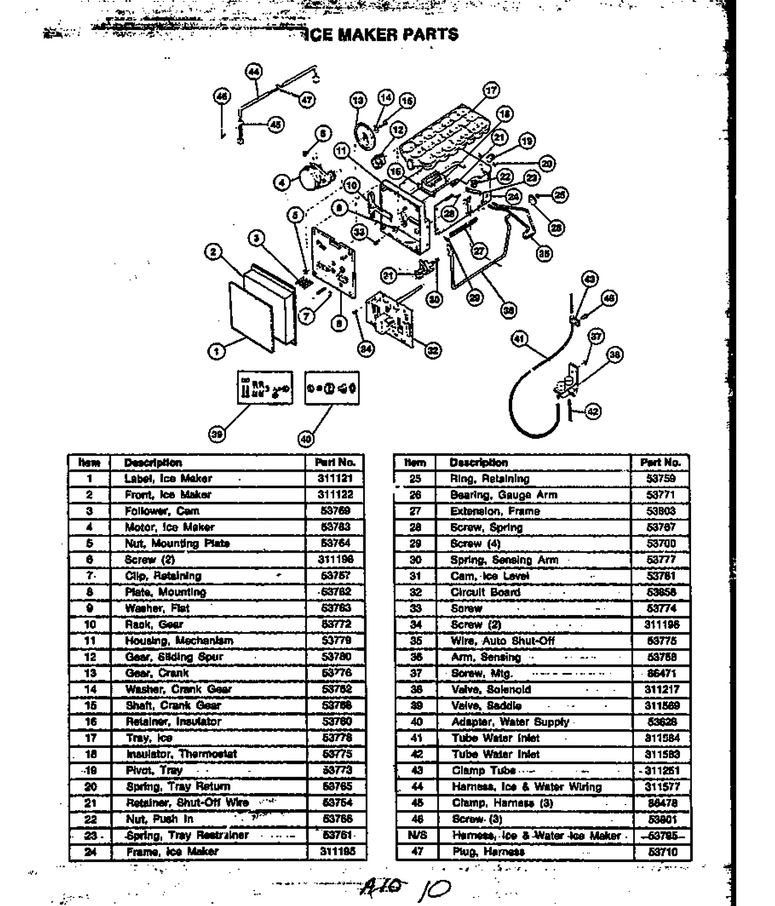

06 - Ice Maker Parts

...
...
NI
Harness, Ice Maker WPL-Y0053795
...
1
Label, Ice Maker WPL-Y0311121
...
2
Front, Ice Maker WPL-Y0311122
...
3
Follower, Cam WPL-Y0053769
...
4
Use 0313045 WPL-0053783
...
5
Nut, Mounting Plate WPL-Y0053764
...
6
Screw WPL-Y311196
...
7
Ring, Retaining WPL-Y0053757
...
8
Plate-Mounting WPL-53782
...
9
Washer, Flat WPL-Y0053763
...
10
Rack, Gear WPL-0053772
...
11
Housing Mechanism WPL-0053779
...
12
Gear, Sliding Spur WPL-Y0053780
...
13
Gear, Crank WPL-Y0053776
...
14
Washer, Crank Gear Shaft WPL-Y0053762
...
15
Switch WPL-55882P
...
16
Retainer, Insulator WPL-Y0053760
...
17
Tray, Ice WPL-0053778
...
18
Insulator, Thermostat WPL-Y0053775
...
19
Pivot-Tray WPL-53773
...
20
Spring, Tray Return WPL-Y0053765
...
21
Retainer, Shut-Off Wire WPL-Y0053754
...
22
Nut, Push-In WPL-Y0053766
...
23
Spring, Tray Restrainer WPL-Y0053761
...
24
Frame, Ice Maker WPL-Y311195
...
25
Ring, Retaining WPL-Y0053757
...
26
Bearing, Gauge Arm WPL-Y0053771
...
27
Extension, Frame WPL-Y0053803
...
28
Screw, Spring WPL-0053767
...
29
Screw, Door Closer WPL-Y0053700
...
30
Spring-Sensing Arm WPL-53777
...
31
Cam, Ice Level WPL-Y0053781
...
32
Pc Board, Thermistor WPL-0053858
...
33
Screw WPL-Y0053774
...
34
Screw WPL-Y311196
...
35
Insulator, Thermostat WPL-Y0053775
...
36
Valve,gas-Dual Input WPL-53758
...
37
Screw Clamp WPL-Y0086471
...
38
Valve, Solenoid WPL-Y0311217
...
39
Valve, Saddle WPL-311569
...
40
Panel Support Plate WPL-53628
...
41
Tube Water Inlet WPL-Y311584
...
42
Tube Water Inlet WPL-Y311583
...
43
Clamp Tube WPL-311251
...
44
Harness, Ice & Water Wiring WPL-311577
...
45
Clamp Tube WPL-Y0086478
...
46
Screw (3) WPL-67006425
...
47
Plug, Rear Panel & Coil Cover WPL-Y0053710

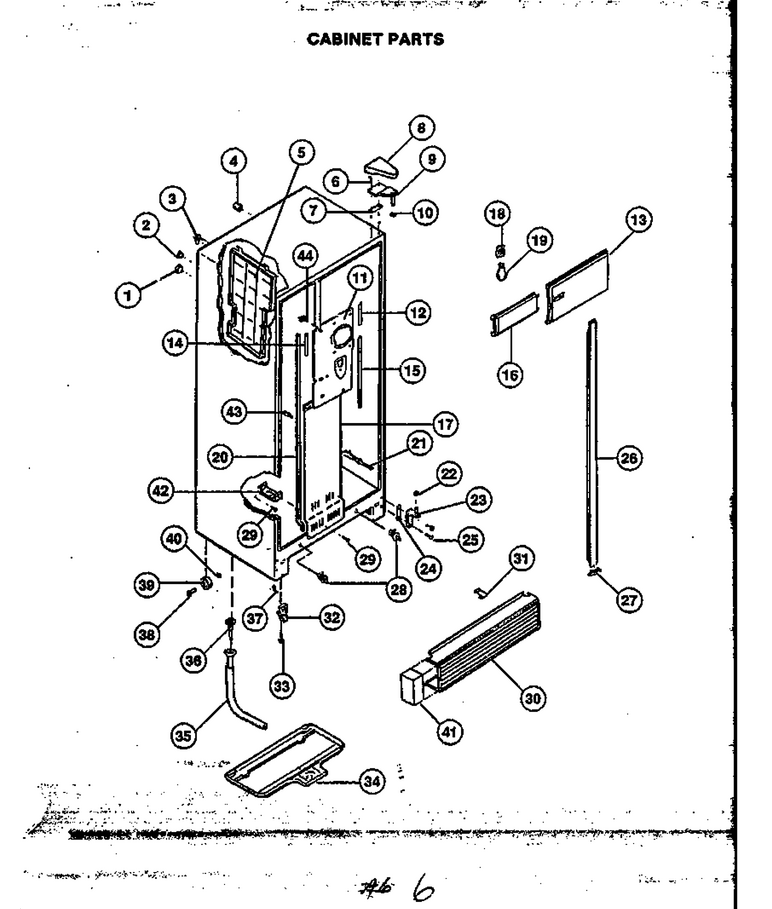

01 - Cabinet Parts

...
...
NI
Button, Plug, Liner Holes WPL-Y0086508
...
1
Ferrule, Inner WPL-Y0086567
...
2
Ferrule, Outer WPL-Y0086568
...
3
Glass Panel, Right WPL-311183
...
4
Tube In Ferrule WPL-Y0086452
...
5
Divider, Ice & Water WPL-Y0053785
...
6
Screw, S.s. (1/4 - 20 X 7/8) WPL-24001467
...
7
Shim, Upper Hinge WPL-Y0053325
...
8
Hinge Cover - White WPL-53789W
...
9
Plate-Mounting WPL-53782
...
10
Washer WPL-M0274049
...
11
Cover, Upper Coil WPL-Y0053796
...
12
Gasket, Coil Cover WPL-Y0053667
...
13
Light Shield WPL-Y0311111
...
14
Sub 311592, Gasket, Cover, Ls WPL-0311193
...
15
Gasket, Cover - Rs WPL-Y311194
...
16
Light Shield, Fz WPL-311112
...
17
Cover Lower Coil WPL-Y0053691
...
18
Socket, Light, Freezer WPL-Y0053683
...
19
Light Bulb WPL-8009
...
20
Gasket, Coil Cover WPL-Y0053667
...
21
Damper, Meat Keeper WPL-311186
...
22
Washer, Nylon WPL-0086529
...
23
Bracket, Lower Hinge, Rh WPL-0053635
...
24
Shim, Lower Hinge WPL-Y0053640
...
25
Screw, S.s. (1/4 - 20 X 7/8) WPL-24001467
...
26
Mullion - White WPL-53660W
...
27
Mullion Trim - Almond WPL-53701L
...
28
Switch Light WPL-Y0053616
...
29
Screw WPL-WP67006908
...
30
Kickplate, Grille WPL-0053787
...
31
Clip, Grille WPL-0053704
...
32
Roller, Front WPL-Y311208
...
33
Bolt, Roller Mounting WPL-Y0053613
...
34
Pan, Defrost WPL-0053713
...
35
Drain Outlet & Tube WPL-Y311588
...
36
Conductor, Heat WPL-Y0053716
...
37
Manual,install/oper WPL-53836
...
38
Pin, Roller WPL-Y0053639
...
39
Roller, Rear WPL-0053638
...
40
Clip WPL-M0118901
...
41
Cover, Hinge WPL-0053789
...
42
Manual,install/oper WPL-53624
...
43
Support, Coil Cover, Lower WPL-Y0053690
...
44
Support Coil Cover WPL-36525

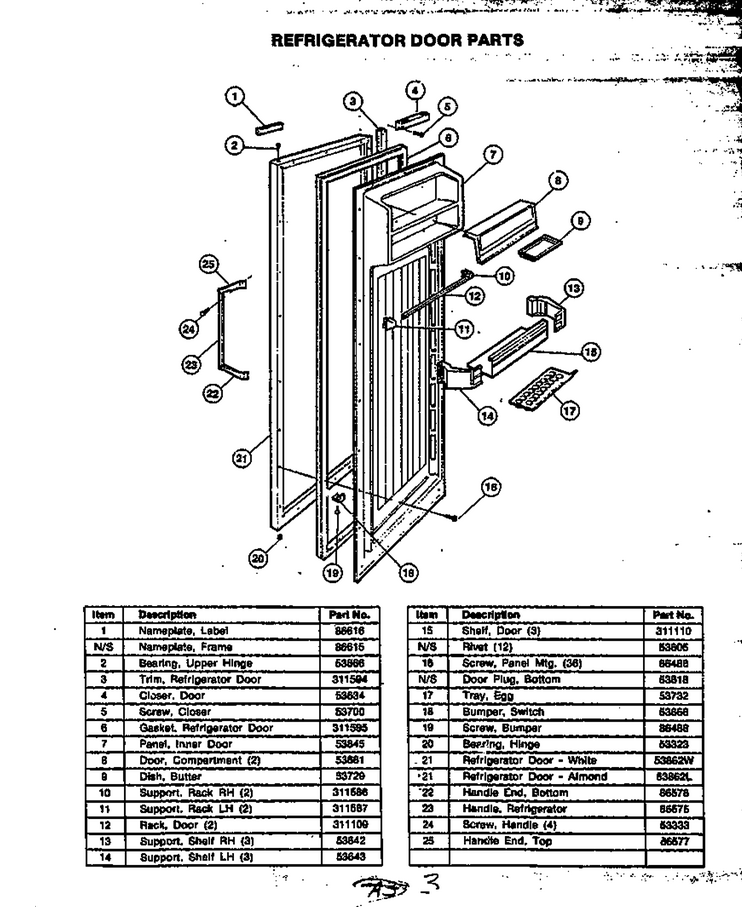

08 - Ref Door Parts

...
...
NI
Button Plug, Door Stop Mtghole WPL-Y0053618
...
1
Label, Nameplate WPL-Y0086616
...
2
Bearing, Hinge WPL-0053866
...
3
Trim, Ref Door WPL-Y311594
...
4
Closer, Door WPL-0053634
...
5
Screw, Door Closer WPL-Y0053700
...
6
Gasket, Refr. Door WPL-0311595
...
7
Interior Panel, Refrig. Door WPL-Y0053845
...
8
Code J WPL-53681
...
9
Dish, Butter WPL-Y0053729
...
10
Support, Rack, R.h. WPL-0311586
...
11
Support, Rack, L.h. WPL-0311587
...
12
Rack, Door WPL-0311109
...
13
Support, Rh WPL-0053642
...
14
Support, Lh WPL-0053643
...
15
Shelf, Door WPL-Y0311110
...
16
Screw WPL-Y0086488
...
17
Tray, Egg WPL-Y0053732
...
18
Bumper, Light Switch WPL-Y0053668
...
19
Screw WPL-Y0086488
...
20
Ring Seal WPL-Y0086464
...
21
Exterior Panel-Textured - Almo WPL-53862L
...
22
End, Handle Bottom WPL-0086578
...
23
Grip - Handle Fz WPL-86575
...
24
Screw, Handle WPL-Y0053333
...
25
Handle, End WPL-0086577
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
