Amana FS-14EVP.B (BOM: FS-14EVP. B)

Model: FS-14EVP.B (BOM: FS-14EVP. B)

Save Part Not Listed?
product name

01 - Page 7

...
...
NI
Torx Driver, T-20 (M95d23) WPL-M95D23
...
1
False Bottom WPL-M20D313
...
2
Adhesive WPL-W10841140
...
3
Speed-Clinch WPL-M2D574
...
4
Socket, Lamp WPL-M5D380
...
5
M9d107 Lamp WPL-2031415101
...
6
Sensor, Cavity WPL-R0163326
...
7
Clip WPL-M1D884
...
8
Stirrer Cover WPL-45422P01
...
9
Nut, Push WPL-Y04100035
...
10
Washer WPL-M1D565
...
11
Kit, Stirrer Blade WPL-M35D53
...
12
R F Gasket Kit WPL-M2D152
...
13
Screw WPL-WPW10001160
...
14
Wshr-Rubber WPL-32383P01
...
15
Back Panel WPL-M82D208
...
16
Cover-Connector WPL-45532P01
...
17
Connector WPL-M5D362
...
18
Strain Relief WPL-8536977
...
19
Cord Asy Fs-14evp.000 M26d43 WPL-M26D43
...
20
Screw WPL-WP90767
...
21
Kit, Blower Motor WPL-M12D81
...
22
Housing, Blower WPL-45559P01
...
23
Wheel, Blower M35d39 WPL-36300P01
...
24
No.10 T X 3/8`` Screw WPL-M1D479
...
25
Kit, Magnetron WPL-M57D37
...
26
Protector WPL-1751800025
...
27
Screw WPL-WP90767
...
28
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
29
Hv Cap .91+6%-3%mfd 2kvacx WPL-43912P03
...
30
Bracket WPL-10825501
...
31
Hv Rect 12kv 750max WPL-1330000301
...
32
Pop Rivet WPL-A4539625
...
33
Fuse, M4d87 WPL-36108P01
...
34
Screw WPL-WP90767
...
35
M65d346 Divider Air WPL-45402P01
...
36
Transition-Cav Exh Fs-10 WPL-45753P01
...
37
Shim-Hinge WPL-45540P01
...
38
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
39
Outer Door Assy. WPL-R0163257
...
40
Door Filler Kit WPL-M55D18
...
41
Outer Window Kit WPL-M70D158
...
42
Inner Door Kit WPL-M70D83
...
43
Window, Inner Door WPL-10785001
...
44
Spring, Door WPL-41205P01
...
45
Screw WPL-WP8533976
...
46
Nylon Flat Washer WPL-40370P01
...
47
Control Panel Frame WPL-M7D853
...
48
Display Window WPL-M2D742
...
49
Touch Panel Fs14evp.a WPL-M7D905
...
50
Clip WPL-5522546002
...
51
Controller WPL-M31R55
...
52
.187 Dia Pop Rivet Steel WPL-M1D349
...
53
Filter Air WPL-45412P01
...
54
Lv Xfmr Fs14 208/240v60h WPL-45506P01
...
55
Brkt WPL-M8D230
...
56
Relay WPL-36752P01
...
57
Screw WPL-WP90767
...
58
Screw (25) WPL-M1D609
...
59
Standoff WPL-M2D663
...
60
Panel, Component WPL-10791901
...
61
U-Clip WPL-M2D575
...
62
Wire Harness Kit WPL-M27D430
...
63
Wshr-Rubber WPL-32383P01

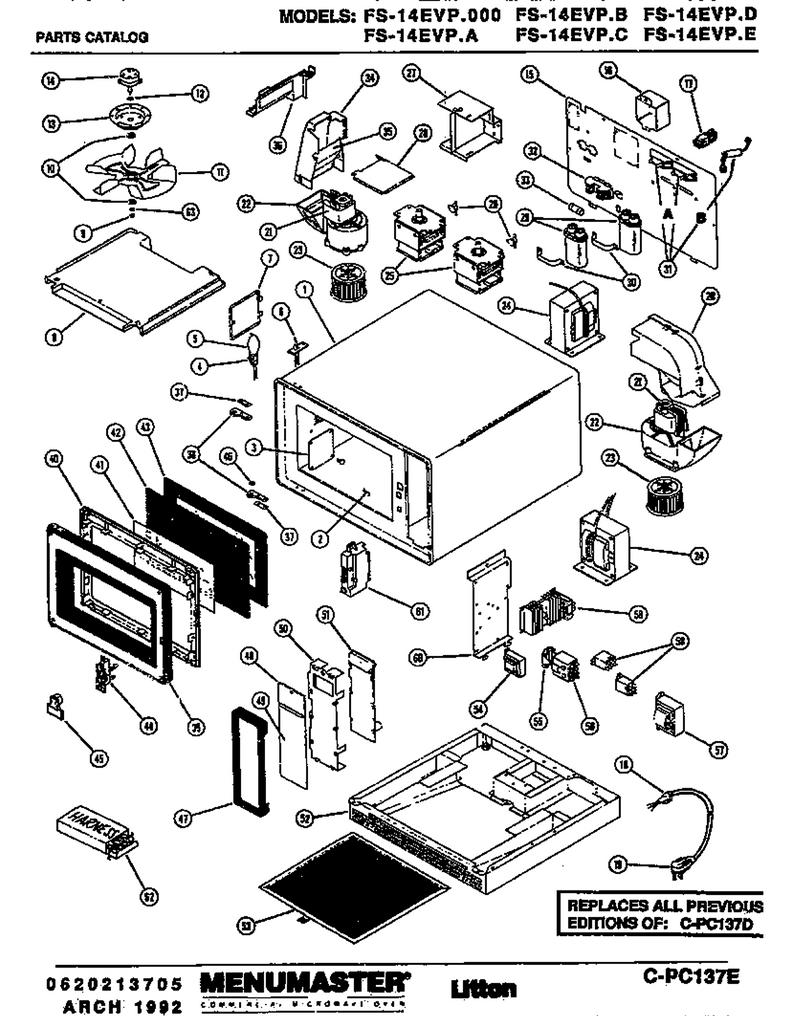

Schematic Image Zoomed
