Amana ESK37002LG (BOM: P1130966N L)

Model: ESK37002LG (BOM: P1130966N L)

Save Part Not Listed?
product name

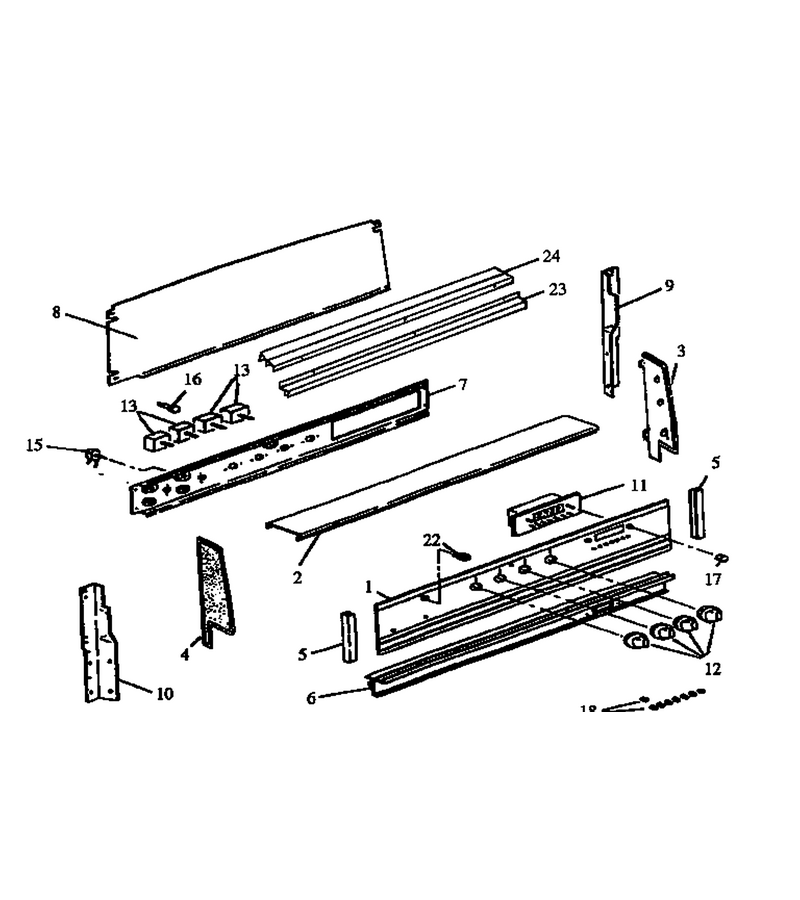

02 - Control Panel Parts

...
...
NI
Bumper, Oven Door WPL-Y0063661
...
1
Glass, Backguard WPL-0306778
...
2
Trim, Top Backguard (Blk) WPL-304955B
...
3
End Cap Backguard Rh WPL-Y0304930
...
4
End Cap Backguard Lh WPL-Y0304929
...
5
Channel Glass (Blk) WPL-0305309
...
6
Lower Trim Bkdg W/o Vent WPL-304974B
...
7
Backguard, Control Panel WPL-Y0302292
...
8
Cover, Backguard WPL-0309137
...
9
Support, Bkgd (Rh) WPL-0306590
...
10
Support, Bkgd (Lh) WPL-0306589
...
11
Erc (Electronic Clock) WPL-Y0304555
...
12
Knob Top Element WPL-0305308
...
13
Switch, Infinite WPL-0071745
...
15
Kit, Light Switch WPL-0300778
...
16
Indicator Light WPL-Y0071820
...
17
Knob, Clock (Blk) WPL-Y0305317
...
18
Knob, Set Button (Blk) WPL-Y0305310
...
22
Bezel Panel Switch WPL-0305319
...
23
Glass Retainer Backguard WPL-305034B
...
24
Bracket, Retainer WPL-0305033

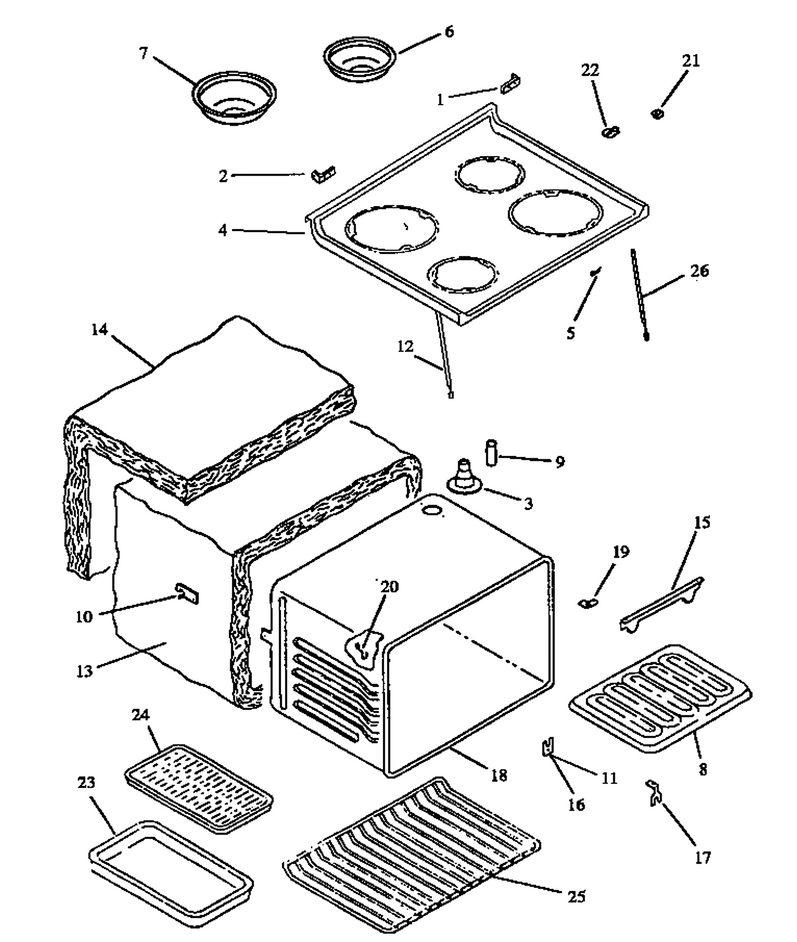

05 - Main Top And Oven Assy

...
...
NI
Rivet, Pop WPL-Y0076357
...
1
Brkt, Hinge Strap Mtg WPL-Y0306150
...
2
Brkt, Hinge Strap Mtg WPL-Y0306150
...
3
Smoke Eliminator WPL-Y0058526
...
4
Main Top-Electric Upswept WPL-306899W
...
5
Pin, Support Rod WPL-0071668
...
6
Bowl-Drip WPL-W10290353RW
...
7
Bowl-Drip WPL-W10290350RW
...
8
Reflector, Broil Element WPL-Y0315403
...
9
Tube, Vent Ext. WPL-0063336
...
10
Bracket, Oven Cavity WPL-Y0058852
...
11
Screw WPL-W11245710
...
12
Support, Maintop WPL-Y0315430
...
13
Insulation, Wrapper WPL-0300973
...
14
Insulation, Wrapper WPL-31975801
...
15
Bracket, Reflector Mounting WPL-Y0061557
...
17
Bracket, Mounting WPL-0061556
...
18
Oven Shell (El. W/lt) WPL-31821101CG
...
19
Chip Cover WPL-0300278
...
21
Cable, Clip Esm WPL-Y0091587
...
22
Wire Clamp WPL-0071203
...
23
Procelain Broiler (Pan And Grid) WPL-4396923
...
24
Procelain Broiler (Pan And Grid) WPL-4396923
...
25
Rack-Oven WPL-WP314763J
...
26
Support, Maintop WPL-Y0315430

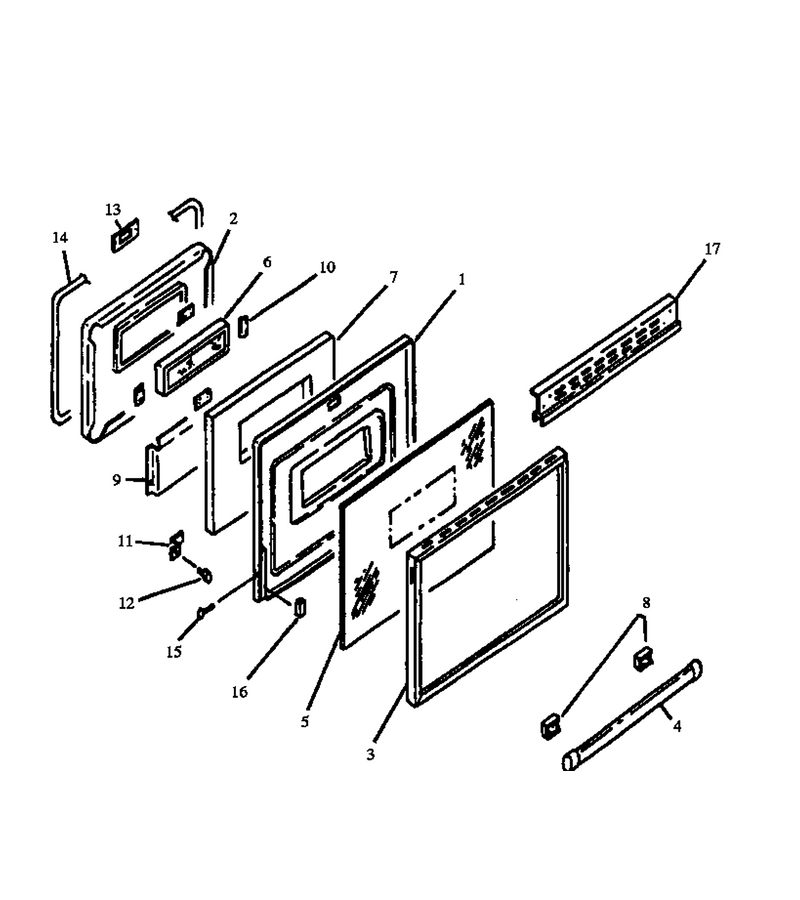

06 - Oven Door

...
...
NI
Screw WPL-W11245710
...
1
Door Backer, Electric (Cg) WPL-302723E
...
2
Pad, Ov Dr W/window WPL-314693CG
...
3
Frame, Oven Door (Almond) WPL-308071L
...
4
Handle, Door WPL-0304491
...
5
Glass Oven Dr Electric(Almond) WPL-0304469
...
6
Window Assy WPL-0304831
...
7
Insulation,door-Sub Backer WPL-0062614
...
8
Standoff, Door Handle WPL-0300980
...
9
Heat Baffle, Glass (Black) WPL-306449B
...
10
Retainer, Door Glass WPL-Y0052629
...
11
Support Bracket, Glass WPL-Y0062439
...
12
Bumper, Oven Door WPL-Y0063661
...
13
Latch Plate WPL-Y0052039
...
14
Gasket, Oven Dr 82`` WPL-Y0300432
...
15
Rivet, Pop WPL-Y0302648
...
16
Bumper, Rubber WPL-Y0060247
...
17
Kit, Dr Hndl/trim (Black) WPL-Y0300723

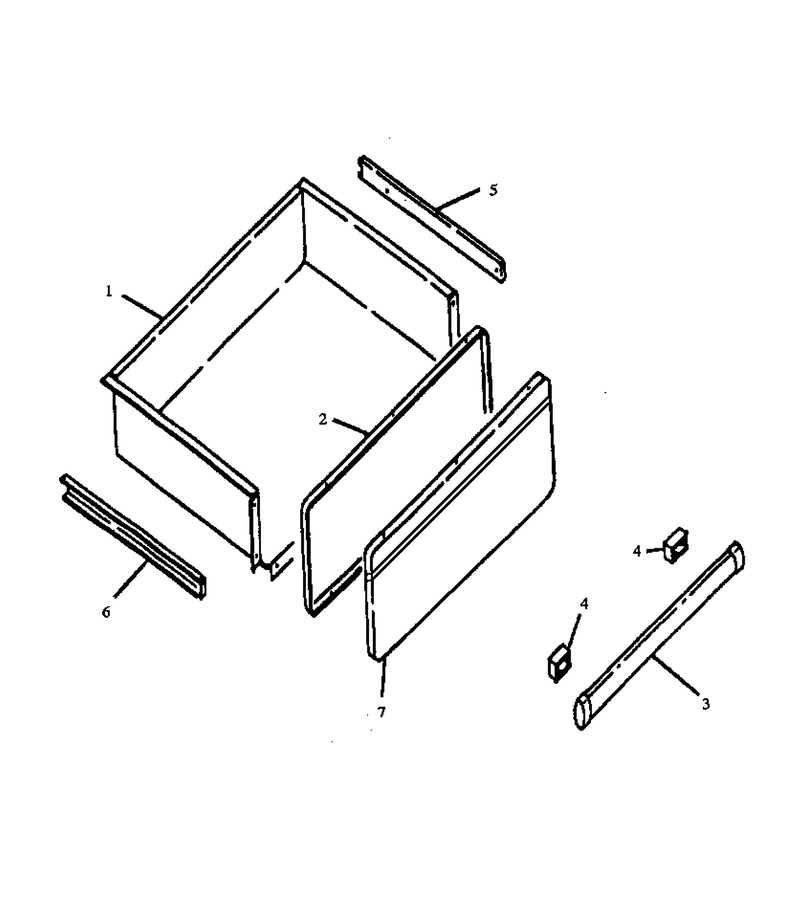

03 - Drawer Assy

...
...
NI
Rivet, Pop WPL-Y0076357
...
1
Wrapper, Stor Drawer WPL-306519W
...
2
Liner, Drawer Panel WPL-301543E
...
5
Runner Storage Dwr-Rh WPL-Y0314665
...
6
Runner, Storage Door, L.h. WPL-Y0300476
...
7
Drawer Panel Black WPL-Y063702B

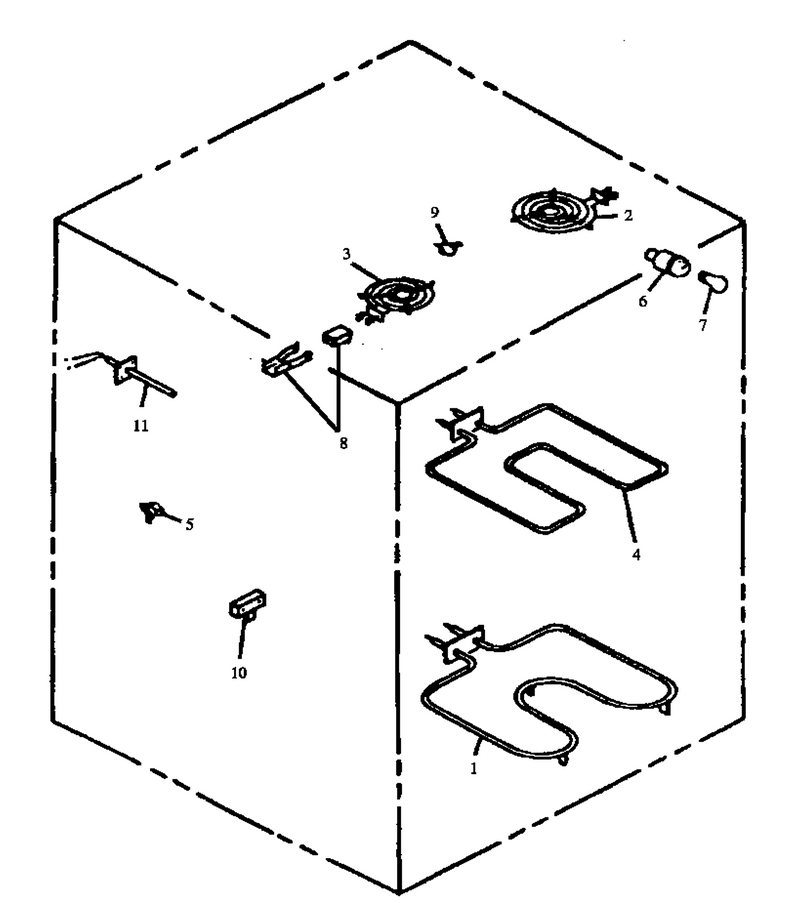

04 - Electrical Components

...
...
NI
Hex Nut No.10-32 Nickel WPL-0306381
...
1
Element- B WPL-WP77001094
...
2
Elmnt-Surf WPL-WPW10259865
...
3
Elmnt-Surf WPL-WPW10259868
...
4
Element- B WPL-WPY0061732
...
5
Switch, Hi Limit WPL-Y0053584
...
6
Light- Ove WPL-WP74011278
...
7
Light Bulb WPL-8009
...
8
Receptacle WPL-330031
...
9
Switch, Clean Circuit WPL-Y0065780
...
10
Block-Term WPL-WP8203546
...
11
Sensor, Erc WPL-Y0300769

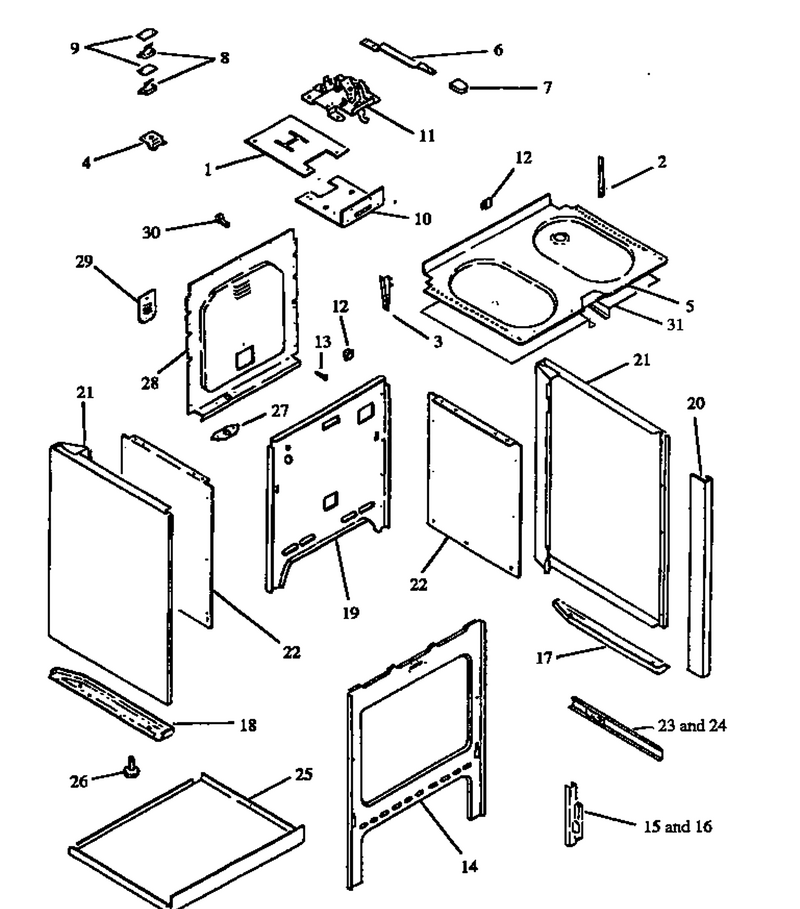

01 - Cabinet Assy

...
...
NI
Screw, Tt 23 4-40 X 5/8 WPL-Y0065664
...
1
Retainer, Oven Light WPL-Y0063353
...
2
Hinge, Strap WPL-0304502
...
3
Hinge, Strap WPL-0304502
...
4
Bracket, Switch WPL-Y0302316
...
5
Baffle, Drip (Enamel) WPL-31836001CG
...
6
Latch Arm WPL-303039B
...
7
Knob, Latch Handle (Blk) WPL-0302300
...
8
Switch, Clean Circuit WPL-Y0065780
...
9
Insulation, Esm WPL-Y0091523
...
10
Bracket, Latch Mtg. WPL-Y0058918
...
11
Latch, Ov. Door WPL-Y0059565
...
12
Cable, Clip Esm WPL-Y0091587
...
13
Screw WPL-W11245710
...
15
Hinge-Door WPL-R0706011
...
16
Kit, Door Hinge(Lh-Hs) WPL-Y0066953
...
17
Brace, Leveling Leg (Rt) WPL-31854502
...
18
Brace, Leveling Leg (Lt) WPL-31854501
...
19
Insulation Retainer Rear WPL-Y0303364
...
20
Trim, Side Panel, Lh WPL-Y0301639
...
21
Panel, Side (Alm) WPL-31825103L
...
22
Retainer, Insulation (Side) WPL-0304282
...
23
Track, Storage Dwr Lh WPL-Y0314662
...
24
Track, Storage Drawer-R.h. WPL-0300475
...
25
Retainer WPL-Y0306548
...
26
Leg, Leveling WPL-Y0307594
...
27
Plate, Main Inlet Wire WPL-0058311
...
28
Cover, Rear WPL-31757101
...
29
Plate, Access WPL-31757201
...
30
Clamp, Wire-Insulate WPL-Y0068513
