Amana DDW650WW (BOM: P1139736N W)

Model: DDW650WW (BOM: P1139736N W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

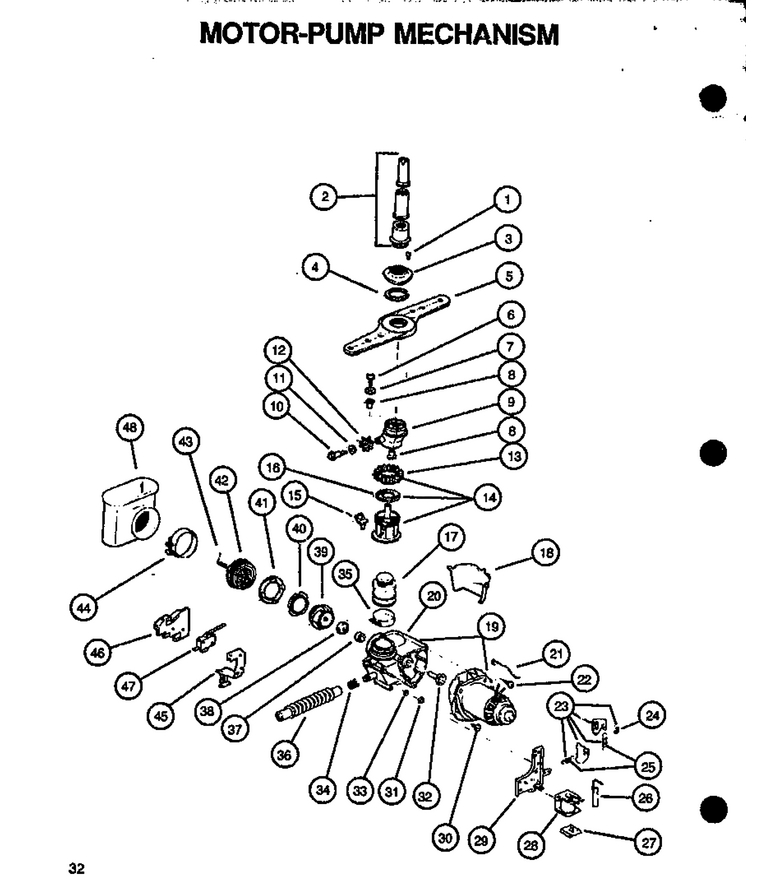

05 - Motor-Pump Mechanism

...
...
1
Screw WPL-WPW10348409
...
2
Center Spray Assy WPL-R0910017
...
3
Adapter Pwr Twr WPL-R0905558
...
4
Seal, Split Ring WPL-R0905557
...
5
Spray Arm WPL-Y03000113
...
6
Screw WPL-R0900014
...
7
Washer WPL-R0900502
...
8
Bearing WPL-R0905556
...
9
Hub/pinion Assy WPL-R0905555
...
10
Screw WPL-R0900015
...
11
Washer WPL-R0900504
...
12
Pinion Gear WPL-R0910016
...
13
Nut WPL-R0901004
...
14
Supt & Nut Arm WPL-R0901009
...
15
Check Valve WPL-R0910037
...
16
Seal Lower WPL-R0910029
...
17
Connector, Pump WPL-R0903520
...
18
Guard WPL-R0905522
...
19
Motor/pump Assy Dishwa WPL-R0907001
...
20
Motor/pump Assy Dishwa WPL-R0910001
...
21
Hanger Mech. WPL-R0905516
...
22
Screw WPL-R0900007
...
23
Gate Valve Arm Kit WPL-Y03000032
...
24
Retainer WPL-R0901503
...
25
Spring, Gate Arm WPL-R0905529
...
26
Armature & Link Assy WPL-R0905517
...
27
Insulator WPL-R0903506
...
28
Solenoid WPL-Y03000185
...
29
Bracket-Solenoid WPL-R0905639
...
30
Screw WPL-W10856125
...
31
Nut WPL-R0906510
...
32
Shaft Guard/slinger WPL-R0905564
...
33
Seal, Shaft WPL-R0906504
...
34
Clamp WPL-R0901510
...
35
Clamp WPL-WP696392
...
36
Tube Assy, Drain WPL-Y03000184
...
37
Seal WPL-R0903502
...
38
Shaft Seal WPL-R0903503
...
39
Pump Impeller WPL-R0905519
...
40
Wear Ring WPL-R0905520
...
41
Wear Ring Base WPL-R0905518
...
42
Nut WPL-R0905563
...
43
Spring, Cutter WPL-R0905521
...
44
Clamp WPL-WP696392
...
48
Inlet, Sump WPL-R0905604

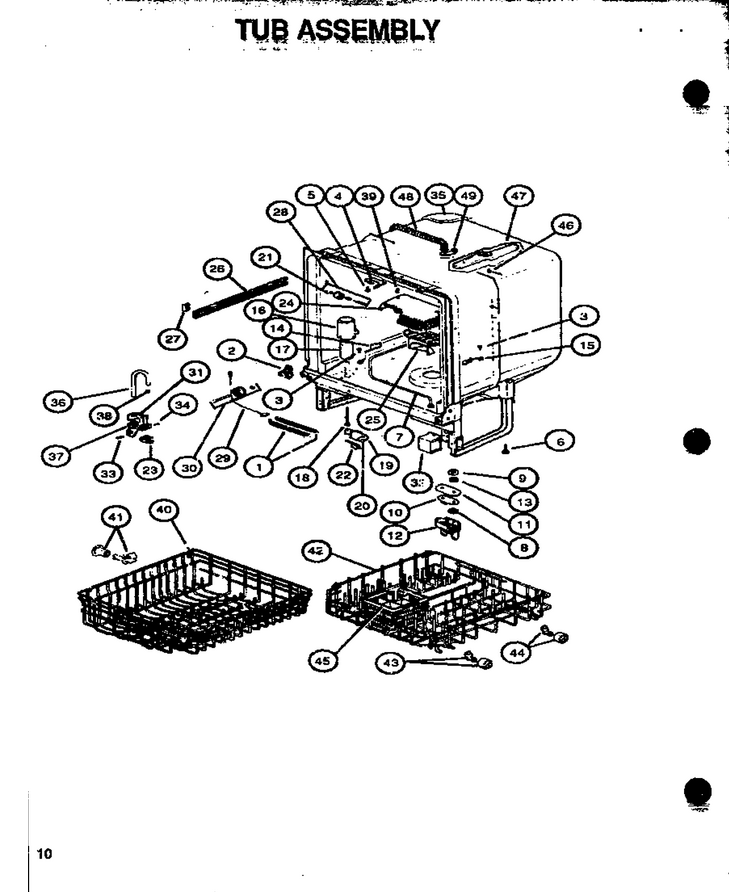

07 - Tub Assy

...
...
NI
Manual, Use & Care WPL-R0913043

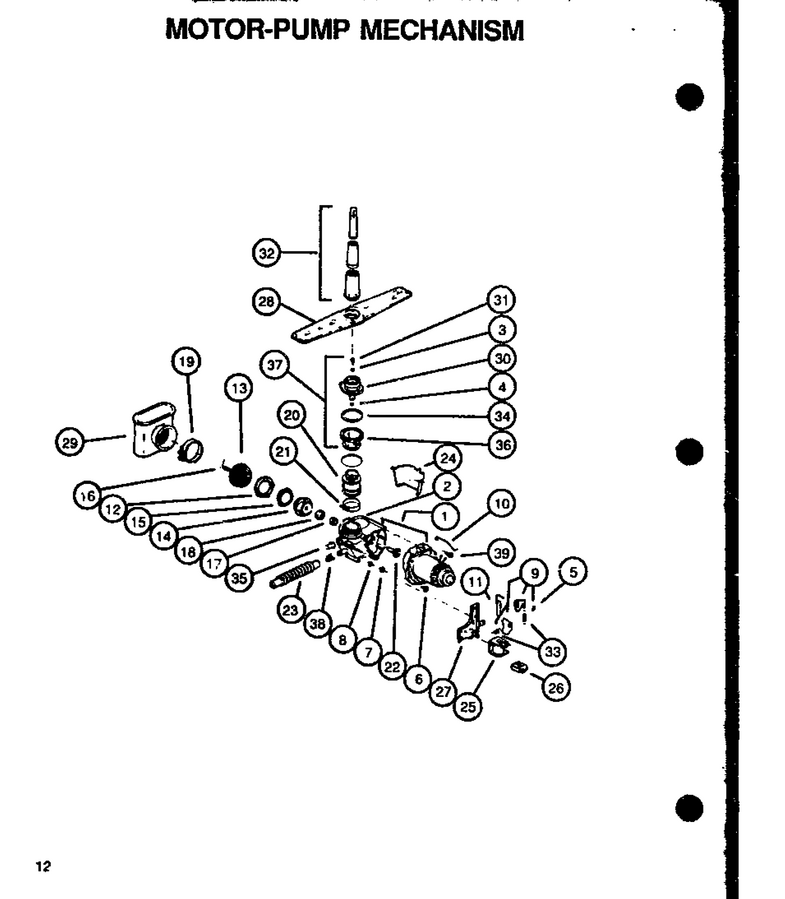

04 - Motor-Pump Mechanism

...
...
NI
Plug WPL-R0903588

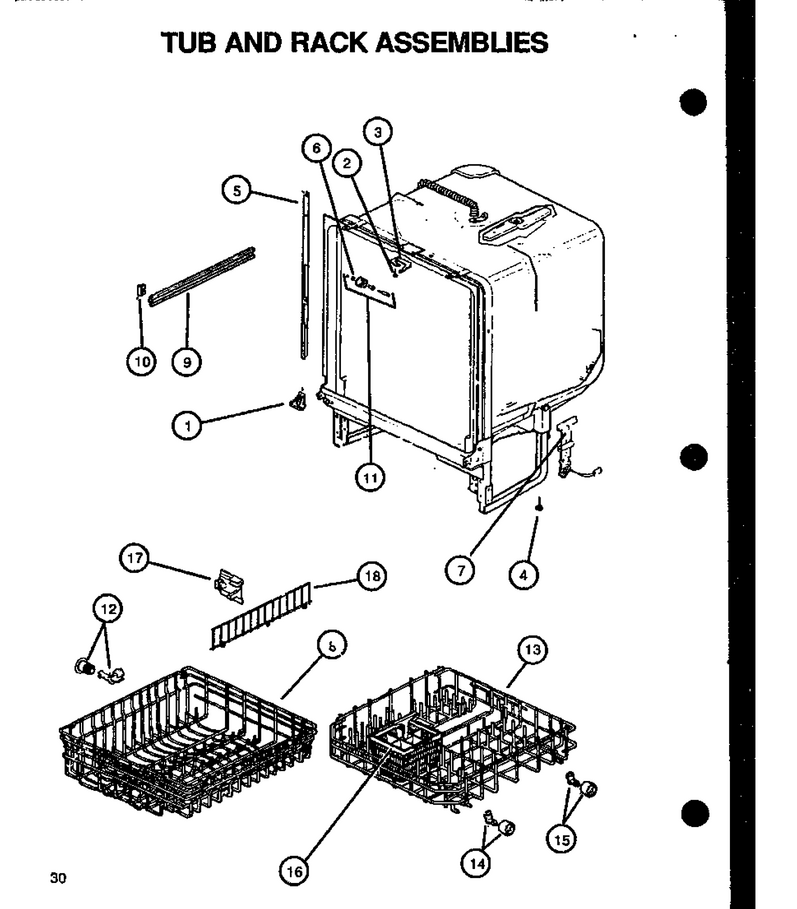

06 - Tub And Rack Assy

...
...
1
Baffle, Tube Corner Rh WPL-R0905596
...
2
Latch Keeper WPL-R0905505
...
3
Screw WPL-R0900025
...
4
Leg, Leveling WPL-R0905506
...
6
No.8 Type A Set Sst Washer WPL-R0900503
...
8
Rack-Upper Tm WPL-R0910114
...
9
Rack Slide WPL-R0905567
...
10
Endcap WPL-WPW10326683
...
11
Tub Roller & Stud Kit WPL-R0910004
...
12
Wheel WPL-W10542232
...
13
Assy Lower Rack & Roller WPL-R0910112
...
14
Lower Roller Assy WPL-R0910007
...
15
Roller WPL-W10882367
...
16
Basket,silverware WPL-R0910113
...
17
Support- Shelf Tm WPL-R0910115
...
18
Shelf- Rack Tm WPL-R0910116

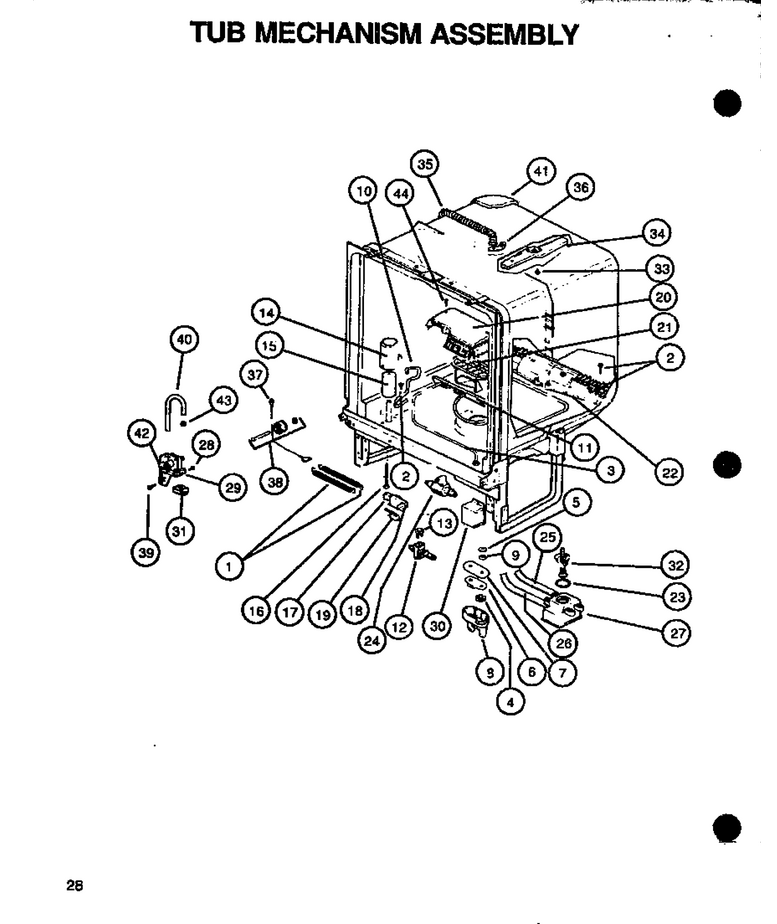

08 - Tub Mechanism Assy

...
...
1
Door Spring - Orange WPL-R0905638
...
2
Screw WPL-WPW10348409
...
3
Heater WPL-R0906001
...
4
Nut WPL-R0901001
...
5
Washer WPL-R0900501
...
6
Barrier Brkt WPL-R0905507
...
7
Insulation WPL-R0906501
...
8
Barrier WPL-R0905508
...
9
Grommet WPL-R0906502
...
10
Support, Heater Front WPL-R0905632
...
11
Support Heater Rear WPL-R0905633
...
14
Float, Dome WPL-R0913227
...
15
Flood Float WPL-R0903501
...
16
Float Stem WPL-R0905512
...
17
Brkt, Flood Switch WPL-R0905513
...
18
Cover Switch Brkt WPL-R0905514
...
19
Switch Flood WPL-R0902501
...
20
Cover Inlet Sump WPL-R0905527
...
21
Cap, Sump WPL-Y03000213
...
22
Frame Assy WPL-R0910052
...
23
Gasket WPL-R0904503
...
24
Check Valve WPL-R0910053
...
25
Hose WPL-Y03000084
...
26
Hose, Chamber WPL-R0906506
...
27
Coll. Chamber WPL-Y03000055
...
28
Screw WPL-R0900011
...
29
Valve, Water Inlet (W/solenoid WPL-R0910033
...
30
Cover, Jct. Box WPL-R0905553
...
31
Insulator WPL-R0903507
...
32
Piston & Nut Assy WPL-Y03000222
...
33
Screw WPL-R0900013
...
34
Assy, Pwr Shower WPL-R0905554
...
35
Hose, Shower Assy WPL-R0903527
...
36
Nut WPL-R0901003
...
37
Cable And Eyelet WPL-R0905640
...
38
Roller & Stud Kit WPL-R0910013
...
39
Scr 10-24x3/8 Tt Hex WPL-R0900012
...
40
Hose, Water Inlet WPL-R0903514
...
41
Insulation WPL-R0904508
...
42
Solenoid Assembly, Water Valve WPL-R0909002
...
43
Clamp WPL-R0901510
...
44
Screw WPL-R0900008

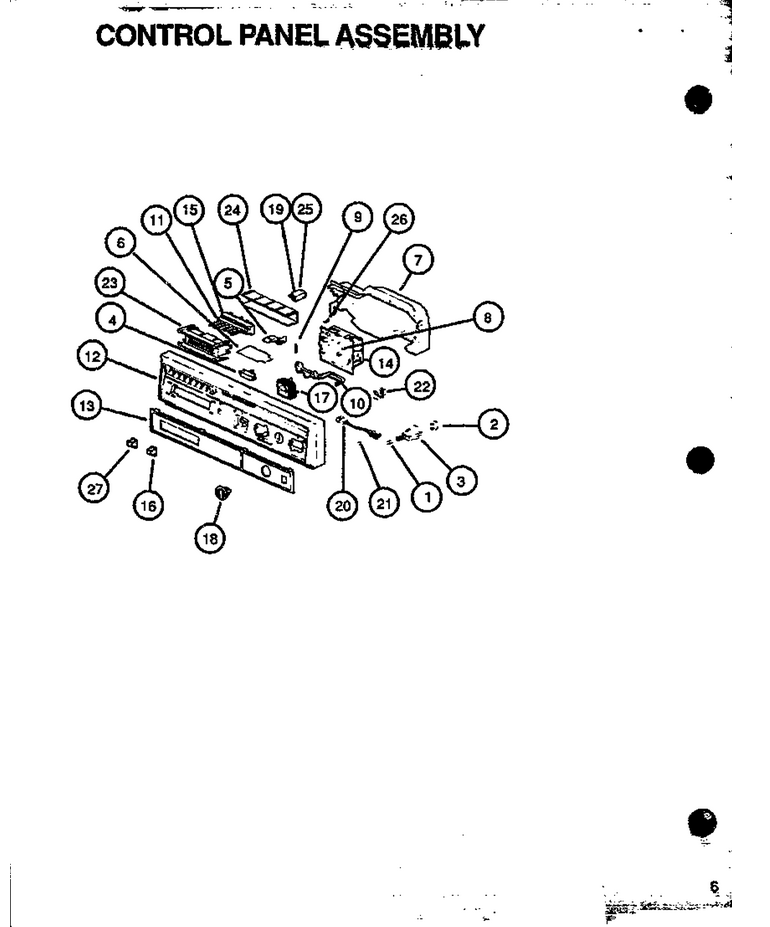

01 - Control Panel Assy

...
...
NI
Manual, Use & Care WPL-R0913043

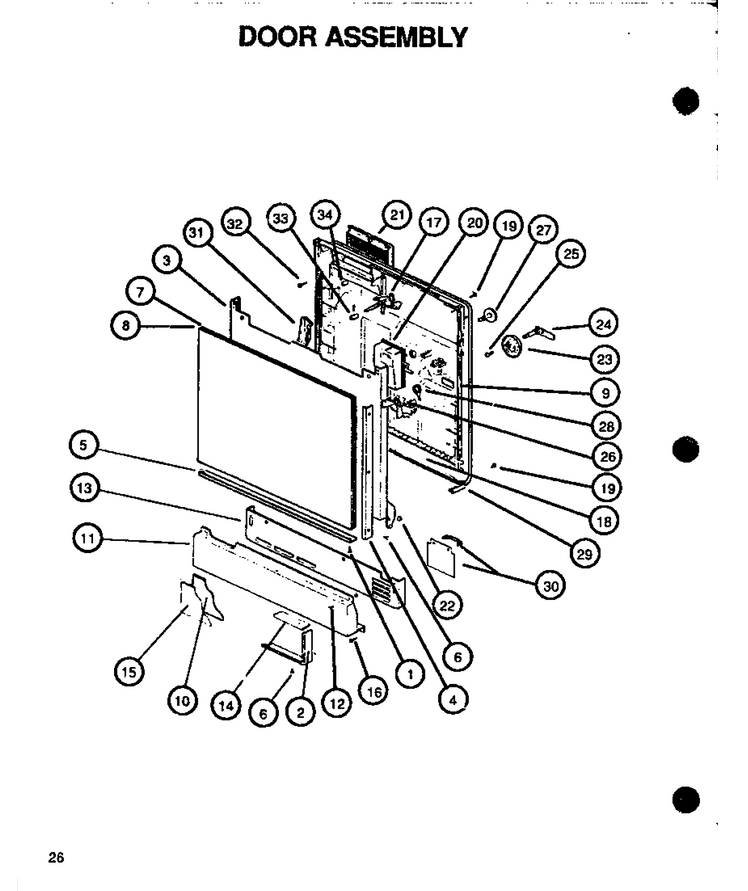

03 - Door Assy

...
...
1
Screw WPL-W10856125
...
2
Trim, Side And Bottom WPL-R0905610
...
3
Door & Hinge Assy, Outer WPL-R0905637
...
4
Trim Side Door WPL-R0905636
...
5
Trim-Door Bottom WPL-R0905705
...
6
Screw WPL-R0900042
...
7
Insulator WPL-R0906002
...
8
Insert, Door Panel WPL-R0905620
...
9
Deflecter WPL-R0905523
...
10
Insulator, Insert Panel WPL-R0910036
...
11
Panel, Access WPL-Y03000189
...
12
Screw WPL-R0900017
...
13
Toe Kick Assy WPL-R0903022
...
14
Trim,access Top Wide {bl WPL-R0905706
...
15
Insert, Svc Panel WPL-R0905602
...
16
Screw, Handle WPL-61002031
...
17
Latch, Assembly WPL-Y03000191
...
18
Door, Inner WPL-R0903021
...
19
Screw WPL-R0900006
...
20
Injector, Rinse WPL-Y03000002
...
21
Door Vent WPL-R0905536
...
22
Hinge Arm Bearing WPL-R0905537
...
23
Detergent Cup Cover WPL-R0910010
...
24
Shaft Hand D Cup WPL-R0905615
...
25
Screw WPL-R0900007
...
26
Latch Detergent Cup WPL-R0905539
...
27
Cap, Fill WPL-Y03000003
...
28
Trip Spring WPL-R0905542
...
29
Door Gasket WPL-R0904507
...
30
Drip Shield WPL-R0910011
...
32
Screw WPL-R0900009
...
33
Knob- Latch Handle WPL-R0903573
...
34
Screw WPL-WP74004005

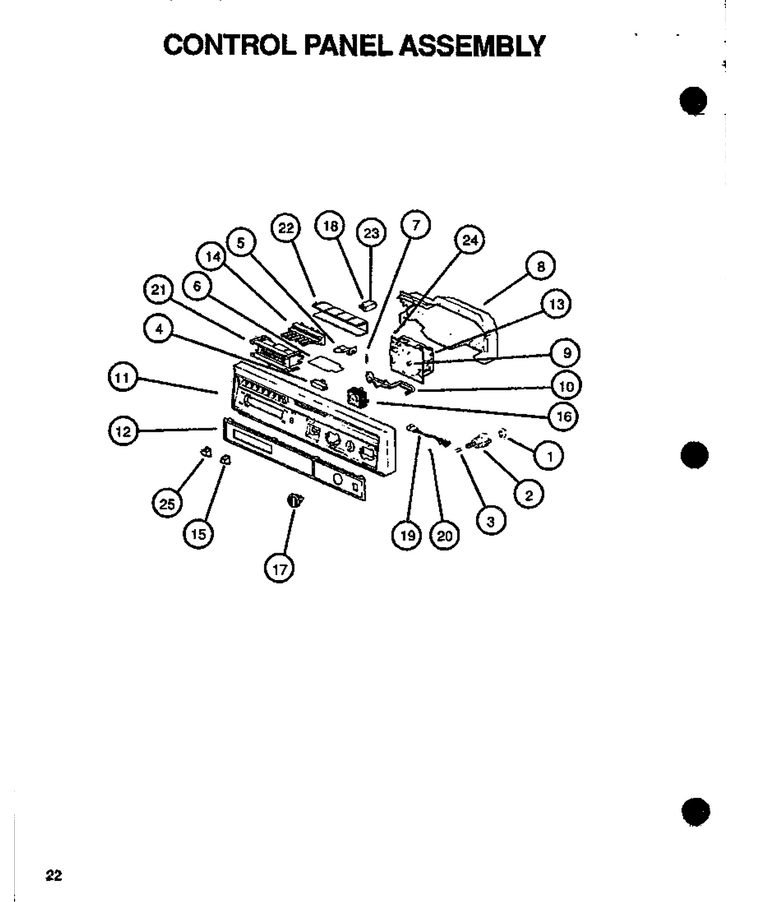

02 - Control Panel Assy

...
...
1
Thermostat, Water WPL-R0911001
...
2
Retainer WPL-R0901502
...
3
Spring WPL-R0901501
...
4
Switch, Interlock WPL-R0902506
...
5
Switch Leaf WPL-R0905533
...
6
Shield, Switch WPL-R0905534
...
7
Spring, Timer Lever WPL-R0905541
...
8
Cover Electric WPL-R0905641
...
9
Cam-Timer WPL-R0904009
...
10
Lever, Timer WPL-R0905545
...
11
Escutcheon WPL-R0903030
...
12
Insert- Escutcheon WPL-R0905708
...
13
Timer WPL-R0904012
...
14
Switch-Push Button WPL-R0902521
...
15
Push Button WPL-R0903574
...
16
Switch, Cycle WPL-R0902507
...
17
Assy Timer Knob WPL-R0903576
...
18
Housing Terminal WPL-R0910049
...
19
Assy Pilot Light WPL-R0912003
...
20
Lens WPL-R0910061
...
21
Retainer WPL-R0905592
...
22
Cover WPL-R0905593
...
23
Terminal WPL-Y03000076
...
24
Screw WPL-R0900009
