Amana C19F-A (BOM: P6024005W A)

Model: C19F-A (BOM: P6024005W A)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

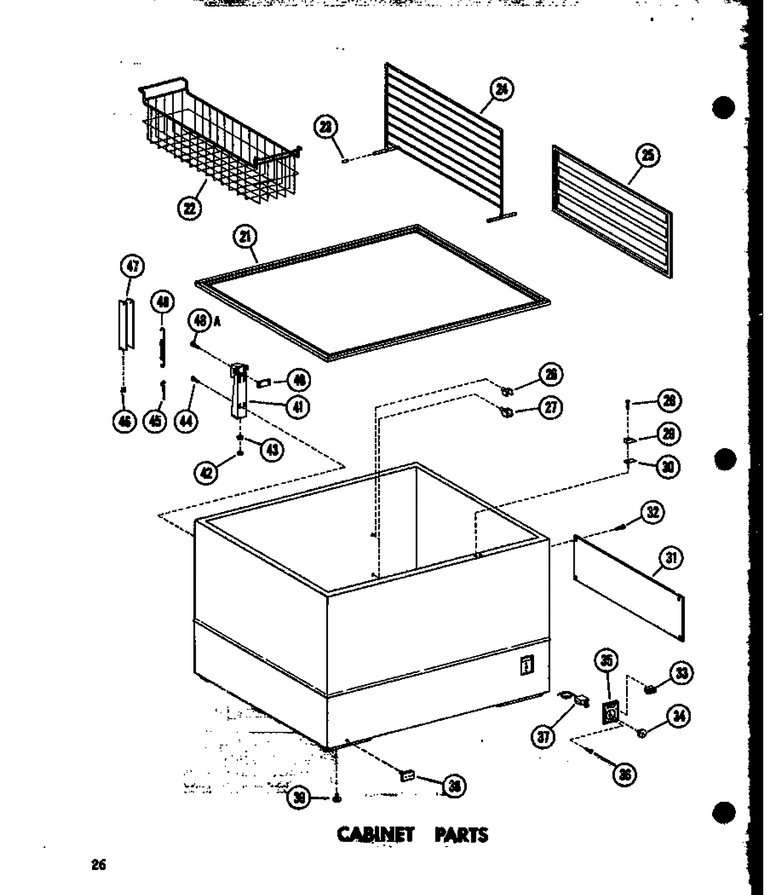

01 - Cabinet Parts

...
...
C11f-C/p60240-2wc These Models Are Built With Dandoss Compressor And Related Parts. WPL-NOTE:
...
NI
Clip WPL-M0114401
...
21
Collar-Breaker WPL-B5690803
...
22
Basket WPL-D3946601
...
23
Bumper WPL-A1781101
...
24
Divider (Optional) WPL-4356477
...
25
Divider WPL-D7039601
...
26
Support WPL-B0585101
...
27
Support WPL-B0585801
...
28
Screw WPL-M0228732
...
29
Strike Lock WPL-B0570101
...
30
Shim WPL-A3063204
...
31
Panel M.c WPL-C3580804
...
32
Screw, No.8-32 X1/2 Nyl Hex Hd WPL-31750417
...
33
Light, Signal WPL-R9800548
...
34
Knob K WPL-C3581901
...
35
Escutcheon WPL-C3582001
...
36
Screw WPL-WPW10068250
...
37
Control, Temperature WPL-C3628403
...
38
Plug WPL-B0564701
...
39
Glider Bolt WPL-M0266510
...
40
Shim WPL-A0383301
...
41
Hinge Assy-Gold WPL-C3582305
...
42
Nut WPL-M0281007
...
43
Washer WPL-M0270513
...
44
Screw WPL-M0246033
...
45
Screw WPL-M0200108
...
46
Spacer WPL-M0114501
...
47
Hinge Cover W WPL-B0583411
...
48
Screw WPL-M0246033

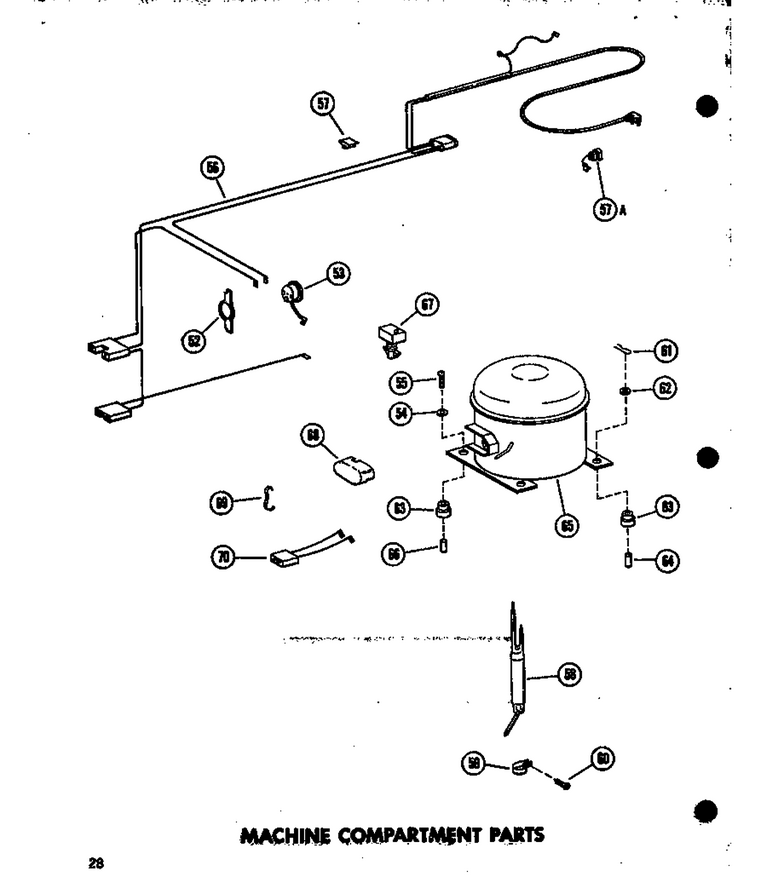

03 - Machine Compartment Parts

...
...
C11f-A/p60240-2wa These Models Are Built With Danfoss Compressor And Related Parts. WPL-NOTE:
...
52
Spring K WPL-A3043601
...
53
Overload WPL-C3533701
...
56
Wiring Harness WPL-D7105001
...
57
Clip WPL-M0110502
...
58
Drier WPL-WPB2150504
...
59
Clamp WPL-M0102315
...
60
Screw WPL-WP98165
...
61
Clip K WPL-A3140801
...
62
Washer,fibre WPL-M0274008
...
63
Grommet K WPL-A3026101
...
64
Sleeve K WPL-A3072001
...
65
Compressor-Ae1410a-1/4 WPL-D3871901
...
67
Relay WPL-C3553401
...
68
Terminal Cover WPL-B0551801
...
69
Strap K WPL-A3041801

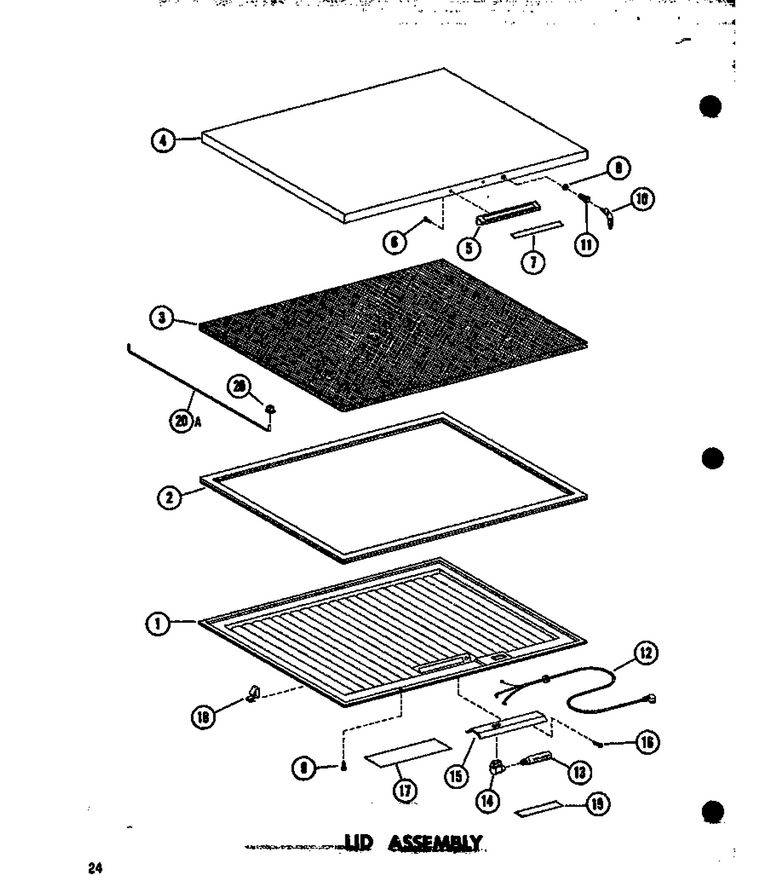

02 - Lid Assy

...
...
C11f/p60240-2w These Models Are Built With Danfoss Compressor And Related Parts. WPL-NOTE:
...
1
Inner Lid Panel WPL-D3945605
...
2
Gasket, Lid WPL-B0585702
...
3
Insulation Sheet WPL-B0523814
...
4
Lid Wld-Copper-C19 WPL-D7164710
...
5
Handle WPL-D7134802
...
6
Screw-Handle WPL-M0225244
...
7
Thinplate-Handle WPL-B5676601
...
8
Washer-Plastic WPL-M0274033
...
10
Key K WPL-A3199101
...
11
Lock Assy Kit WPL-C3682602
...
12
Wiring Harness WPL-B5646701
...
13
Bulb-Light WPL-WPA3073101
...
14
Socket & Switch WPL-B0585402
...
15
Housing, Light WPL-C3581402
...
16
Screw WPL-M0211530
...
17
Lite Shield WPL-A3074101
...
18
Clip WPL-M0112201
...
19
Nameplate WPL-B0586501
...
20
Tie Rod WPL-A3085101
