Amana ART6110W (BOM: P1143416N W)

Model: ART6110W (BOM: P1143416N W)

Save Part Not Listed?
product name

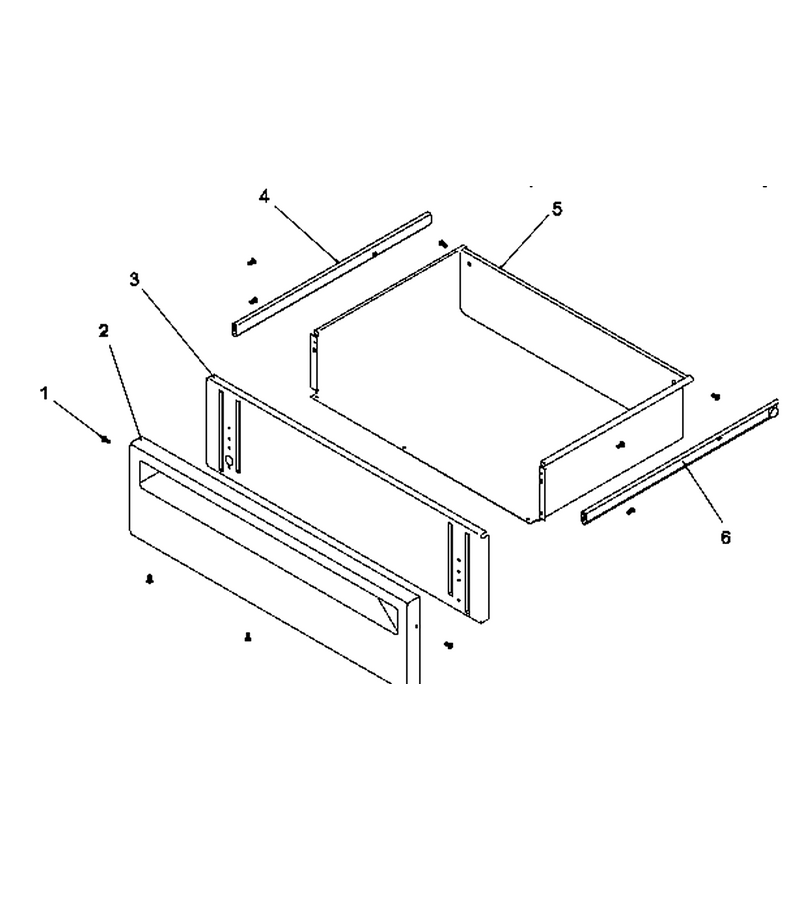

06 - Storage Drawer

...
...
NI
Rivet, Pop WPL-Y0076357
...
1
Screw WPL-W11245710
...
2
Panel, Drawer (Wht) WPL-309177W
...
3
Liner, Drawer Panel (Blk) WPL-31930601B
...
4
Runner Storage Dwr-Lh WPL-0314664
...
5
Drawer, Storage (Wht) WPL-32059403W
...
6
Runner Storage Dwr-Rh WPL-Y0314665

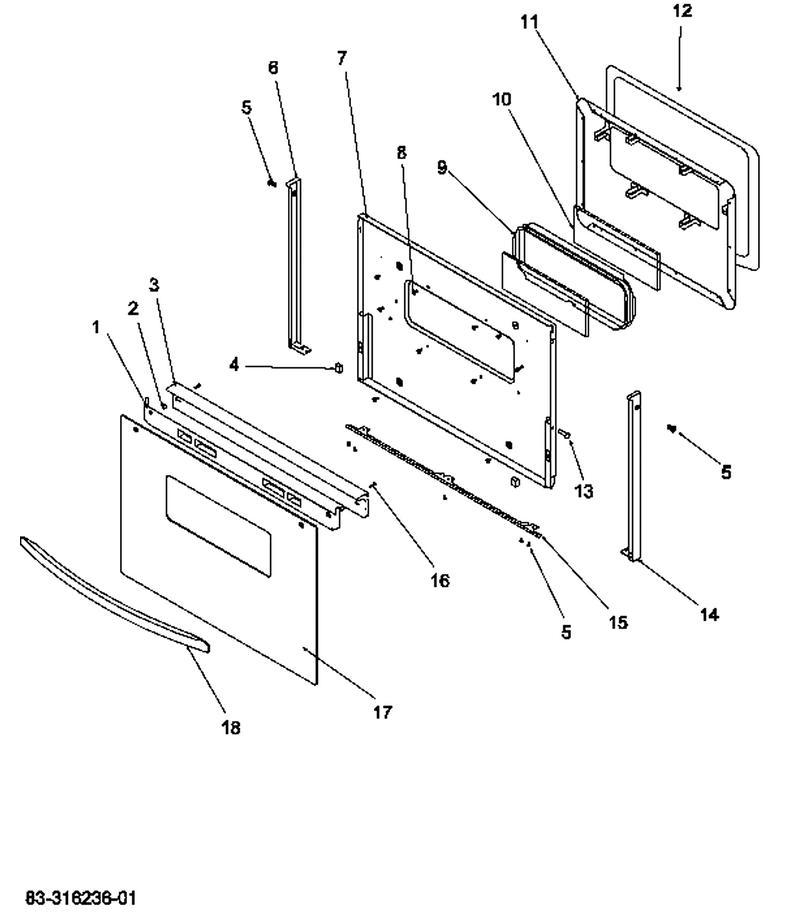

05 - Oven Door

...
...
NI
Insulation,door-Sub Backer WPL-0062614
...
1
Assy, Glass Heat Shield WPL-316981B
...
2
Bushing, Handle (Nal) WPL-Y0309461
...
3
Trim, Door Top (Blk) WPL-32054201B
...
4
Bumper, Rubber WPL-Y0309627
...
5
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
6
End Cap, Lt (Blk) WPL-309458B
...
7
Backer, Oven Door (Sm Window) WPL-316978CG
...
8
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
9
Frame, Window Pack WPL-0316228
...
10
Glass, Dbl Coated WPL-0316226
...
11
Pad, Door (Enameled) WPL-316976CG
...
12
Gasket, Oven Door (67``) WPL-31715902
...
13
Rivet, Pop WPL-Y0302648
...
14
End Cap, Rt (Blk) WPL-309457B
...
15
Asy- Door WPL-12002810
...
16
Screw, 10-32 X 1.250`` Pan Hd WPL-31750525
...
17
Glass, Oven Door WPL-315943B
...
18
Handle, Oven Door (Blk) WPL-77001118

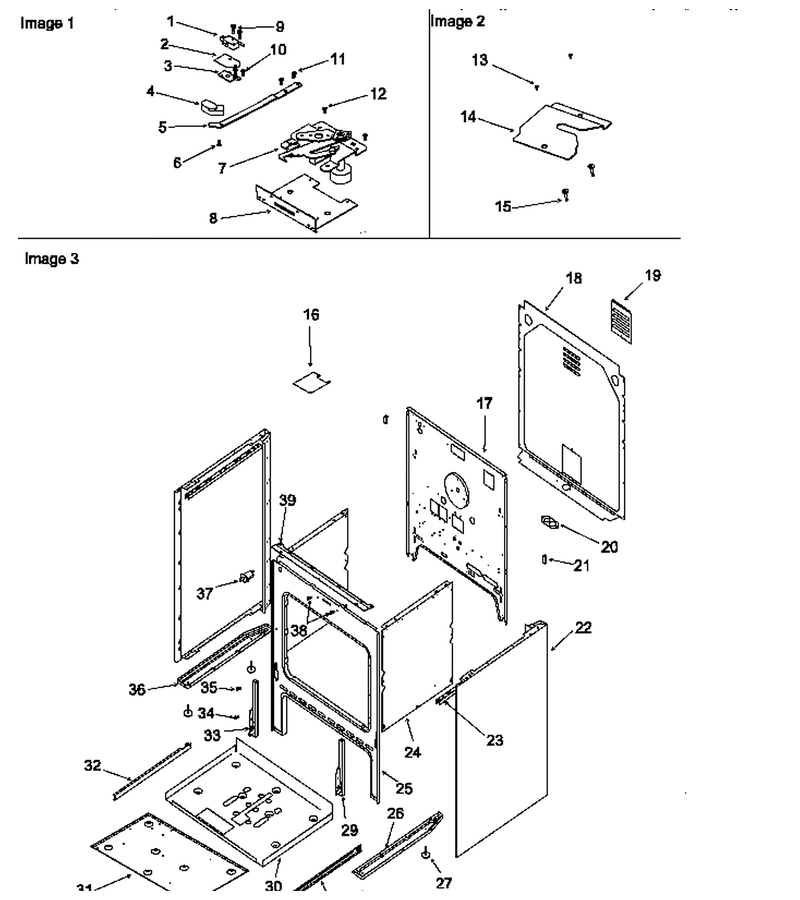

02 - Cabinet

...
...
NI
Screw WPL-W11245710
...
1
Switch, Clean Circuit WPL-Y0065780
...
2
Insulation, Esm WPL-Y0091523
...
3
Bracket, Switch WPL-Y0302316
...
4
Knob, Latch Handle (Blk) WPL-0302300
...
5
Latch Arm WPL-303039B
...
7
Latch, Oven Door (Elec) WPL-31719901
...
8
Bracket, Latch Mounting WPL-31848301
...
9
Screw, Tt 23 4-40 X 5/8 WPL-Y0065664
...
10
Screw 4-40x1 WPL-Y0092365
...
11
Screw Latch Arm Mounting WPL-Y0078780
...
12
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
13
Screw Cabinet Trim WPL-Y0041813
...
14
Bracket, Anti Tip WPL-31945201
...
15
Anchor, Plastic WPL-Y0301555
...
16
Retainer, Oven Light WPL-Y0063353
...
17
Retainer, Rear (Elec) WPL-31733901
...
18
Cover, Rear WPL-31757101
...
19
Plate, Access WPL-31757201
...
20
Plate, Main Inlet Wire WPL-0058311
...
22
Panel, Side (Wht) WPL-31825104W
...
23
Channel, Broil Burner WPL-Y0304019
...
25
See Note Front Frame,tall-S/c W/light(Not Field Replaceable) WPL-Y00000000
...
26
Brace, Leveling Leg (Rt) WPL-31854502
...
27
Leg,leveling Xxx WPL-314187B
...
28
Track, Storage Dwr Rh WPL-0314663
...
29
Hinge-Door WPL-R0706011
...
30
Retainer, Insulation (Bottom) WPL-Y0309061
...
32
Track, Storage Dwr Lh WPL-Y0314662
...
33
Hinge, Oven Door (Lt) WPL-31715201
...
34
Screw WPL-WP4159193
...
35
Screw WPL-WP7101P126-60
...
36
Brace, Leveling Leg (Lt) WPL-31854501
...
37
Switch, Oven Light WPL-866294
...
38
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
39
Brkt- Main WPL-314891B

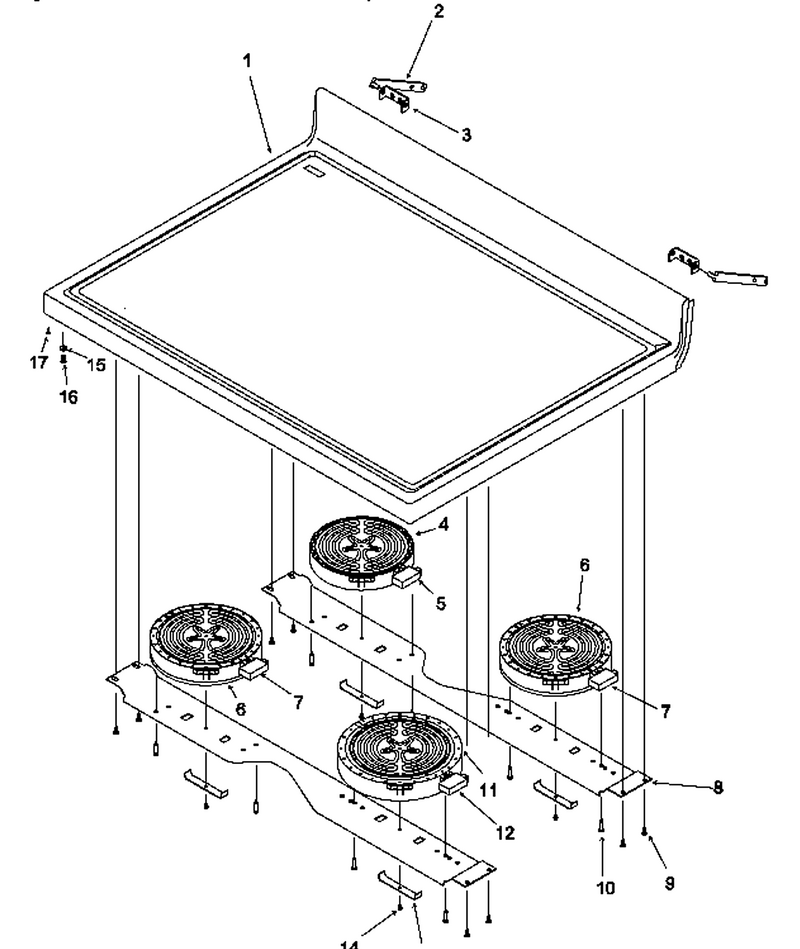

04 - Main Top

...
...
NI
Harness, Wire (Radiant Elem Lh WPL-Y0316502
...
1
Assy, Top & Glass (Art6110 Wht WPL-31721305W
...
2
Pin, Hinge WPL-Y0315931
...
3
Brkt, Hinge Strap Mtg WPL-Y0306150
...
4
Elmnt-Surf WPL-WP32082801
...
5
Limiter WPL-0316690
...
6
Elmnt-Surf WPL-W10823699
...
7
Limiter (1500 Watts) WPL-0316687
...
8
Brkt, Element WPL-Y0316248
...
9
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
10
Screw, Shoulder WPL-Y0316569
...
11
Elmnt-Surf WPL-W10823710
...
12
Limiter WPL-0316692
...
13
Spring, Element WPL-Y0306683
...
14
Screw WPL-W11245710
...
17
Spacer, Snap-In WPL-31717001

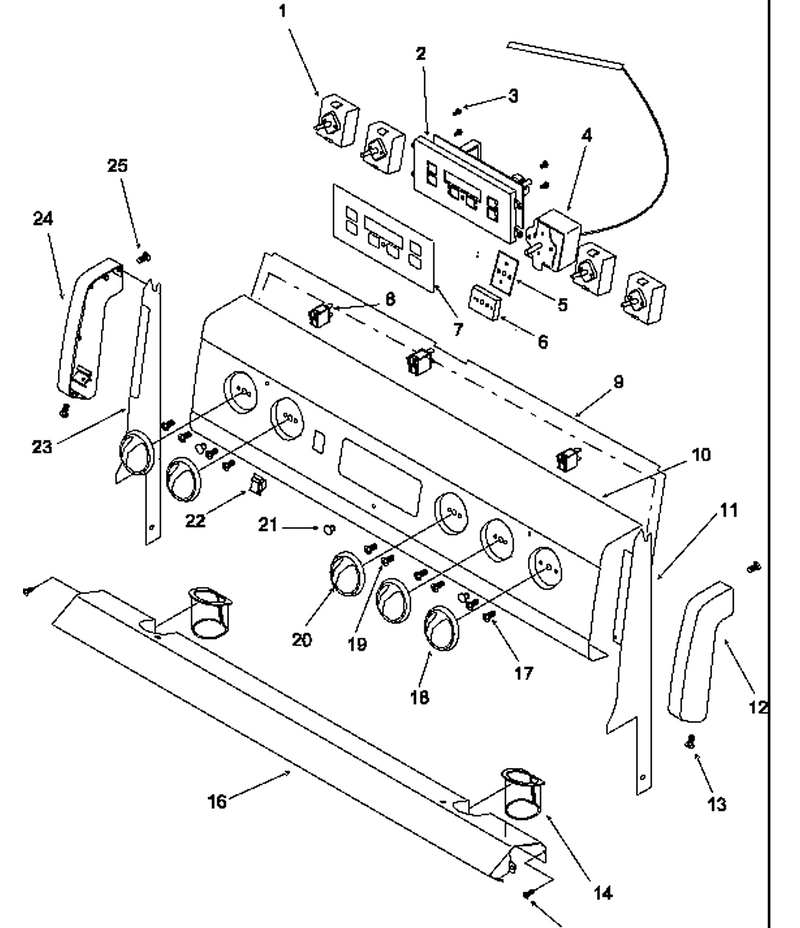

01 - Backguard

...
...
NI
Screw No.8-18x.375 Ab WPL-0041801
...
1
Switch- In WPL-WP74011243
...
2
Clean Clock, Timer/order B,l,o WPL-Y0315568
...
4
T Stat Sel WPL-R0161098
...
5
Plate, Adaptor WPL-Y0315967
...
6
Switch, Auxilliary WPL-Y0316886
...
7
Clock And WPL-12002795
...
8
Light-Ind WPL-WP903115
...
9
Cover, Upper Rear WPL-0315887
...
10
Sc Backguard Pnl,elec WPL-316588B
...
11
Bkgd. Support-Rh WPL-315876B
...
12
End Cap WPL-WP315841B
...
13
Screw No.8 - 18 X .250 WPL-Y0061164
...
14
Bushing, Wire WPL-0316548
...
15
Screw WPL-74009538
...
16
Shield, Bkgd Trim Heat WPL-315874B
...
17
Screw, No.8-32 X 3/16`` WPL-Y0316546
...
18
Knob, Infinite Sw (Black) WPL-315845B
...
19
Screw, No.8-32 X 3/4`` WPL-Y0316266
...
20
Knob, Thermostat (Blk) WPL-315968B
...
21
Lens, Indicator WPL-Y0316265
...
22
Switch, Rocker WPL-Y0063997
...
23
Bkgd. Support-Lh WPL-315877B
...
24
End Cap WPL-WP315843B
...
25
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016

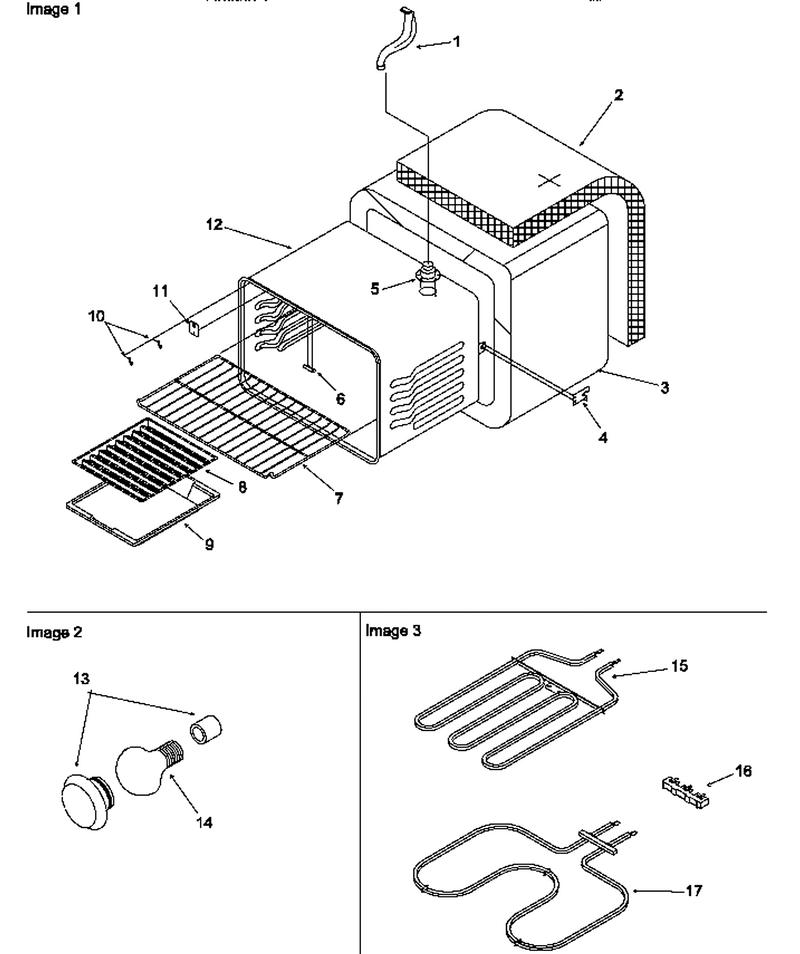

03 - Cavity

...
...
NI
Block-Term WPL-WPW10245259
...
1
Tube, Vent WPL-Y0316995
...
2
Insulation, Wrapper WPL-31975801
...
3
Insulation, Wrapper WPL-31975801
...
4
Bracket, Oven Cavity WPL-Y0058852
...
5
Smoke Eliminator, Short WPL-Y0316952
...
6
Cover, Chip WPL-Y0315022
...
7
Rack-Oven WPL-WP314763J
...
8
Procelain Broiler (Pan And Grid) WPL-4396923
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Clip, Thermo Capillary WPL-Y0067053
...
11
Capillary Hole Cover WPL-Y0063351
...
12
Oven Shell (El. W/lt) WPL-316953CG
...
13
Light- Ove WPL-WP74011278
...
14
Light Bulb WPL-8009
...
15
Broil Elem WPL-WPY0063532
...
16
Block-Term WPL-WP8203546
...
17
Element- B WPL-WP77001094
