Amana AOGD2750WW (BOM: P1132529NWW)

Model: AOGD2750WW (BOM: P1132529NWW)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

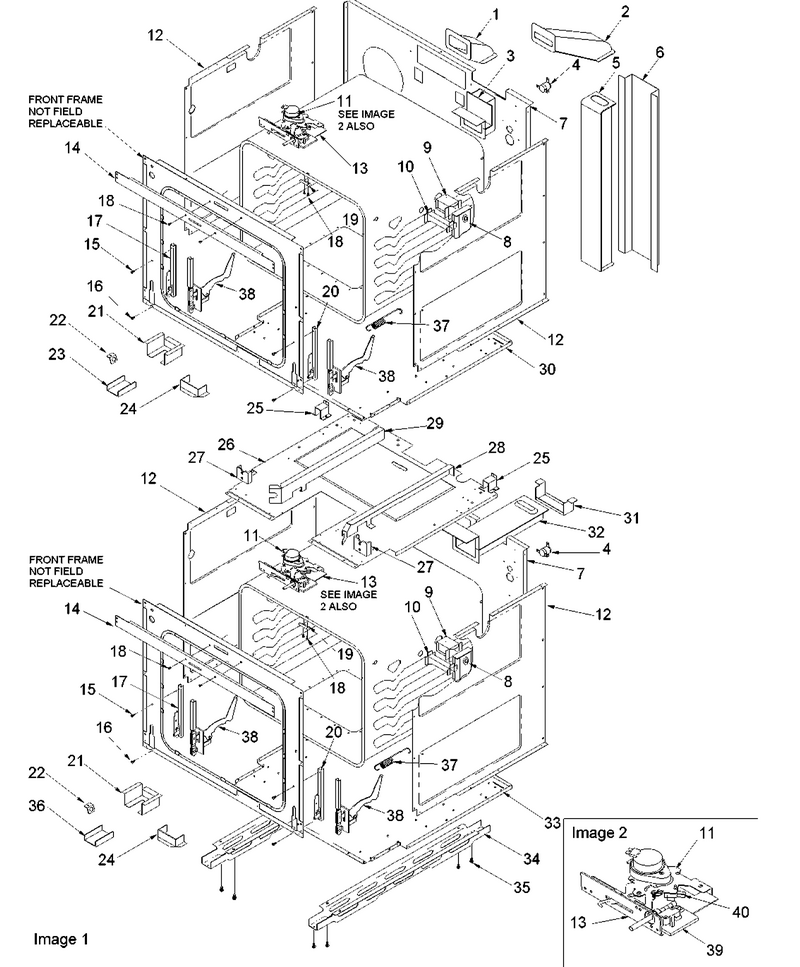

04 - Main Front

...
...
NI
Screw, No.8-18x 1 1/4 Flthd(Blk) WPL-31750408
...
1
Flue, Upper Oven WPL-Y0060799
...
2
Flue, Lower Oven WPL-Y0060805
...
3
Vertical Flue, Upper Oven WPL-Y0060802
...
4
Switch Fan Spdt WPL-Y0042056
...
5
Vertical Flue WPL-Y0060808
...
6
Retainer, Insulation WPL-Y0054295
...
7
Retainer, Insulation-Rear WPL-0305420
...
8
Vertical, Air Duct WPL-0060819
...
9
Venturi, Air Duct-Top WPL-Y0060821
...
10
Wire Protector WPL-Y0060787
...
11
Assy, Auto Latch & Switch WPL-31797301
...
12
Retainer, Insulation-Side WPL-Y0316868
...
13
Bracket, Latch Mounting WPL-31848301
...
14
Cover, Chip WPL-31797201
...
15
Screw WPL-WP4159193
...
16
Screw WPL-WP7101P126-60
...
17
Assy, Oven Hinge Lt WPL-Y0315426
...
18
Screw WPL-W11245710
...
19
Cover, Chip WPL-Y0315022
...
20
Assy, Oven Hinge Rt WPL-Y0315425
...
21
Shield, Bake Orifice WPL-Y0060814
...
22
Bracket, Bake Orifice WPL-Y0060846
...
23
Air Channel, Upper Bake WPL-0054274
...
24
Retainer, Insulation-Orifice WPL-0060823
...
25
Support, Rear Oven WPL-Y0305717
...
26
Oven Top, Lower Oven WPL-Y0060837
...
27
Support, Oven Front WPL-Y0060838
...
28
Air Channel, Rt WPL-0060835
...
29
Air Channel, Lt WPL-Y0060834
...
30
Oven Bottom-Upper WPL-Y0059593
...
31
Retainer, Insul. Flue WPL-0060784
...
32
Horizontal Flue WPL-0060811
...
33
Oven Bottom-Lower WPL-0316866
...
34
Runner, Base WPL-Y0060849
...
35
Screw WPL-WP693995
...
36
Air Channel, Lower Bake WPL-Y0054275
...
39
Switch, Plunger WPL-31933601
...
40
Switch, Micro WPL-31899201

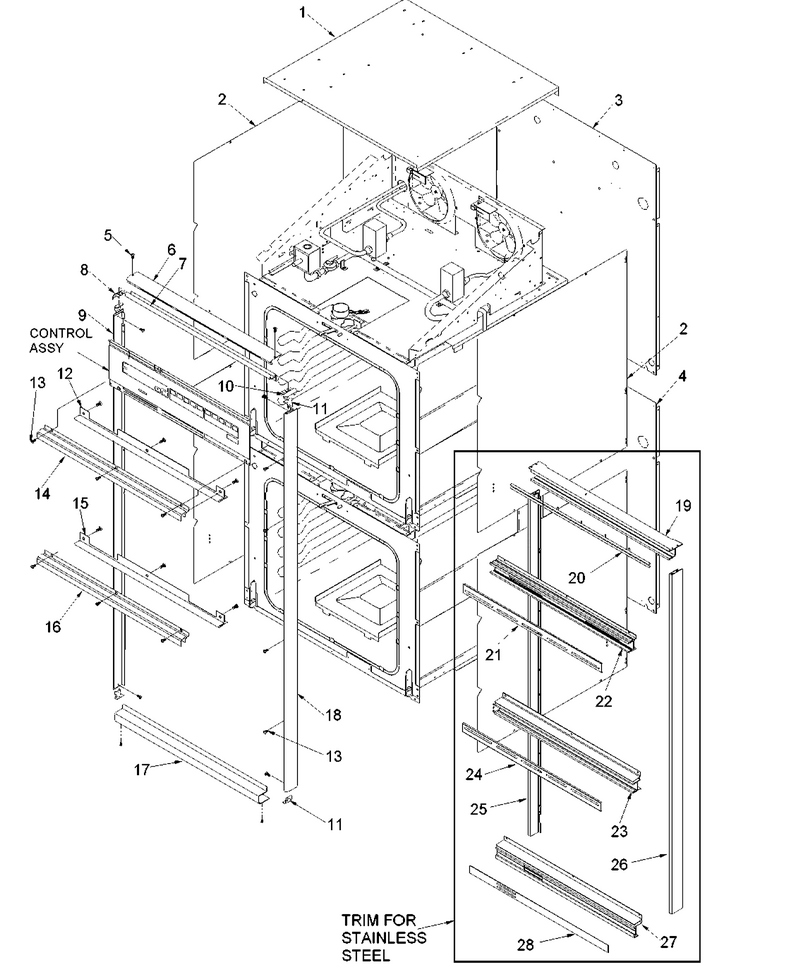

01 - Cabinet

...
...
NI
Bushing, Snap (Blk) WPL-308655B
...
1
Panel, Cabinet Top WPL-Y0060843
...
2
Panel, Side (Double) WPL-Y0315144
...
3
Cabinet Back, Upper WPL-Y0059744
...
4
Back Cabinet WPL-Y0059743
...
5
Screw, No.6-32 X .375 Flat Hd Ph WPL-31750306
...
6
Trim, Upper Top (Wht) WPL-308982W
...
7
Trim, Lower Top (Wht) WPL-308983W
...
8
Trim, Corner-Lt (Wht) WPL-10331404
...
9
Trim, Side Lt (Wht) WPL-308980W
...
10
Trim WPL-10327102
...
11
Brkt, Trim Corner WPL-Y0307205
...
12
Trim, Control Panel-Bot (Wht) WPL-308160W
...
13
Screw WPL-W11245710
...
14
Trim, Control Panel-Top (Wht) WPL-308159W
...
15
Trim, Center Lower (Wht) WPL-308155W
...
16
Trim, Upper Center (Wht) WPL-308979W
...
17
Trim, Bottom (Wht) WPL-314137W
...
18
Trim, Side Rt (Wht) WPL-308981W

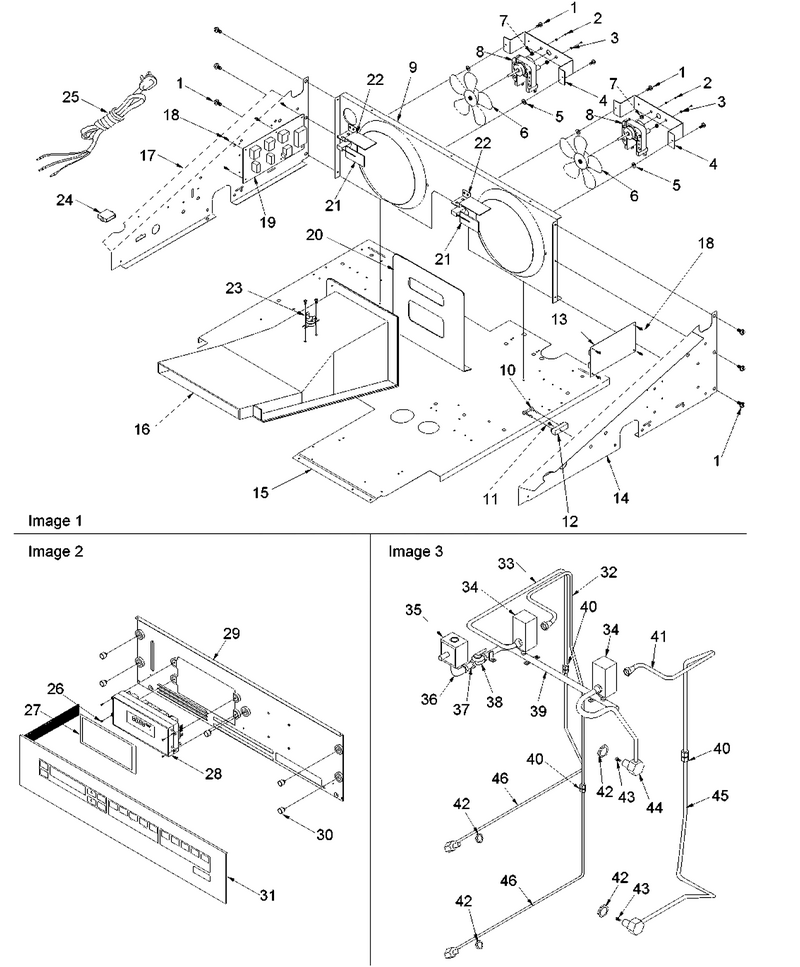

03 - Control Compartment & Panel & Gas Supply

...
...
NI
Harness, Main WPL-31866301
...
1
Screw WPL-WP693995
...
2
Nut K WPL-M0282005
...
3
Washer, Flat 5/32 X 7/16 O.d. WPL-31750015
...
4
Bracket-Motor Mount WPL-Y0305242
...
5
Washer, Flat 1/4 X 5/8 O.d. WPL-31750005
...
6
Blade, Fan WPL-Y0314548
...
7
Grommet-Fan WPL-Y0305243
...
8
Fan Motor WPL-Y0042226
...
9
Panel, Back Control WPL-Y0060841
...
10
Resistor WPL-Y0042064
...
11
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
12
Term Blk Eo&go 1m-2.5m-5m-10m WPL-Y0042191
...
13
Relay, Module WPL-Y0314523
...
14
Compartment, Control Rt WPL-Y0314834
...
15
Oven Top, Upper Oven WPL-Y0060829
...
16
Flueway, Control Panel-Top WPL-31824201
...
17
Compartment, Control Lt WPL-Y0314835
...
18
Support, Circuit Board WPL-31726801
...
19
Cntrl-Elec WPL-WPY0309305
...
20
Bracket, Flue Support WPL-0060824
...
21
Sail Switch WPL-0066207
...
22
Bracket, Switch WPL-Y0052814
...
23
Control, Limit WPL-31833001
...
24
Molex Receptacle 3 Circuit WPL-31748901
...
25
Supply Cord WPL-Y0054865
...
26
Screw, No.6-20 X .375 Pan Hd WPL-31750309
...
27
Seal- Erc WPL-R9800030
...
28
Erc-Double Oven WPL-31799201
...
29
Brkt, Control Panel Mtg (Blk) WPL-31845301B
...
30
Bumper, Rubber WPL-Y0314643
...
31
Assy, Membrane Switch (Wht) WPL-31796102W
...
32
Tubing-Lower Union To Valve WPL-0304098
...
33
Tubing-Upper Bake-Union To Val WPL-31801901
...
34
Valve, Dual Thermal-Gas WPL-Y0060750
...
35
Regulator-5``/10`` Side Inlet WPL-Y0063684
...
36
Elbow, Pipe-1/2`` X 90 Degree WPL-Y0097408
...
37
Nipple-1/2``-Pressure Regulator WPL-Y0097320
...
38
Valve, Shut-Off WPL-Y0314271
...
39
Manifold Assy. WPL-Y0060751
...
40
Union Straight 3/8 To 3/8cc WPL-Y0304566
...
41
Tubing-Lower Union To Valve WPL-Y0304097
...
42
Nut, Pal 3/4-16 X 1.062 WPL-31750116
...
43
Orifice, No.52 Nat WPL-31864801
...
44
Tubing-Upper Broil To Valve WPL-Y0054839
...
45
Tubing-Lower Burner To Union WPL-Y0054837
...
46
Hood & Tubing Upper Bake WPL-Y0054834

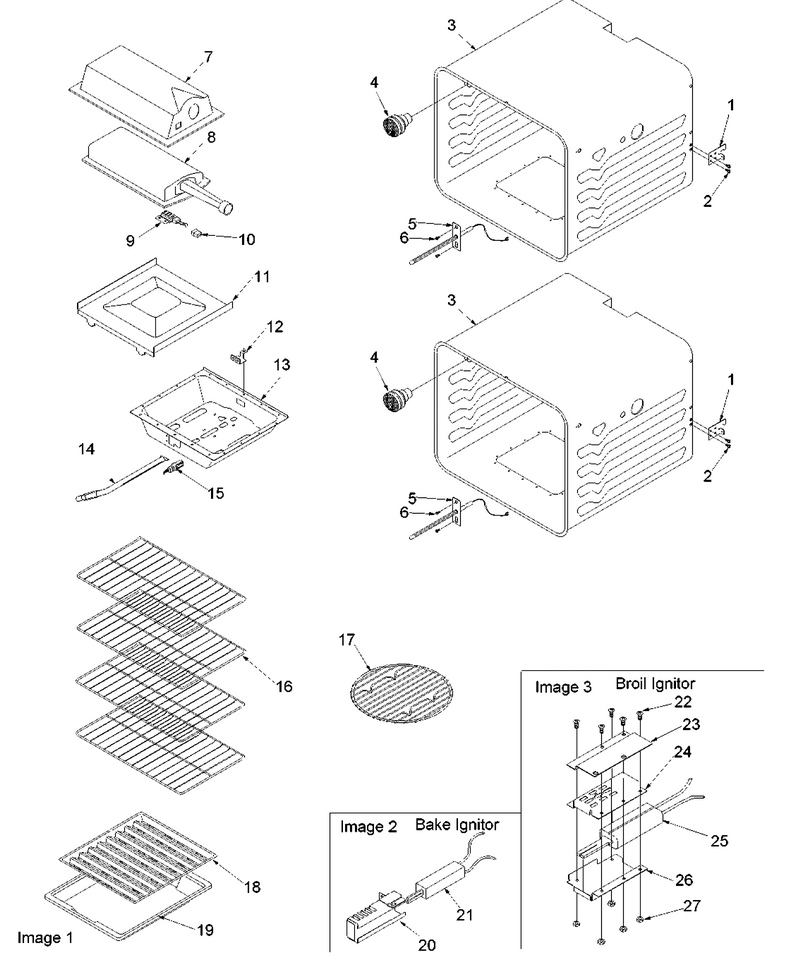

02 - Cavity

...
...
NI
Light Bulb WPL-8009
...
1
Bracket, Oven Mounting-Pyro WPL-Y0041017
...
2
Screw WPL-WP693995
...
3
Oven Shell (Cg) WPL-31813801CG
...
4
Light- Ove WPL-WP74011278
...
5
Sensor WPL-WPY0314907
...
6
Screw WPL-W11245710
...
7
Chamber Broil Burner WPL-Y0059415
...
8
Broil Burner Assy WPL-Y0054070
...
9
Ignitor- B WPL-WP31939701
...
10
Plug, Ignitor Wires WPL-Y0059417
...
11
Oven Bottom (Cg) WPL-315521CG
...
12
Mtg. Bracket, Oven Burner WPL-Y0060766
...
13
Box, Lower Burner WPL-Y0315387
...
14
Burner, Bake (Wall Oven) WPL-31761901
...
15
Ignitor- B WPL-WP31939701
...
16
Rack, Oven 19 3/16`` X 16 1/2`` WPL-314762J
...
17
Meat Rack Slo/cook WPL-Y0042713
...
18
Procelain Broiler (Pan And Grid) WPL-4396923
...
19
Procelain Broiler (Pan And Grid) WPL-4396923
...
20
Bracket, Igniter Mounting WPL-31957101
...
21
Ignitor- B WPL-WP31939701
...
22
Screw, No.6-32 X .375 Panhd(Blk) WPL-31750308
...
23
Ignitor Brkt WPL-Y0060826
...
24
Shield, Top Igniter WPL-0063781
...
25
Ignitor- B WPL-WP31939701
...
26
Ignitor Shield-Bottom WPL-Y0308104
...
27
Nut K WPL-M0282005

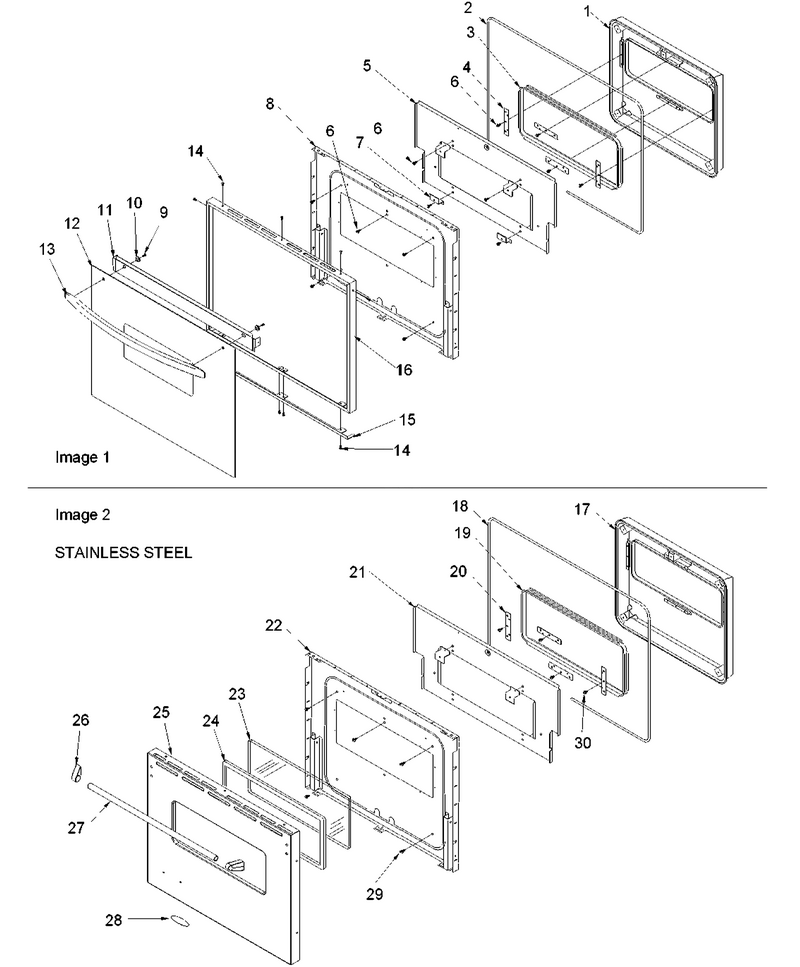

05 - Oven Door

...
...
Note: Wall Oven Has Two Doors. WPL-NOTE:
...
NI
Tape, Foam WPL-0043184
...
1
Backer, Oven Door (Cg) WPL-40223CG
...
2
Gasket, Door (76``) WPL-31715903
...
3
Window Assy WPL-0041491
...
4
Retainer, Door Glass WPL-Y0052629
...
5
Baffle, Inner WPL-Y0309286
...
6
Screw WPL-WP693995
...
7
Window Mtg. Brkt. Pk411 WPL-Y0040955
...
8
Liner, Door (Cg) WPL-31796701CG
...
9
Screw, No.10-32 X .687 Pan Hd WPL-31750524
...
10
Bushing, Door Handle WPL-32031101
...
11
Brkt, Handle Mtg WPL-31796501
...
12
Glass, Door (Wht)-27`` Walloven WPL-31796402W
...
13
Handle, Oven Door (Wht) WPL-77001117
...
14
Screw WPL-W11245710
...
15
Angle, Glass Support (Wht) WPL-305586W
...
16
Frame, Oven Door (Wht) WPL-307886W
