Amana ADU7500CWW (BOM: P1188305W)

Model: ADU7500CWW (BOM: P1188305W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

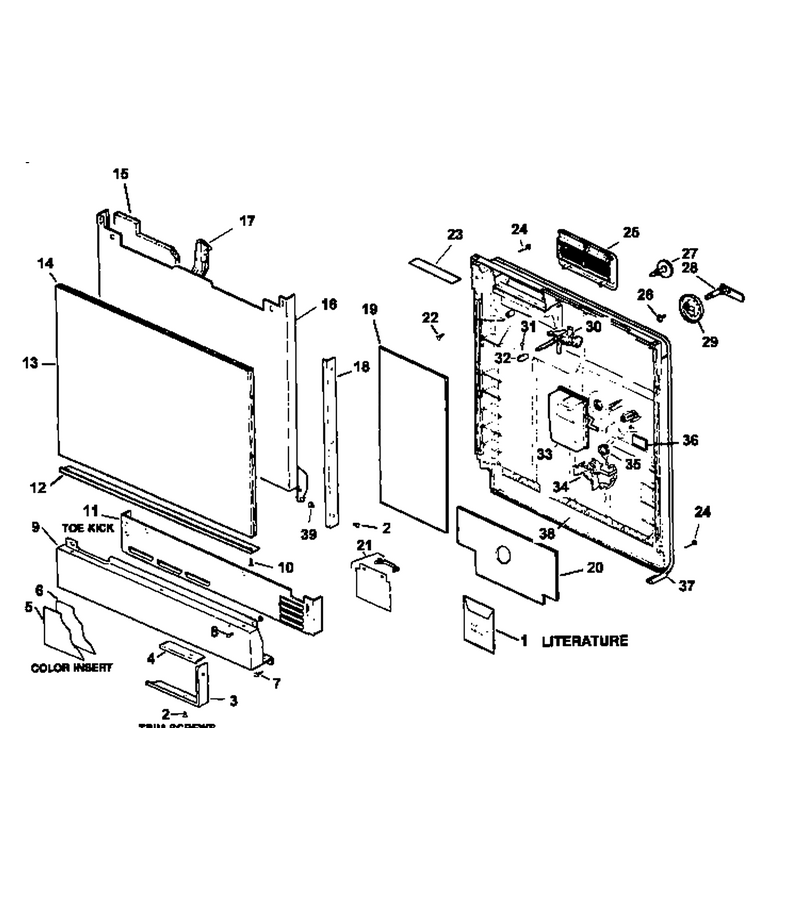

02 - Door And Door Trim

...
...
1
Owners Manual (Am Dishwasher) WPL-R0913060
...
2
Screw, 8-18 WPL-R0900053
...
3
Trim Access Wide {whi WPL-R0905760
...
4
Trim,access Top Wide {wh WPL-R0905769
...
5
Insert, Svc Panel WPL-R0905602
...
6
Insulator, Insert Panel WPL-R0910036
...
7
Kit, Screw WPL-R9800670
...
8
Screw WPL-R0900017
...
9
Panel, Access WPL-Y03000189
...
10
Screw WPL-W10856125
...
11
Toe Kick Assy WPL-R0903022
...
12
Trim Door Bottom Wide {whi WPL-R0905766
...
13
Door Panel Insert WPL-R0905559
...
14
Insulator WPL-R0906002
...
15
Motor/pump Assy Dishwa WPL-R0904527
...
16
Door & Hinge Assy, Outer WPL-R0905637
...
17
Harness, Conduit WPL-R0905621
...
18
Trim Door Side Wide {whi WPL-R0905763
...
19
Damper, Sound WPL-R0904531
...
20
Damper, Sound WPL-R0904532
...
21
Drip Shield WPL-R0910011
...
22
Screw WPL-R0900009
...
23
Assy Rinse Aid Disp. WPL-R0910155
...
24
Screw WPL-WP3351614
...
25
Door Vent WPL-R0905536
...
26
Screw WPL-R0900007
...
27
Assy Rinse Aid Disp. WPL-R0910155
...
28
Shaft Hand D Cup WPL-R0905615
...
29
Detergent Cup Cover WPL-R0910010
...
30
Latch, Assembly WPL-Y03000191
...
31
Screw WPL-WP74004005
...
32
Knob,latch WPL-R0903595
...
33
Injector, Rinse WPL-Y03000002
...
34
Cam, Det. WPL-R0905625
...
35
Spring Det Trip WPL-R0905624
...
36
Deflecter WPL-R0905523
...
37
Door Gasket WPL-R0904507
...
38
Door, Inner WPL-R0903021
...
39
Hinge Arm Bearing WPL-R0905537

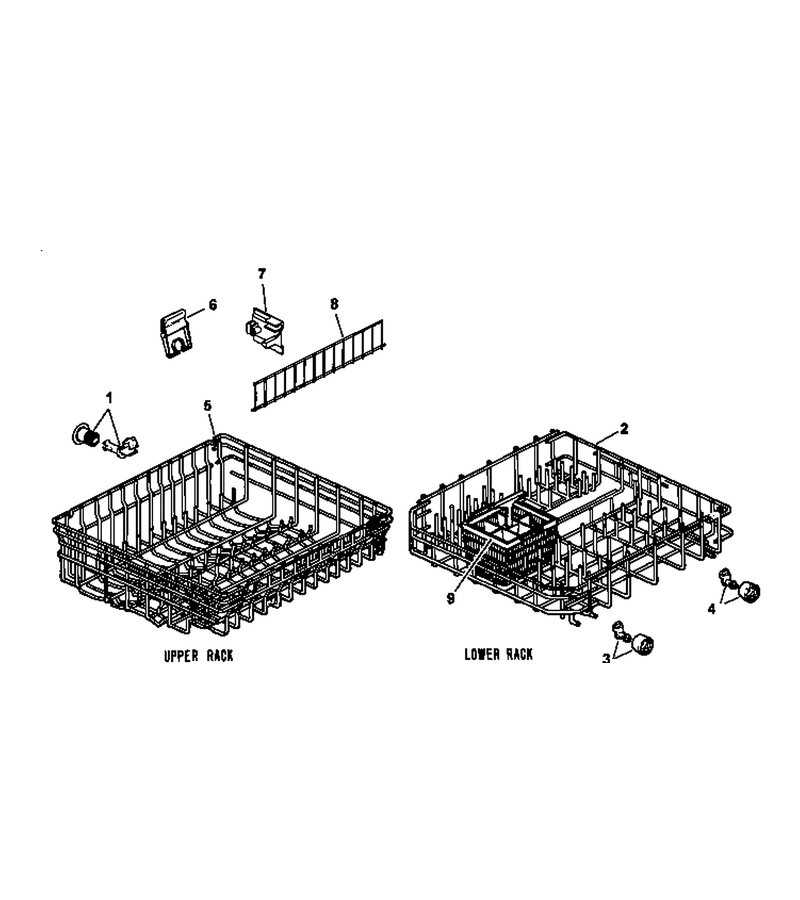

04 - Upper/lower Racks

...
...
1
Wheel WPL-W10542232
...
2
Lower Rack & Roller Tm WPL-R0910152
...
3
Lower Roller Assy WPL-R0910149
...
4
Roller WPL-W10882367
...
5
Rack Upper WPL-R0904528
...
6
Assy Bag & Hugger WPL-R0910164
...
7
Support, Shelf {whi WPL-R0910153
...
8
Shelf Tm WPL-R0910154
...
9
Basket,silverware WPL-R0910113

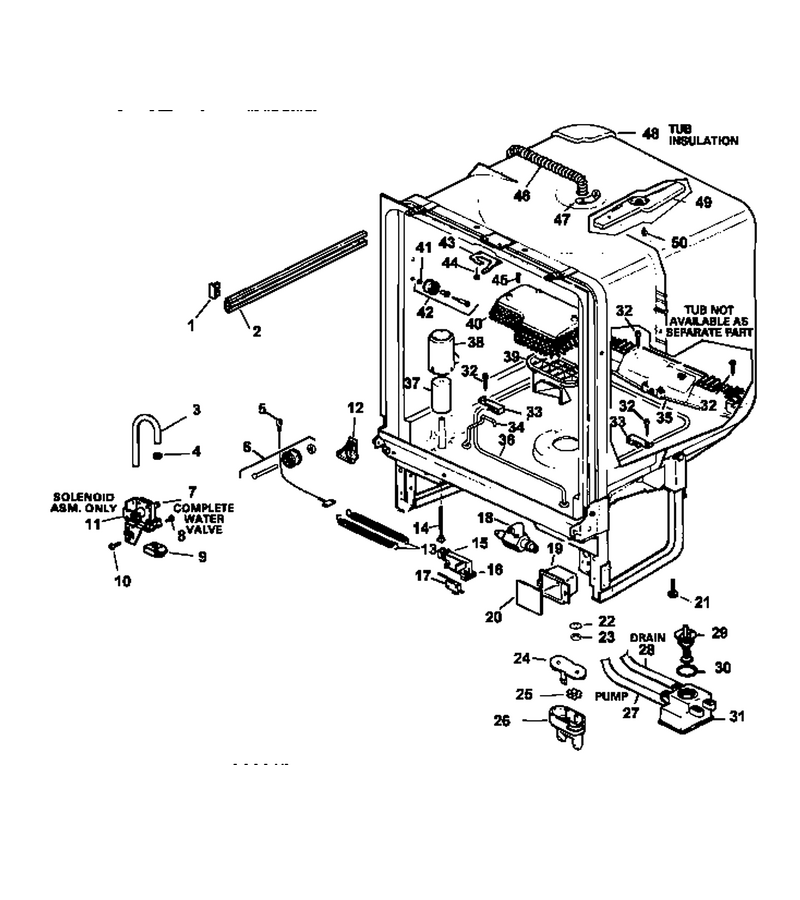

03 - Tub Assy

...
...
1
Endcap WPL-WPW10326683
...
2
Rack Slide WPL-R0905567
...
3
Hose, Water Inlet WPL-R0903514
...
4
Clamp WPL-R0901510
...
5
Cable And Eyelet WPL-R0905640
...
6
Roller & Stud Kit WPL-R0910013
...
7
Valve, Water Inlet (W/solenoid WPL-R0910033
...
8
Screw WPL-R0900011
...
9
Insul, Hsg Terminal WPL-R0903582
...
10
Scr 10-24x3/8 Tt Hex WPL-R0900012
...
11
Solenoid Assembly, Water Valve WPL-R0909002
...
12
Baffle Tub Corner Lh WPL-R0905597
...
13
Door Spring - Orange WPL-R0905638
...
14
Float Stem WPL-R0905512
...
15
Brkt, Flood Switch WPL-R0905513
...
16
Cover Switch Brkt WPL-R0905514
...
17
Switch, Flood WPL-R0902524
...
18
Check Valve WPL-R0910053
...
19
Box, Junction WPL-R0903587
...
20
Cover, Junc Box WPL-R0903032
...
21
Leg, Leveling WPL-R0905506
...
22
Washer WPL-R0900501
...
23
Grommet WPL-R0906502
...
24
Base Barrier WPL-R0903580
...
25
Nut WPL-R0901001
...
26
Barrier, Htg Element WPL-R0903581
...
27
Hose, Chamber WPL-R0903590
...
28
Hose WPL-Y03000084
...
29
Piston & Nut Assy WPL-Y03000222
...
30
Gasket WPL-R0904503
...
31
Coll. Chamber WPL-Y03000055
...
32
Screw WPL-WPW10348409
...
33
Support Heater Rear WPL-R0905633
...
34
Support, Heater WPL-R0911008
...
35
Assy, Filter Frame WPL-R0910122
...
36
Heater WPL-R0911009
...
37
Flood Float WPL-R0903501
...
38
Float, Dome WPL-R0913227
...
39
Cap, Sump WPL-Y03000213
...
40
Cover Inlet Sump WPL-R0905527
...
41
No.8 Type A Set Sst Washer WPL-R0900503
...
42
Tub Roller & Stud Kit WPL-R0910004
...
43
Latch Keeper WPL-R0905505
...
44
Screw WPL-R0900025
...
45
Screw WPL-R0900008
...
46
Hose, Shower Assy WPL-R0903527
...
47
Nut WPL-R0901003
...
48
Insulation, Tub WPL-R0904534
...
49
Assy, Pwr Shower WPL-R0905554
...
50
Screw WPL-R0900013

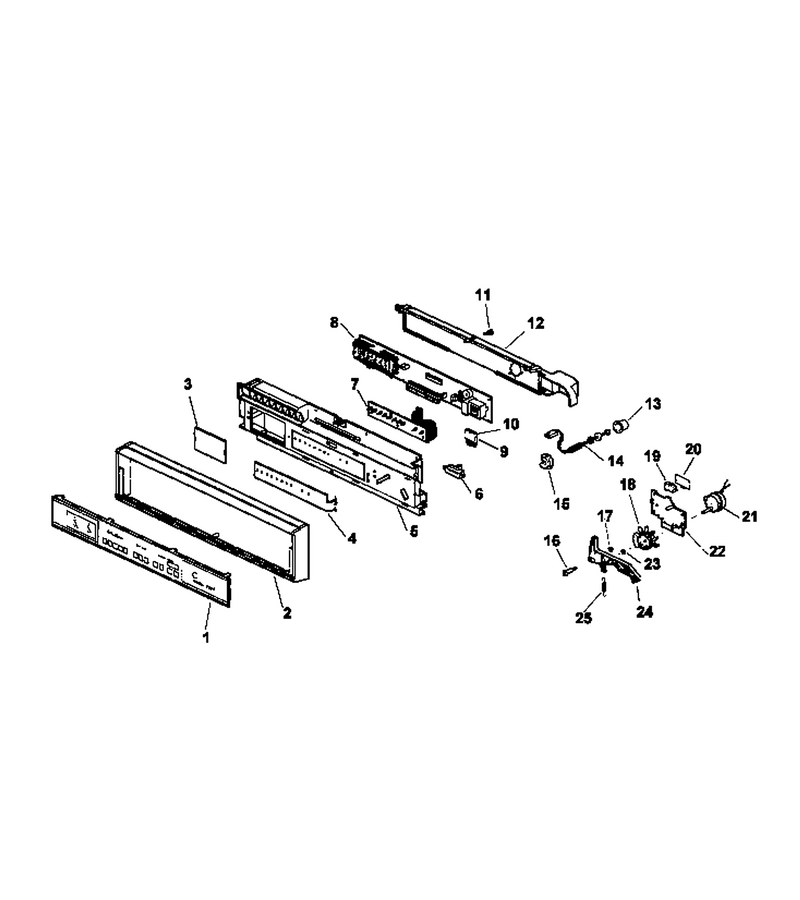

01 - Control Panel

...
...
1
X Assy, Insert & Film WPL-R0905736
...
2
Escutcheon, Body WPL-R0905733
...
3
Filter Display WPL-R0905740
...
4
Switch Membrane WPL-R0902525
...
5
Escutcheon, Body WPL-R0905732
...
6
Switch WPL-Y03000066
...
7
Board, Led WPL-R0905739
...
8
Assy, Circuit Board WPL-R0905737
...
9
Connector, Elect, 6 Pin WPL-R0906006
...
10
Therminal Pin & Socket WPL-R0906007
...
11
Screw WPL-W10856125
...
12
Cover Circuit Board WPL-R0905738
...
13
Thermistor Housing WPL-R0911003
...
14
Thermistor & Spring WPL-R0911005
...
15
Thermistor Retainer WPL-R0911004
...
16
Stud WPL-R0905578
...
17
Nut WPL-R0901006
...
18
Cam, Motor WPL-R0907003
...
19
Switch Det. Motor WPL-R0902511
...
20
Insulator Switch WPL-R0904511
...
21
Motor, Det. Cup WPL-R0907002
...
22
Mounting Plate WPL-R0905627
...
23
Retainer WPL-R0901514
...
24
Leaver Det. Trip WPL-R0905628
...
25
Spring, Timer Lever WPL-R0905541

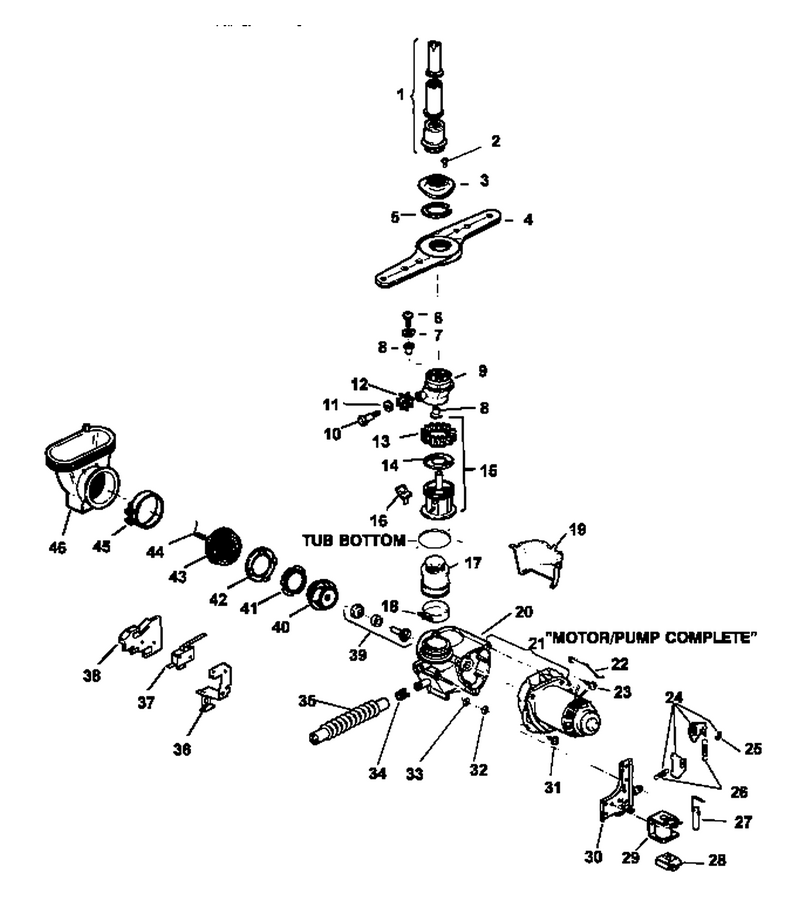

05 - Water Distribution Components

...
...
1
Center Spray Assy WPL-R0910017
...
2
Screw WPL-WPW10348409
...
3
Adapter Pwr Twr WPL-R0905558
...
4
Spray Arm WPL-Y03000113
...
5
Seal, Split Ring WPL-R0905557
...
6
Screw, Hub WPL-R0900045
...
7
Washer WPL-R0900502
...
8
Bearing WPL-R0905556
...
9
Hub/pinion Assy WPL-R0905555
...
10
Screw WPL-R0900015
...
11
Washer WPL-R0900504
...
12
Pinion Gear WPL-R0910016
...
13
Nut WPL-R0901004
...
14
Seal Lower WPL-R0910029
...
15
Supt & Nut Arm WPL-R0901009
...
16
Check Valve WPL-R0910037
...
17
Connector, Pump WPL-R0903520
...
18
Clamp WPL-WP696392
...
19
Guard WPL-R0905522
...
20
Motor/pump Assy Dishwa WPL-R0910001
...
21
Motor-Pump WPL-WPY03000182
...
22
Hanger Mechanism WPL-R0905712
...
23
Screw WPL-R0900007
...
24
Gate Valve Arm Kit WPL-Y03000032
...
25
Retainer WPL-R0901503
...
26
Spring, Gate Arm WPL-R0905529
...
27
Armature & Link Assy WPL-R0905517
...
28
Insul, Hsg Terminal WPL-R0903582
...
29
Solenoid WPL-Y03000185
...
30
Bracket-Solenoid WPL-R0905639
...
31
Screw WPL-W10856125
...
32
Nut WPL-R0906510
...
33
Seal, Shaft WPL-R0906504
...
34
Clamp WPL-R0901510
...
35
Tube Assy, Drain WPL-Y03000184
...
36
Switch Bracket WPL-R0903016
...
37
Switch, Flood WPL-Y03000045
...
38
Switch Guard WPL-R0903017
...
39
Seal,pump WPL-R0910148
...
40
Pump Impeller WPL-R0905519
...
41
Wear Ring WPL-R0905520
...
42
Wear Ring Base WPL-R0905518
...
43
Nut WPL-R0905563
...
44
Spring, Cutter WPL-R0905521
...
45
Clamp WPL-WP696392
...
46
Inlet, Sump WPL-Y03000224
