Amana 8P5N (BOM: P5497304R)

Model: 8P5N (BOM: P5497304R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

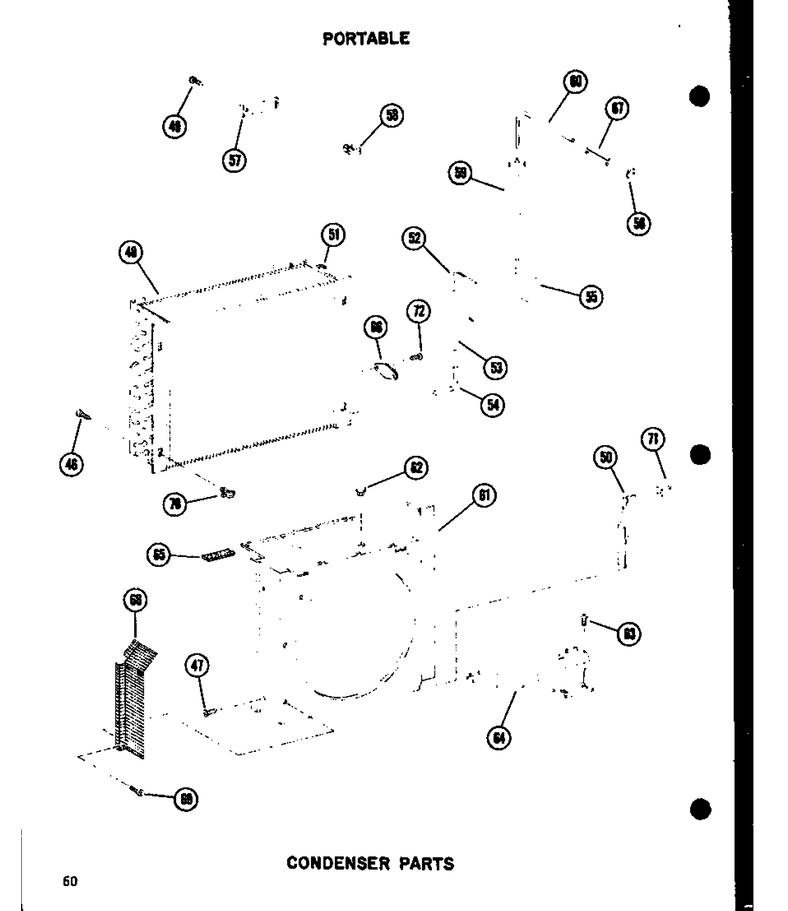

03 - Condenser Parts

...
...
46
Screw WPL-M0216531
...
47
Screw WPL-WP90767
...
48
Condenser Coil Assembly WPL-D5498302
...
49
Screw WPL-WP90767
...
52
Cap Tube WPL-C5933601
...
53
Strainer WPL-B4143101
...
54
Elbow WPL-A3311901
...
55
Tube-Discharge WPL-C5932401
...
56
Wire Tie WPL-M0321204
...
57
Clamp WPL-A3310502
...
58
Bumper WPL-A3311002
...
59
Muffler WPL-C5885810
...
60
Tube-Discharge WPL-C5931401
...
61
Shroud-Cond Fan WPL-D5497102
...
62
Plug Button WPL-M0310008
...
63
Screw WPL-W11233072
...
64
Tie Brace WPL-C5922703
...
67
Dampener Tube-Per Ft WPL-B5165101
...
70
Fastener WPL-B1145301
...
71
Clip WPL-M0113603
...
73
Fan Motor, 5ksp29hk1688s, 230 WPL-C5934102
...
74
Clip, Wire WPL-M0585101
...
75
Screw WPL-M0233116
...
77
Gasket-Header WPL-C5952401
...
78
Gasket (per Foot) WPL-A3030313
...
79
Nut WPL-WP487939
...
80
Grommet WPL-M0500601
...
81
Nut WPL-WP487939
...
86
Blower Wheel WPL-D5409401
...
93
Scroll-Evap WPL-D5496601

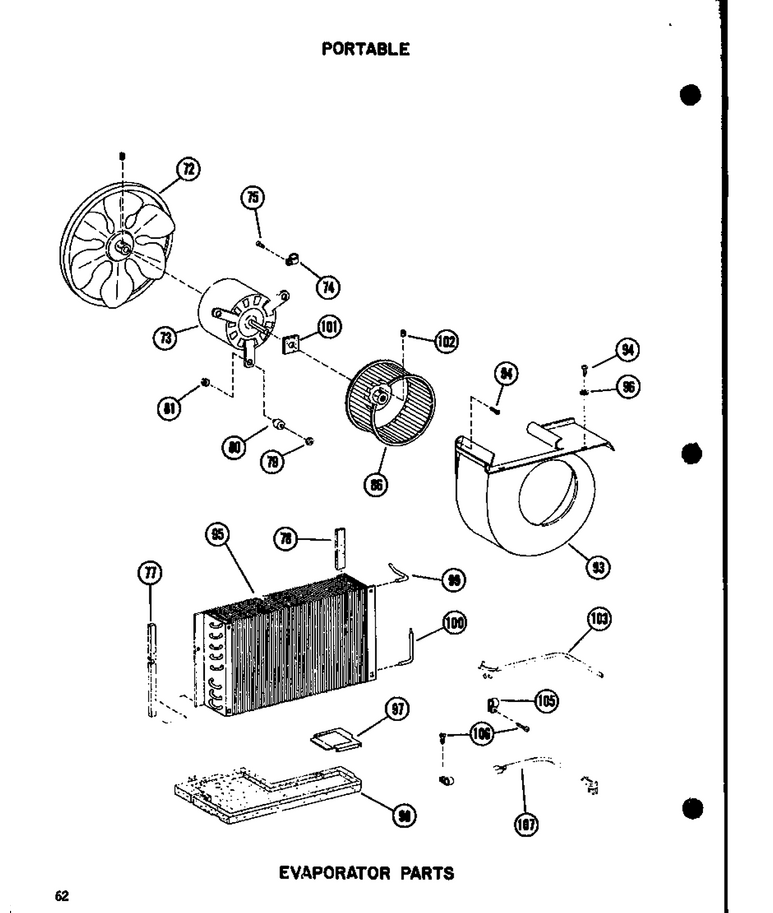

05 - Evap Parts

...
...
72
Fan Blade-Cond WPL-C5801402
...
94
Screw WPL-WP90767
...
95
Evap Assy WPL-D5517301
...
96
Washer WPL-M0270504
...
97
Shield-Filler Block WPL-B1147101
...
98
Filler Block WPL-D5496901
...
99
Elbow WPL-A3309101
...
100
Elbow WPL-A3318406
...
101
Gasket WPL-B5107608
...
102
Screw WPL-M0210516
...
103
Wiring Harness-Comp WPL-B1148401
...
105
Clamp WPL-M0104501
...
106
Screw WPL-W11233072
...
107
Cord, Power WPL-Y20057502

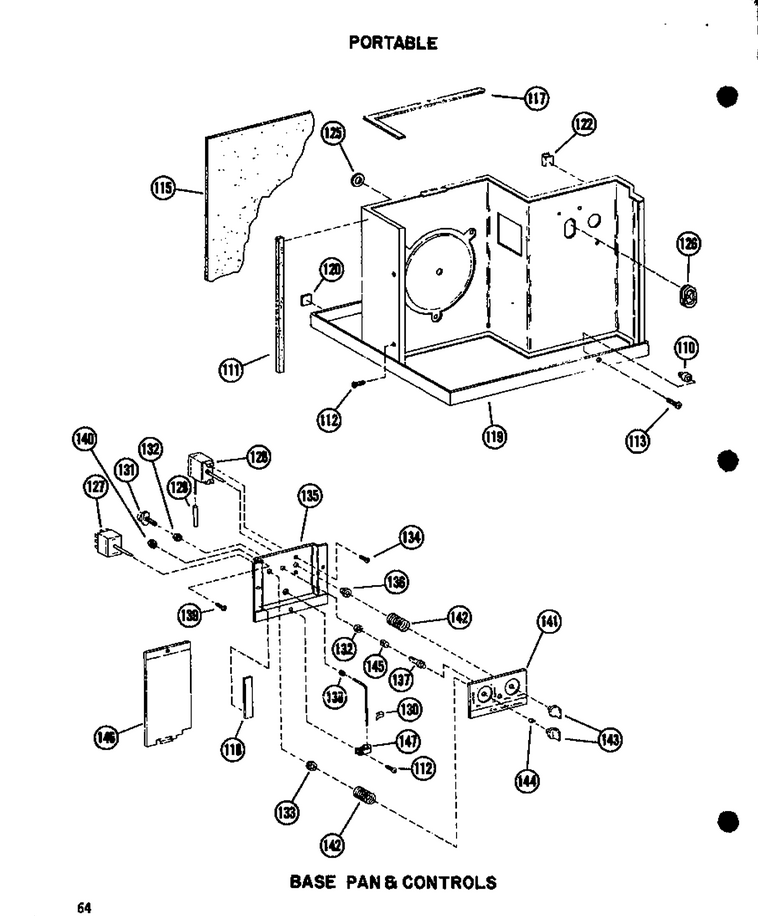

01 - Base Pan & Controls

...
...
110
Grommet WPL-A3309801
...
111
Gasket (per Foot) WPL-A3030303
...
112
Screw WPL-W11233072
...
113
Screw WPL-M0216531
...
115
Insulation WPL-D5498801
...
117
Gasket WPL-A3030302
...
118
Gasket (per Foot) WPL-A3030313
...
119
Base Pan Wld WPL-D5497002
...
120
Pad WPL-A3317501
...
122
Clamp WPL-M0102304
...
125
Plug Button WPL-A3080003
...
126
Grommet WPL-A3310201
...
127
Switch Rotary WPL-B1110903
...
128
Thermostat WPL-B4763503
...
129
Sleeve WPL-WPM0321014
...
130
Clip K WPL-M0118401
...
133
Palnut WPL-M0289601
...
134
Screw WPL-M0232012
...
135
Control Panel WPL-C5929601
...
136
Bushing WPL-A3073601
...
138
Grommet WPL-A3045501
...
139
Sems Fastner WPL-M0255015
...
140
Nut WPL-WP488130
...
141
Escutcheon WPL-C5884801
...
142
Spring WPL-A4663602
...
143
Knob WPL-D7009803
...
144
Clip,retainer WPL-M0115902
...
146
Control Panel WPL-B1143201
...
147
Clamp WPL-M0102320

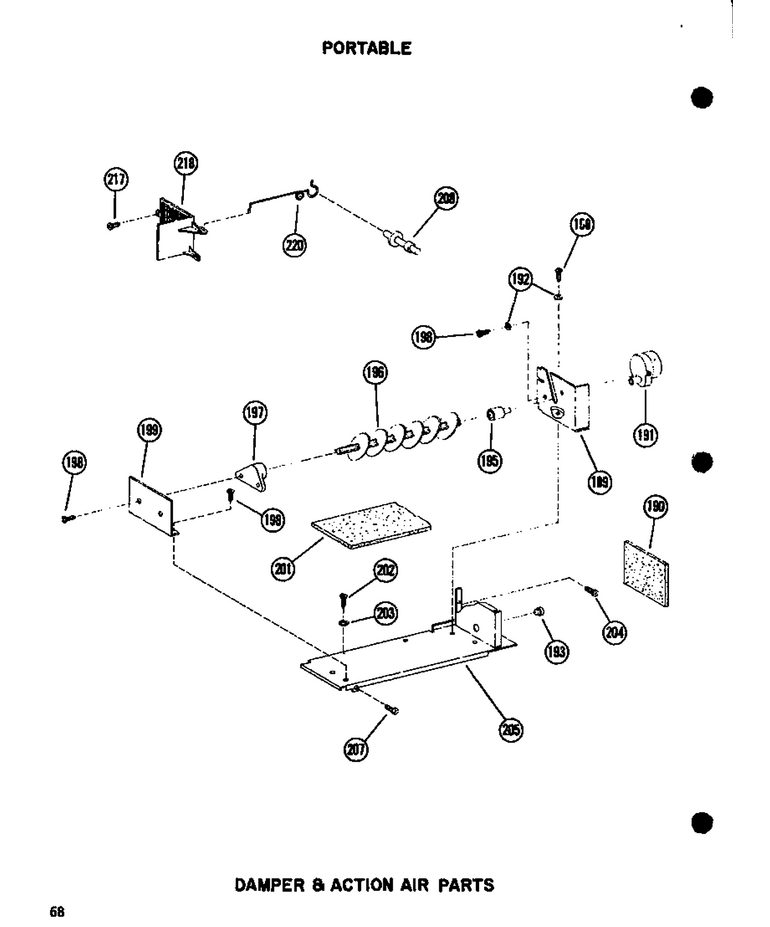

04 - Damper & Action Air Parts

...
...
190
Insulation WPL-A3310401
...
205
Cover Evap Weld WPL-C5919201
...
207
Screw WPL-WP90767
...
208
Screw WPL-WP90767
...
217
Screw WPL-WP90767
...
218
Door-Damper WPL-C5924701
...
220
Spring WPL-B1143001

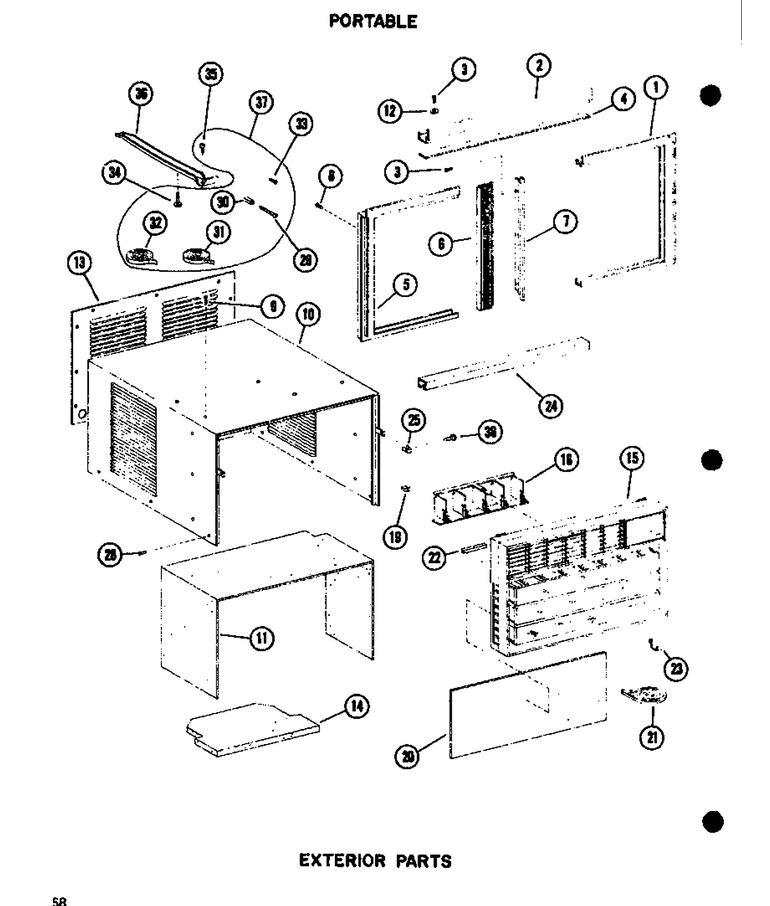

06 - Exterior Parts

...
...
9
Screw WPL-M0219233
...
10
Outer Case WPL-D5495003
...
11
Insulation-Oc WPL-B1145001
...
13
Outer Case Pntd WPL-D6821203
...
15
Cabinet Front, Assembly, Compl WPL-D5432409
...
16
Deflector WPL-C5298402
...
19
Clip WPL-M0116301
...
20
Filter-Air WPL-WP876775
...
21
Retainer WPL-A4542805
...
22
Gasket-Per Inch WPL-A3030311
...
23
Spring WPL-A3317601
...
25
Speed Nut WPL-M0288412
...
28
Screw WPL-W11233072
...
38
Thumb Screw K WPL-M0234916

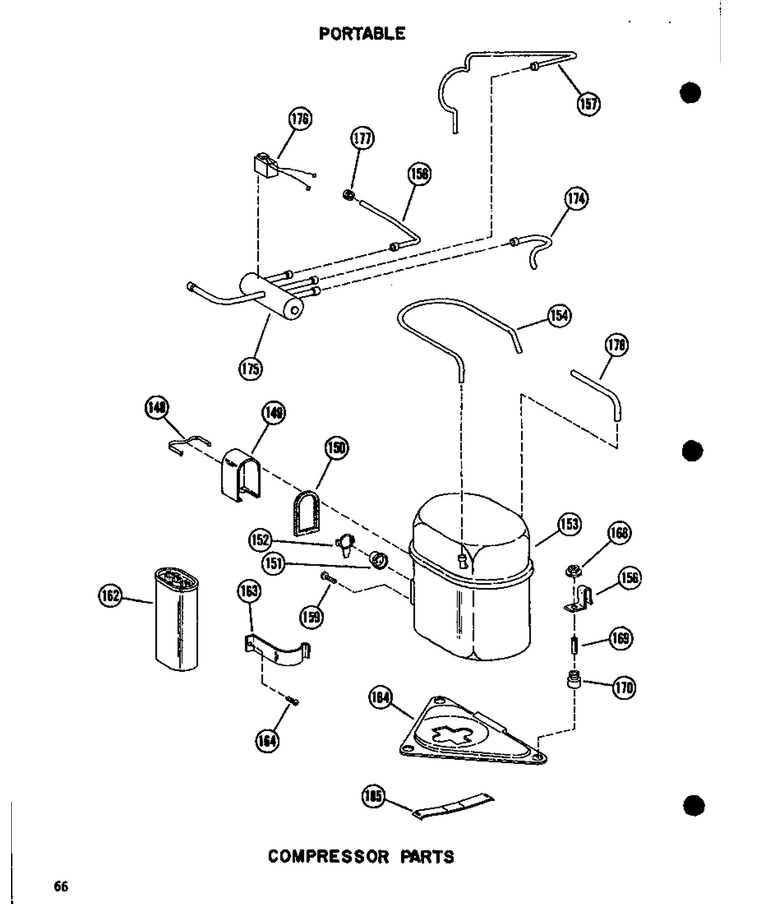

02 - Compressor Parts

...
...
151
Overload WPL-D4976678
...
152
Lockwire WPL-A4648001
...
153
Compressor Jrr4-0100-Paz WPL-D5501404
...
154
Tube-Suction WPL-C5931501
...
156
Clamp-Cord WPL-A3309701
...
159
Screw WPL-M0206116
...
162
Capacitor, Compressor Run, 25 WPL-D5515602
...
163
Strap-Capacitor WPL-A3335001
...
164
Screw WPL-W11233072
...
168
Nut WPL-M0283610
...
169
Sleeve WPL-A4588801
...
170
Grommet WPL-B4793601
...
178
X$x Process Tube WPL-A4643701
