Huskee 31A-140-131 (2001) Snow Thrower

Model: 31A-140-131 (2001)

Save
 Part Not Listed?Part Not Listed?
product name

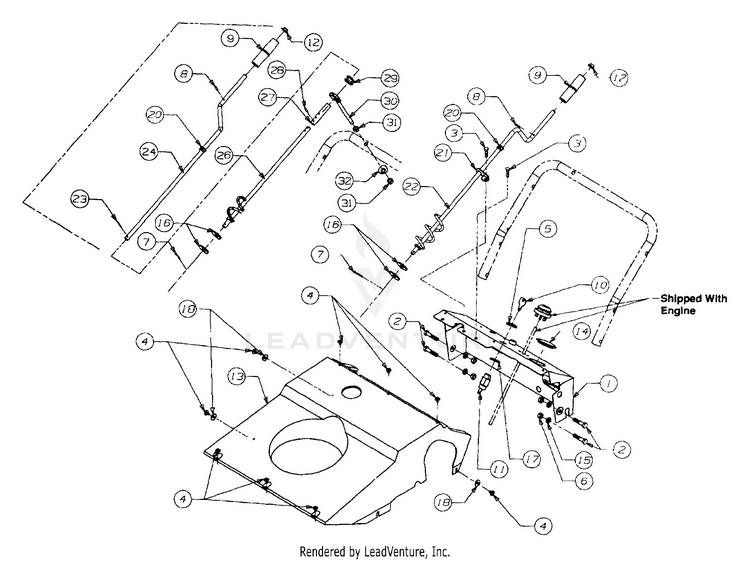

Chute, Crank And Dash

...
...
1
Dash-21" MTD-684-0056
...
2
Hex Flange Screw MTD-710-1090
...
3
Hex Tap Screw MTD-710-0895
...
4
Hex Tap Screw MTD-710-1268
...
5
Hex Nut MTD-712-0252
...
6
HEX NUT 5/16-18 MTD-712-3010
...
7
Cotter Pin MTD-714-0104
...
8
UNKNOWN MTD-NA
...
9
Chute Crank Knob MTD-720-0201A
...
10
Key MTD-925-0201
...
11
Ignition Switch MTD-925-1425
...
12
Nut Push MTD-726-0100
...
13
Shroud MTD-731-0702
...
14
Plug MTD-731-11338
...
15
Lock Wash. 5/16" I.D. MTD-936-0119
...
16
Flat Washer MTD-736-0185
...
17
Internal Lock Washer MTD-736-0225
...
18
Flat Washer MTD-736-0400
...
20
BUSHING .380 ID MTD-941-0475
...
21
Bracket, Chute Crank MTD-784-5178A
...
22
Crank Assembly, Chute MTD-784-5344
...
23
Cotter Pin Optional chute crank assembly on model 140 only MTD-714-0111
...
24
Upper Chute Crank Optional chute crank assembly on model 140 only MTD-747-0737-0637
...
26
Chute Crank Assembly Optional chute crank assembly on model 140 only MTD-684-0126-0637
...
27
Spacer, .382 x .50 x 1.12 Optional chute crank assembly on model 140 only MTD-950-0785
...
28
UNKNOWN MTD-NA
...
29
Grommet - Rubber Optional chute crank assembly on model 140 only MTD-735-0234
...
30
Eyebolt - Chute Crank Optional chute crank assembly on model 140 only MTD-747-0697
...
31
HEX NUT 5/16-18 Optional chute crank assembly on model 140 only MTD-712-3010
...
32
Washer - Saddle Optional chute crank assembly on model 140 only MTD-736-0451

Drive And Fuel Tank

...
...
1
Hex Screw 5/16-24 x 0 75" MTD-710-0157
...
2
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
3
Self-Tapping Screw 1 /4-20 x .625" MTD-710-1652
...
4
Hose Clamp MTD-726-0205
...
5
Lock Wash. 5/16" I.D. MTD-936-0119
...
6
Beleville Washer MTD-736-0242
...
7
Spacer.325" I.D. MTD-950-0589
...
8
Spcr., .630 x .880 x .747 MTD-750-0716A
...
9
FUEL TANK MTD-TC-32660A
...
10
Fuel Line Hose MTD-751-0535
...
11
Wheel Drive Belt MTD-954-0367
...
12
Pulley Half, .625 x 2.25 MTD-956-0416B
...
13
V-Pulley MTD-756-0550
...
14
Engine Support Bracket MTD-784-5177
...
xx
Electric Start Kit (Optional) MTD-OEM-390-996

General Assembly

...
...
1
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
2
Carriage Bolt MTD-710-0276
...
3
Pan Head Screw MTD-710-0323
...
4
Carriage Bolt MTD-710-0451
...
5
Hex Washer Screw MTD-710-0642
...
6
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
7
Hex Washer Screw MTD-710-0773
...
8
Hex Washer Screw MTD-710-0896
...
9
Hex Cap Screw MTD-710-3015
...
10
Axle, .35 x .5 x 20.75 MTD-753-05480
...
11
Hex Center Lock Nut MTD-712-0429
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Hex Lock Nut MTD-712-0116
...
14
LOCK NUT 1/4 MTD-912-3027
...
15
LOCK NUT 1/4 MTD-912-3027
...
16
Knob MTD-720-0284
...
17
Chute Keeper MTD-731-0851A
...
18
Lower Chute MTD-731-09158
...
19
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
20
Shave Plate MTD-731-1033
...
21
Extension Spring MTD-732-0357A
...
22
Flat Washer MTD-736-0108
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
25
Flat Washer MTD-736-0176
...
26
Washer MTD-736-0159
...
27
Flat Washer MTD-736-0326
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
30
BALL BEARING MTD-941-0600
...
31
Cable, 41.78" MTD-946-0910A
...
32
Spacer MTD-748-0234
...
33
Handle-Lower MTD-749-0796
...
34
Flat Idler MTD-756-0313
...
35
Bearing Cup MTD-784-5174-0637
...
36
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
37
Idler/Brake Bracket MTD-784-5175E
...
38
21" HOUSING MTD-684-0114
...
39
Auger Ass'y. 21" MTD-984-04027A
...
40
Auger Rubber Replacement MTD-753-0613
...
41
Hex Washer Screw MTD-710-0352
...
42
Chute Crank Bracket MTD-784-5720-0637
...
?43
Cap Screw MTD-710-0451
...
44
Bell Washer MTD-736-0242
...
45
BUSHING .380 ID MTD-941-0475
...
46
Hex Screw MTD-710-0191

Upper Handle

...
...
1
Oval C-Sunk Screw MTD-710-1270
...
2
Carriage Bolt MTD-710-0487
...
3
Lock Nut MTD-712-0324
...
4
Handle Knob MTD-720-0284
...
5
Cable Tie MTD-725-0157
...
6
Control Lever MTD-746-0883
...
7
Control Handle Assembly MTD-747-0946
...
8
Upper Handle MTD-749-0705
...
9
Saddle Washer MTD-736-0451

Wheel Assembly

...
...
1
Wheel Ass'y. MTD-734-1176
...
...
...
