252417-5503-01 Briggs and Stratton Engine

Model: 252417-5503-01

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

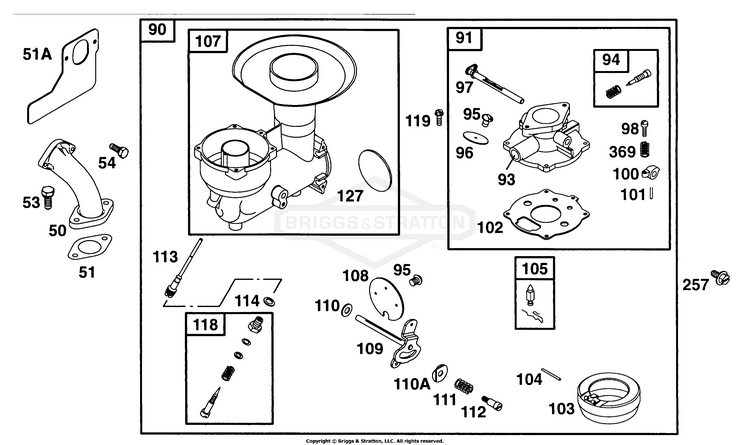

Carburetor Assy

...
...
50
MANIFOLD, Intake BS-212301
...
51A
GASKET, Intake Included in Valve Overhaul Gasket Set-Part No. 498537. Included in Gasket Set-Part No. 492653. Included in Carburetor Kit-See Ref. 121 BS-498869
...
51
GASKET, Intake Included in Gasket Set-Part No. 492653. Included in Carburetor Kit-See Ref. 121 BS-692214
...
53
SCREW (1/4-20 X 3/4) BS-691681
...
54
SCREW (Intake Manifold) BS-93208
...
90
CARBURETOR (Manual Choke) BS-392587
...
91
BODY, Upper Carburetor BS-391833
...
93
BUSHING, Throttle Shaft BS-691769
...
94
VALVE, Idle Mixture Included in Carburetor Kit-See Ref. 121 BS-292681
...
95
SCREW (Throttle Valve) BS-691437
...
96
VALVE, Throttle BS-691727
...
97
SHAFT, Throttle BS-391596
...
98
SCREW (8-32 X 5/8) BS-691615
...
100
STOP, Throttle BS-691708
...
101
PIN, Shaft BS-691616
...
102
GASKET, Carburetor Body Included in Carburetor Kit-See Ref. 121 BS-692215
...
103
FLOAT, Carburetor BS-692265
...
105
KIT, Needle/Seat (Gravity Feed) Included in Carburetor Kit-See Ref. 121 BS-394681
...
105
KIT, Needle/Seat (Gravity Feed) BS-394682
...
105
KIT, Needle/Seat (Pump Feed) BS-394683
...
107
BODY, Lower Carburetor BS-391829
...
108
VALVE, Choke BS-391836
...
109
SHAFT, Choke BS-691353
...
110
WASHER BS-691186
...
110
WASHER BS-691261
...
111
SPRING, Friction BS-691590
...
112
SCREW BS-691587
...
113
NOZZLE, Carburetor Used Before Code Date 81060211 BS-390950
...
113
NOZZLE, Carburetor (Labeled B) Included in Carburetor Kit-See Ref. 121 BS-691966
...
114
GASKET, Nozzle (Viton Seat) Included in Carburetor Kit-See Ref. 121 BS-691610
...
118
VALVE, High Speed Included in Carburetor Kit-See Ref. 121 BS-99525S
...
119
SCREW (Upper To Lower Carburetor Body) BS-691090
...
127
PLUG, Welch Included in Carburetor Kit-See Ref. 121 BS-690627
...
257
SCREW (10-32 X 3/8) BS-691082
...
369
KIT, Idle Speed BS-693942
...
...
...
