product name

252417-5503-01 Briggs and Stratton Engine

Model: 252417-5503-01

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

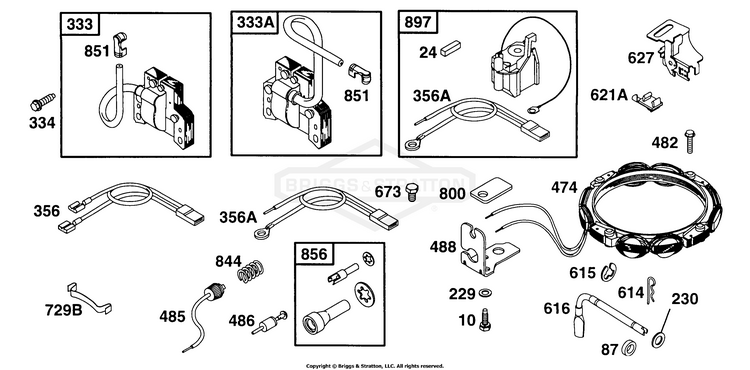

Electrical

...
...
10
SCREW (Breather Assembly) BS-691666

...
24
KEY, Flywheel BS-222698S

...
87
SEAL, Governor Shaft Included in Gasket Set-Part No. 492653 BS-692407

...
229
WASHER BS-690390

...
230
WASHER BS-691691

...
333A
ARMATURE, Magneto (Breaker Ignition) BS-298968

...
333
ARMATURE, Magneto (Magnetron Ignition) BS-398811

...
334
SCREW (Magneto) BS-691061

...
356A
WIRE, Stop (Cut To Required Length) BS-398808

...
356
WIRE, Stop BS-398838

...
474
ALTERNATOR (Dual Circuit With Fuse) BS-592831

...
482
SCREW (Tapping) BS-691183

...
485
CAP, Wire/Fuse BS-390888

...
486
RECTIFIER BS-391507

...
488
BRACKET, Mounting BS-222211

...
614
PIN, Cotter BS-691620

...
615
RETAINER, Governor Shaft BS-93307

...
616
CRANK-GOVERNOR (1/4 Diameter) BS-692015

...
621A
SWITCH, Stop BS-297472S

...
627
BRACKET, Stopswitch BS-392884

...
673
SCREW (Spark Arrestor) BS-690664

...
729B
CLIP, Wire BS-221907

...
800
RETAINER BS-222095

...
844
SPRING, Diode BS-261269

...
851
TERMINAL-SPARK PLUG BS-493880S

...
856
HOLDER, Fuse BS-393304

...
897
KIT, Magnetron Ignition BS-394970
...
...
...
