Huskee 21AA454E231 (2010) Tiller - Cultivator

Model: 21AA454E231 (2010)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug B&S MTD-BS-796112S
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
xx
Pre Filter B&S MTD-BS-493537S
...
xx
Pre Filter MTD Engine MTD-NA
...
xx
Air Filter B&S MTD-BS-491588S
...
xx
Air Filter MTD Engine MTD-951-10794
...
xx
Fuel Filter B&S MTD-BS-298090S
...
xx
Fuel Filter MTD Engine MTD-951-10652
...
xx
Cap-Fuel Tank (Service Cap) MTD-BS-796577
...
xx
FUEL CAP MTD-951-10917B
...
xx
Drive Belt - FWD MTD-954-0434
...
xx
Drive Belt - REV MTD-NA
...
xx
Idler Pulley MTD-756-0405
...
xx
CLUTCH CABLE MTD-946-1117
...
xx
Clutch Cable - REV MTD-NA
...
xx
Tines MTD-742-0305A-0637
...
xx
Wheel Assembly 21AB452 Models MTD-934-04233
...
xx
Wheel Assembly 21AA45 Models MTD-934-04231
...
xx
Foam Grip MTD-720-0278A
...
xx
Handle Knob MTD-720-0210A

Drive System

...
...
1
Belt Cover Bracket Ass'y MTD-686-0111
...
2
Hex Head Screw, 3/8-24 x 1.00 MTD-710-1039
...
3
Hex Head Screw, 5/16-24 x .625 MTD-710-0237
...
4
Hex Head Screw, 1/4-28 x .75 MTD-710-0412
...
5
Screw, 3/8-16 x 1.250 MTD-710-0502A
...
6
Screw, 1/4-20 x 0.500 MTD-710-0599
...
7
Hex Head Screw, 3/8-16 x 1.25 MTD-710-3005
...
8
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
9
Jamlock Nut, 3/8-16 MTD-712-0266A
...
10
HEX NUT 5/16-18 MTD-712-3010
...
11
Hairpin Clip MTD-714-0104
...
12
Washer, Lock, 5/16 MTD-936-0104
...
13
Washer, Lock, 5/16 MTD-936-0119
...
14
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
15
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
16
Washer, Spring, .317 x .625 x .020 MTD-936-0271
...
17
Washer, Lock, 1/4 MTD-936-0329
...
18
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
19
SHOULDER NUT MTD-738-0876A
...
20
CLUTCH CABLE MTD-946-1117
...
21
Idler Pulley Rod MTD-747-1159
...
22
Belt, 4L x 58.16 LG MTD-954-0434
...
23
Flat Idler Pulley w/ Flanges, 3.75 O.D. MTD-756-0405
...
24
Engine Pulley, Inner Half MTD-756-0971
...
25
Engine Pulley, Outer Half MTD-756-0972
...
26
Input Pulley, 4L x 8.594 MTD-756-1162
...
27
Idler Pulley Bracket MTD-786-0064A
...
28
Belt Keeper Bracket, B&S 6.5 HP MTD-786-0185A-0637
...
29
Shift Cover Bracket MTD-786-0187-0637
...
30
Idler Belt Keeper MTD-786-0193-0637
...
31
Shift Crank Assembly MTD-686-0109A
...
32
Screw, 1/4-20:0.375 MTD-710-0653
...
33
Screw, 1/4-14:0.625 MTD-710-1017
...
34
Lock Nut, Cap, 1/4-28 MTD-712-0392
...
35
Spiral Pin MTD-715-0120
...
36
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
37
BELT COVER MTD-784-0158B-0691
...
37
BELT COVER MTD-784-0158B-0691
...
37
BELT COVER (MTD RED) MTD-784-0158B-0638
...
38
Shift Cover - Red MTD-784-0208D-0638
...
38
Shift Cover - Black MTD-784-0208D-0691
...
39
Wheel, 16 x 4.6 x 8 MTD-934-04231
...
39
Wheel, 14 x 4.5 x 6 MTD-934-04233
...
40
Hex Head Screw, 1/4-20 x 1.50 MTD-710-0606
...
41
Flangelock Nut, 1/4-20 MTD-712-04064
...
42
Clevis Pin MTD-711-0415
...
43
Cotter Pin, Bow-Tie MTD-714-04043
...
44
GEAR CASE ASSEMBLY MTD-986-04074E
...
45
Hexlock Nut, 3/8-24 MTD-712-3054
...
46
L-Wash. 3/8" I.D. MTD-736-0169
...
47
Fl-Wash. .51" I.D. x 1.50" MTD-736-0208
...
48
Bell Washer MTD-736-0253
...
49
Screw, Shoulder, 3/8-24 x 1/2 x .325 MTD-938-0688
...
50
Screw, Shoulder, 3/8-24 x 1/2 x .180 MTD-938-0689
...
51
Articulating Tine MTD-742-0305A-0637
...
52
TINE ADAPTER ASSEMBLY MTD-784-0160-0637
...
52
Tine Assembly (Includes:712-3054 (x16), 936-0169 (x16), 936-0208 (x8), 936-0253 (x8), 938-0688 (x8), 938-0689 (x8), 742-0305A-0637 (x8) & 784-0160-0637 (x1)) MTD-984-0205A-0637
...
53
Cap MTD-731-07556

Handle & Tine Shield

...
...
1
Shift Rod MTD-747-1152
...
2
Lower Handle Tube Assembly - Black MTD-649-0034-0691
...
2
Lower Handle Tube Assembly - Red MTD-649-0034-0638
...
3
UPPER HANDLE ASSEMBLY (BLACK JACK) MTD-649-0041B-0691
...
3
UPPER HANDLE ASSEMBLY (MTD RED) MTD-649-0041B-0638
...
4
Screw, 1/4-20 x 0.625 MTD-710-0946
...
5
Hex Head Screw, 3/8-16:1.25 MTD-710-3005
...
6
Hex Head Screw, 5/16-18 x 3.25 MTD-710-3056
...
7
Clevis Pin MTD-711-0415
...
8
Hexlock Nut, 1/4-20 MTD-712-0324
...
9
Flangelock Nut, 3/8-24 MTD-712-0379
...
10
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
11
Cotter Pin, .125 X 1.75 internal MTD-714-0147
...
12
Small Tee Knob MTD-720-0210A
...
13
Foam Grip, .970 x 11.0 MTD-720-0278A
...
14
Grip, .1875 x 1.00 MTD-720-0313
...
15
Battery Clamp, 5/16 MTD-726-0273
...
16
Cable Tie, 8.5 LG MTD-726-0317
...
17
End Plug MTD-735-0246A
...
18
Washer, Flat, .385 x .620 x .033 MTD-936-0117
...
19
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
20
Washer, Flat, .260 x .720 x .060 MTD-736-3090
...
21
Spacer, Shoulder, .50 x .190 x .360 LG MTD-938-0958
...
22
Clutch Bail MTD-747-1219-0637
...
23
Handle Adjustment Crank MTD-784-0190
...
24
Hex Nut Retainer Bracket MTD-784-0191
...
25
Tiller Depth Control MTD-786-0120-0637
...
26
Shift Rod Lever - Black MTD-786-0181-0691
...
26
Shift Rod Lever - Red MTD-786-0181-0638
...
26
Shift Lever Service Kit Not shown, consists of shift lever & bracket, index bracket and hardware MTD-753-06491
...
27
Washer, Rubber, .33 ID x .87 OD x .125 MTD-735-0127
...
28
Hairpin Clip MTD-714-0104
...
29
End Cover Assembly - Black MTD-686-0044B-0691
...
29
End Cover Assembly - Red MTD-686-0044B-0638
...
30
Hex Head Screw, 5/16-18 x 2.75 MTD-710-0176
...
31
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
32
Hex Head Screw, 3/8-16 x 2.75 MTD-710-3022
...
33
Hex Head Flange, 3/8-16 x .875 MTD-710-04482
...
34
Flangelock Nut, 5/16-18 MTD-712-04063
...
35
Flangelock Nut, 3/8-16 MTD-712-04065
...
36
Wing Nut, 5/16-18 W/ Bell Washer MTD-712-0421
...
37
Speed Nut Cap, 1/4 ROD MTD-926-0106
...
38
Washer, Flat, .344 x .62 x .033 MTD-736-0204
...
39
Screw, Hex, 5/16-18 x .75 MTD-938-0849
...
40
Tiller Flap Rod MTD-747-0432
...
41
Spacer, .322 x .625 x 2.00 MTD-750-0885A
...
42
Side Shield - Black MTD-786-0090A-0691
...
42
Side Shield - Red MTD-786-0090A-0638
...
43
Rear Tine Shield - Black MTD-786-0113A-0691
...
43
Rear Tine Shield - Red MTD-786-0113A-0638
...
44
RH Handle Mount Bracket - Black MTD-786-0176-0691
...
44
RH Handle Mount Bracket - Red MTD-786-0176-0638
...
45
LH Handle Mount Bracket - Black MTD-786-0177-0691
...
45
LH Handle Mount Bracket - Red MTD-786-0177-0638
...
46
Tine Shield - Black MTD-786-0178A-0691
...
46
Tine Shield - Red MTD-786-0178A-0638
...
47
FRT Tine Shield Bracket MTD-786-0179-0637
...
48
FRT Tine Shield Spacer Bracket MTD-786-0180-0637
...
49
Hex Head Screw, 1/2-13 x 5.00 MTD-710-0382
...
49
Hex Head Screw, 1/2-13 x 5.50 MTD-710-0506
...
50
HEX NUT MTD-712-0206
...
50
Hex Nut 1/2-20 Grade 5 MTD-912-3066
...
51
L-Wash. 1/2" I.D. MTD-736-0921
...
52
Counterweight MTD-731-1595
...
53
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
54
Hex Head Screw, 5/16-18 x 1.00 MTD-710-0376
...
55
Hub, .636 ID x 1.00 OD x .94 MTD-750-0194

Label Map Huskee

...
...
777I23106
LABEL-450 TILLER SHIELD MTD-777I23106
...
777S33508
LABEL-TINESHIELD WRNG MTD-777S33508
...
777D14375
LABEL-TLR:MTDENG/M1:POWERMRE:208 MTD Engine MTD-777D14375
...
777I20358
LABEL-PLACE HAND HERE MTD-777I20358
...
777X43688
LABEL-ETHANOL B&S MTD-777X43688
...
777I20358
LABEL-PLACE HAND HERE B&S MTD-777I20358
...
777I20451
LABEL-GEAR/TRACTIO MTD-777I20451
...
777D14190
LABEL-TLR:450/GRD:HUSKEE MTD-777D14190
...
777D14191
LABEL-TLR:450/DLXWGHT:HUSKEE MTD-777D14191

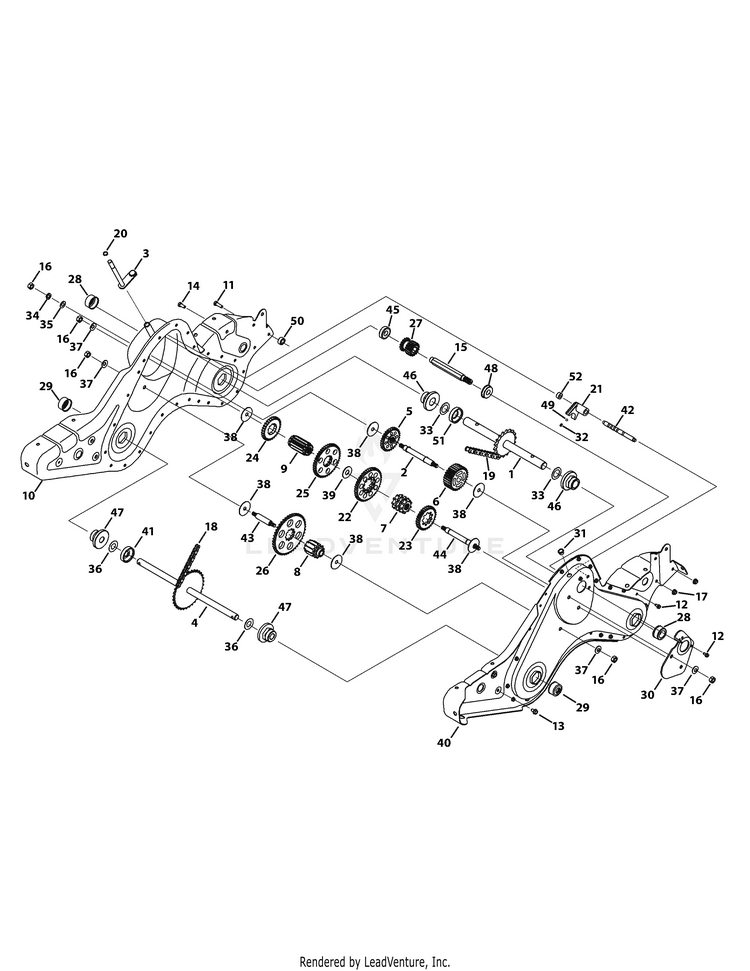

Transmission Assembly

...
...
1
TINE SHAFT ASSEMBLY W/18T MTD-611-0021A
...
2
Shaft Assembly, Jack MTD-611-0128
...
3
Shaft Assembly, Shift Input MTD-611-0129
...
4
Shaft Assembly, Wheel, 33T MTD-611-04074A
...
5
30T REVERSE IDLER GEAR ASSEMBLY MTD-617-0058A
...
6
GEAR ASSEMBLY (FORWARD TINE) MTD-917-0059B
...
7
SPROCKET ASSEMBLY TINE INPUT 9T MTD-617-0060A
...
8
Sprocket Assembly, 10T Wheel Input MTD-617-0061
...
9
11T GEAR ASSEMBLY MTD-617-0062A
...
10
RH Chain Case Housing Assembly MTD-686-0108A-0637
...
11
Hex Head Screw, 5/16-18 x 1.00 MTD-710-0376
...
12
Screw, 1/4-20 x 0.500 MTD-710-0599
...
13
Screw, :5/16-18 x 0.625 MTD-710-0604A
...
14
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
15
INPUT SHAFT MTD-711-1349B
...
16
Nut, Hex, 7/16-20 MTD-712-0378
...
17
HEX FLANGE NUT MTD-712-3004A
...
18
Endless Chain, #420 x 50 Links MTD-913-0367
...
19
Endless Chain, #50 x 54 Links MTD-913-0484
...
20
Snap Ring, .500 MTD-716-0865
...
21
CLUTCH COLLAR MTD-717-0853A
...
22
SPUR GEAR 44T MTD-717-1582B
...
23
Gear Spur, 30T MTD-717-1583
...
24
Gear Spur, 30T MTD-717-1584
...
25
Gear Spur, 44T MTD-717-1585
...
26
Gear Spur, 44T MTD-717-1587
...
27
Gear Spur, 16T MTD-717-1594
...
28
Shaft Seal, 1.0 MTD-921-0378
...
29
Shaft Seal, .75 MTD-721-0379
...
30
GEAR POSITIONER BRACKET MTD-786-0238A
...
31
Tapered Cap Plug MTD-726-0277
...
32
Compression Spring, .230 OD MTD-932-0496
...
33
Washer, Flat, 1.03 x 1.62 x .03 MTD-936-0163
...
34
Washer, Lock, 7/16 MTD-936-0171
...
35
Washer, Flat,.474 x .879 x .064 MTD-936-0226
...
36
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
37
Washer, Bell,.45 x 1.00 x .062 MTD-736-0407
...
38
Washer, Thrust, .445 x 1.92 x .060 MTD-736-0518
...
39
Washer, Flat,1.595 x .635 x .062 MTD-736-3088
...
40
LH Chain Case Housing MTD-686-04129-0637
...
41
Spacer, .75 x 2.0 x .50 MTD-950-0671
...
42
Shaft Detent, .5 DIA MTD-738-0645
...
43
Shaft, Jack, .625 x 2.385 MTD-738-0648
...
44
Shaft, Jack, .6250 x 5.0050 MTD-738-1013
...
45
Ball Bearing, 17 x 40 x 12:6203 MTD-941-0600
...
46
BEARING MTD-941-0420B
...
47
BEARING MTD-741-0421B
...
48
Ball Bearing, 17 x 40 x 12:6203 MTD-941-0563
...
49
DETENT BALL .250 MTD-741-0862
...
50
Spacer, .315 x .750 x .375 LG MTD-750-0258
...
51
Spacer, 1.0 ID x 2.0 OD x.5 LG MTD-950-0570
...
52
Spacer, .505 ID x .88 OD x .440 MTD-750-0664
...
...
...
