21876x50C Murray - Walk-Behind Mower (2000)

Model: 21876x50C

Save Part Not Listed?
product name

Popular Parts

Popular Parts

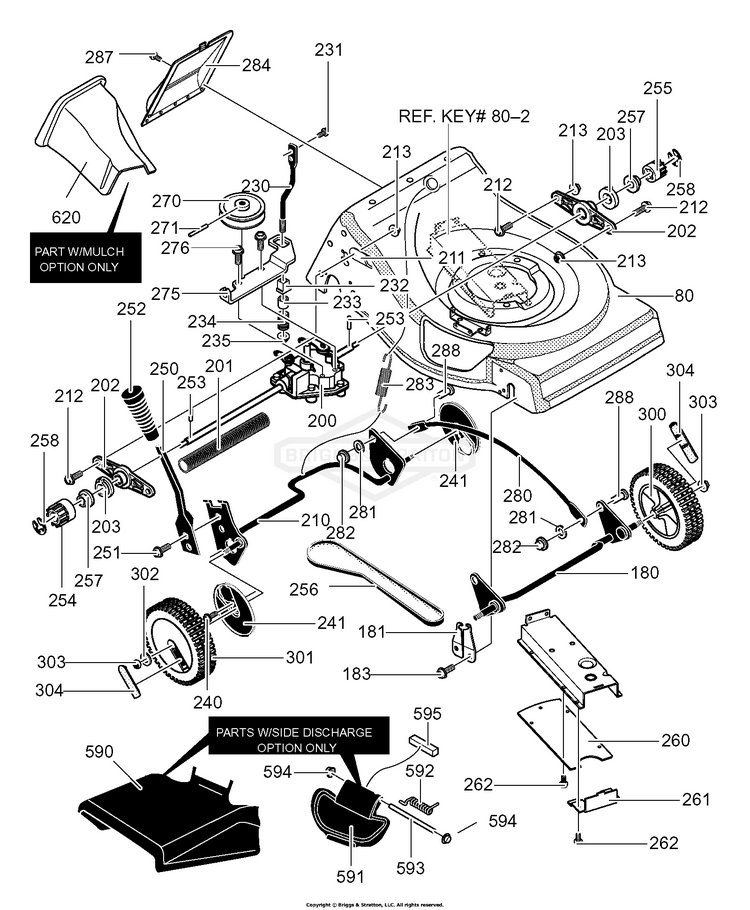

Drive & Wheel Assembly

...
...
80
Assy., Frame BS-672274-860
...
180
Assy., Crossbar Front BS-71152-860
...
181
Bushing, Front BS-672279MA
...
183
Screw, 1/4-14x.50 BS-710270
...
200
Transmission BS-672042MA
...
201
Shield, Axle BS-643649
...
202
Support, Axle BS-671411
...
203
Bearing, Lifter BS-643788
...
210
Assy., Crossbar RR BS-672277-860
...
211
Retainer, Bearing BS-071482
...
212
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
213
Nut, 5/16-18Wdfllk BS-710205
...
230
Support, Spring BS-071481
...
231
Screw, 1/4-20x.63 BS-710274
...
232
Bushing, Spring BS-071480MA
...
233
Spacer BS-043844MA
...
234
Spring, Compression BS-710327
...
235
Nut, 5/16-18 Wdfllk BS-710205
...
240
Screw, 1/4-14x.50 BS-710270
...
241
Dust Cover BS-643616MA
...
250
Lever, Spring BS-672278MA
...
251
Screw, 1/4-20x.63 BS-710274
...
252
Knob, Hgt Adjust BS-671297MA
...
253
Pin, Drive BS-643629
...
254
Gear, Pinion Right BS-671904MA
...
255
Gear, Pinion Left BS-671903MA
...
256
Belt, 2L 15.75L BS-710190
...
257
HOUSING, Blower BS-710364
...
258
Ring, Ret. E BS-020864
...
260
Cover, Lower Belt Guard BS-43770-860
...
261
Cover, Front Belt BS-71239-860
...
262
Screw, 10-16x.50 BS-710273
...
270
Pulley, 2L BS-672269MA
...
271
Pin, Spring BS-710294
...
275
Bracket, Transaxle BS-671925
...
276
Screw, 1/4-20x.50 BS-710264
...
280
Link, Lifter BS-43720-860
...
281
Nut, Push On BS-712072
...
282
JET, Main BS-231739
...
283
Spring, Ext. BS-711459MA
...
284
Cover, Rear Trans. BS-71246-860
...
287
Screw, 1/4-20x.63 BS-711863
...
288
Pin, Clevis BS-711542MA
...
300
Tire & Rim BS-671132
...
301
Wheel, Drive BS-671133
...
302
PANEL, Control BS-711573
...
303
Nut, 3/8-16 BS-710140
...
304
Hub Cap BS-672122MA
...
--
Instruction Book BS-F-000434M

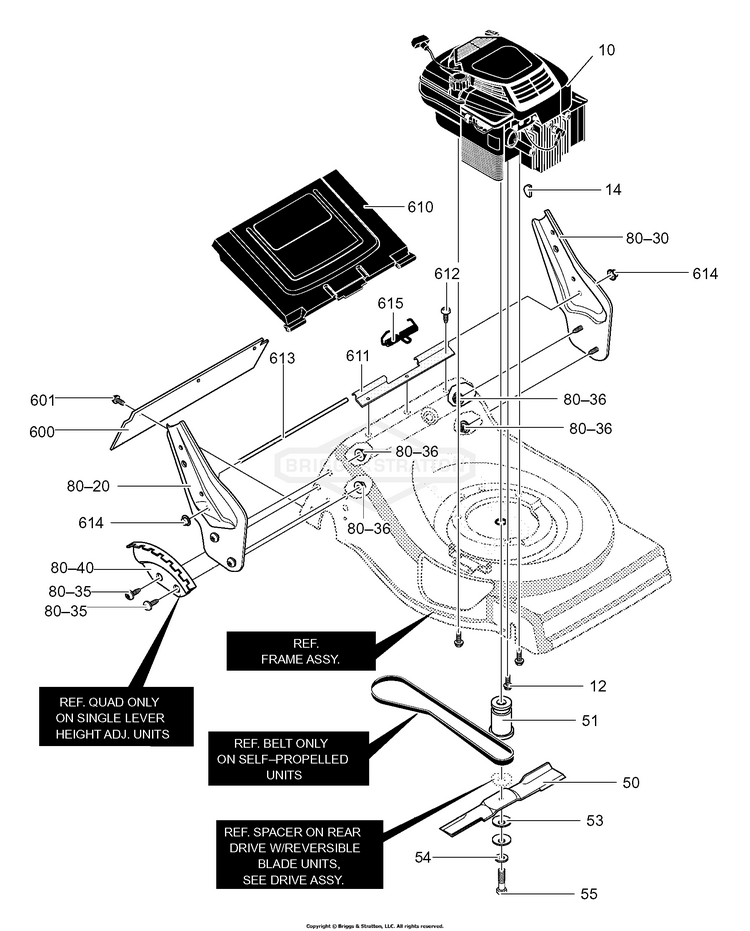

Engine Mount

...
...
12
Screw, 3/8-16 x 1.00 BS-47792MA
...
14
Key, Woodruff 505 BS-2125
...
50
Blade, 21 Inch BS-71877
...
51
Adapter, Blade BS-671058MA
...
53
Washer BS-710210
...
54
Washer, Flat BS-710207
...
55
SCREW M6 BS-710074
...
80-20
Bracket, Handle RH BS-672766
...
80-30
Bracket, Handle LH BS-672767
...
80-35
Screw, 5/16-18 x 0.63 BS-710277
...
80-36
Nut, 5/16-18 BS-710204
...
80-40
Quadrant, Height Adj. BS-672276
...
600
Deflector, Rear BS-043640
...
601
Screw, 3/8-24 x 1.50 BS-710271
...
610
Door, Rear BS-071833
...
611
Spacer, RR Door BS-672049
...
612
Screw, 10-16x.50 BS-710273
...
613
Rod, Pivot RR Door BS-672282 Z
...
614
JET, Main BS-231739
...
615
Spring, Torsion BS-340823

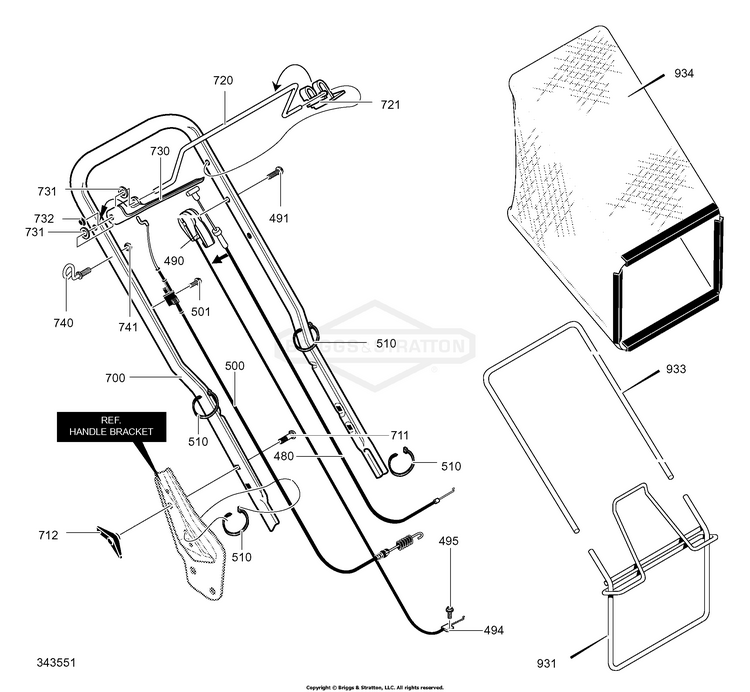

Handle & Bag Assembly

...
...
480
Cable, Stop BS-672530MA
...
490
T-Cable BS-672539MA
...
491
Screw 1/4-20x2.00 BS-323035MA
...
494
CABLE, CLUTCH / BRAKE BS-7012425YP
...
495
ROPE, Starter BS-66574
...
500
Drive Cable BS-672545MA
...
501
Screw, 10-16x.75 BS-710269
...
510
Cable Tie BS-712267
...
700
Handle BS-672286-806
...
711
Bolt, Carriage 5/16-18x2 BS-710175
...
712
WINGKNOB, 5/16-18 BS-703065
...
720
Lever, Stop Engine BS-672429-860
...
721
Bracket, Stop Lever BS-643628
...
730
Lever, Drive Control BS-671566MA
...
731
Washer, Nylon BS-710491
...
732
JET, Main BS-231739
...
740
Rope Guide BS-672510MA
...
741
Nut, 1/4-20 Hexnyl BS-710203
...
931
Bag, Frame Assy. BS-672293MA
...
933
TUBE-BAG TOP 20RB BS-071592MA
...
934
Bag, Catcher BS-672574MA
