20805x50A Murray - Walk-Behind Mower (1997)

Model: 20805x50A

Save Part Not Listed?

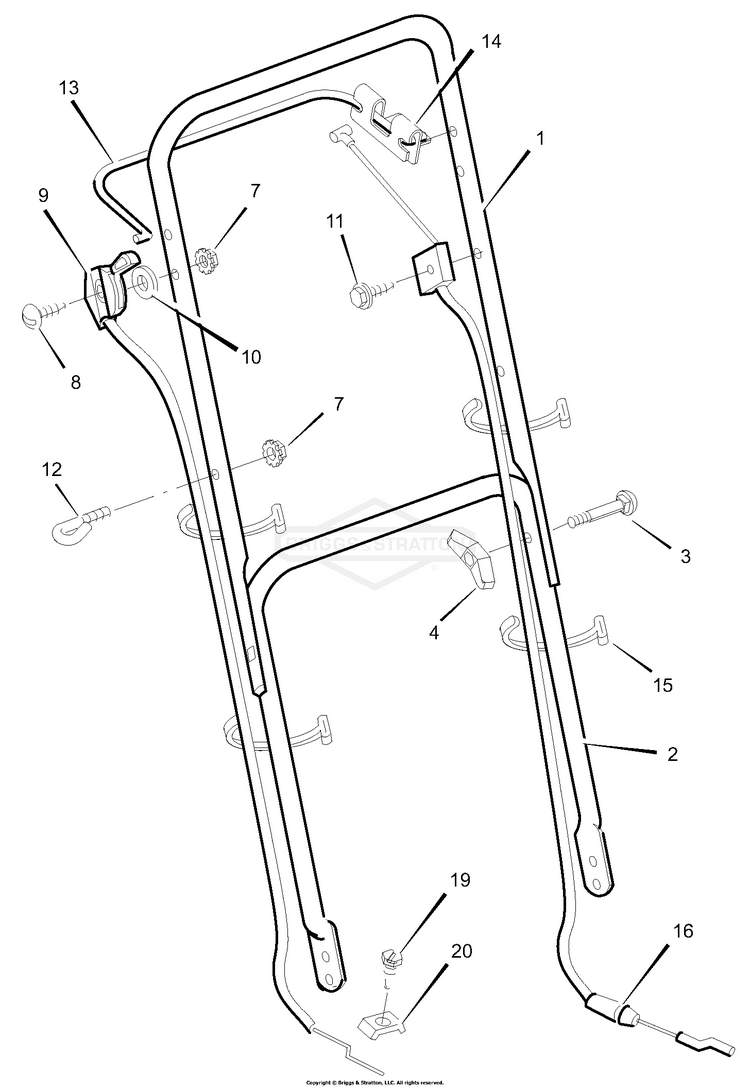

product name

Handle Assembly

...
...
1
Handle, Upper (Black) BS-071359E701
...
2
Handle, Lower (Black) BS-071345E701
...
3
BOLT, CRG .31-18 X 2 BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Screw BS-03X144
...
9
T-CABLE RH-W 21F SE BS-071177MA
...
10
Washer BS-17X188
...
11
SCREW BS-26X220MA
...
12
GUIDE, ROPE BS-043956MA
...
13
Engine Stop Lever BS-071149
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
S-CBL-S 39.00 22P C& BS-043828MA
...
19
SCREW #10 32 NFX 62 BS-26X268MA
...
20
Cable Clamp, Engine BS-042294

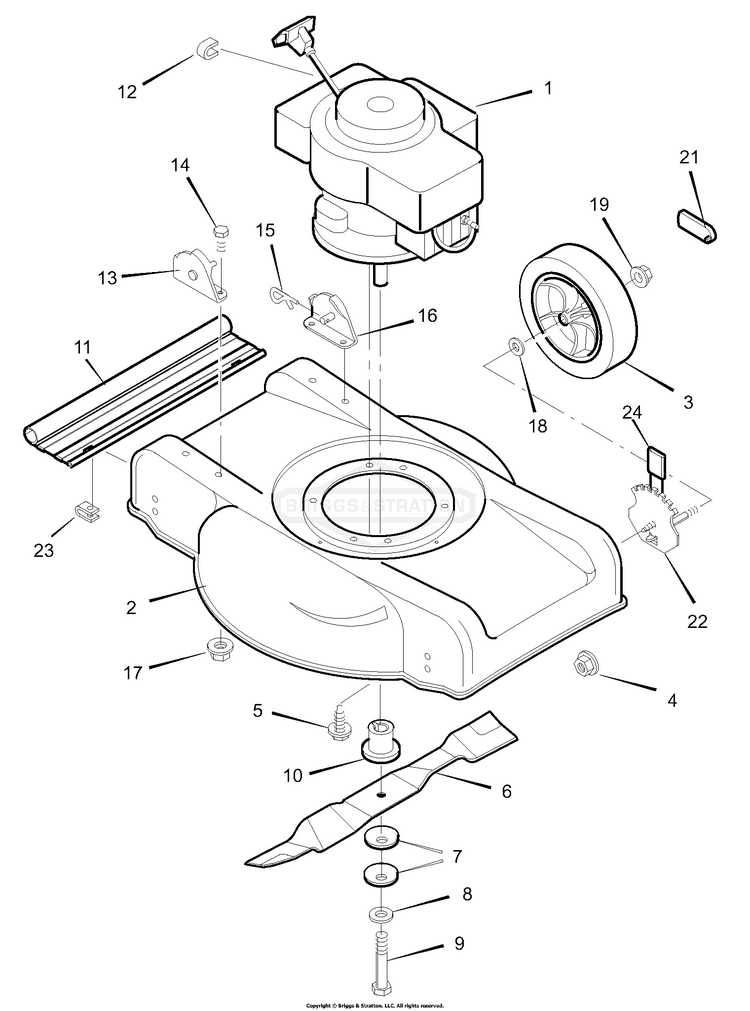

Mower Housing Assembly

...
...
2
Housing, For Folding Handle BS-070137
...
3
8X2.00 WHL BARBB D-GR BS-071134MA
...
4
NUT, 3/8-16 BS-703333
...
5
SCREW, TRI .38-16 X BS-0025X6MA
...
6
SINGLE BLADE BS-071548E701MA
...
7
WASHER.39-2.2 11G FL BS-17X137MA
...
8
WASHER.40.81 16G FLT BS-17X124MA
...
9
BOLT-HEX.37-24X1.50 P BS-01X142MA
...
10
BLADE ADAPTER MULCH BS-071059MA
...
11
Deflector, Rear BS-071527
...
12
CLAMP-ROPE STOP BS-042189MA
...
13
Bracket, Right Handle BS-42712E701
...
14
BOLT,HEX .25 20X0.62 BS-001X38MA
...
15
PIN-HAIR .38D-.062T BS-031X10MA
...
16
Bracket, Left Handle BS-42713E701
...
17
NUT, 1/4-20, GR5 BS-703233
...
18
WASHER,SPRING .52X.99 BS-0020X3MA
...
19
NUT, CNTR LCK, 3/8-16 BS-703893
...
20
HUB CAP-SM. BLK. PLA BS-020107MA
...
21
HUBCAP 8X2 BARBB GRAY BS-043847MA
...
22
HGT ADJ 20/21/22 STD BS-401025MA
...
23
GUARD, RETAINER REAR BS-042743MA
...
24
GRIP-VINYL-75X1.25 BS-043394MA
