product name

204210x30B Murray - Walk-Behind Mower (2004)

Model: 204210x30B

Save Part Not Listed?
product name

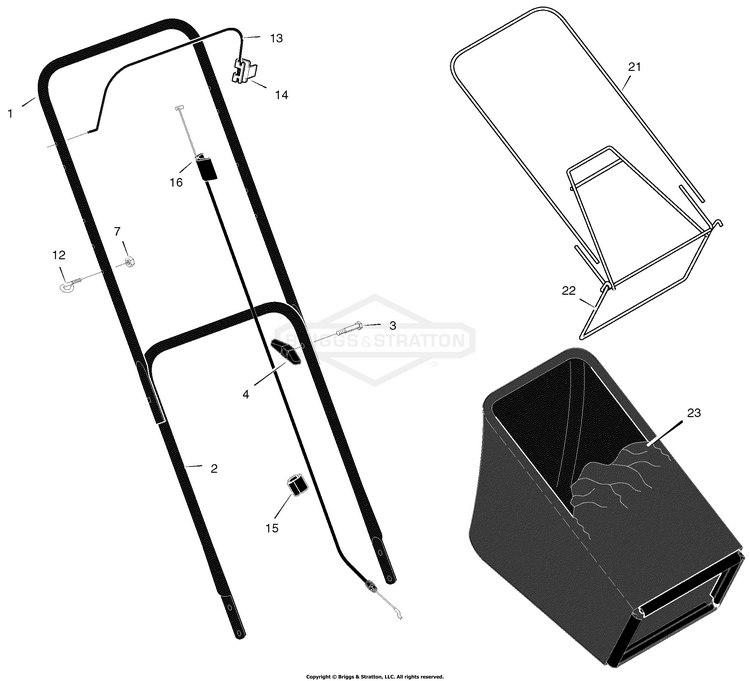

Handle & Bag Assembly

...
...
1
Handle, Upper, Black BS-1101555E701
...
2
Handle, Lower, Black BS-672874E701
...
3
Bolt BS-002X77
...
4
Knob, Plastic BS-71294
...
7
Locknut BS-15X116
...
12
Guide, Rope BS-71530
...
13
Engine Stop Lever BS-671924E701
...
14
Bracket, Stop Lever BS-1101454
...
15
Fastener, Cable BS-1101353
...
16
Engine Stop Cable BS-1101360
...
21
Frame, Top BS-71592
...
22
Frame Assembly BS-672905
...
23
Bag, Cloth BS-1101031

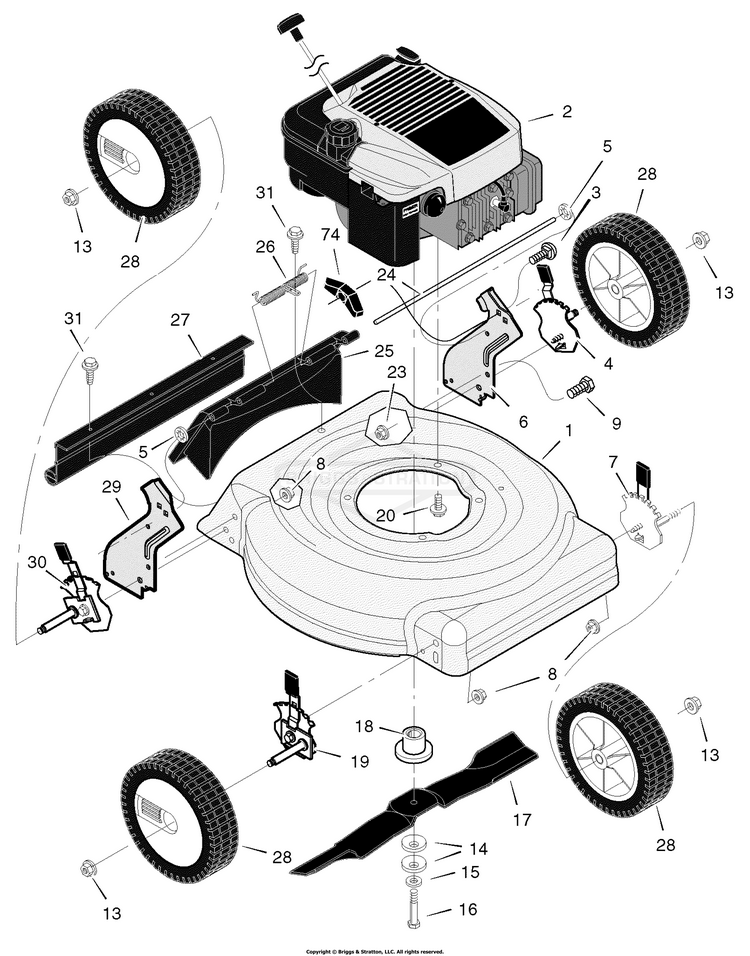

Mower Housing Assembly

...
...
1
Housing BS-776150
...
3
Bolt, Carriage BS-002X81
...
4
Adjuster, Left Rear Height BS-672605
...
5
Push Retainer * BS-028X49
...
6
Bracket, Left Handle BS-1101239E245
...
7
Adjuster, Left Front Height BS-672601
...
8
NUT, 3/8-16 BS-703333
...
9
CAPSCREW,5/16-18X.625 BS-703822
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137
...
15
Washer BS-17X124
...
16
Bolt BS-01X153
...
17
Blade BS-672763E701
...
18
Adapter, Blade BS-672503
...
19
Adjuster, Right Front Height BS-672600
...
20
Bolt, Engine BS-0025X6MA
...
23
Nut, Flange BS-015X79
...
24
Rod, Pivot * BS-215X17 Z
...
25
Door, Rear BS-672610
...
26
Spring (Included with Ref. No. 25) BS-166X44
...
27
Guard, Rear BS-671970
...
28
Wheel BS-672060
...
29
Bracket, Right Handle BS-1101238E245
...
30
Adjuster, Right Rear Height BS-672604
...
31
Screw BS-26X245
...
74
Knob BS-71495
...
--
Instruction Book BS-F-040446L
