Columbia 17AK2ACP597 (2008) 17AK2ACP597 RZT-50 (2008) Z-Series

Model: 17AK2ACP597 (2008) 17AK2ACP597 RZT-50 (2008)

Back To Assemblies
Save
 Don't See Your Part Listed?
product name

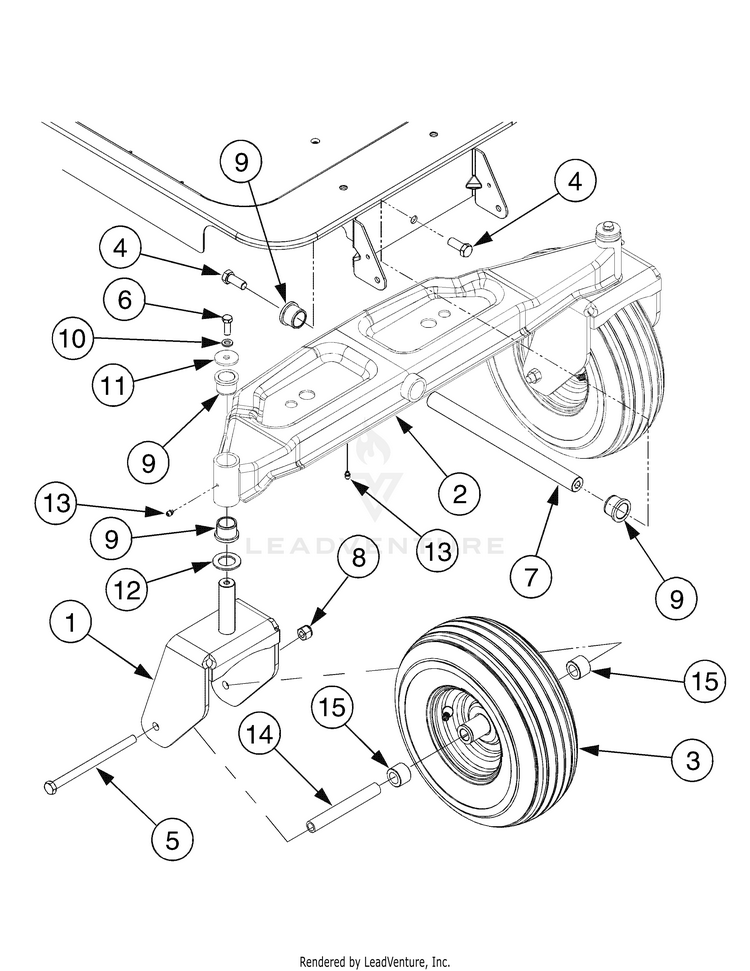

Front Axle & Wheels RZT50

...
...
1
CASTER YOKE *CHOOSE COLOR WHEN ORDERING* MTD-603-04370A
...
2
Axle, Front Pivot *CHOOSE COLOR WHEN ORDERING* MTD-603-04385A
...
3
WHEEL ASSEMBLY (13 x 5-6) (OYSTER-DELI) MTD-634-04321A-0916
...
3
Wheel Assembly 13 x 5-6 Beige *CHOOSE COLOR WHEN ORDERING* MTD-634-04321A
...
3
Tire 13 x 5-6 *CHOOSE COLOR WHEN ORDERING* MTD-734-04255A
...
4
Hex Lock Screw 1/2-13 x 1.25 Gr. 5 MTD-710-04186
...
5
Hex Cap Screw 1/2-20 x 7.25 Gr. 5 MTD-710-04652
...
6
Hex Screw 3/16 x 1.00 MTD-710-0514
...
7
Axle Shaft MTD-911-04228
...
8
Hex Insert Lock Nut 1/2-13 Gr.B MTD-912-3058
...
9
Flange Bearing 1.0 x 1,246 MTD-731-05500
...
10
L-Wash. 3/8" I.D. MTD-736-0169
...
11
Fl-Wash. .39" I.D. x 1.5" O.D. MTD-736-0227
...
12
Flat Washer MTD-736-0250
...
13
Grease Fitting MTD-937-3000
...
14
Spacer .51 x .75 x 5.825 MTD-750-04775A
...
15
Hub .76 x 1.23 x .92 MTD-750-04792
...
xx
Bearing, Flange, .76 ID w/ Lube Fitting (not shown)(Wheel Assembly) MTD-741-0990B
...
xx
Bearing, Flange, .76 x 1.0 x 1.2 (not shown)(Wheel Assembly) MTD-741-0516B
...
...
...
...
