Columbia 17AK2ACP597 (2008) 17AK2ACP597 RZT-50 (2008) Z-Series

Model: 17AK2ACP597 (2008) 17AK2ACP597 RZT-50 (2008)

Back To Assemblies
Save
 Don't See Your Part Listed?
product name

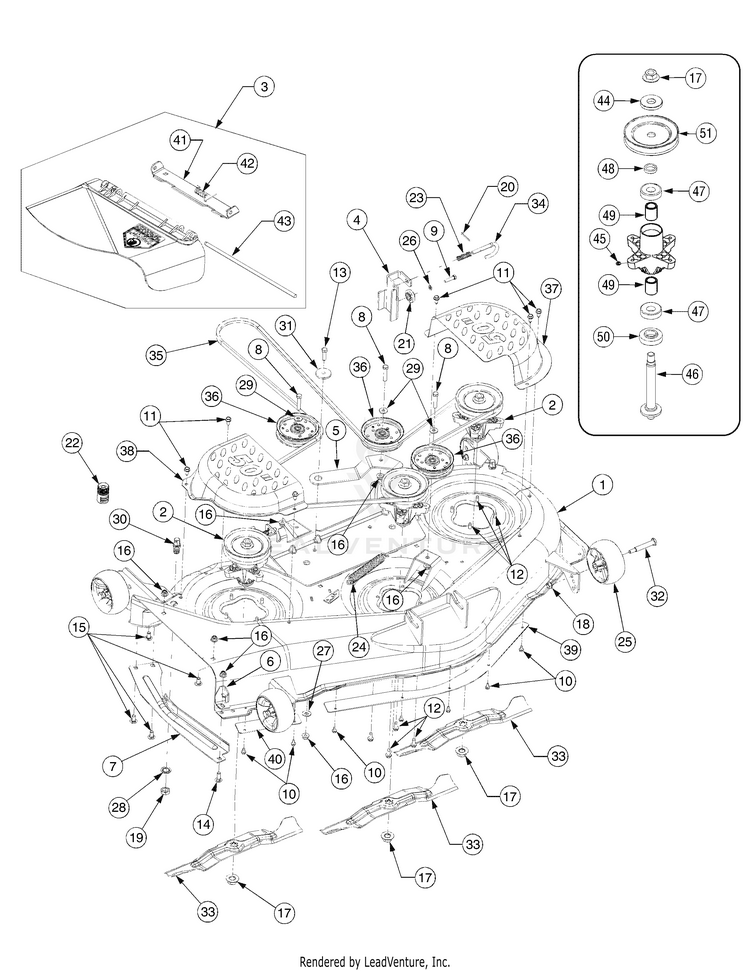

Mower Deck RZT50

...
...
1
50" DECK SHELL MTD-903-04328C
...
2
PULLEY & SPINDLE ASSEMBLY 5.39" W/O FTG MTD-918-04125C
...
3
Chute Assembly MTD-631-04070C
...
4
Deck Adjustment Brack w/Weld Nut *CHOOSE COLOR WHEN ORDERING* MTD-683-0254B
...
5

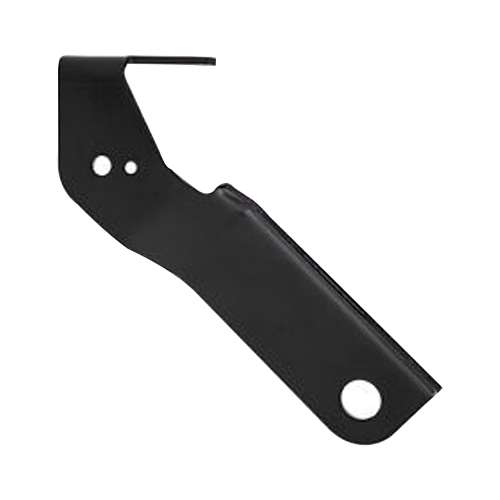

Idler Arm *CHOOSE COLOR WHEN ORDERING* MTD-703-05825B
...
6
Chute Stop Deflector MTD-703-3279
...
7
Guard, Finger MTD-703-3511B-0637
...
8
Hex Screw 3/8-16 x 1.75 MTD-710-0347
...
9
Hex Bolt 5/16-18 x 1.25 MTD-710-0528
...
10
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
11
Hex Wash HD AB Scr 5/16-12 x .75 MTD-710-0726
...
12
Hex Wash. Hd. Scr. 5/16-18 x .75 Lg. MTD-710-1260A
...
13
Hex Bolt 3/8-16 x 1.25 MTD-710-3005
...
14
Carriage Bolt 3/8-16 x 1" Lg. Gr. 5 MTD-710-3168
...
15
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
16
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
17
HEX NUT MTD-712-0417A
...
18
Hex. Flanged L-Nut 3/8-16 Gr. F MTD-912-0431
...
19
Nut, Hex, M16-1.5 MTD-712-0641
...
20
Cotter Pin 1/8" Dia. MTD-714-0470
...
21
Deck Adjustment Gear MTD-917-04074
...
22
Water Nozzle Adaptor MTD-921-04041
...
23
Comp. Spring .531 OD x 1.75 Lg. MTD-932-0306A
...
24
Extension Spring .94 OD x 6.74 MTD-732-0459C
...
25
Deck Wheel 5.0 MTD-734-04155
...
26
L-Wash 5/16 ID MTD-936-0119
...
27
Cupped Washer .45 x 1.0 x .062 MTD-736-0407
...
28
L-Washer Internal MTD-736-0225
...
29
Flat Washer .38 x .93 x .11 MTD-736-3072
...
30
Port, Water MTD-737-04003D
...
31
Shoulder Spacer .884 x .190 MTD-738-04162C
...
32
Shoulder Screw, 1/2 Diameter x 2.5 MTD-938-3056
...
33
Blade 17.9" Lg. MTD-942-04053C
...
34
Deck Release Pin MTD-747-1116
...
35
V-Belt Type A Sec x 134 MTD-954-04044A
...
36
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
37
LH Belt Cover *CHOOSE COLOR WHEN ORDERING* MTD-783-04399
...
38
RH Belt Cover *CHOOSE COLOR WHEN ORDERING* MTD-783-04400
...
39
Deck Skirt Center *CHOOSE COLOR WHEN ORDERING* MTD-783-04414A
...
40
Deck Shirt RH *CHOOSE COLOR WHEN ORDERING* MTD-783-04415
...
41
Chute Mounting Bracket MTD-783-05030
...
42
Torsion Spring MTD-732-04372
...
43
Hinge Pin MTD-711-04565
...
44
Flat Washer .76 ID x 1.5 OD x .12 MTD-736-0315
...
45
Grease Fitting MTD-937-3000
...
46
Spindle Shaft 5.75 Lg. MTD-738-1010A
...
47
BALL BEARING MTD-941-0919B
...
48
Spacer .79 x 1.25 x .175 MTD-748-0160A
...
49
Spacer .080 x 1.10 x 1.322" Lg. MTD-750-1000
...
50
Spacer .79 x 1.82 x .55 MTD-750-1349A
...
51
Spindle Pulley MTD-731-04651
...
...
...
...
