Columbia 17AF2ACP897 ZT50 (2012) Z-Series

Model: 17AF2ACP897 ZT50 (2012)

Back To Assemblies
Save
 Don't See Your Part Listed?
product name

Operator's Platform

...
...
1
Console Bracket Assembly MTD-603-04564-0606
...
2
Seat Frame Assembly MTD-603-04663-0606
...
3

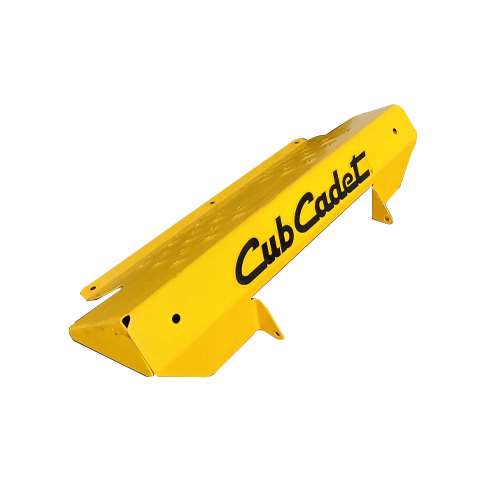

Foot Rest Bracket MTD-703-05373B-0606
...
4
Console Mount Bracket MTD-703-06451-0606
...
5
Fuel Tank Support Bracket MTD-703-06623-0637
...
6
SCREW 5/16-18 x .750 MTD-710-04484
...
7
Hex Washer Screw, 5/16-18 x .625 MTD-710-0604A
...
8
Hex Washer Screw, 1/4-20 x 1.500 MTD-710-0778
...
9
Hex Washer Screw, 1/4-15 x 0.750 MTD-710-0895
...
10
Screw, 5/16-18 x .750 MTD-710-1611B
...
11
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
12
Jam Nut, 1/4-20 MTD-912-0298
...
13
Flange Lock Nut, 5/16-18 MTD-712-04063
...
14
Speed Nut, 1/4-20 MTD-712-04092
...
15
Speed Nut, .3125 MTD-726-0201
...
16
Ratchet Clip, .250 MTD-726-3046
...
17
RH Console MTD-731-06233
...
18
LH Console MTD-731-06263B
...
19
Foot Pad MTD-735-04082C
...
20
Lock Washer, 3/8 MTD-736-0148
...
21
HI BACK SEAT, BLACK (ARM/OPT) MTD-757-05231
...
22
High-Back Seat MTD-757-04090
...
...
...
...
